Retail Racks | Industrial Storage Shelving Systems
A Popular Retail Storage Rack Bill of Material for a Store Opening:
- 8′, 12′, 16′ and 20′ Tall x 24″, 36″, 42″ or 48″ deeep Teardrop uprights. New. 3″ x 3″ steel column. Standard foot plates. Standard Color: Royal Blue/ Vista Green (Custom colors Available).
- 96″ x 4″ Teardrop step beams. New. 5,220 lbs. capacity/pair. 1-5/8″ step. Includes factory installed piston lock. Standard Color: Safety Orange (Custom colors available).
- 24″, 36″, 42″ and 48″ deep x 46″ wide Inside Waterfall Wire Decking. New. 2.5″ x 4.0″ mesh, 6 GA wire. 4 – inverted step channels (16ga), Inside Waterfall (NO WATERFALL leaves beam face clear for labels). Powder Coat Gray Finish (Other colors available).

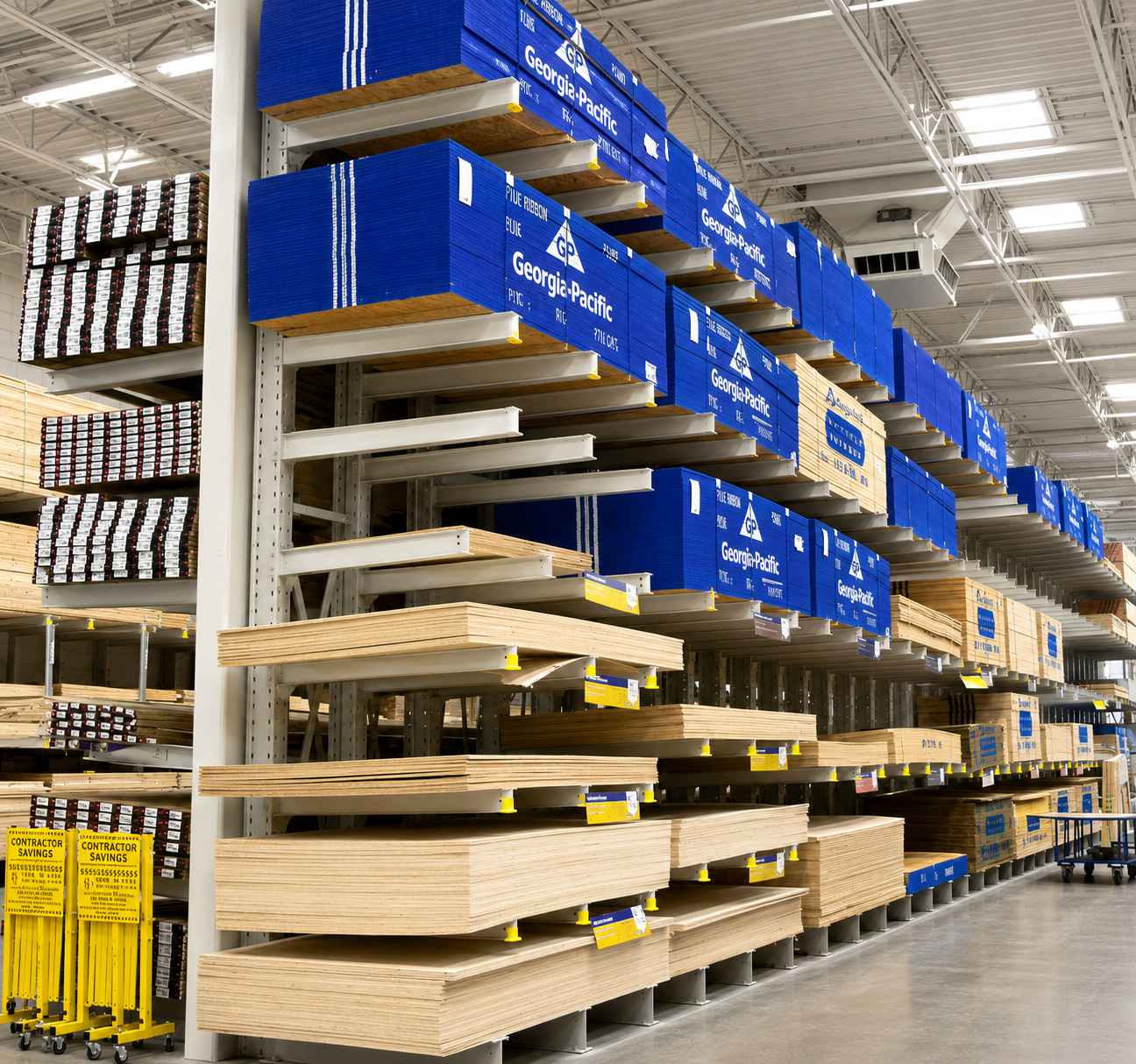

- 16′ h. Single Sided Cantilever Tower. New. Includes 62″ stackable base assembly. Constructed of cold roll formed steel. 6,500 lbs. capacity per side. Standard Color: Gray Enamel (Custom colors available). Weight: 245 LBS. Part Number: SS1662
- 16′ h. Double Sided Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 6,500 lbs. capacity per side. Standard Color: Gray Enamel (Custom colors available). Weight: 410 LBS. Part Number: DS16106
- 48″ long x 4″ h. x 2000 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel (Custom colors available). Weight: 33 LBS. Part Number: XSA48
- 48″ center-to-center Brace Beams. New. Set of 2 horizontals. Used to attach towers together in a row). Weight: 32 LBS. Part Number: B248
- 8’H x 24″ or 48″D Wide Span Upright. New. 1-15/16″ x 2-1/32″ Column. 8489 lbs. capacity at 30″ vertical beam spacing. Standard Colors: Gray or Blue (Custom Colors available).
- 96″ Wide Span Step Beam. New. (ZS-U65) 1433 lbs. cap./pr. Color: Orange. (Use These Beams with Particle Board or flared wire decking). Weight: 12 LBS. Part Number: T0032723
- 48″ Cross Bar Shelf Support. New. Weight: 4 LBS. Part Number: T0042536
- 48″ W. x 36″ D. x 84″ H. Boltless Rivet Shelving. 4 shelves per unit. 700 lbs. capacity per shelf. Includes (1) Shelf Deck Support per Shelf. Includes Particle Board or Flat Wire Decking. Standard Color: Gray. Part Number: B4-4836-84WH
NOTES: Retail Rack. Standard colors: Blue/Green Uprights, Orange Beams In stock, allow est. 1-2 weeks to ship. Custom Colors (including Gray) allow 8-10 weeks to ship. Ships best way pre-paid & add. Freight Class 125. FOB: Chicago, IL 60446, Omaha NE 68788, Atlanta, GA 30297, Dallas, TX 75228 and Los Angeles, CA 92408
Warehouse Rack & Shelf is the preferred retail shelving systems provider to some of the nation’s largest big box home centers!

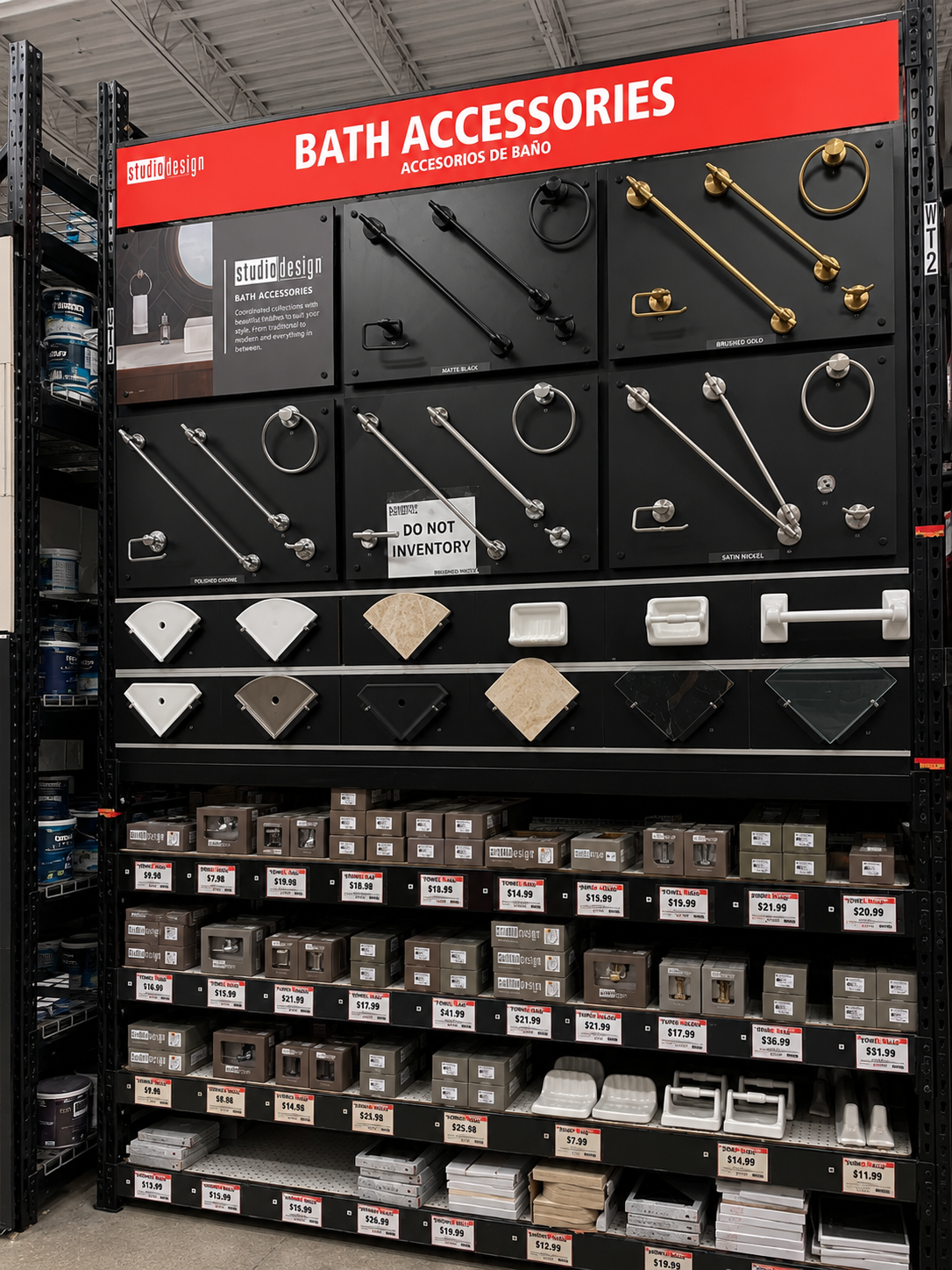

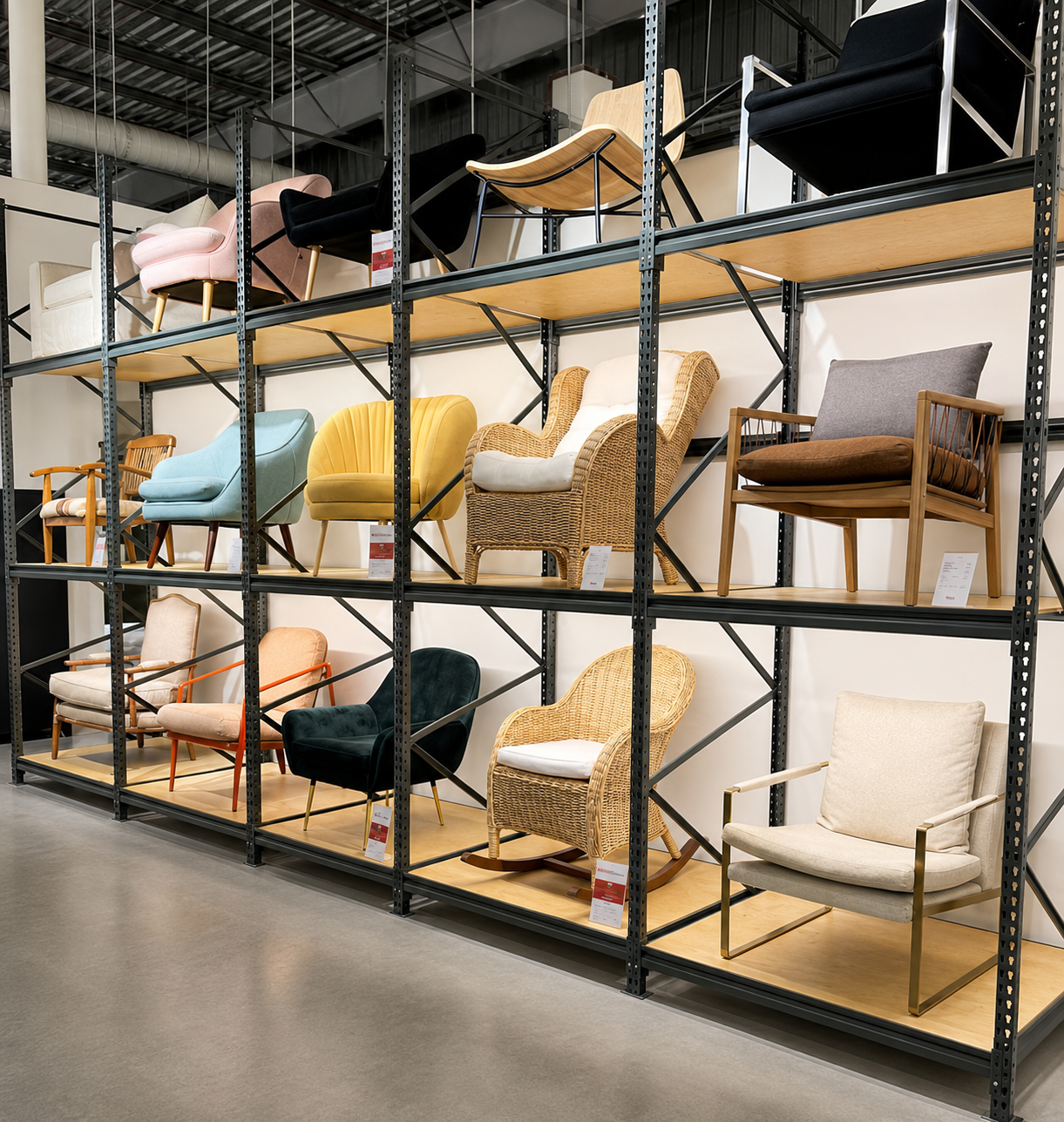

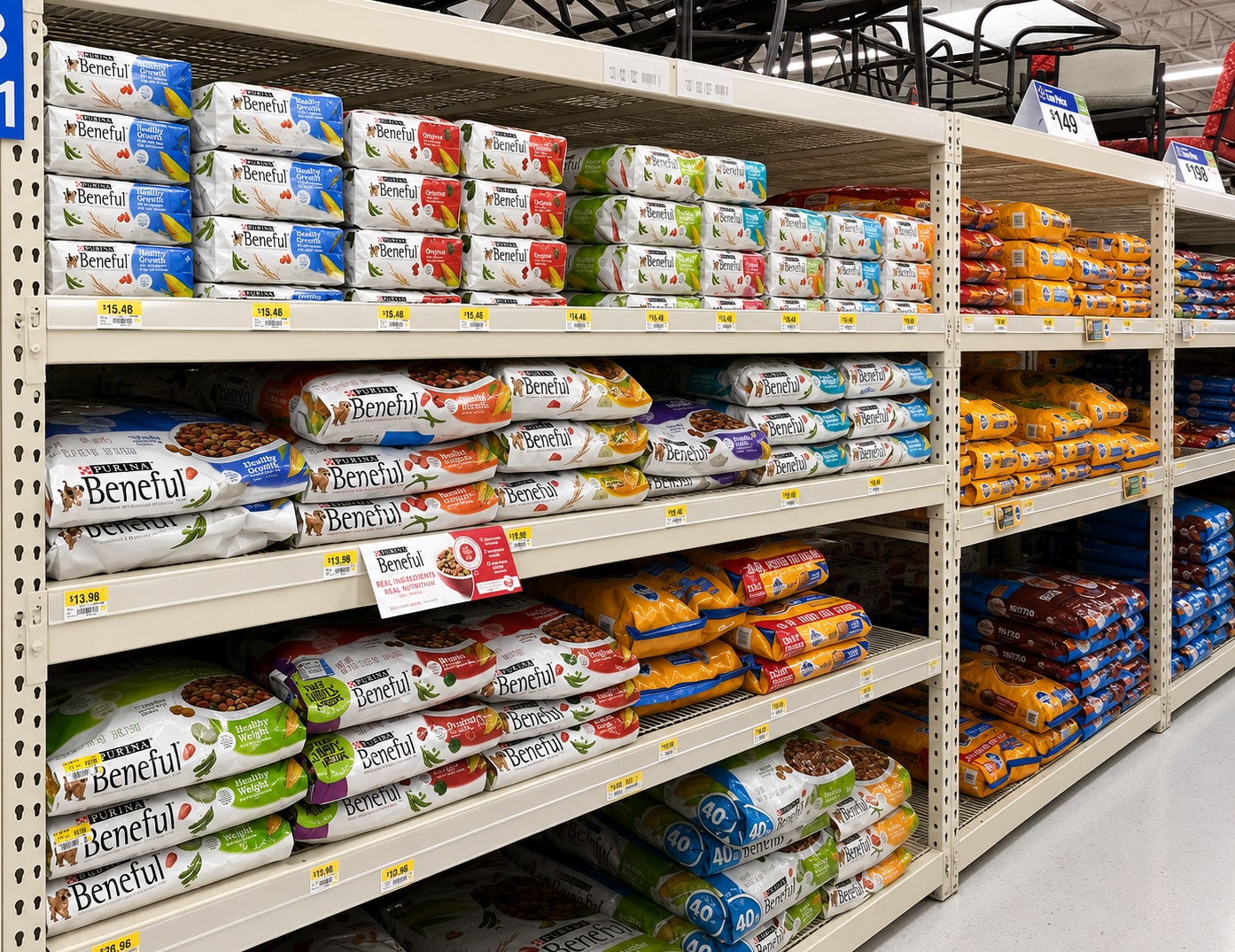

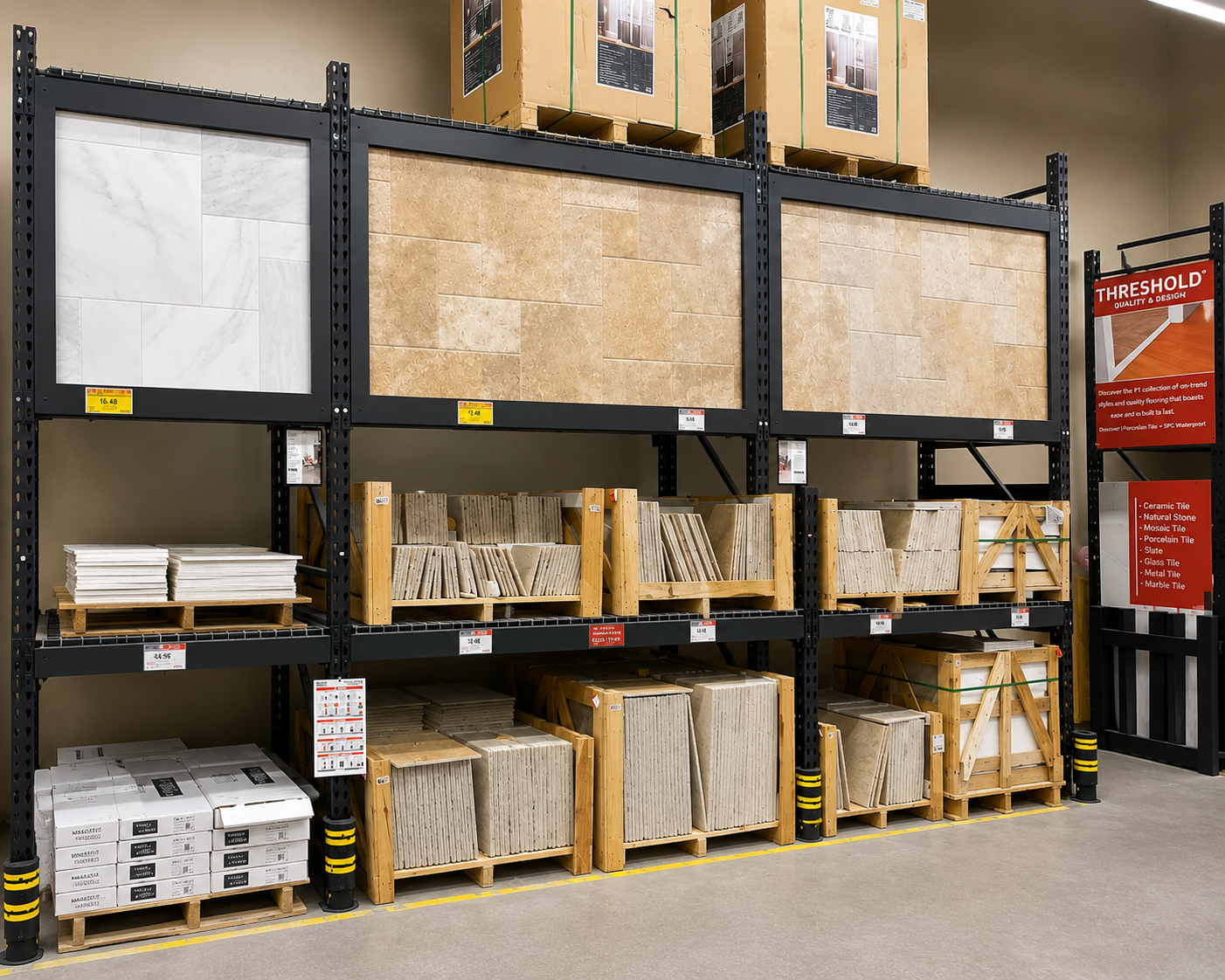

We can provide a combination of retail rack solutions including boltless shelving, steel shelving, widespan shelving, pallet racks (that are commonly found in big box retail stores and home centers), and custom point-of-purchase displays. Open shelving allows for clear visibility of products and easy access. These retail racks can be used in conjunction with aisles to increase storage capacity by 100%, saving 50% of floor space. Multilevel industrial retail shelving is perfect for maximizing storage space.
We also specialize in backroom retail storage shelving that is used to organize and replenish the supply of products on sales floor shelves. We partner with some of the world’s largest retailers to provide low cost efficient backroom retail racks. We’re able to help our customers design a shelving system that meets their needs. We are also able to provide on-time delivery which is so critical when opening new stores.
Our shelving systems provide an industrial look that has become so popular in retail design. Common colors are battleship gray, beige, royal blue, forest green, and safety orange. You will find retail racks in some of the nation’s largest big box stores including Lowes, Home Depot, Sam’s Club & Menards. The primary purpose of store spaces is to stock and sell products. Our industrial retail shelving is designed to promote an enjoyable, hassle-free shopping experience.
