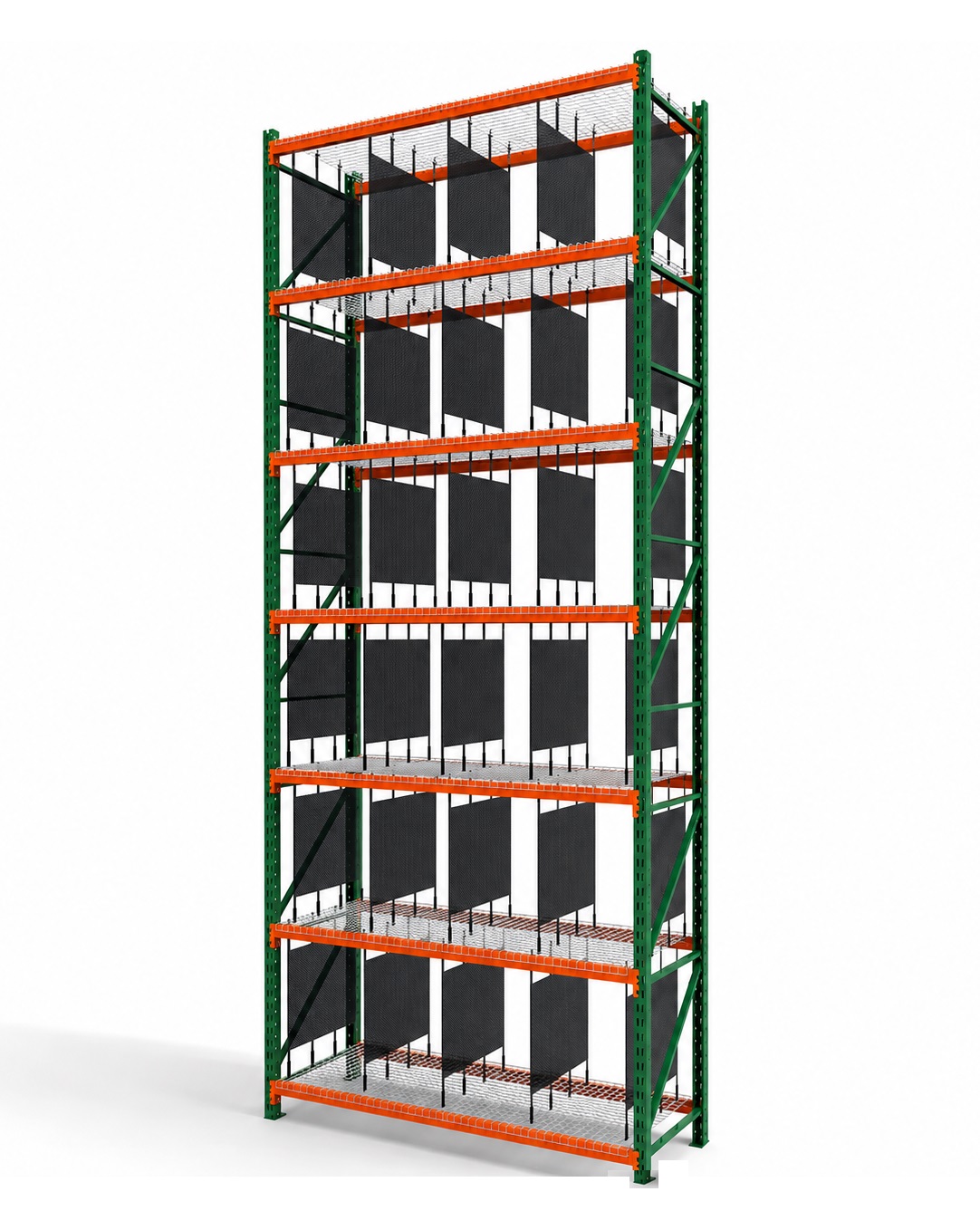

Vinyl Mesh Shelf Dividers for Pallet Rack
Vinyl mesh shelf dividers for pallet racking represent flexible, lightweight partition systems engineered to subdivide shelf bays, define SKU zones, and enforce longitudinal flue space compliance. Constructed from durable, vinyl-coated synthetic netting, these hanging dividers attach directly to upper and lower wire mesh decking levels using adjustable hook-and-loop (Velcro) strap assemblies. Available in both front-to-back shelf partitions and 96-inch left-to-right flue backstops, vinyl mesh dividers replace heavy, rigid steel panels with a non-abrasive, tool-free alternative. Engineered to prevent lightweight cartons and e-commerce packages from shifting, falling, or encroaching into required sprinkler drop zones, these modular accessories improve order-picking accuracy, protect workers from sharp metal edges, and lower freight and installation costs across modern fulfillment hubs.
Left to Right Soft Vinyl Mesh Hanging Backstop Divider for Pallet Rack
Spanning the full 96-inch length of standard pallet rack beams, left-to-right soft vinyl mesh hanging backstops create a continuous protective barrier along the back edge of shelf levels. Installed between back-to-back rack rows or along rear perimeters, these full-length mesh panels prevent lightweight boxes and loose packages from falling into the longitudinal flue space or active forklift aisles. By keeping flue spaces clear of fallen inventory, these dividers help maintain unimpeded vertical draft and sprinkler water penetration during a fire event. Designed for tool-free attachment using high-strength Velcro straps, these lightweight backstops can also serve as central partitions on dual-sided hand-pick shelves, allowing facility managers to separate distinct SKUs on opposite sides of the same rack bay.
Showing all 3 resultsSorted by latest
Left to Right Soft Vinyl Mesh Hanging Backstop Divider for Pallet Rack
Hanging Vinyl Mesh Pallet Rack Shelf Dividers | Fire Rated NFPA 701 Compliant
Front to Back Soft Vinyl Mesh Hanging Shelf Dividers for Pallet Rack
Hanging Vinyl Mesh Pallet Rack Shelf Dividers | Fire Rated NFPA 701 Compliant
Engineered specifically for high-density distribution centers subject to stringent municipal fire codes, fire-rated vinyl mesh pallet rack dividers meet full NFPA 701 flame-propagation compliance standards. Manufactured in a clean white finish, these custom fire-retardant (FR) mesh panels provide full vertical coverage between shelf decks while actively resisting ignition and flame spread. By combining structural SKU organization with certified fire-retardant materials, these dividers satisfy local fire marshal requirements, ensure full compliance with facility insurance policies, and maintain open flue spaces to support automated in-rack sprinkler activation without adding rigid steel weight to the rack structure.
Front to Back Soft Vinyl Mesh Hanging Shelf Dividers for Pallet Rack
Designed to subdivide individual rack bays from front to back, soft vinyl mesh hanging shelf dividers increase SKU density and hand-picking efficiency across manual order-fulfillment zones. Equipped with adjustable Velcro strap closures on all attachment corners, these versatile dividers allow operators to modify panel tension, depth, and vertical drop to match changing beam-level spacing. Unlike traditional rigid steel wire dividers, soft vinyl mesh features no sharp corners or burrs, eliminating hand scratches and sleeve snags for warehouse associates while preventing carton puncture. Compactly packaged for low shipping costs, these dividers offer fast lead times and easy repositioning as inventory profiles evolve.
Frequently Asked Questions
How do NFPA 701 compliant vinyl mesh dividers assist facilities with fire code and insurance compliance?
National Fire Protection Association (NFPA) guidelines require warehouses to maintain clear vertical flue spaces between back-to-back pallet racks so that heat can rise to trigger ceiling sensors and sprinkler water can cascade unobstructed through the rack structure. Traditional solid partitions block water flow, while uncontained boxes can push into the flue and block drainage. NFPA 701 compliant vinyl mesh dividers solve both problems: their fire-retardant synthetic material resists flame ignition, while the permeable mesh holds inventory inside the bay without blocking sprinkler water or air circulation.
What operational advantages do soft vinyl mesh dividers offer over standard rigid steel clip-on wire dividers?
Soft vinyl mesh dividers provide significant ergonomic, structural, and financial advantages over rigid steel dividers. Soft mesh contains no sharp weld points or steel wire ends, preventing hand injuries to order pickers and preventing tears or punctures on cardboard packaging. Adjustable Velcro strap assemblies allow workers to re-space or re-tension dividers instantly across variable beam heights without needing hand tools or unsetting clip hardware. Vinyl mesh panels fold flat and ship compactly in small cartons, resulting in substantially lower freight charges and reduced stockroom storage footprints compared to heavy, bulky steel wire panels.
What is the step-by-step procedure for installing vinyl mesh dividers onto existing wire mesh rack decking?
Installing hanging vinyl mesh dividers requires no drilling, hardware, or tools:
1. Position the top edge of the divider beneath the upper level of wire mesh decking, aligning the integrated straps with the wire grid.
2. Loop the upper Velcro straps through the wire decking channels and pull firmly to secure the top edge in place.
3. Drop the lower portion of the divider down to the lower shelf’s wire decking, feed the bottom straps through the mesh grid, and pull downward to achieve proper vertical panel tension.
4. Fasten the Velcro closures securely and verify that the panel remains taut, straight, and properly aligned from front to back or left to right.
