Structural Rack Bay Configurations

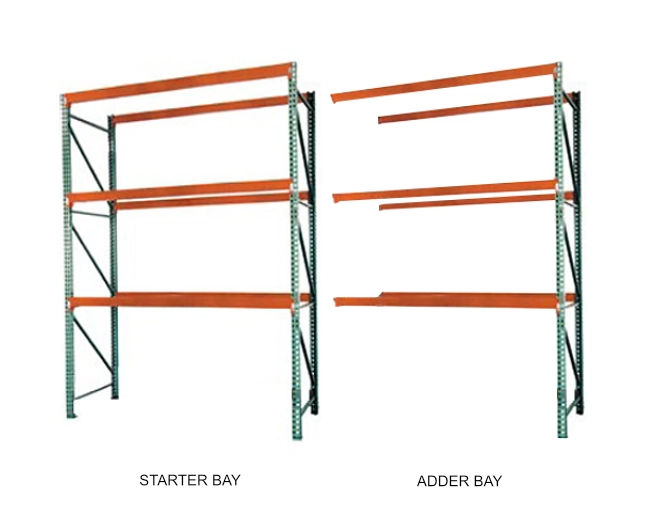

Structural rack bay configurations are storage systems built from hot-rolled C-channel steel. These systems use bolted beam-to-frame connections rather than the connectors used in roll-formed racking. A configuration consists of upright frames and beams organized into starter and adder units to create rows. A starter unit functions as a standalone bay with two frames, while adder units attach to existing frames to extend the row. This design allows facilities to support load capacities for industrial material handling.

An advantage of structural configurations is resistance to forklift impact. The thickness of C-channel steel enables racks to withstand collisions that damage lighter systems. This reduces the frequency of rack repairs and upright replacements. By using structural configurations, warehouses maintain the integrity of the storage system in spaces with vehicle traffic. The bolted connections also prevent beams from dislodging during loading or unloading.

These configurations provide weight capacities and dimensions for pallets, dies, and materials. Because the components use bolts and nuts, the configurations allow for adjustments in shelf spacing and bay widths. This allows for customization based on inventory needs and warehouse layouts. Structural racking is a good choice for storage applications where load capacity is the primary requirement. The strength of the steel supports high-density storage without the need for frequent structural maintenance or reinforcement.

Structural rack configurations are used in food processing, freezers, and outdoor storage. The channel design of the steel prevents debris accumulation and allows for cleaning in wash-down applications. These systems also function in seismic zones due to the bolted construction and floor anchoring. Selecting a structural bay configuration helps operations manage storage density and provides a solution for material handling challenges. These systems work with forklifts, reach trucks, and automated systems to move product through the facility.
