Teardrop Rack Bay Configurations

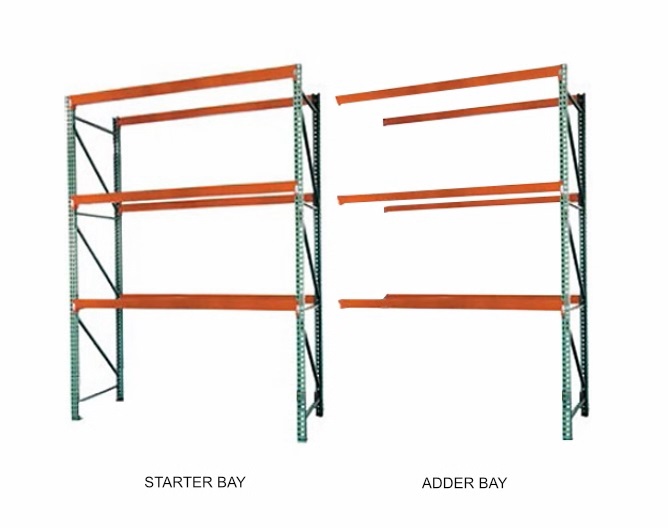

Teardrop rack bay configurations refer to the structural layouts and component arrangements used in teardrop pallet racking systems, named for the teardrop-shaped holes punched into the upright frames. A bay consists of two upright frames connected by horizontal load beams that lock into the teardrop perforations, creating storage levels for palletized goods. These configurations are defined by bay width (the distance between uprights), bay depth (the front-to-back measurement), and the number and height of beam levels within each bay. Teardrop systems are frequently used because of their compatibility and ease of assembly.

Their modular nature provides flexibility in warehouse design and storage capacity planning. Bay widths typically range from 96″ to 240″ to accommodate standard pallet sizes, while depths of 36″, 42″, or 48″ support single or double-deep storage arrangements. Beam levels can be adjusted in 2″ increments along the upright frames to create vertical spacing that matches product heights. This adjustability allows operations to reconfigure storage as inventory profiles change without replacing uprights or purchasing new systems.

Teardrop configurations offer advantages in installation speed and maintenance. Beams lock into teardrop perforations with a drop-and-tap installation method that requires no bolts, clips, or tools, reducing installation labor and allowing for reconfigurations. The standardized teardrop connection pattern means components from different manufacturers are usually interchangeable, providing sourcing flexibility for expansions or repairs. This compatibility reduces lead times for replacement parts and allows facilities to mix components as needed.

Load capacity planning for teardrop bay configurations depends on upright frame ratings, beam capacities, and weight distribution across the structure. Each bay’s capacity is determined by the combined ratings of its beams and frames, with heavier loads requiring closer upright spacing or heavier-gauge components. Proper configuration selection based on pallet weights, dimensions, and forklift access requirements ensures safe storage and compliance with rack capacity guidelines.
