Pallet Rack Repair Kits

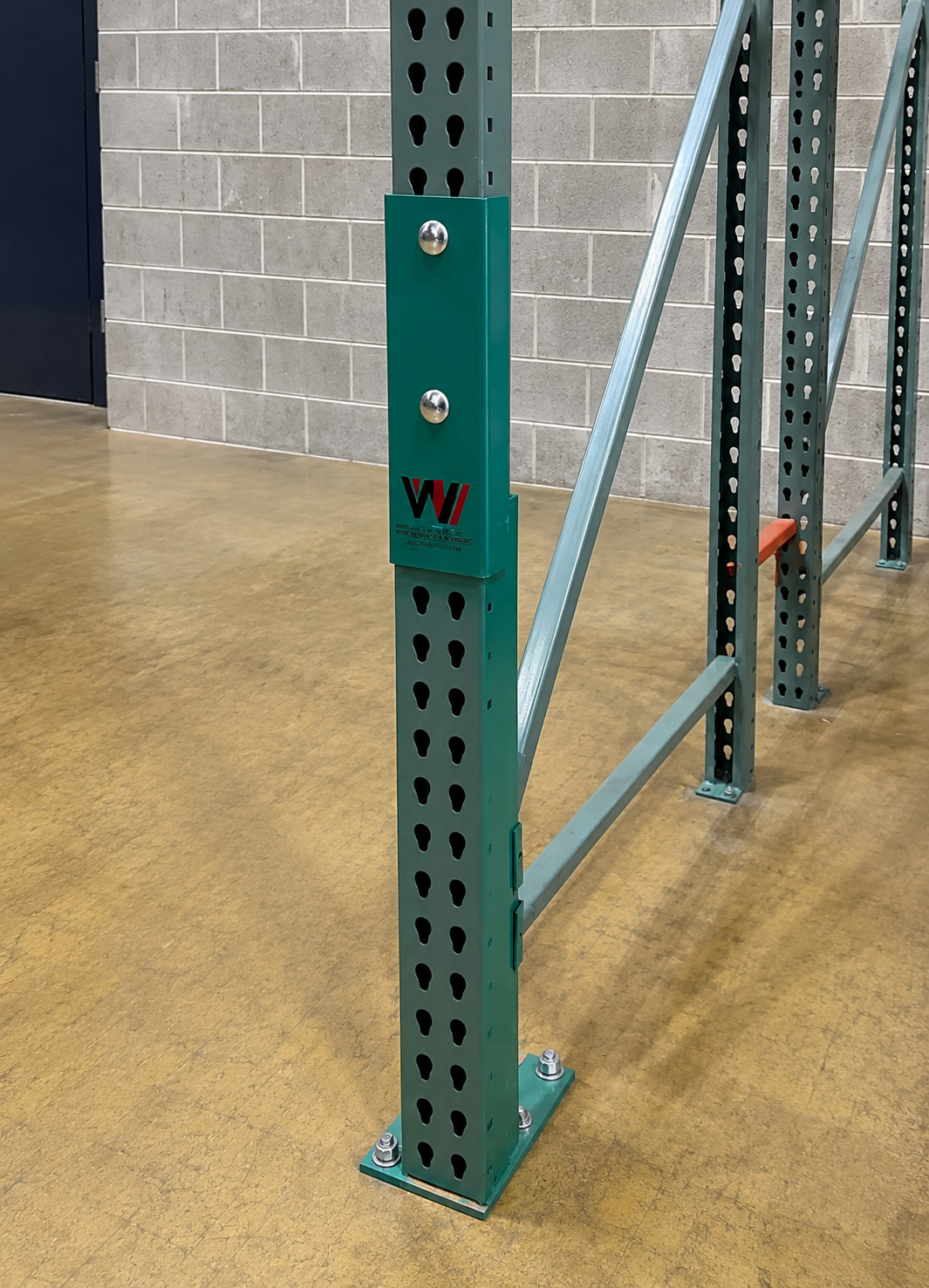

One of the biggest advantages is that you’re repairing the damaged portion rather than automatically replacing an otherwise usable frame. The S-Series is designed for field installation and includes the required repair hardware. A green powder-coat finish provides corrosion resistance while making the repaired section easy to identify during future rack inspections. The correct kit and installation procedure should always be determined from the actual rack style, damage location, and structural requirements.

Sometimes the damage is concentrated right at floor level. The XS Column Repair Kit for 6″ High Repairs is designed for these lower-column applications, providing a compact repair and additional impact protection without requiring a tall replacement section.

The XS kit uses 1/4″ thick steel with a 6″ high repair section, a 12″ V-nose deflector, and a 4″ x 12″ x 5/16″ footplate. The V-nose is a particularly useful feature because it helps deflect future forklift or pallet-jack contact away from the repaired column. Its safety-yellow powder-coat finish also makes the protected area easier for lift-truck operators to see.

Another advantage is the bolt-on design. The system is intended to simplify field installation without requiring the same replacement process as changing an entire upright frame. It is designed for applicable rack frames where the lower strut and damage location are compatible with the 6″ repair. As with any structural rack repair, whether surrounding rack locations must be unloaded or otherwise secured during installation should be determined by the approved repair procedure and qualified installer rather than assumed from the kit alone.

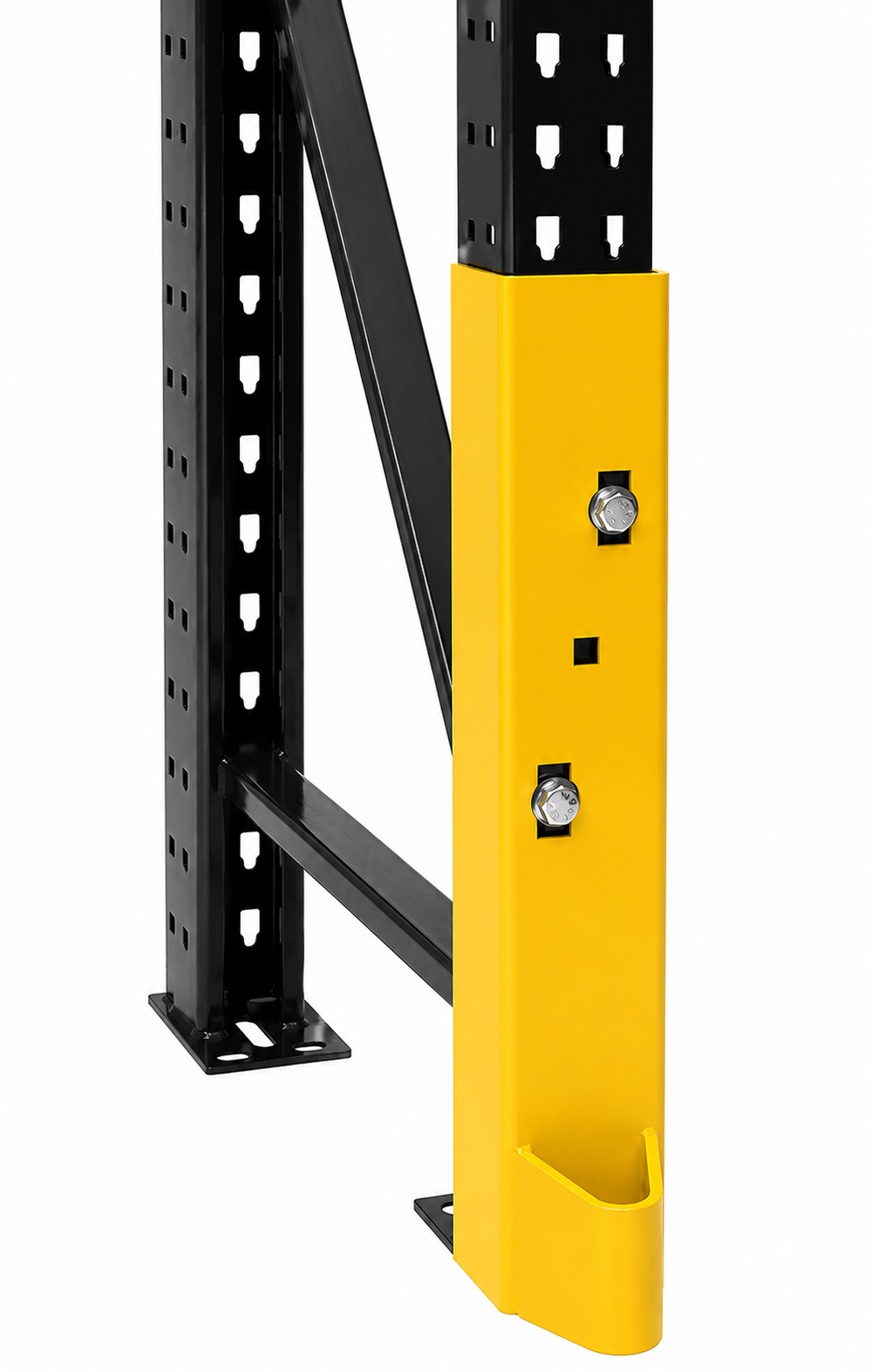

It’s usually less expensive to protect an upright before a forklift hits it than to repair it afterward. Our Bolt-On Column Protector is designed to reinforce the vulnerable lower portion of the pallet rack column and provide additional resistance against everyday lift-truck abuse.

The standard protector is 24″ high and wraps around the upright column, increasing steel thickness around the impact zone. A bull-nose deflector at the bottom helps redirect contact away from the column and incorporates a floor anchoring point. The guard attaches directly to compatible upright columns, creating protection that stays closely positioned against the rack rather than standing several inches away from it.

Standard designs are intended for compatible 3″ column faces and common teardrop rack configurations, with custom sizes available for other applications. Fit should always be verified before ordering or drilling. Modifying an existing structural rack column simply to accommodate a protector should not be done without approval from the rack manufacturer or a qualified rack engineer. Protectors are a smart preventive measure, but they don’t increase the published capacity of the pallet rack or make an already damaged upright acceptable for continued service.

Before deciding which repair kit you need, you first need to know what you’ve actually got. A Pallet Rack Damage Assessment Inspection Report identifies visible rack damage throughout a facility and helps determine which locations may be candidates for rack repair.

Warehouse Rack & Shelf LLC can provide experienced crews to walk warehouse aisles, identify damaged rack locations, prepare a location list, and develop a quotation for appropriate repair kits and installation. This service is focused specifically on rack damage and repair. It isn’t intended to establish or certify the load capacity of an existing rack system. Capacity questions should be directed to the original rack manufacturer or a qualified engineer experienced with pallet rack systems.

For larger facilities with numerous damaged uprights, an organized damage assessment can make the repair process considerably easier. Instead of dealing with damage one upright at a time, the facility gets a clearer picture of where repairs are needed and can develop a coordinated repair plan. Inspection availability, travel costs, and project economics depend on facility size, location, and the number of damaged uprights.

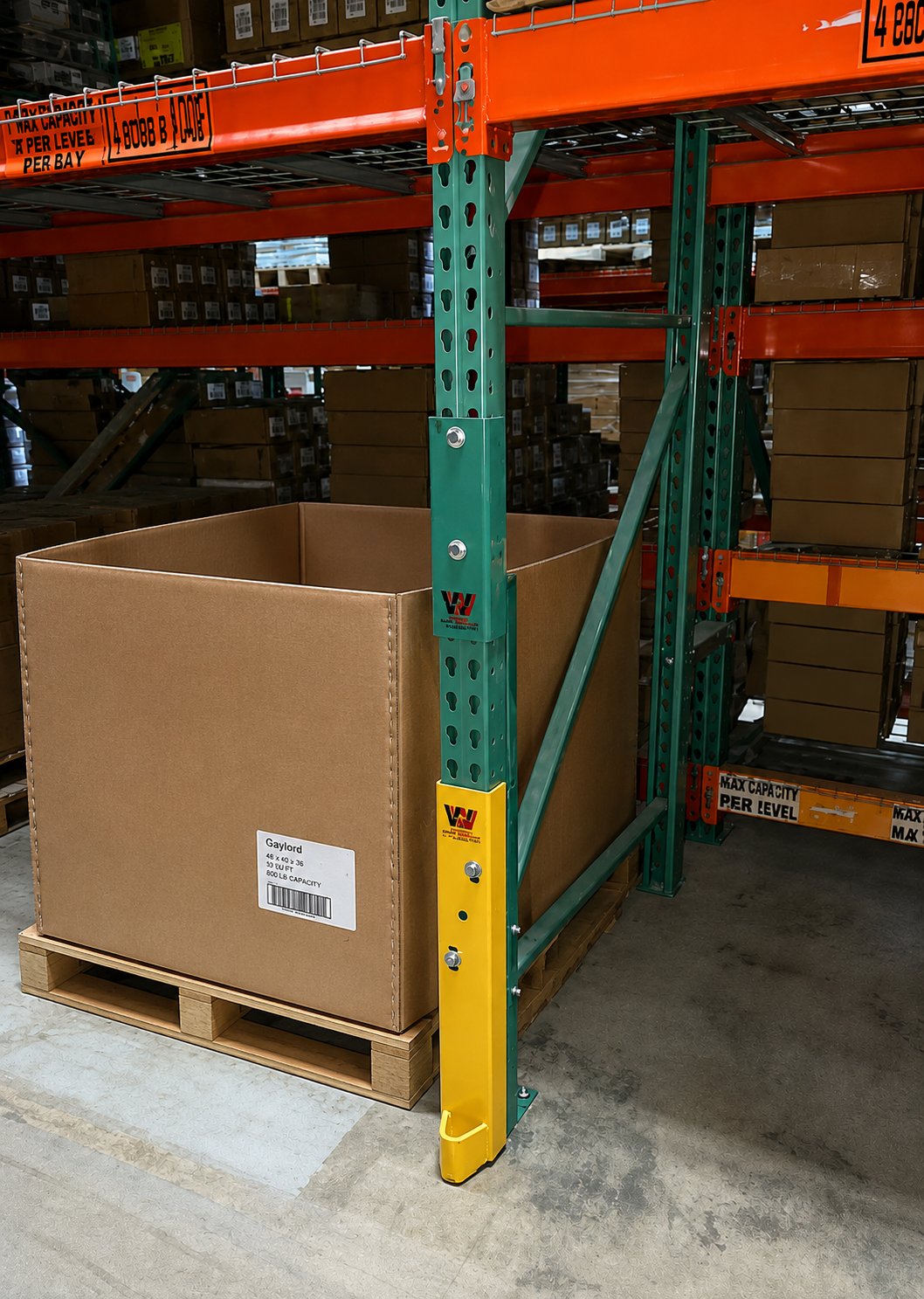

Pallet Rack Repair Kits provide an alternative to the traditional process of replacing a complete damaged upright frame. With conventional replacement, products may need to be removed, beams disassembled, the damaged frame removed, a new frame installed, and the rack rebuilt and reloaded. When damage is limited to an area that qualifies for an engineered repair, replacing only the affected lower section can reduce labor, material, and operational disruption.

Warehouse Rack & Shelf offers repair solutions for several common rack styles, including Interlake, teardrop, Keystone, UNARCO T-Bolt, and Ridg-U-Rak slotted systems. Repair sections are available in different heights because forklift damage doesn’t always stop at the same point. Some impacts affect only the base of the front column, while others extend higher or involve bracing that also needs to be evaluated.

The important thing is not to treat every bent upright the same way. Rack damage can involve columns, footplates, anchors, horizontal struts, diagonal bracing, beam connections, or several components at once. The repair needs to address the actual damage and maintain the intended structural load path. That’s why inspection and correct kit selection are just as important as the repair component itself.

For facilities with multiple damaged uprights, professional installation can also reduce downtime and help maintain consistency from one repair location to the next. Once repaired, the rack should remain part of the facility’s regular inspection program. And if forklifts repeatedly hit the same locations, consider adding column protection, end-of-aisle protection, or other preventive measures. Repairing the damage is good. Preventing the next impact is even better.

Frequently Asked Questions About Pallet Rack Repair Kits

How do I know whether to repair a damaged upright or replace the entire frame?

Start with a damage assessment. The location and extent of the damage, rack manufacturer and style, bracing condition, anchors, footplate, beam connections, and overall frame condition all matter. Some lower-column damage may be suitable for an engineered repair kit, while more extensive damage may require a different repair or complete frame replacement. Don’t select a kit based only on the height of the visible dent.

Can Pallet Rack Repair Kits be installed while the rack is loaded?

That depends on the repair system, damage, rack configuration, loads, and approved installation procedure. Specialized rack-repair equipment may allow certain repairs to be performed with less unloading than conventional frame replacement, but that doesn’t mean every damaged rack can safely remain loaded during repair. Follow the repair manufacturer’s installation procedure and the requirements of the qualified installer or engineer responsible for the repair.

What maintenance should repaired pallet rack receive?

Repaired uprights should be included in the same regular inspection program as the rest of the rack system. Look for new forklift impacts, bending, twisting, damaged welds, loose or missing anchors, damaged bracing, beam-connection problems, and movement around the repaired area. Column protectors and V-nose deflectors should also be inspected because repeated impacts can eventually damage the protective components themselves.

Are there standards or general requirements for pallet rack repairs?

Pallet rack repairs shouldn’t be treated as ordinary field fabrication. Rack configuration, load capacity, anchorage, structural integrity, and the repair design all need to be considered. Applicable requirements can depend on the rack system, facility, jurisdiction, and adopted building and industry standards. Repairs should follow the repair system manufacturer’s instructions and, where required, be reviewed by the original rack manufacturer or a qualified rack engineer. Facility safety personnel, insurers, and local building authorities may also have requirements that apply to a particular installation.
