Battery Handling Equipment

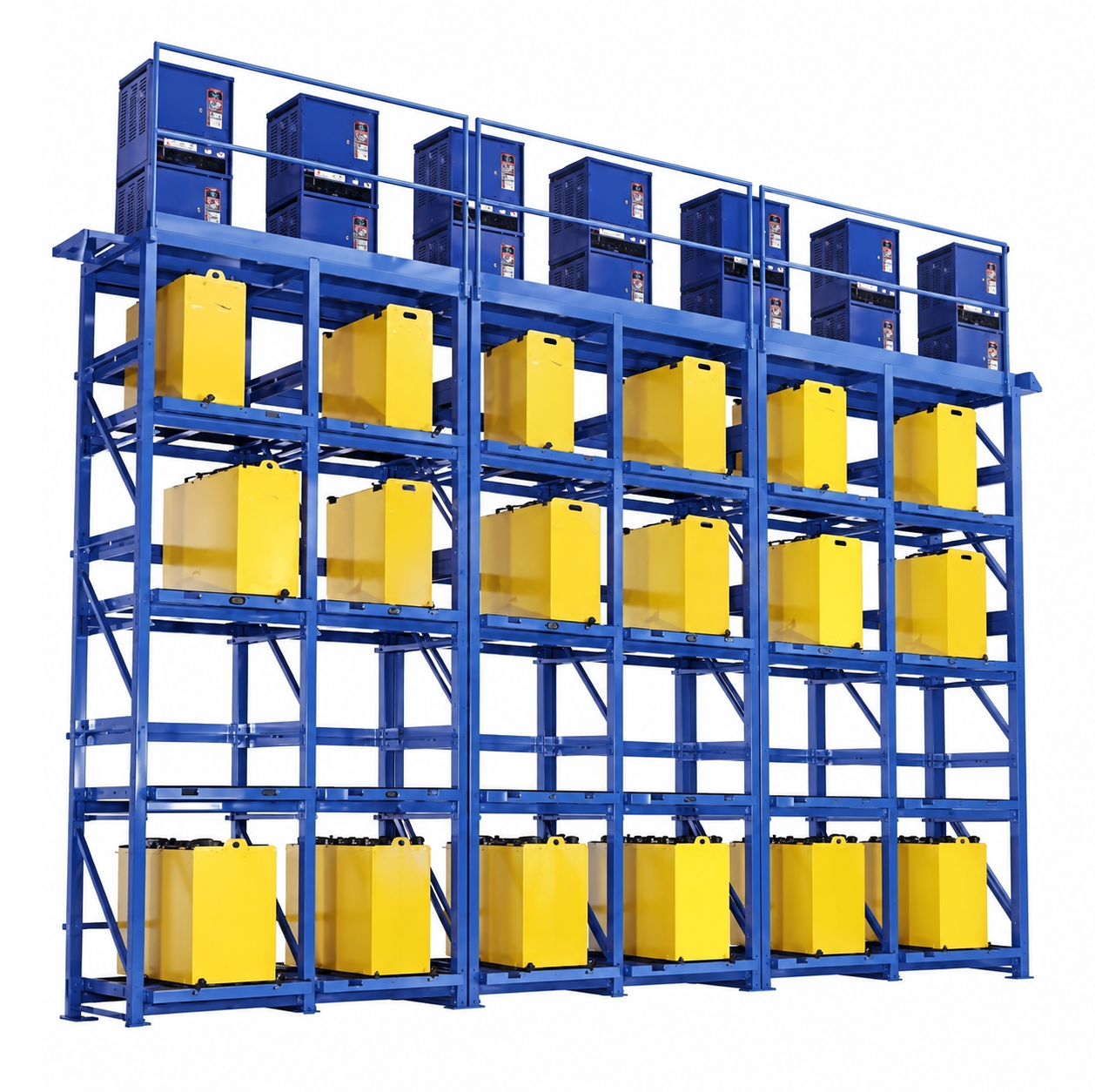

Our Triple-Stack Forklift Battery Storage Rack System maximizes vertical space in warehouses and battery rooms with a three-level, welded steel frame finished in scratch- and rust-resistant powder coat. Anchored feet and slightly tilted compartments with flip-up safety stops secure heavy batteries while allowing easy access. Each bay includes six spark-resistant, poly-sleeved rollers on hitch-pin axles for smooth side swaps; standard depth is 40 inches, with backstops or extensions available. Standard widths range from 15” to 48” and frames from 38” to 109”, featuring built-in charger holes, anchoring slots, and cable routing. Custom configurations match specific battery sizes and swap requirements.
Customizable storage and charging setups include catwalks, ladders, safety rails, stainless steel drip pans, polyethylene rollers (46”, 48”, 50”), rubber backstops, sliding connector kits, charger mounts, and deeper compartments. Paired with multi-level gear, they maximize vertical space for efficient organization.
Triple Stack Battery Extractors (BE-TS) streamline high-volume swaps for fleets of 150–299 batteries. Operator-aboard units reach three levels, using heavy-duty steel, dual beds, hydraulic rollers, twin chrome-hardened shafts with four-point bearings, and a sub-second vacuum grip to reduce wear. Built for industrial use, the BE-TS features four hydraulic cylinders with equalization, independent drive wheels, powered rollers, and a 10,000-lb capacity for smooth handling.
Showing all 6 resultsSorted by latest
Triple-Stack Forklift Battery Storage Rack System | Battery Room Storage
Triple Stack Battery Extractors (BE-TS) | Forklift Battery Handling Equipment
Battery Flow Through Racks | Forklift Battery Storage (FTR-C-4134)
Battery Stands | Forklift Battery Storage & Roller Stands
Automatic Transfer Carriage (ATC) | Forklift Battery Handling Equipment
Automotive Battery Flow Rack
Triple Stack Battery Extractors (BE-TS) prioritize comfort and safety with easy controls, condition monitoring, proximity sensing, system alerts, and an induction switch that pauses arm movement beyond the compartment. Optional features include audible alarms, blue lights, horns, strobes, shields, overhead guards, powered stops, and safety scanners. With three widths, vertical storage, and options like electric drives, extended arms, magnetic extraction, level-assist indicators, onboard watering, and comfort upgrades, the BE-TS adapts to any layout—warehouses, distribution centers, manufacturing plants, and large forklift fleets.

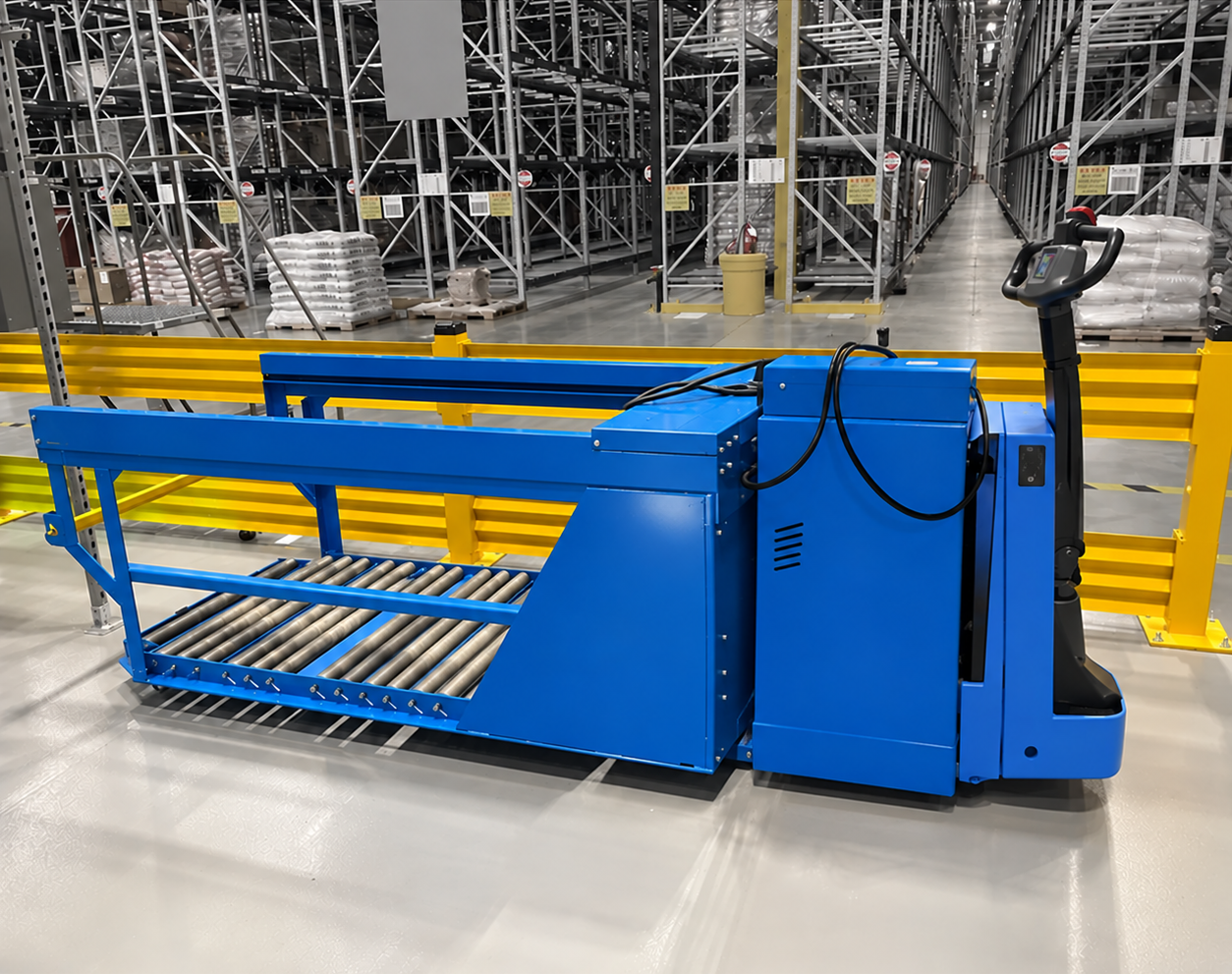

Automatic Transfer Carriage (ATC) | Forklift Battery Handling Equipment
The ATC automates battery removal, installation, and transfer in warehouses, distribution centers, manufacturing plants, and cold storage, reducing strain and risk. Models ATC-24, ATC-30, ATC-36, and ATC-42 handle diverse battery sizes and weights across lift truck setups.
The ATC-24, ATC-30, and ATC-36 support up to 4,000 lbs.; the ATC-42 handles 5,000 lbs. Battery widths range from 23″ to 41″, all models accommodate lengths up to 41″ and a 34″ height. A 3″ base-to-roller height and 2.4″ rollers (24.5″–42.5″ wide) ease movement; standard length is 62.75″, with CAN-7 and CAN-14 extensions available. Each unit includes a gear-type hydraulic pump, 12/24V DC system, #50 drive chain, and 2:1 reduction; the extractor arm reaches 24 ft./min. A hook-and-chain attachment is standard; magnet or vacuum options are optional. Select by width and capacity for future flexibility; powered extraction, compact design, and flexible attachments improve efficiency and reduce physical strain.
