Flue Space Shelf Dividers

U-Dividers for Pallet Rack | Transverse Pallet Rack Flue Spacers

Front-to-back U-Dividers attach directly to the vertical upright frames of a selective pallet rack system rather than the horizontal load beams, establishing a fixed physical barrier within the transverse (side-to-side) flue space. By bolting securely to factory frame punches or mounting with Tek screws, these U-shaped steel spacers prevent pallets from leaning or sliding sideways into the column gap between adjacent bays.

By enforcing a uniform 3-inch transverse flue clearance, U-Dividers ensure overhead sprinkler systems operate at peak capacity during an emergency. Offered by Warehouse Rack & Shelf LLC, these frame-mounted spacers provide an essential line of defense for facilities facing strict municipal inspections, helping logistics operations eliminate fire code violations and maintain clean, standardized pallet lanes.

Regular vs. Heavy-Duty Single Pallet Stops | Longitudinal Flue Space Protectors

Single pallet safety stops are specialized longitudinal flue space protectors installed on single-row rack runs positioned along facility perimeter walls or adjacent to active pedestrian walkways. Standard single stops provide dependable, low-cost protection for lighter hand-loaded or carefully placed palletized inventory, keeping material from pushing past the rear beam ledge.

For high-traffic fulfillment centers and heavy-load staging areas, heavy-duty single pallet stops feature reinforced steel gussets designed to absorb severe forklift impacts. Both styles mount quickly with Tek screws, but the heavy-duty gusseted variant offers maximum impact resistance against bent frames and broken welds, protecting wall structures and personnel while holding the mandatory 6-inch longitudinal flue gap open.

Importance of Longitudinal Flue Space Dividers in Pallet Rack for Fire Safety

The WorldStop pallet safety stop, manufactured by Worldwide Material Handling and distributed by Warehouse Rack & Shelf LLC, represents a premium, robotically welded solution for double-row, back-to-back rack setups. Featuring a rigid, low-profile 5-inch steel face, the WorldStop mounts directly to horizontal load beams to stop over-travel without encroaching on usable storage height or damaging low-hanging product.

Pre-punched with TEK screw mounting holes and built-in wire decking clearance slots, WorldStops can be retrofitted onto existing beam levels without unsetting current shelf decks. By forcing forklift drivers to align pallets uniformly every time, these heavy-duty stops guarantee a 6-inch longitudinal flue opening that meets or exceeds NFPA 13 regulations and International Building Codes.

Pallet Lane Dividers | Pallet Rack Transverse Flue Space Shelf Dividers

Pallet lane dividers are heavy-duty steel shelf separators engineered to run front-to-back across industrial pallet rack bays outfitted with punched corrugated steel decking. Operating as physical lane guides, these dividers create distinct storage slots that keep adjacent pallets spaced at safe, predictable intervals across wide-span shelves.

Designed in strict compliance with Rack Manufacturers Institute (RMI) guidelines and NFPA 13 sprinkler standards, pallet lane dividers turn open corrugated decks into neatly organized storage bays. They prevent pallet drift, streamline forklift placement in high-bay racks, and ensure that dense palletized inventory never blocks critical vertical air currents.

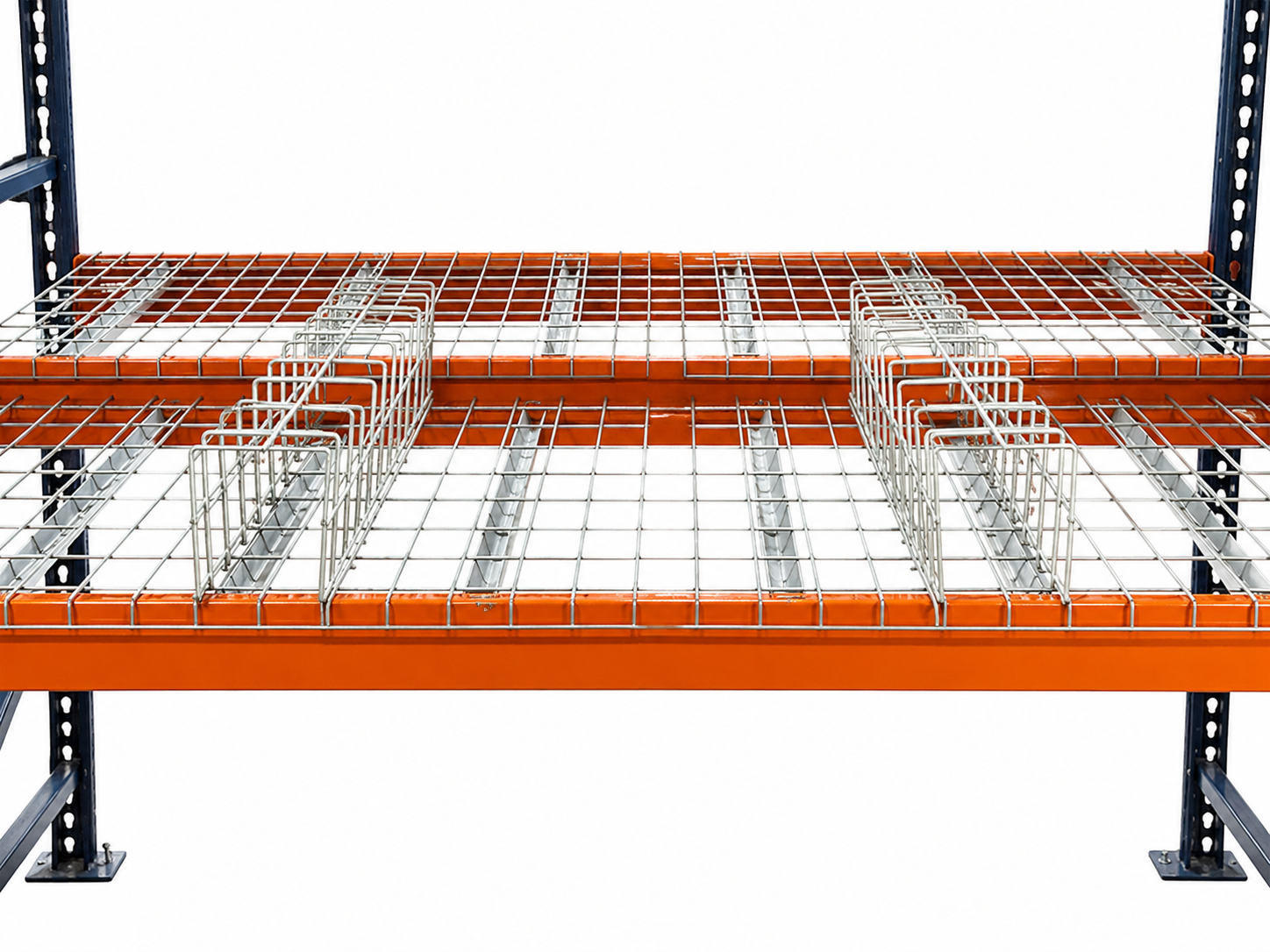

Pallet Racking Flue Space Shelf Dividers

Engineered specifically for hand-stacked boxes and loose carton storage rather than heavy pallets, wire mesh flue space dividers clip directly into existing wire decking panels. These lightweight, rigid wire dividers create a consistent 4-inch transverse flue gap between rows of boxed goods while subdividing wide shelves into dedicated SKU picking lanes.

Featuring tool-free compression clips and boltless beam connectors, wire shelf dividers can be repositioned instantly as inventory dimensions change. They significantly reduce warehouse housekeeping labor, prevent loose packages from tumbling into rear aisles, and satisfy local building inspector guidelines under the International Fire Code.

Pallet Load Stop Beams Protect Horizontal Flue Space

Pallet load stop beams are heavy-duty horizontal steel beams mounted behind the main rack level via 4-inch to 6-inch offset brackets. Because standard pallets require a 3-inch overhang past the front and rear step beams for balanced weight distribution, the offset bracket holds the backstop beam far enough back to allow proper seating while halting excessive rearward movement.

These backstop assemblies serve as the centerpiece of any warehouse push-through prevention program, particularly along single rack runs next to office spaces, assembly lines, or packing stations. They provide an unyielding physical stop that stops runaway pallets from crashing through drywall or falling into active work zones.

Frequently Asked Questions

How do facility managers determine whether to install frame-mounted U-Dividers or beam-mounted safety stops?

Selection depends on which flue space dimension you need to protect. Frame-mounted U-Dividers attach to the vertical uprights to control the transverse (side-to-side) flue space between pallets stored on the same beam level. Beam-mounted safety stops (like the WorldStop or offset load stop beams) attach to horizontal load beams or rear posts to control the longitudinal (front-to-back) flue space between back-to-back rack rows or behind single-row wall runs. For full NFPA compliance, facilities often use both in tandem.

What is the standard installation procedure for retrofitting WorldStop flue space protectors onto existing rack bays?

WorldStop protectors feature built-in deck clearance slots, meaning you do not need to dismantle or lift existing wire mesh decking:

1. 1. Slide the WorldStop base plate under the rear edge of the wire decking so the clearance slot slides over the wire grid.
2. 2. Align the pre-punched mounting holes flush against the top or side face of the horizontal load beam.
3. 3. Secure the stop directly into the steel beam using the provided heavy-duty Tek self-drilling screws.
4. 4. Verify that the 5-inch vertical stop face sits square to ensure even contact with incoming pallets.


What routine product maintenance and safety inspection steps should be performed on flue space dividers?

While flue space accessories require minimal upkeep, warehouse safety teams should include them in routine monthly rack inspections. Inspect pallet stops and U-Dividers for visible bending, cracked welds, or structural distortion caused by severe forklift impacts. Replace bent stops immediately. Check that Tek screws and mounting bolts remain tight and fully seated against the frame or beam. Walk the rack aisles to verify that stored goods are resting against the stops properly and that no loose shrink-wrap, broken pallet wood, or stray cartons are protruding into the 3-inch to 6-inch flue gap.
