Cantilever Rack Features

The range of available cantilever rack features provides storage solutions tailored to specific operational needs such as storing pipe and conduit in a manufacturing facility, lumber and sheet goods in a building supply operation, or furniture and fixtures in a distribution center.

Cantilever rack structural components and design options define how a cantilever rack system is configured and used. The core components include vertical uprights, horizontal arms, brace sets, and bases that work together to create an open-front storage system for long, bulky, or irregularly shaped materials. Each feature plays a role in determining the rack’s load capacity and suitability for specific applications. Understanding these features helps facilities select the right configuration for their storage requirements and handling equipment.

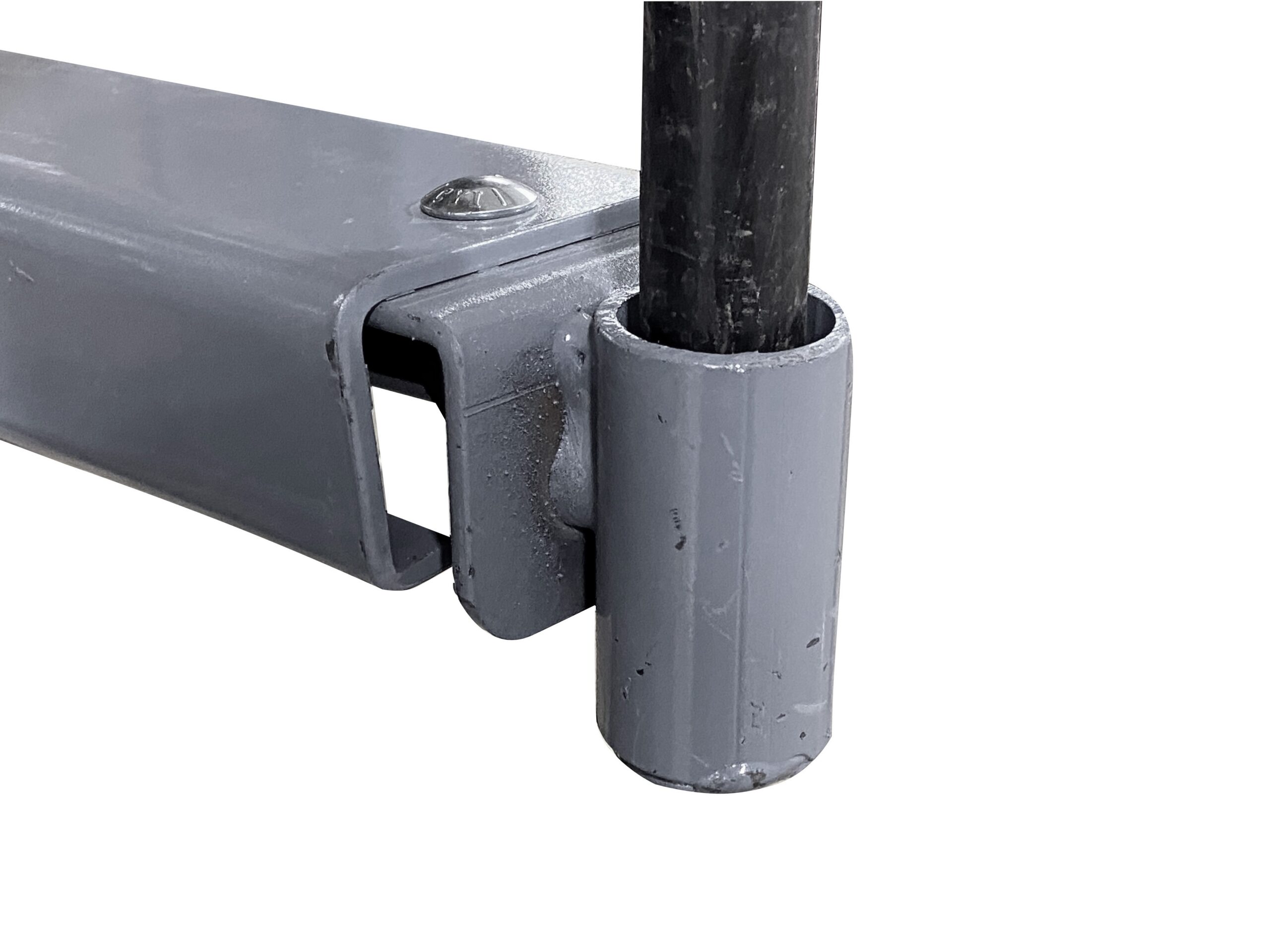

Arm design is one of the most important features of a cantilever rack system. Straight arms provide a level storage surface for lumber, sheet goods, furniture, and flat materials that need uniform support across the arm length. Inclined arms are angled upward to cradle round materials such as PVC pipe and steel bar stock, preventing them from rolling off the rack. Removable pipe sockets can be added to arms and bases to provide additional retention for cylindrical materials, while roof truss configurations protect lumber and other materials stored outdoors from weather exposure. Selecting the right arm type ensures materials are supported correctly and remain secure during storage and retrieval.

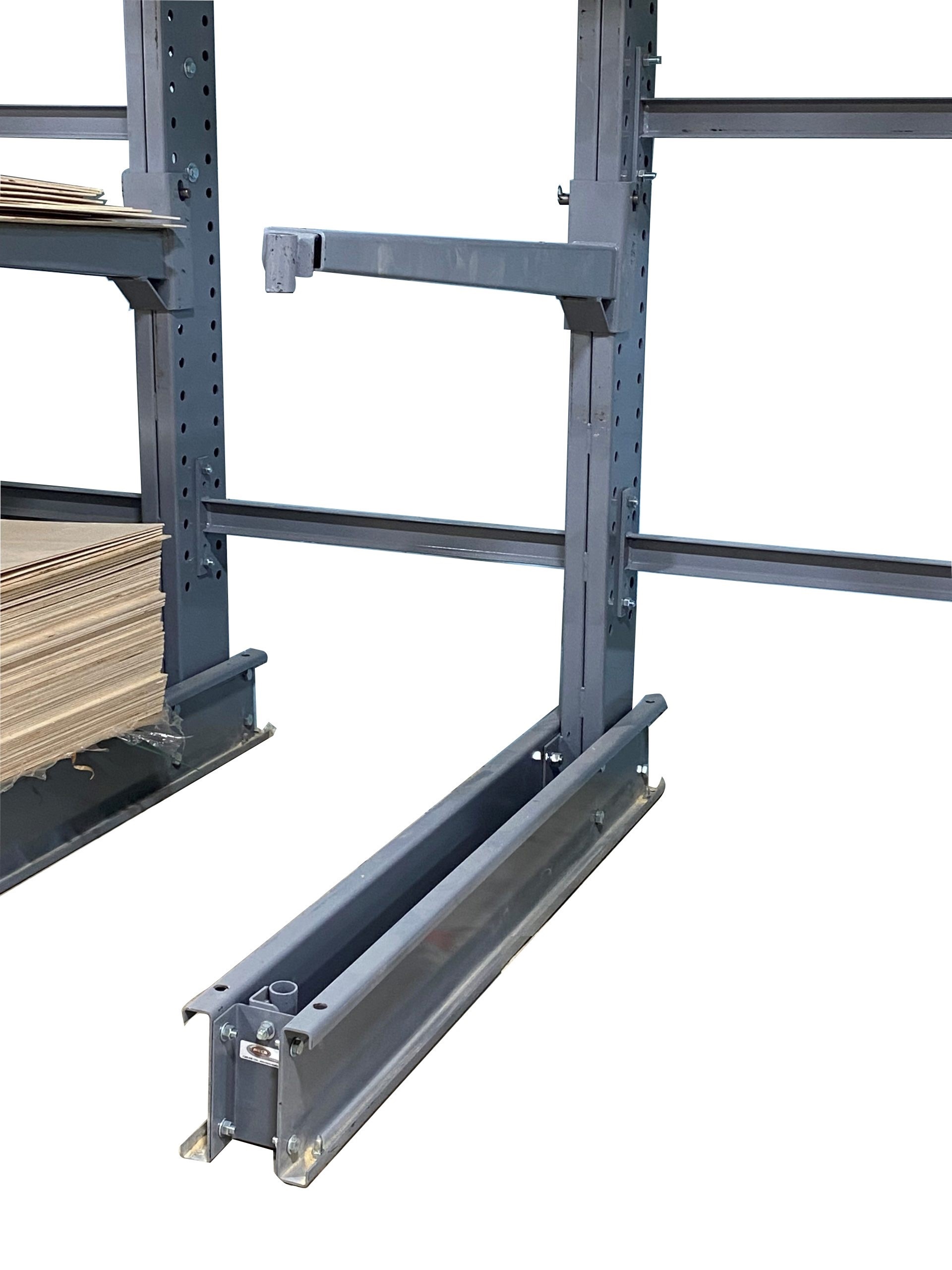

Uprights and bases form the structural foundation of the cantilever rack system. Uprights are available in varying heights and gauges to match load requirements and ceiling clearances, while stackable bases allow sections to be joined vertically for increased capacity. Brace sets connect uprights along the length of the rack, providing lateral stability that prevents the structure from racking or swaying under load. The combination of upright height, base design, and brace configuration determines the overall capacity and stability of the system. This makes proper component selection important for safe operation in warehouse and industrial environments.

The modular nature of cantilever rack features provides flexibility that standard pallet rack systems can’t match. Arms can be adjusted vertically along uprights to accommodate materials of different heights, and arm lengths can be selected based on load dimensions and weight requirements. This adjustability allows facilities to reconfigure storage as inventory changes without replacing entire rack systems.
