Triple-Stack Forklift Battery Storage Rack System | Battery Room Storage
40″ L x 51″ W x 55.5″ H Triple-Stack Forklift Battery Storage Rack. New. Single Level Battery Stand with 2 – 24″ compartments. 6,000 LBS capacity. Weight: 212.8 LBS. Part Number: BS-24-2-SL
40″ L x 76″ W x 55.5″ H Triple-Stack Forklift Battery Storage Rack. New. Single Level Battery Stand with 2 – 24″ compartments. 9,000 LBS capacity. Weight: 470 LBS. Part Number: BS-24-3-SL
40″ L x 77″ W x 55.5″ H Triple-Stack Forklift Battery Storage Rack. New. Single Level Battery Stand with 2 – 24″ compartments. 6,000 LBS capacity. Weight: 520 LBS. Part Number: BS-36-2-SL
PLEASE NOTE: The Triple-Stack Forklift Battery Storage Rack will need to be quoted in coordination with our Engineering Department due to its extensive customization options. A full battery room survey is required to determine the appropriate configuration and prepare an accurate quote.
NOTES: FOB: St. Louis, MO. Est Lead Time: 6-8 weeks

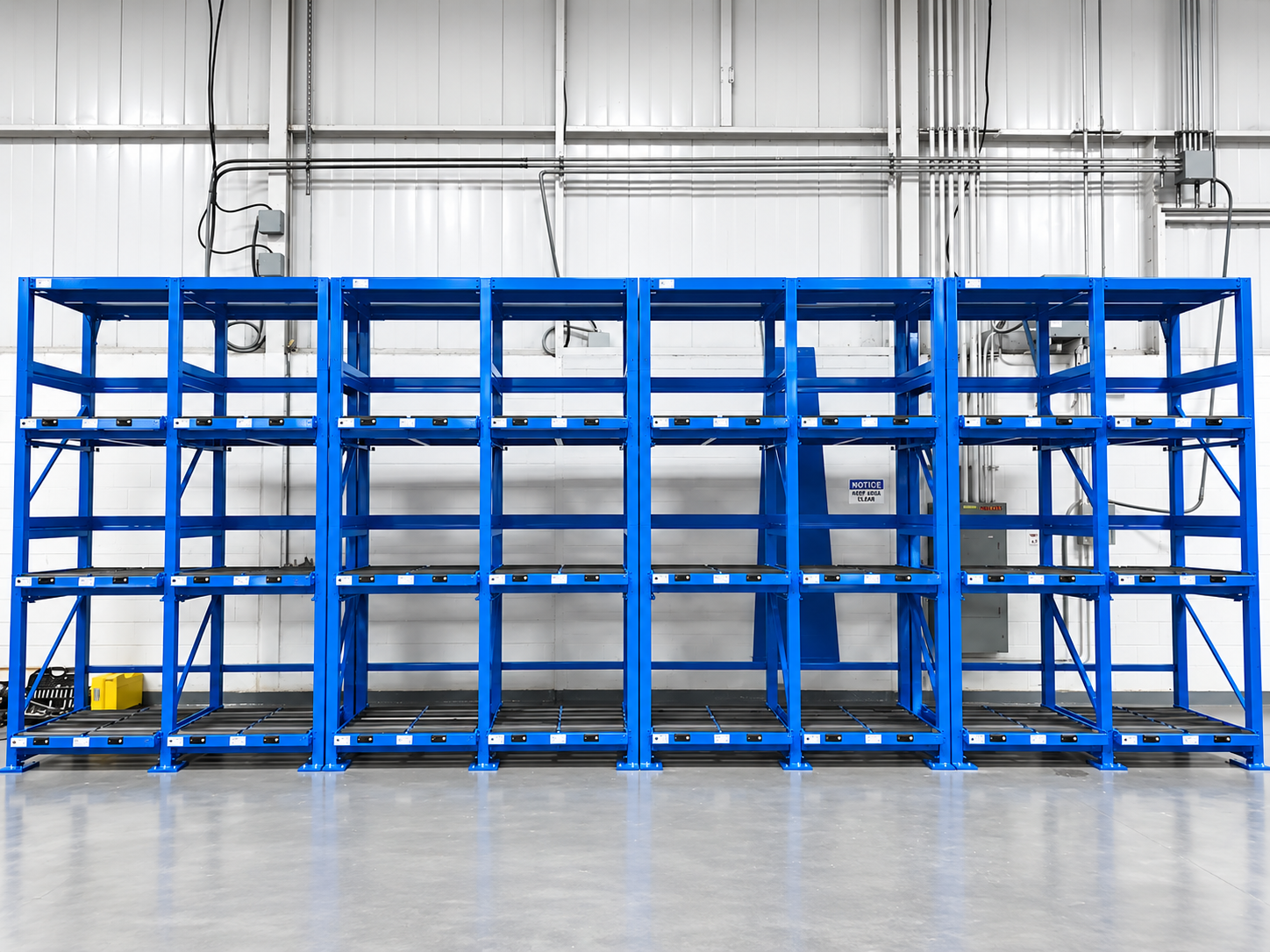

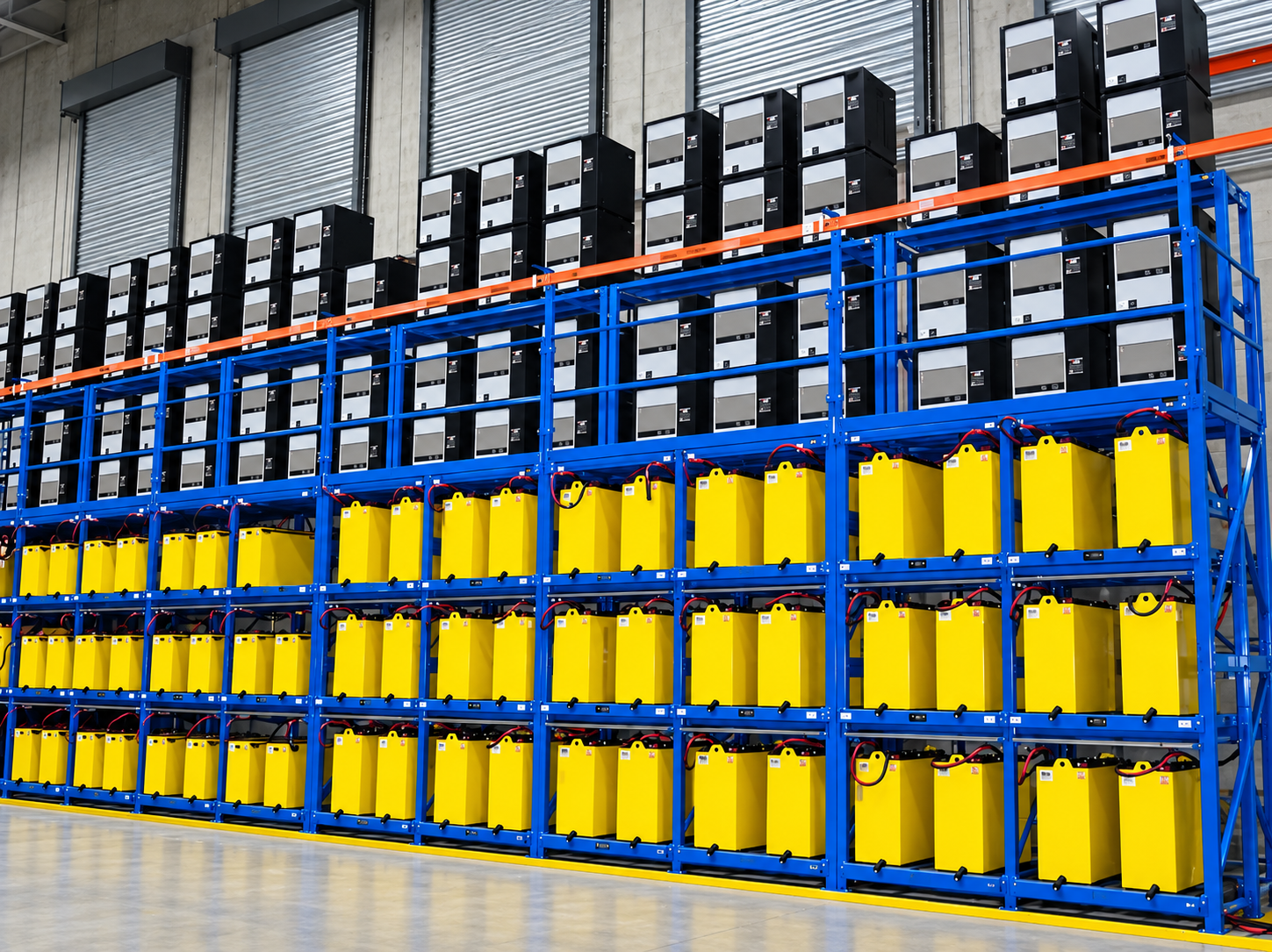

Our Triple-Stack Forklift Battery Storage Rack System is a sturdy, space-saving way to store, charge, and swap industrial batteries. With three levels, it helps warehouses, distribution centers, and busy plants make the most of vertical space while keeping batteries neat and easy to grab. It’s especially great for larger electric fleets and battery rooms where every inch of floor space counts.

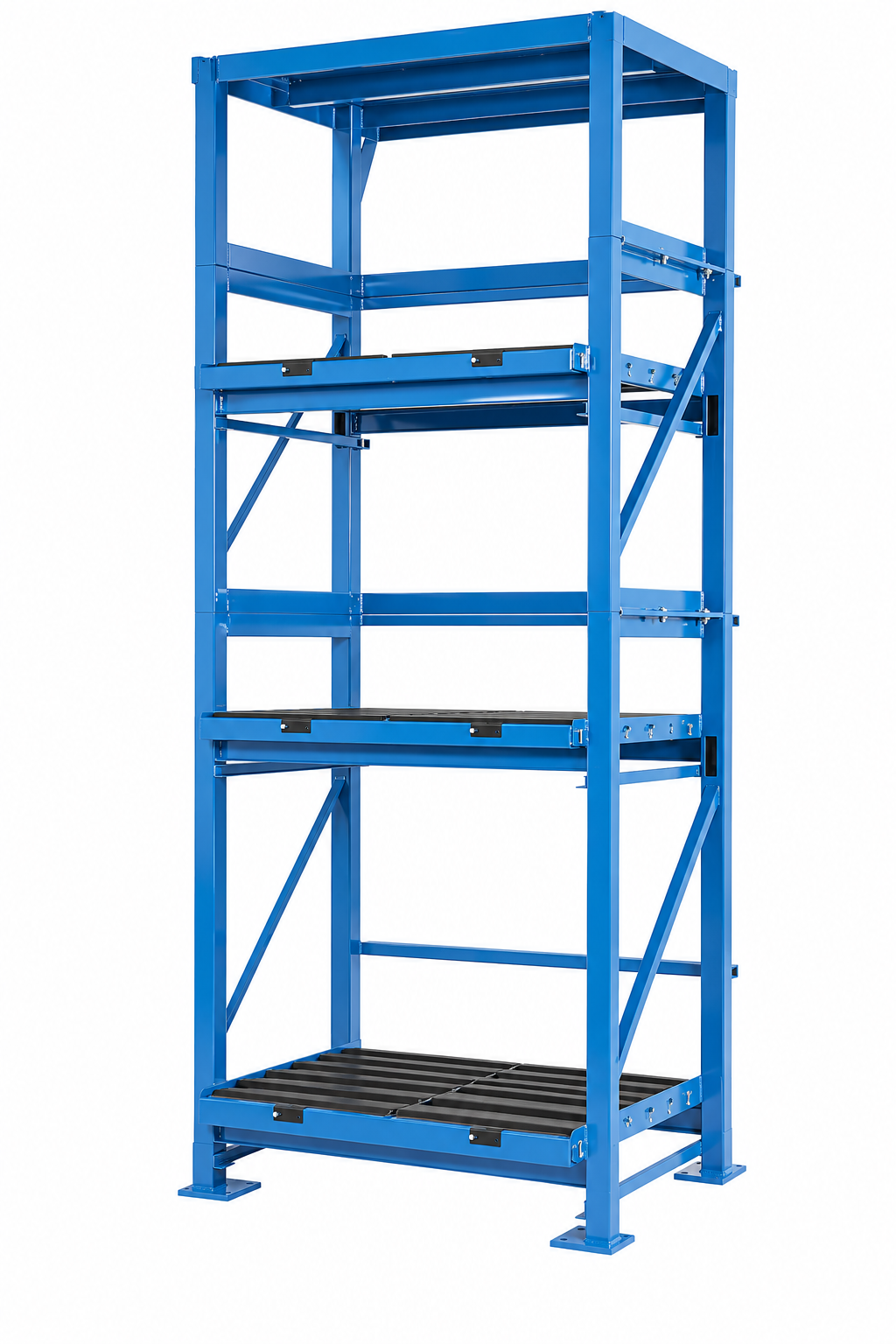

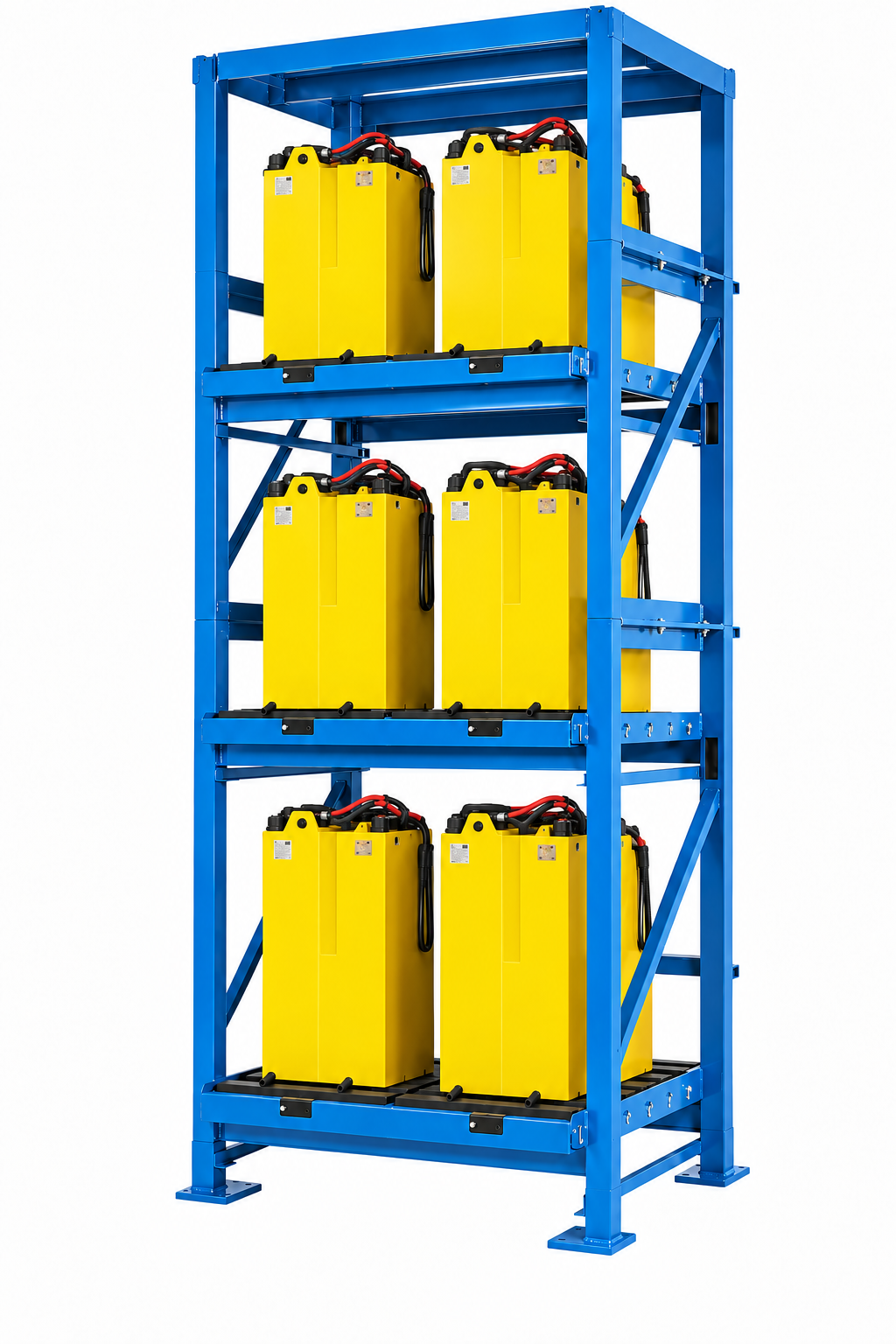

Each rack is built with a tough welded steel frame that stands up to demanding battery rooms. A smooth powder-coat finish fights scratches and rust, and welded feet keep everything securely anchored. The compartments tilt slightly back to hold batteries in place, and each has a flip-up safety stop, so your heavy batteries stay stable but are still easy to reach during swaps.
Every compartment features six spark-resistant, poly-sleeved rollers that let batteries glide in and out during side changes. The poly sleeves also help cut down on corrosion, and hitch-pin axles make roller upkeep a breeze. Standard compartments are 40 inches deep, but we offer backstops for shorter setups and extended options for bigger batteries.
Our Triple-Stack Forklift Battery Storage Rack System is super flexible, so it fits all kinds of battery fleets. Standard models come with roller compartments from 15” to 48” wide and frames from about 38” to 109”, depending on your setup. Built-in charger connector holes, anchoring slots, and cable routing keep your charging area tidy and protect cables from wear. We can even design custom setups to match your exact battery sizes, counts, and swap needs.

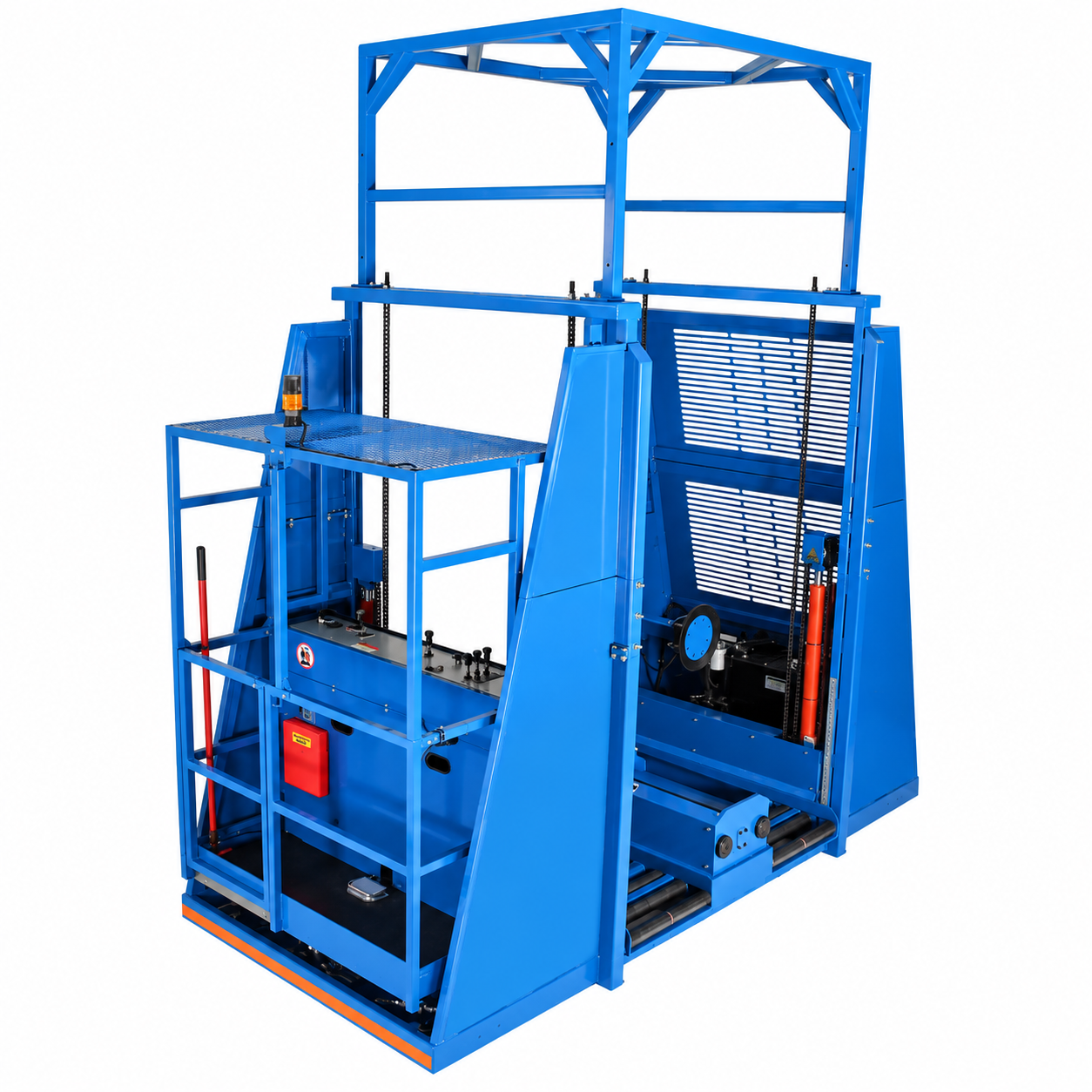

With plenty of options, you can build a complete storage and charging solution. You can add catwalks, ladders, safety rails, stainless steel drip pans, polyethylene rollers, rubber backstops, sliding connector kits, charger mounts, and deeper compartments. Extended rollers come in 46”, 48”, and 50” depths. When paired with compatible multi-level extraction gear, this system makes it easy to organize storage, charging, and swaps while making the most of your vertical space.
Triple-Stack Battery Rack Models & Specifications
| Model | Roller Compartment Width | Frame Width |
|---|---|---|
| BS-15-6-TS | 15″ | 38″ |
| BS-15-12-TS | 15″ | 73″ |
| BS-18-6-TS | 18″ | 44″ |
| BS-18-12-TS | 18″ | 85″ |
| BS-21-6-TS | 21″ | 50″ |
| BS-21-12-TS | 21″ | 97″ |
| BS-24-6-TS | 24″ | 56″ |
| BS-24-12-TS | 24″ | 109″ |
| BS-30-3-TS | 30″ | 38″ |
| BS-30-6-TS | 30″ | 73″ |
| BS-36-3-TS | 36″ | 44″ |
| BS-36-6-TS | 36″ | 85″ |
| BS-42-3-TS | 42″ | 50″ |
| BS-42-6-TS | 42″ | 97″ |
| BS-48-3-TS | 48″ | 56″ |
| BS-48-6-TS | 48″ | 109″ |
Standard Features
| Feature | Description |
|---|---|
| Storage Configuration | Three-level / triple-stack battery storage |
| Construction | Heavy-duty welded steel frame |
| Standard Compartment Depth | 40″ |
| Compartment Widths | 15″, 18″, 21″, 24″, 30″, 36″, 42″ and 48″ |
| Battery Rollers | Six poly-sleeved rollers per compartment |
| Battery Retention | Rearward-pitched compartments |
| Safety Stops | Flip-up battery stop at each compartment |
| Finish | Durable powder-coat finish |
| Installation | Welded feet designed for floor anchoring |
| Charger Accommodation | Charger anchoring slots and connector mounting holes |
| Cable Management | Charger cable routing holes |
| Foot Pads | 3/4″ x 6″ x 8″ |
| Customization | Custom configurations available |
Available Options
| Option | Application |
|---|---|
| Catwalk | Provides elevated access for charger maintenance |
| Access Ladder | Provides access to the catwalk |
| End Rail | Encloses the end of the elevated service area |
| Rear Rail | Encloses the rear of the elevated service area |
| 46″ Extended Depth | Increases roller compartment depth to 46″ |
| 48″ Extended Depth | Increases roller compartment depth to 48″ |
| 50″ Extended Depth | Increases roller compartment depth to 50″ |
| Stainless Steel Drip Pan | Helps contain battery spills and electrolyte |
| Poly Lead Roller | Polyethylene first roller for frequent battery change-outs |
| Rubber Backstop | Cushions batteries during placement |
| Sliding Connector Kit | Provides adjustable battery connector positioning |
| Rear Charger Mount | Supports vertical chargers along the rear of the rack |
| Top Charger Mount | Supports vertical chargers above the rack where clearance permits |
Need help configuring a Triple-Stack Forklift Battery Storage Rack System? Contact us with your forklift battery dimensions, battery weight, quantity of batteries and available battery-room space. We can help determine the appropriate compartment width, rack configuration and options for your application.
