Triple Stack Battery Extractors (BE-TS) | Forklift Battery Handling Equipment
PLEASE NOTE: The Triple-Stack Forklift Battery Extractor will need to be quoted in coordination with our Engineering Department due to its extensive customization options. A full battery room survey is required to determine the appropriate configuration and prepare an accurate quote.

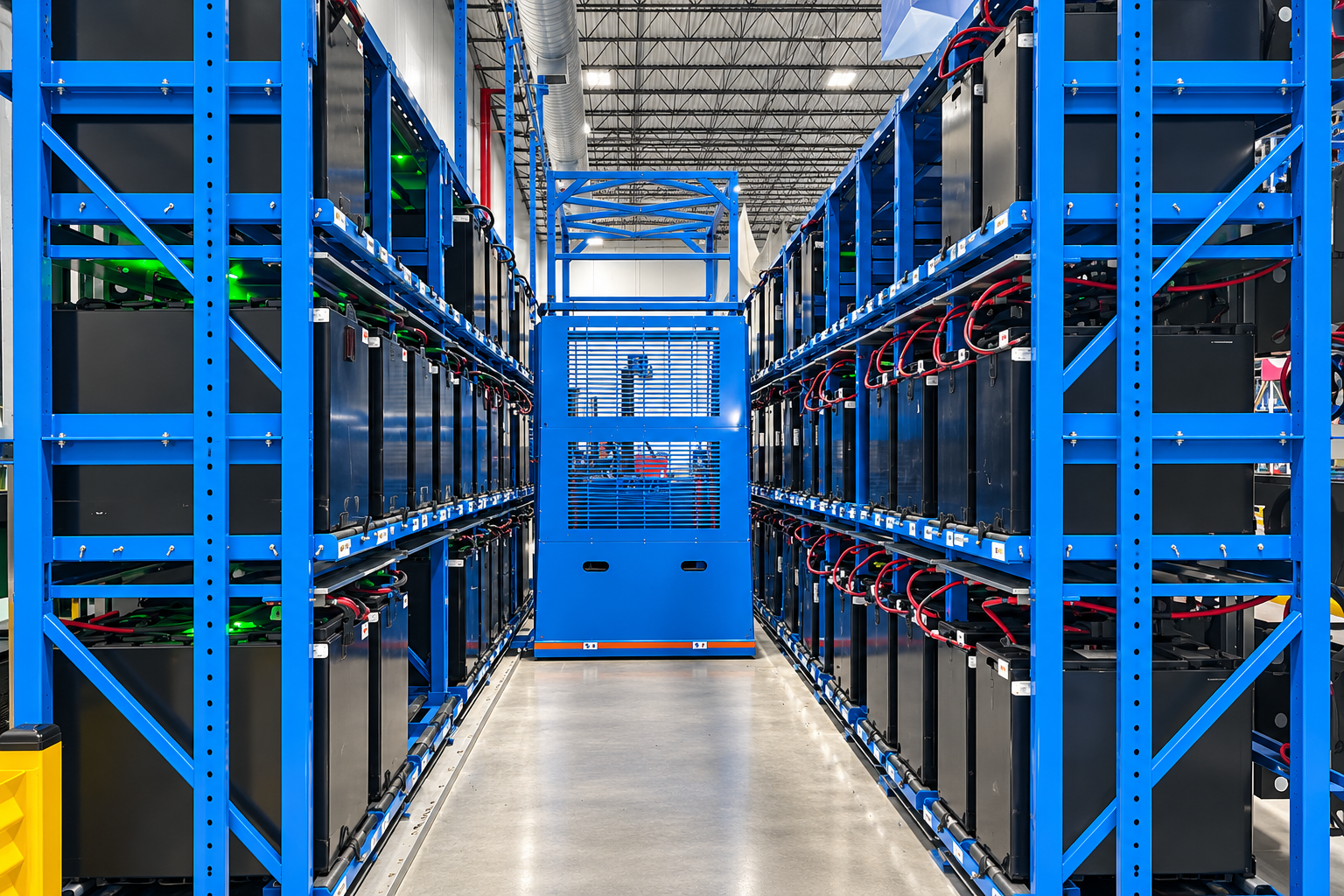

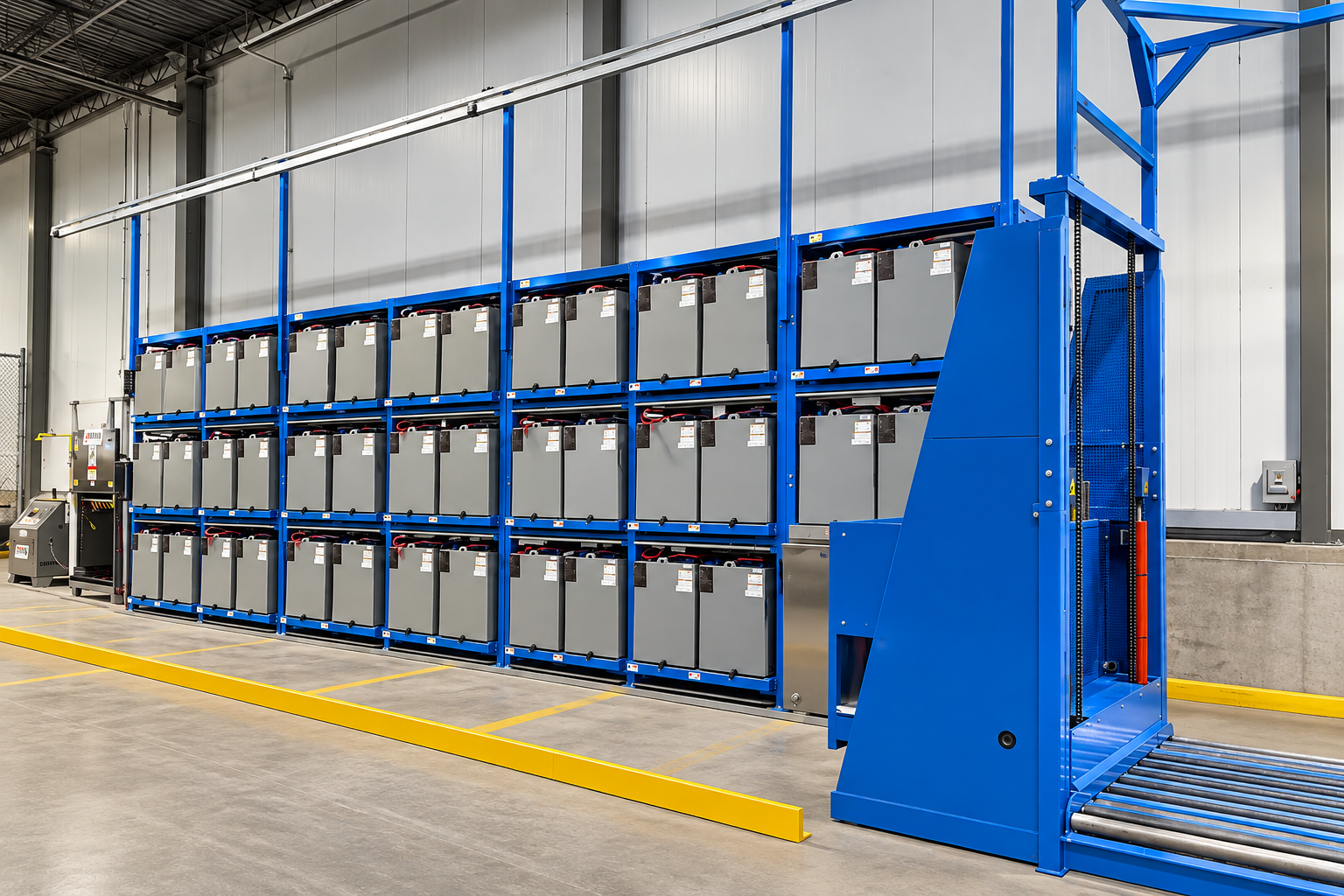

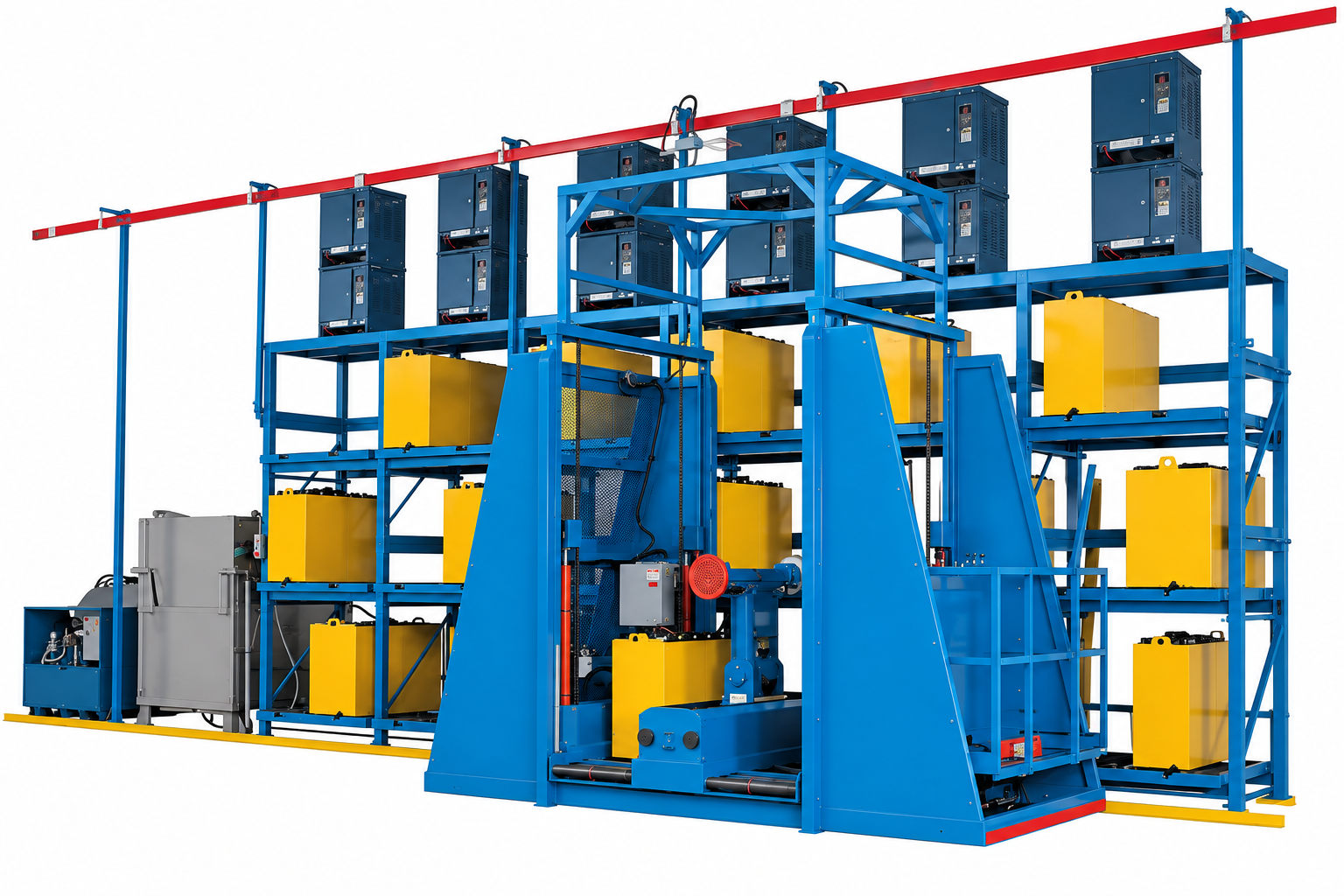

Our Triple Stack Battery Extractors (BE-TS) make high-volume forklift battery swaps easy and efficient. These operator-aboard machines reach batteries stacked up to three levels high, letting you use vertical storage and keep your battery room compact. They’re especially great for larger electric fleets with about 150 to 299 batteries.
Built with heavy-duty steel and a strong extraction system, the BE-TS uses dual battery beds and hydraulic rollers to glide heavy batteries smoothly between the forklift, extractor, and storage. The arm moves on twin chrome-hardened shafts with four-point bearing contact for steady handling. A quick vacuum grip holds the battery securely and releases in less than a second, helping reduce wear.
Designed for tough industrial settings, the BE-TS keeps movement smooth and level with four hydraulic lift cylinders and an equalization system. Independent drive wheels give solid traction, while powered rollers make loading and unloading simple. With a full-load capacity of up to 10,000 lbs., it handles a wide range of heavy-duty batteries with ease.
Our Triple Stack Battery Extractors are designed with your comfort and safety in mind. They include helpful features like operator controls, condition monitoring, proximity sensing, and system alerts to keep everyone secure. For extra peace of mind, an induction switch can pause movement if the arm extends beyond the compartment, and you can add options like audible alarms, blue warning lights, horns, strobes, operator shields, overhead guards, powered stops, and safety scanners that spot people or objects nearby.

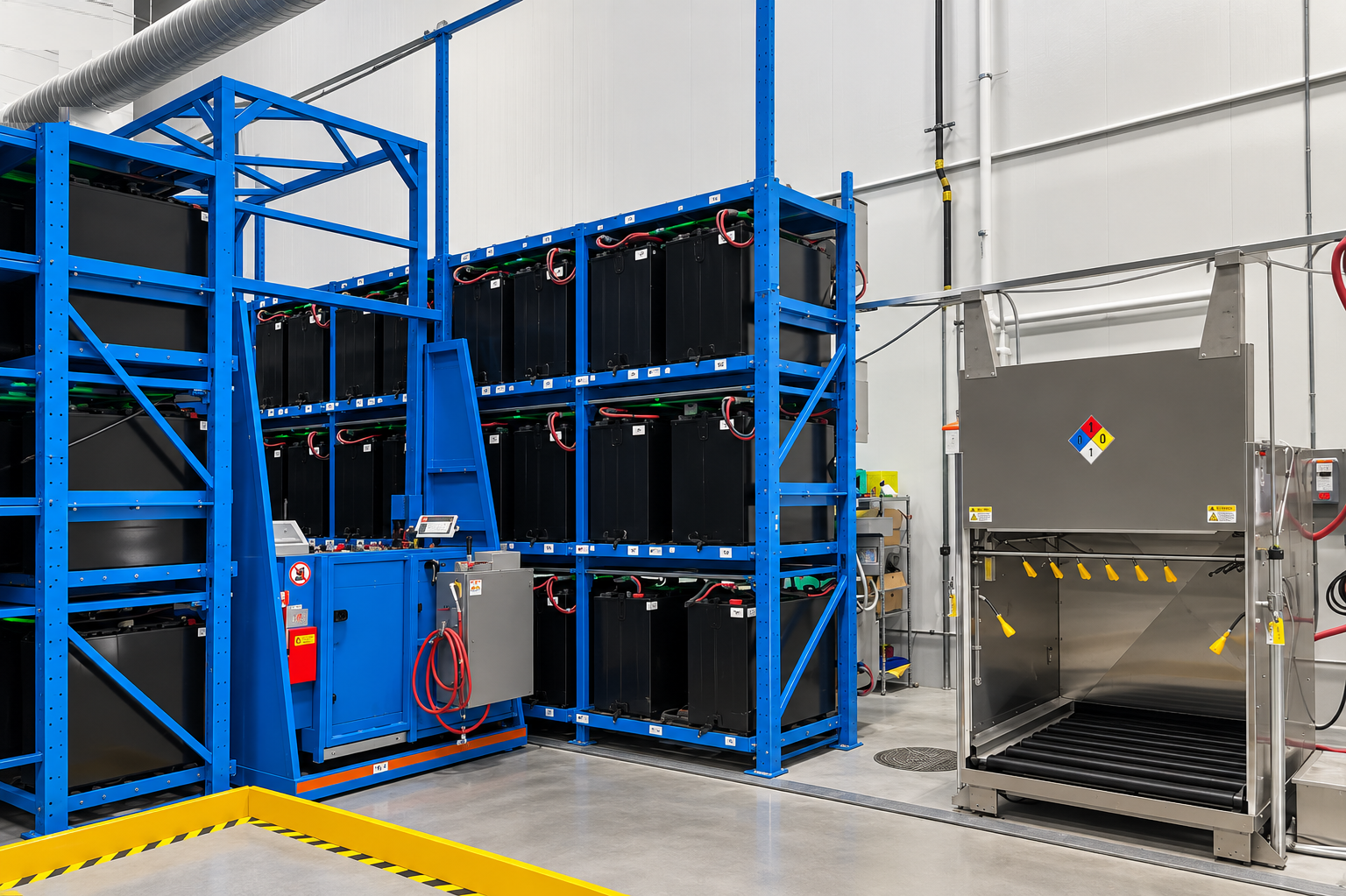

With so many choices, the BE-TS system easily adapts to your battery room layout and needs. You can select electric floor drives, extended-reach arms, magnetic extraction for tricky batteries, level-assist indicators, onboard watering tools, and comfort extras. Thanks to three standard widths and vertical storage options, these extractors grow with your business and are a great fit for warehouses, distribution centers, manufacturing plants, and any site running a large electric forklift fleet.
Triple Stack Battery Extractor Specifications
| Specification | BE-24-2-TS | BE-36-2-TS | BE-42-2-TS |
|---|---|---|---|
| Travel Speed | 0–240 ft/min | 0–240 ft/min | 0–240 ft/min |
| Raise / Lower Speed | 0–26 ft/min | 0–26 ft/min | 0–26 ft/min |
| Powered Roller Speed | 0–37 ft/min | 0–37 ft/min | 0–37 ft/min |
| Arm Traverse Speed | 0–20 ft/min | 0–20 ft/min | 0–20 ft/min |
| Arm Rotation Time | 6–8 sec. | 6–8 sec. | 6–8 sec. |
| Draw Bar Pull – Vacuum | 1,000 lbs. | 1,000 lbs. | 1,000 lbs. |
| Draw Bar Pull – Magnetic Option | 800–1,200 lbs. | 800–1,200 lbs. | 800–1,200 lbs. |
| Vacuum Attach Time | <1 sec. | <1 sec. | <1 sec. |
| Vacuum Release Time | <1 sec. | <1 sec. | <1 sec. |
| Input Voltage | 480V / 3 Phase / 60 Hz | 480V / 3 Phase / 60 Hz | 480V / 3 Phase / 60 Hz |
| AC Current Draw | 35 A | 35 A | 35 A |
| Hydraulic Power Unit | 20 HP | 20 HP | 20 HP |
| Hydraulic Pump | 22 gal/min | 22 gal/min | 22 gal/min |
| Operating Pressure | 1,500 PSI | 1,500 PSI | 1,500 PSI |
| Vacuum | 21″ Hg | 21″ Hg | 21″ Hg |
| Full Load Capacity | 10,000 lbs. | 10,000 lbs. | 10,000 lbs. |
| Empty Weight | 8,000 lbs. | 8,300 lbs. | 8,600 lbs. |
| Compartment Rollers / Powered | 11 / 5 | 11 / 5 | 11 / 5 |
| Guide Track | 3″ x 2.5″ Angle | 3″ x 2.5″ Angle | 3″ x 2.5″ Angle |
Specifications may vary based on operating temperature, floor conditions, equipment configuration and operator efficiency.
Available BE-TS Options
| Option | Description |
|---|---|
| Audible Alarm | Alerts nearby personnel while the extractor is operating |
| Blue Safety Light | Projects a concentrated warning beam in the machine’s direction of travel |
| Electric Drive | Replaces the standard hydraulic floor drive with a VFD-controlled electric drive |
| Extended Reach | Provides additional extractor-arm reach for specialized forklift configurations |
| Magnetic Extraction | Alternative extraction method for batteries that are too narrow for vacuum extraction |
| Level Assist Indicator | Helps the operator achieve proper vertical alignment with battery stands |
| Operator Shield | Separates the operator console from the roller deck |
| Overhead Guard | Provides additional operator protection from falling objects |
| Powered Battery Stop | Helps prevent unintended battery discharge from elevated compartments |
| Safety Scanner | Detects pedestrians or objects within the travel area and can stop machine movement |
| Strobe Light | Provides a visual warning while the machine is operating |
| Horn | Allows the operator to alert nearby personnel |
| Onboard Water Tank | Provides convenient access to water for battery maintenance |
| Operator Fan | Provides additional operator comfort in warm battery-room environments |
Request a Quote for a Triple Stack Battery Extractor
Triple Stack Battery Extractors can be configured to match your forklift fleet, battery dimensions, battery storage arrangement and available battery room space. Contact us for assistance selecting the appropriate BE-24-2-TS, BE-36-2-TS or BE-42-2-TS Triple Stack Battery Extractor for your application.
