Cantilever Racks

POPULAR SINGLE SIDED CANTILEVER RACK CONFIGURATIONS:

1 Set of 2 Single Sided Cantilever Rack Uprights (4-Tier) for 8′ plywood, 10′ PVC & 12′ steel pipe

1 Set of 2 Single Sided Cantilever Rack Uprights (5-Tier) for 8′ plywood, 10′ PVC & 12′ steel pipe

1 Run of 3 Single Sided Cantilever Rack Uprights (4-Tier) for 8′, 10′, 12′ lumber, 16′, 20′ & 24′ steel pipe

1 Run of 3 Single Sided Cantilever Rack Uprights (5-Tier) for 8′, 10′, 12′ lumber, 16′, 20′ & 24′ steel pipe

1 Run of 4 Single Sided Cantilever Rack Uprights (4-Tier) for 16′ lumber, 20′ PVC and 24′ steel pipe

1 Run of 4 Single Sided Cantilever Rack Uprights (5-Tier) for 16′ lumber, 20′ PVC and 24′ steel pipe

1 Run of 5 Single Sided Cantilever Rack Uprights (4-Tier) for 20′ lumber

1 Run of 5 Single Sided Cantilever Rack Uprights (5-Tier) for 20′ lumber

1 Run of 6 Single Sided Cantilever Rack Uprights (4-Tier) for 24′ lumber

1 Run of 6 Single Sided Cantilever Rack Uprights (5-Tier) for 24′ lumber

POPULAR DOUBLE SIDED CANTILEVER RACK CONFIGURATIONS:

1 Set of 2 Double Sided Cantilever Rack Uprights (4-Tier) for 8′ plywood, 10′ PVC &12′ steel pipe

1 Set of 2 Double Sided Cantilever Rack Uprights (5-Tier) for 8′ plywood, 10′ PVC & 12′ steel pipe

1 Run of 3 Double Sided Cantilever Rack Uprights (4-Tier) for 8′, 10′, 12′ lumber, 16′, 20′ and 24′ steel pipe

1 Run of 3 Double Sided Cantilever Rack Uprights (5-Tier) for 8′, 10′, 12′ lumber, 16′, 20′ and 24′ steel pipe

1 Run of 4 Double Sided Cantilever Rack Uprights (4-Tier) for 16′ lumber, 20′ PVC and 24′ steel pipe

1 Run of 4 Double Sided Cantilever Rack Uprights (5-Tier) for 16′ llumber, 20′ PVC and 24′ steel pipe

1 Run of 5 Double Sided Cantilever Rack Uprights (4-Tier) for 20′ lumber

1 Run of 5 Double Sided Cantilever Rack Uprights (5-Tier) for 20′ lumber

1 Run of 6 Double Sided Cantilever Rack Uprights (4-Tier) for 24′ lumber

1 Run of 6 Double Sided Cantilever Rack Uprights (5-Tier) for 24′ lumber

Let us assist you in figuring out the proper bill of material for your project. Every job is different and requires materials specific to your load and how you want to best use your system.

We can design a cantilever rack system in almost any configuration you want. Please call us at 800-763-9020 or email sales@rackandshelf.com. We would be happy to discuss your requirements and find a warehouse rack system that fits your needs.

NOTES: Cantilever Racks for Sale. Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add or customer to arrange shipping. Freight Class 125. FOB: Omaha NE, Chicago, IL and San Diego, CA

get a cantilever rack quote
videos
Lower Prices for Larger Quantities
Categories: , , , , , , , .

Cantilever Racking Systems are the Best Racks for Storing Items of Non-Uniform Size and Length!

Depending on your industry, you may have a huge range in inventory. Finding the right storage system can be difficult with your products. We’re here to tell you that you don’t have to buy multiple storage systems for non-uniform inventory. Our cantilever racks for sale are the perfect solution for efficiently storing a variety of inventory.

Cantilever racking systems are used for storing lumber, plywood, siding, extrusions, pipe and tubing. Product can be loaded and unloaded quickly because there is no front column to get in the way. Clear frontal access to the storage levels of warehouse racks also allows you to store material of greatly varied sizes.

Cantilever racking systems consist of three primary components: Vertical Upright with Stackable Base assembly, Arms and horizontal/diagonal cross Bracing (brace panels). These components are fabricated from either roll-formed or structural steel. The brace panels are used to connect two or more columns together in a row.

We highly recommend cantilever racks for their versatility. You don’t have to buy multiple systems if you store products of non-uniform shapes and sizes. Our cantilever racking makes it easy to store unusually shaped items without taking up a ton of space.

By storing up and not out, you save tons of valuable floor space with a cantilever racking system. Saving floor space means maximizing your storage density! You can also maximize your storage efficiency because you can quickly access the front of the rack without the frontal column.

You prevent the damage of bulk stacking with cantilever racks. It’s not easy to store long and unwieldy items efficiently, but cantilever racks make it easy. You can also quickly survey your inventory without having to load and unload. Save time, space and money with our cantilever racks for sale!

As you can see from the photos on this page, we have a large variety of cantilever racks for sale. We can work with you to create the best storage system, whether you need to store cars or plywood. This storage system is a popular choice across industries for its versatility.

You will be extremely pleased with the level of organization and efficiency you get with a cantilever racking system. These racks are durable and built to last. We know this is a racking system you’ll be using for a long time to come.

We offer the lowest prices on new and used cantilever racking for sale. Our roll form and structural cantilever racks are both made of heavy-gauge steel with a gray paint finish. Straight arms allow 3” vertical adjustment. The base can be used as a bottom shelf for added storage.

Tip from the Pro’s: When trying to determine cantilever arm capacity, take the overall weight of the load being stored and divide it by the number of arms supporting that load. That will give you an idea as to how much capacity each arm should have. Typical arm capacities range from 600, 1,000, 1,500, 2,000, 2,500 and 3,000 LBS. each.

Advantages:
• The best rack for storing items of non-uniform size and length. Allowing you to store items or materials of varying lengths, without interference
• Offers greater storage capacity and efficiency in storing long items. Unlike conventional racks, cantilevered arms have no vertical obstructions in the storage area, to let you make full use of space from side to side on each level.
• Clear up valuable floor space by getting products off the ground and into racks
• Protects long items from getting damage in storage

Applications:
• Pipe & Tubing Rack – Ideal for storing plastic and metal pipe, tubing, bars and rods. Commonly found in plumbing supply warehouses and manufacturing facilities.
• Sheet Rack – Store plastic sheet, sheet metal, siding and extrusions. Commonly found in manufacturing facilities and building products companies.
• Lumber Rack – Cantilever racks are great for storing lumber and plywood. These racks are commonly found in lumber yards, big box home centers, woodworking shops and warehouses.

POPULAR CANTILEVER RACK BILL OF MATERIAL:

• 8′ h. Single Sided Cantilever Tower. New. Includes 62″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 270 LBS. Part Number: SSX862
• 8′ h. Double Sided Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 330 LBS. Part Number: DSX8106
• 12′ h. Single Sided Cantilever Tower. New. Includes 62″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 345 LBS. Part Number: SSX1262
• 12′ h. Double Sided Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 405 LBS. Part Number: DSX12106
• 16′ h. Single Sided Cantilever Tower. New. Includes 62″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 415 LBS. Part Number: SSX1662
• 16′ h. Double Sided Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 425 LBS. Part Number: DSX16106
• 48″ long x 4″ h. x 2000 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel [Configuration: Base + 5 arms per side]. Weight: 33 LBS. Part Number: XSA48
• 48″ center-to-center Brace Beams. New. Set of 3 horizontals w/ X-Brace. Used to attach towers together in a row). Weight: 60 LBS. Part Number: B348X
• 60″ center-to-center Brace Beams. New. Set of 3 horizontals w/ X-Brace. Used to attach towers together in a row). Weight: 72 LBS. Part Number: B360X

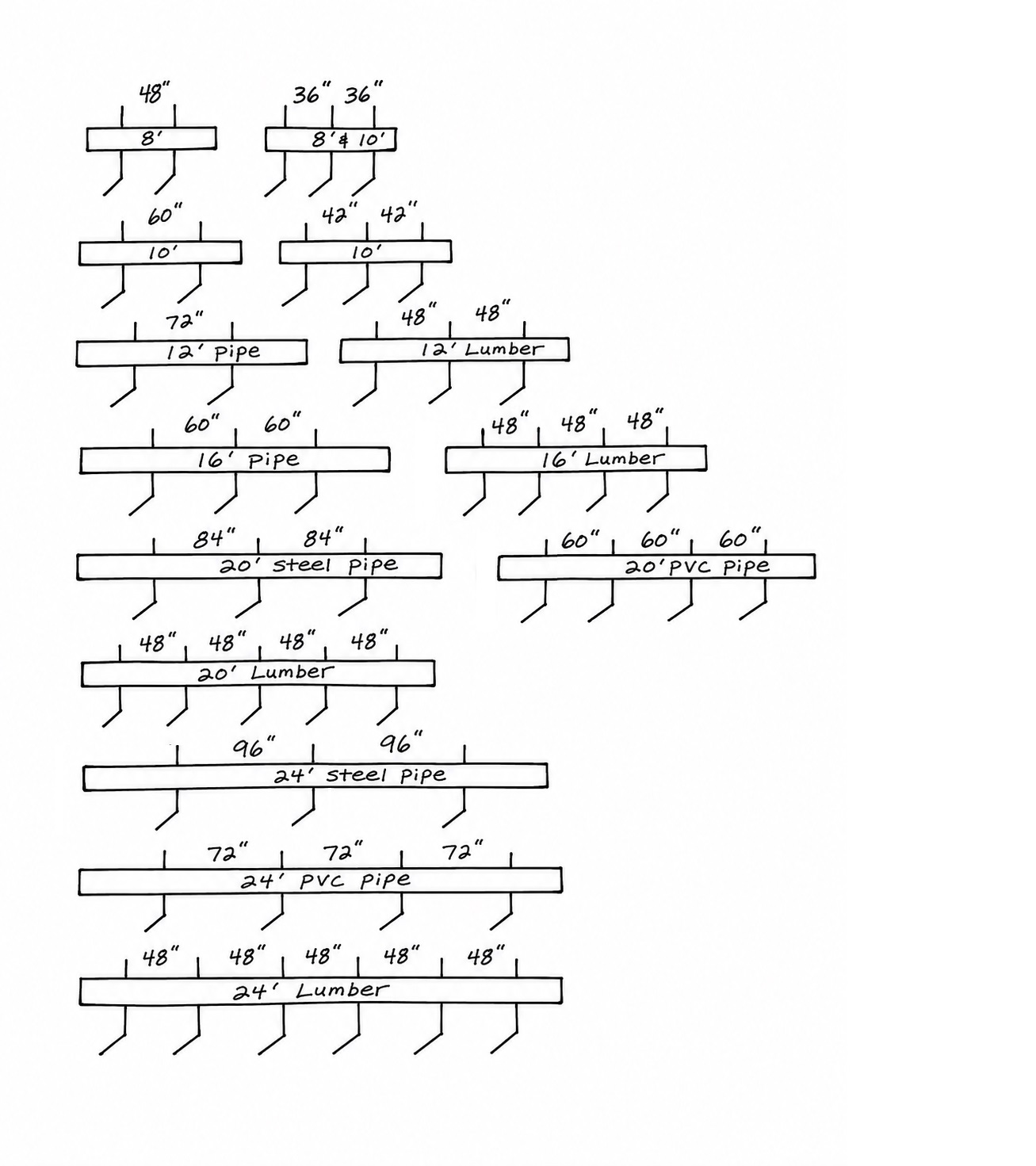

TIP FROM THE PRO’S: How far should arms be spaced based on bundle size? In other words what is optimum brace panel set for my cantilever rack? Keep in mind that the size of the center to center brace beams or brace set determines spacing of arms. The answer is that a 4′ x 8′ bundle requires a 48″ brace set and a 4′ x 10′ bundle requires a 60″ brace set.

TIP FROM THE PRO’S: WE HAVE ESTABLISHED STANDARD ARM LENGTHS THAT WE OFFER INCLUDING 12″, 18″, 24″, 30″, 36″, 42″, 48″, 54″ AND 60″. THE 54″ AND 60″ ARE ONLY AVAILABLE IN 3,000 LBS. CAPACITY. IT IS IMPORTANT TO REMEMBER THAT YOU WANT TO MAKE SURE ARM IS LONG ENOUGH TO SUPPORT THE ENTIRE LOAD. WE DON’T LIKE TO SEE OVERHAND, AS OVERHANG REDUCES CAPACITY OF ARM REAL QUICK.

TIP FROM THE PRO’S: Question: If the capacity per arm is 3,000 LBS would two arms carry 6,000 LBS? Correct, as long as it’s an evenly distributed load with no deflection. If you question whether your load has deflection we suggest you run deflection test. To do that take two 4″ x 4″ pieces of lumber and space them the same distance as the arms will be spaced, set the load on top of the lumber and see if there is deflection. If load stays flat, no problem, if load bends down it will take away some capacity in the arms.

NOTES: Cantilever Racking System. Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Omaha NE 68788, Chicago, IL 60160 and San Diego, CA 92154

We offer cantilever racking for sale in a variety of sizes and capacities. We can help you find a rack that will truly meet your needs without you having to spend too much money. Tell us the dimensions and weight of your load, and we’ll design a cantilever rack system to meet your needs. Please call us today at 800-763-9020 to discuss your requirement. You may also email us at sales@rackandshelf.com.

Part Number and Manufacturer References

MU633, MU645, MU657, MU733, MU745, MU757, MU833, MU845, MU857, MU1033, MU1045, MU1057, MU1233, MU1245, MU1257, MDU654, MDU678, MDU6102, MDU754, MDU778, MDU7102, MDU854, MDU878, MDU8102, MDU1054, MDU1078, MDU10102, MDU1254, MDU1278, MDU12102, MSA12, MSA12L, MSA18, MSA18L, MSA24, MSA24L, MSA30, MSA30L, MSA36, MSA36L, MSA42, MSA42L, MSA48, MSA48L, MIA12, MIA12L, MIA18, MIA18L, MIA24, MIA24L, MIA30, MIA30L, MIA36, MIA36L, MIA42, MIA42L, MIA48, MIA48L, M2B24, M2B36, M2B42, M2B48, M2B60, M2B72, M2B84, M2B96, M3B24, M3B36, M3B42, M3B48, M3B60, M3B72, M3B84, M3B96, 2U838, 2U850, 2U862, 2U1038, 2U1050, 2U1062, 2U1238, 2U1250, 2U1262, 2U1438, 2U1450, 2U1462, 2U1638, 2U1650, 2U1662, 2U1838, 2U1850, 2U1862, 2U2038, 2U2050, 2U2062, 2DU859, 2DU883, 2DU8107, 2DU1059, 2DU1083, 2DU10107, 2DU1259, 2DU1283, 2DU12107, 2DU1459, 2DU1483, 2DU14107, 2DU1659, 2DU1683, 2DU16107, 2DU1859, 2DU1883, 2DU18107, 2DU2059, 2DU2083, 2DU20107, 2SA12, 2SA12L, 2SA18, 2SA18L, 2SA24, 2SA24L, 2SA30, 2SA30L, 2SA36, 2SA36L, 2SA42, 2SA42L, 2SA48, 2SA48L, 2IA12, 2IA12L, 2IA18, 2IA18L, 2IA24, 2IA24L, 2IA30, 2IA30L, 2IA36, 2IA36L, 2IA42, 2IA42L, 2IA48, 2IA48L, 2HDSA24, 2HDSA24L, 2HDSA30, 2HDSA30L, 2HDSA36, 2HDSA36L, 2XHDSA36, 2XHDSA36L, 2HDSA42, 2HDSA42L, 2XHDSA42, 2XHDSA42L, 2HDSA481M, 2HDSA48L1M, 2HDSA48, 2HDSA48L, 2XHDSA48, 2XHDSA48L, 22B24, 22B36, 22B42, 22B48, 22B60, 22B72, 22B84, 22B96, 22B120, 23B24, 23B36, 23B42, 23B48, 23B60, 23B72, 23B84, 23B96, 23B120, 24B24X, 24B36X, 24B42X, 24B48X, 24B60X, 24B72X, 24B84X, 24B96XX, 24B120XX, U631-NS, U637-NS, U649-NS, U661-NS, U674-NS, U831-NS, U837-NS, U849-NS, U861-NS, U874-NS, U1031-NS, U1037-NS, U1049-NS, U1061-NS, U1074-NS, U1231-NS, U1237-NS, U1249-NS, U1261-NS, U1274-NS, U1437-NS, U1449-NS, U1461-NS, U1474-NS, U1537-NS, U1549-NS, U1561-NS, U1574-NS, U1637-NS, U1649-NS, U1661-NS, U1674-NS, U1849-NS, U1861-NS, U1874-NS, U2049-NS, U2061-NS, U2074-NS, DU653-NS, DU665-NS, DU682-NS, DU6106-NS, DU6130-NS, DU853-NS, DU865-NS, DU882-NS, DU8106-NS, DU8130-NS, DU1053-NS, DU1065-NS, DU1082-NS, DU10106-NS, DU10130-NS, DU1253-NS, DU1265-NS, DU1282-NS, DU12106-NS, DU12130-NS, DU1465-NS, DU1482-NS, DU14106-NS, DU14130-NS, DU1565-NS, DU1582-NS, DU15106-NS, DU15130-NS, DU1665-NS, DU1682-NS, DU16106-NS, DU16130-NS, DU1882-NS, DU18106-NS, DU18130-NS, DU2082-NS, DU20106-NS, DU20130-NS, 2B24, 2B36, 2B42, 2B48, 2B60, 2B72, 2B84, 2B96, 2B120, 3B24, 3B36, 3B42, 3B48, 3B60, 3B72, 3B84, 3B96, 3B120, 4B24X, 4B36X, 4B42X, 4B48X, 4B60X, 4B72X, 4B84X, 4B96XX, 4B120XX, U631, U637, U649, U661, U674, U831, U837, U849, U861, U874, U1031, U1037, U1049, U1061, U1074, U1231, U1237, U1249, U1261, U1274, U1437, U1449, U1461, U1474, U1537, U1549, U1561, U1574, U1637, U1649, U1661, U1674, U1849, U1861, U1874, U2049, U2061, U2074, DU653, DU665, DU682, DU6106, DU6130, DU853, DU865, DU882, DU8106, DU8130, DU1053, DU1065, DU1082, DU10106, DU10130, DU1253, DU1265, DU1282, DU12106, DU12130, DU1465, DU1482, DU14106, DU14130, DU1565, DU1582, DU15106, DU15130, DU1665, DU1682, DU16106, DU16130, DU1882, DU18106, DU18130, DU2082, DU20106, DU20130, SA12, SA12L, SA18, SA18L, SA24, SA24L, SA30, SA30L, SA36, SA36L, SA42, SA42L, SA48, SA48L, SA54, SA54L, SA60, SA60L, IA12, IA12L, IA18, IA18L, IA24, IA24L, IA30, IA30L, IA36, IA36L, IA42, IA42L, IA48, IA48L, XU1040, XU1052, XU1064, XU1076, XU1240, XU1252, XU1264, XU1276, XU1440, XU1452, XU1464, XU1476, XU1552, XU1564, XU1576, XU1652, XU1664, XU1676, XU1852, XU1864, XU1876, XU2052, XU2064, XU2076, XDU1066, XDU1084, XDU10108, XDU10132, XDU1266, XDU1284, XDU12108, XDU12132, XDU1466, XDU1484, XDU14108, XDU14132, XDU1584, XDU15108, XDU15132, XDU1684, XDU16108, XDU16132, XDU1884, XDU18108, XDU18132, XDU2084, XDU20108, XDU20132, HDSA36, HDSA36L, XHDSA36, XHDSA36L, HDSA42, HDSA42L, XHDSA42, XHDSA42L, HDSA48, HDSA48L, HDSA482M, HDSA48L2M, XHDSA48, XHDSA48L, XHDSA48L3M, XHDSA483M, XHDSA48L4M, XHDSA484M, HDSA54, HDSA54L, XHDSA54, XHDSA54L, HDSA60, HDSA60L, XHDSA60, XHDSA60L, XHDSA602M, XHDSA60L2M, SM6, SM6L, SM8, SM8L, SM10, SM10L, SMD6, SMD6L, SMD8, SMD8L, SMD10, SMD10L, AM6, AM6L, AM8, AM8L, AM10, AM10L, AMD6, AMD6L, AMD8, AMD8L, AMD10, AMD10L, SU8, SU8L, SU10, SU10L, SU12, SU12L, SDU8, SDU8L, SDU10, SDU10L, SDU12, SDU12L, AU8, AU8L, AU10, AU10L, AU12, AU12L, ADU8, ADU8L, ADU10, ADU10L, ADU12, ADU12L

Click on a product title below to view more details.

Light Duty Cantilever Rack

Light-Duty-Cantilever-Rack

LIGHT DUTY CANTILEVER RACK SAMPLE BILL OF MATERIAL:

  • 8′ h. Double Sided Cantilever Tower. New. Includes 48″ stackable base assembly. Constructed of cold roll formed steel. 4,300 lbs. capacity per side. Color: Gray. Weight: 175 LBS. Part Number: DS84
  • 48″ long x 300 lbs. capacity Cantilever Arm. New. No stop on end. Color: Gray. Weight: 14 LBS. Part Number: XSA48
  • 48″ center-to-center Brace Set. New. (Used to attach towers together in a row). Weight: 32 LBS. Part Number: B246



NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Omaha NE 68788, Chicago, IL 60160 and San Diego, CA 92154

Read more

get a light duty cantilever rack quote Lower Prices for Larger Quantities

Intermediate Duty Cantilever Rack


A POPULAR INTERMEDIATE DUTY CANTILEVER RACK BILL OF MATERIAL:

  • 16′ h. Single Sided Cantilever Tower. New. Includes 62″ stackable base assembly. Constructed of cold roll formed steel. 6,500 lbs. capacity per side. Color: Gray Enamel. Weight: 345 LBS. Part Number: SS1662
  • 16′ h. Double Sided Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 6,500 lbs. capacity per side. Color: Gray Enamel. Weight: 410 LBS. Part Number: DS16106
  • 48″ long x 4″ h. x 2000 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel. Weight: 33 LBS. Part Number: XSA48
  • 48″ center-to-center Brace Beams. New. Set of 2 horizontals. Used to attach towers together in a row). Weight: 32 LBS. Part Number: B248

NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 65. FOB: Omaha NE 68788

Read more

get an intermediate cantilever rack quote Lower Prices for Larger Quantities
case studies videos

Heavy Duty Cantilever Racks

Heavy-Duty-Cantilever-Rack-3

SAMPLE HEAVY DUTY CANTILEVER RACK QUOTE:

12′ h. Double Sided Cantilever Tower. New. Includes 111″ stackable base assembly. Constructed of cold roll formed steel. 22,000 lbs. capacity per side. Color: Gray Enamel. Weight: 560 LBS. Part Number: DSXX12111

42″ long x 4″ h. x 2300 lbs. capacity Straight Cantilever Arm. Single Pin Connection. New. Lips on end. Color: Gray Enamel (Base + 7 shelf levels per side). Weight: 28 LBS. Part Number: XSA42L

48″ center-to-center Brace Beams. New. Set of 3 horizontals w/ X-Brace. (Used to attach towers together in a row). Weight: 59 LBS. Part Number: B348X

We can design cantilever rack system in almost any configuration you want. Please call us at 800-763-9020 or email sales@rackandshelf.com. We would be happy to discuss your requirements and find a rack system that fits your needs.

NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Omaha NE 68788, Chicago, IL 60160 and San Diego, CA 92154

Read more

get a heavy duty cantilever rack quote Lower Prices for Larger Quantities

Extra Heavy Duty Cantilever Rack

Cantilever Rack – Extra Heavy Duty 2

A POPULAR EXTRA HEAVY DUTY CANTILEVER RACK BILL OF MATERIAL:

12′ h. Double Sided Extra Heavy Duty Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 12,000 lbs. capacity per side. Color: Gray Enamel. Weight: 405 LBS. Part Number: DSx12106

48″ long x 4″ h. x 3000 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel. Weight: 44 LBS. Part Number: XXSA48

60″ center-to-center Brace Beams. New. Set of 3 horizontals w/ X-Brace. Used to attach towers together in a row). Weight: 72 LBS. Part Number: B360X

NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Omaha, NE 68788

Read more

get an extra heavy duty cantilever rack quote Lower Prices for Larger Quantities
videos

Click on a product title below to view more details.

Roll Form Cantilever Rack

CantileverRackRollFormed

POPULAR ROLL FORMED CANTILEVER BILL OF MATERIAL:

  • 8′ h. Single Sided Cantilever Tower. New. Includes 62″ stackable base assembly. Constructed of cold roll formed steel. 7,500 lbs. capacity per side. Color: Gray Enamel. Weight: 235 LBS. Part number: SS862
  • 12′ h. Single Sided Cantilever Tower. New. Includes 79″ stackable base assembly. Constructed of cold roll formed steel. 17,000 lbs. capacity per side. Color: Gray Enamel. Weight: 53 LBS. Part Number: SSXX1279
  • 16′ h. Single Sided Cantilever Tower. New. Includes 55″ stackable base assembly. Constructed of cold roll formed steel. 22,000 lbs. capacity per side. Color: Gray Enamel. Weight: 550 LBS. Part Number: SSXX1655
  • 36″ long x 4″ h. x 2,750 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel. Weight: 26 LBS. Part Number: XSA36
  • 48″ long x 4″ h. x 2000 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel. Weight: 33 LBS. Part Number: XSA48
  • 60″ long x 4″ h. x 2490 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel. Weight: 53 LBS. Part Number: XXSA60
  • 36″ center-to-center Brace Panel Assembly. New. Set of 3 horizontals w/ X-brace. (Used to attach towers together in a row). Weight: 49 LBS. Part Number: B336X
  • 48″ center-to-center Brace Panel Assembly. New. Set of 3 horizontals w/ X-brace. (Used to attach towers together in a row). Weight: 59 LBS. Part Number: B348X
  • 60″ center-to-center Brace Panel Assembly. New. Set of 3 horizontals w/ X-brace. (Used to attach towers together in a row). Weight: 72 LBS. Part Number: B360X

NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 65. FOB: Omaha NE 68788

Read more

get a roll formed cantilever rack quote Lower Prices for Larger Quantities
case studies videos

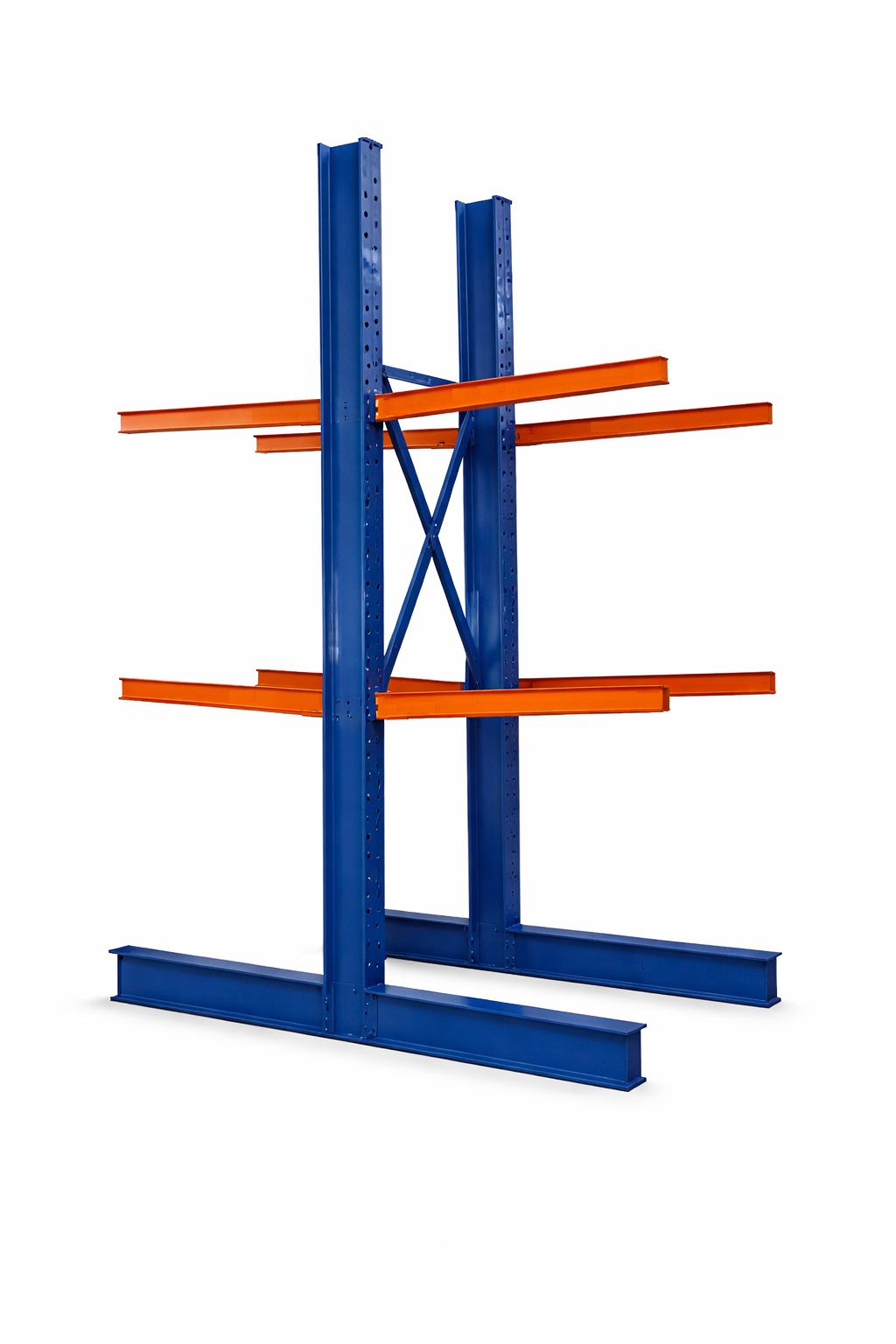

Structural I-Beam Cantilever Rack

Structural-Cantilever-Rack

SAMPLE STRUCTURAL CANTILEVER RACK BILL OF MATERIAL:

  • 12′ H. Structural Cantilever Upright Tower. (Single Sided) New. 15,500 lbs. Capacity per Side. Color: Blue. Weight: 127 LBS. Part Number: T0210718
  • 48″ L. Structural Cantilever Base. New. Color: Blue. Weight: 66 LBS. Part Number: T0057346
  • 48″ Structural Cantilever Arm. New. 1500 lbs. capacity. Color: Orange. Weight: 54 LBS. Part Number: T0057508
  • 48″ Center to Center Brace Assembly. New. Color: Blue. Weight: 28 LBS. Part Number: T00-BA
  • Hardware (shims, anchors, nuts and bolts). Weight: 54 LBS. Part Number: SCR-HDW

NOTES: Est. Lead Time: 5-7 weeks. Ships best way pre-paid & add. Freight Class 65. FOB: Chicago, IL 60160, Sumter, SC 29154, Dallas, TX 75006 and San Diego, CA 92154

Read more

get a structural cantilever rack quote Lower Prices for Larger Quantities

Click on a product title below to view more details.

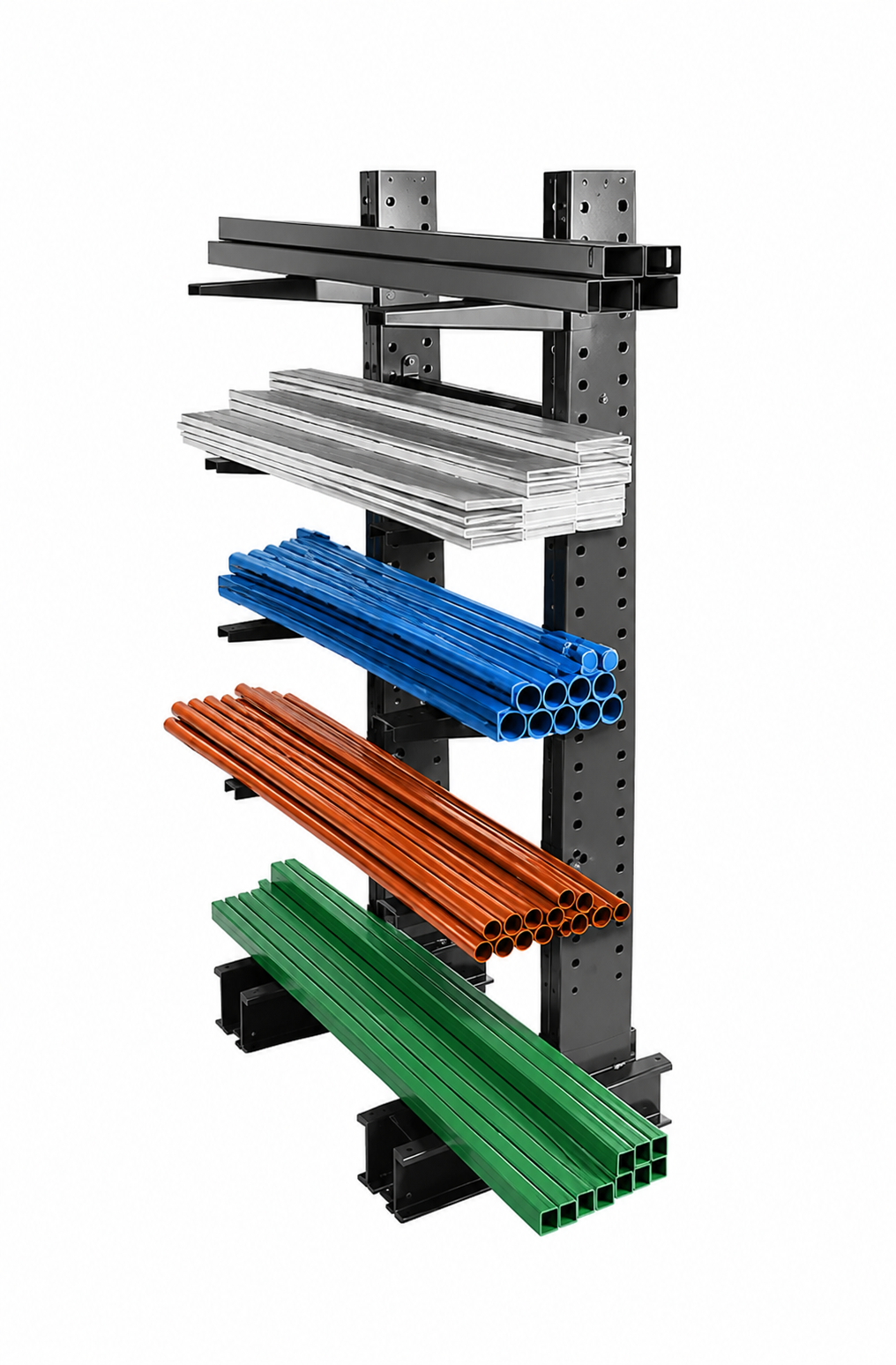

Single Sided Cantilever Racks

single-sided-cantilever-rack-3

A Popular Single Sided Cantilever Rack Bill of Material:

  • 12′ h. Single Sided Cantilever Tower. New. Includes 74″ stackable base assembly. Constructed of cold roll formed steel. 9,000 lbs. capacity per side. Color: Gray Enamel. Weight: 360 LBS. Part Number: SSX1274
  • 60″ long x 4″ h. x 1650 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel [base + 5 arms per tower]. Weight: 37 LBS. Part Number: XSA60
  • 36″ center-to-center Brace Beams. New. Set of 3 horizontals w/ X-Brace. Used to attach towers together in a row). Weight: 49 LBS. Part Number: B336X

NOTES: Est. Lead Time: 3-4 weeks. Ships best way pre-paid & add. Freight Class 70. FOB: Omaha NE 68788

Read more

get a single sided cantilever rack quote Lower Prices for Larger Quantities
videos

Double Sided Cantilever Rack

double-sided-cantilever-rack-4

A POPULAR DOUBLE SIDED CANTILEVER RACK BILL OF MATERIAL:

16′ h. Double Sided Cantilever Tower. New. Includes 106″ stackable base assembly. Constructed of cold roll formed steel. 7,500 lbs. capacity per side. Color: Gray Enamel. Weight: 325 LBS. Part Number: DS10106

42″ long x 3″ h. x 1100 lbs. capacity Straight Cantilever Arm. New. No stop on end. Color: Gray Enamel. Weight: 19 LBS. Part Number: ISA42

60″ center-to-center Brace Beams. New. Set of 2 horizontals. Used to attach towers together in a row). Weight: 40 LBS. Part Number: B260

NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Omaha NE 68788

Read more

get a double sided cantilever rack quote Lower Prices for Larger Quantities

Click on a product title below to view more details.

Cantilever Rack with Straight Arms

Cantilever-Rack-straight-arms

Read more

Get A Cantilever Rack With Straight Arms Quote Lower Prices for Larger Quantities

Cantilever Rack with Inclined Arms

Cantilever-Rac-inclined-arms

Read more

Get A Cantilever Rack with Inclined Arms Quote Lower Prices for Larger Quantities

Click on a product title below to view more details.

Cantilever Steel Bar, Tubing & Pipe Storage Racks

Bar-tubing-pipe-storage-cantilever-rack

One row of cantilever for PVC Pipe Storage. A row consists of 4 single sided towers joined together with 3 brace panel assemblies. Utilizes 16′ Single Sided Structural Uprights with 60″ Base Assembly + (3) – 60″ arms levels with capacity of 1300 lbs per arm. All bays have 60″ C/C. brace panels. Colors: Tower and Base: Royal Blue. Arms: Safety orange.

Read more

GET A BAR & TUBING STORAGE RACK QUOTE Lower Prices for Larger Quantities
Case Studies

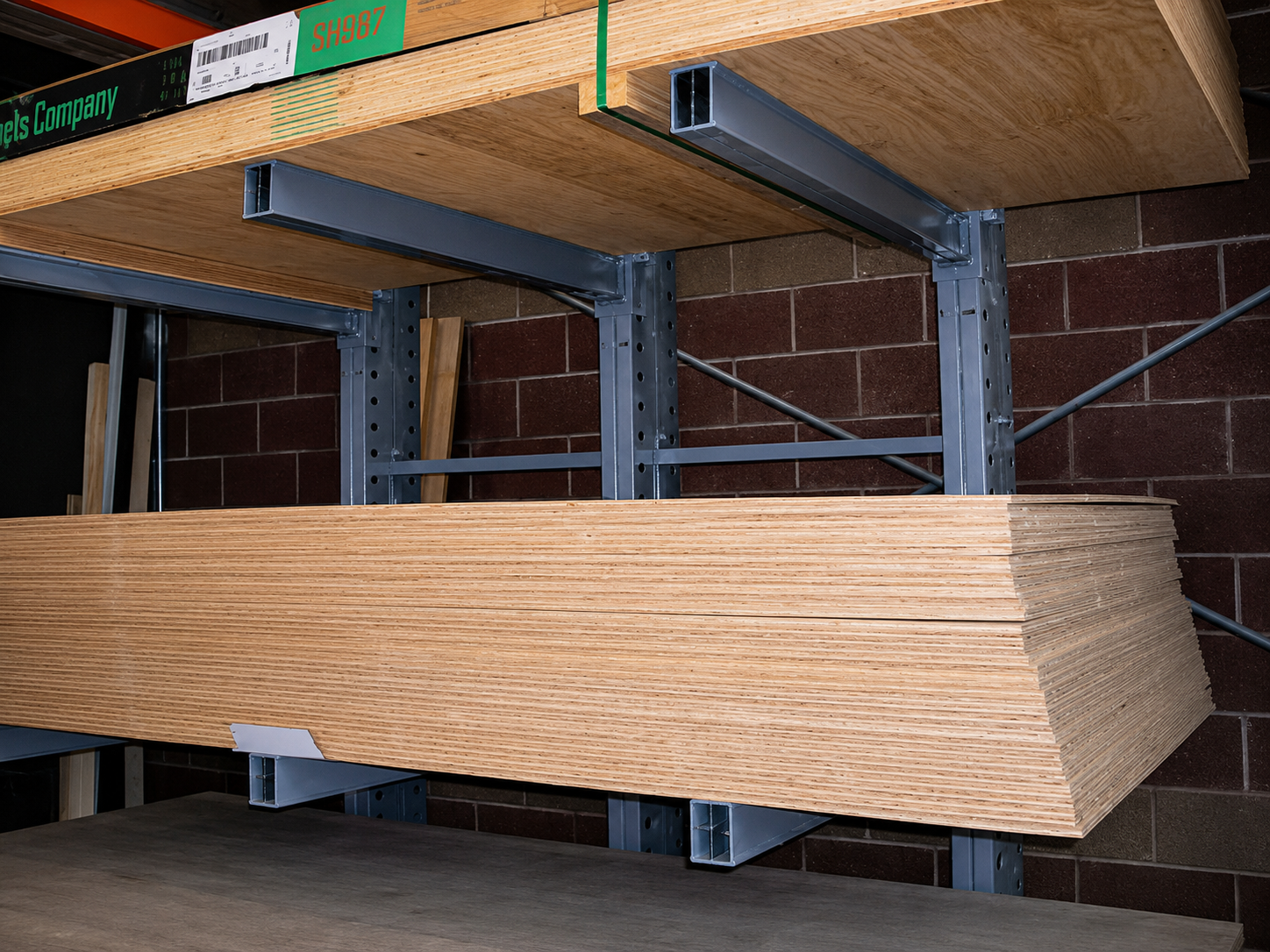

Industrial Cantilever Steel Racks

Sheet-Storage-with-Cantilever-Racks-2

Read more

GET A SHEET STORAGE RACK QUOTE Lower Prices for Larger Quantities

Cantilever Lumber Rack

Cantilever Lumber Rack

Read more

get a lumber rack quote Lower Prices for Larger Quantities
case studies
