Light Duty Cantilever Rack

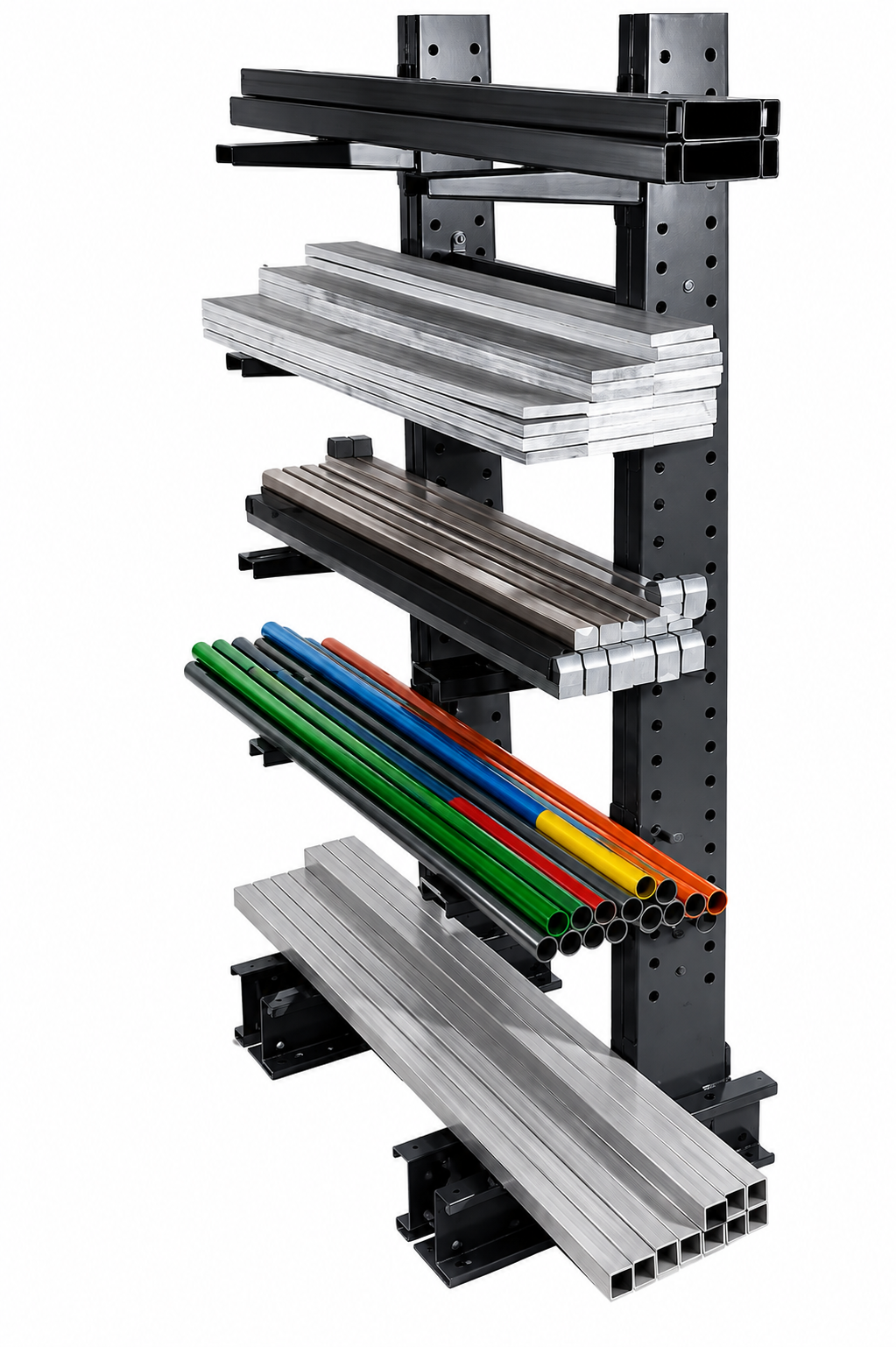

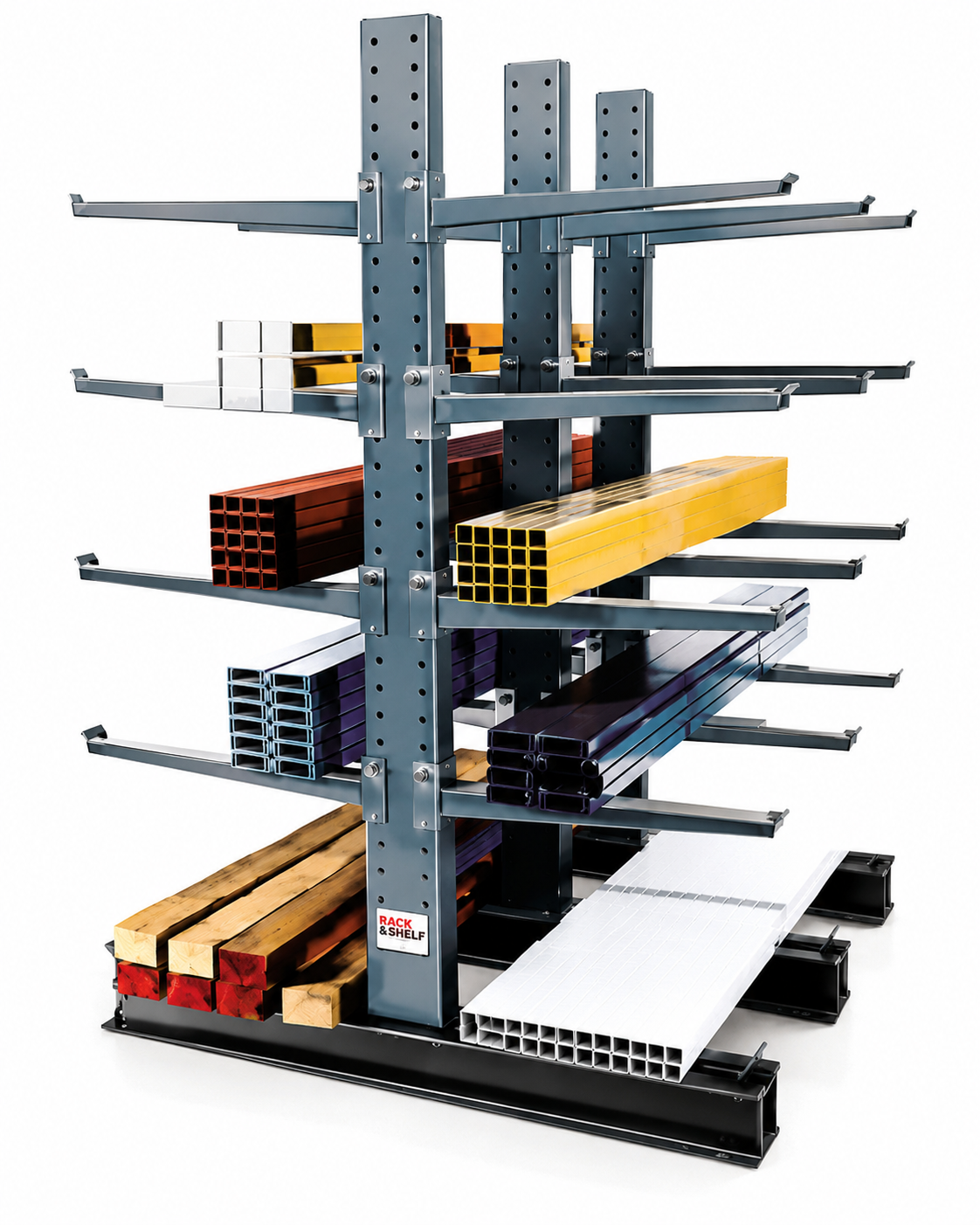

Single Sided Light Duty Cantilever RackingDouble Sided Light Duty Cantilever Rack

Light Duty Cantilever Rack

LIGHT DUTY CANTILEVER RACK SAMPLE BILL OF MATERIAL:

  • 8′ h. Double Sided Cantilever Tower. New. Includes 48″ stackable base assembly. Constructed of cold roll formed steel. 4,300 lbs. capacity per side. Color: Gray. Weight: 175 LBS. Part Number: DS84
  • 48″ long x 300 lbs. capacity Cantilever Arm. New. No stop on end. Color: Gray. Weight: 14 LBS. Part Number: XSA48
  • 48″ center-to-center Brace Set. New. (Used to attach towers together in a row). Weight: 32 LBS. Part Number: B246



NOTES: Est. Lead Time: 2-3 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Omaha NE 68788, Chicago, IL 60160 and San Diego, CA 92154

Lower Prices for Larger Quantities

Light Duty Cantilever Rack is also the lowest priced cantilever racking. Cantilever racks are offered in varying capacities including Extra heavy duty, Heavy duty, Intermediate duty and Light duty cantilever rack.

Light Duty Cantilever Rack has capacities that range from 300-800 LBS. per arm (based on arm length). To determine arm capacity take the total weight of the bundle (or bundles) being stored on each level and divide it by the number of arms supporting the bundle.

Light Duty Cantilever Racks are designed for storage of long light loads and is primarily used in warehouses, light manufacturing facilities, workshops and garages.

We offer a full line of light duty, intermediate duty, heavy and extra heavy duty cantilever racks. We provide multiple configurations of a wide variety of cantilever racks. Our roll formed and structural cantilever racks can be configured for a wide range of applications. We have the products that generates solutions for your storage needs.

A Unit of Cantilever Rack has 3 Primary Components:

1. Single or Double Sided Cantilever Towers – Tower includes a stackable base. Popular tower heights include 6′, 8′, 12′ & 16′.

2. Cantilever Arms – Popular arm lengths include 36″, 48″ & 60″.

3. Brace Panel – Attaches towers together to create a unit or row. Bracing is offered in 36″, 48″, 60″ & 72″ widths.

FAQs about Light Duty Cantilever Rack

What are cantilever racks and what are they used for?

Cantilever rack is a heavy-duty storage system designed for long, bulky, or irregularly shaped materials that cannot be stored on traditional pallet rack. It uses vertical uprights with horizontal arms that extend outward, creating open-front storage with no vertical obstructions. Cantilever is ideal for storing items such as lumber, steel tubing, conduit, pipe, plywood, metal sheets, furniture, rugs, and building materials.

What are the advantages of cantilever racks over pallet racks for long materials?

Cantilever racks provide unobstructed access for long items that pallet racks cannot offer. Without front columns, forklifts can load and unload product easily from the front of each level. The system is adjustable and allows arms to be repositioned to accommodate changing inventory sizes. Cantilever maximizes horizontal storage space, reduces product damage, improves picking efficiency, and is one of the safest, most versatile solutions for long bulky materials.

What components make up a cantilever rack system?

A complete cantilever rack system includes uprights, bases, arms, and brace assemblies. Uprights support the load vertically, bases anchor the structure and act as the bottom storage level, arms hold the material, and braces tie the uprights together for lateral stability. Systems can be single-sided for wall placement or double-sided to access material from both sides. Capacity varies by arm length, upright design, and material type (roll-formed or structural steel).

What industries benefit most from cantilever racks?

Cantilever racks are commonly used in lumber yards, steel service centers, manufacturing plants, plumbing and HVAC distributors, furniture warehouses, building material suppliers, and home improvement retailers. Any operation that stores long, awkward, or oversized items will benefit from cantilever racking’s flexibility, strength, and accessibility.

How do I choose the right arm length and weight capacity?

Arm length should match or slightly exceed the depth of the material you are storing. Weight capacity must be determined by the heaviest load per arm and the total load per upright. Because each arm supports only a portion of the full load, it’s important to evenly distribute weight and select arms designed for your specific material and handling equipment. As a rule of thumb, take the bundle weight divided by number of arms supporting the bundle to get required arm capacity. Factory engineers can assist with capacity calculations to ensure your cantilever rack is engineered for safe, compliant use.
