Double-Tier Industrial Guard Rail | Warehouse Safety Barriers
POST:

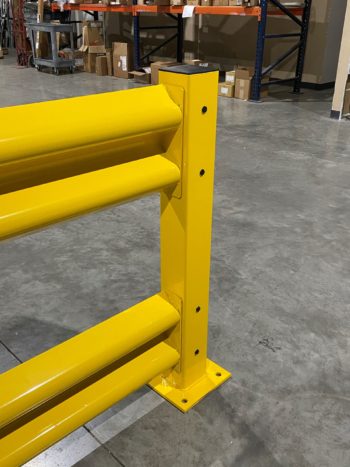

• 42″ High Center Guard Rail Post. New. 4-3/4″ x 4-3/4″ x 3/16″ Square Tubing Post. Base Plate: 10″ x 10″ x 1/2″ Thick. Color: Safety Yellow. Weight: 52.6 LBS. Part Number: NDGRP425545S1150000Y (Centered Post for Double Tier)
RAILS (Length of rail is measured center to center of posts):
• 24″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 18.7 LBS. Part Number: NDGRR024A0192800000Y
• 36″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 26.4 LBS. Part Number: NDGRR036A0312800000Y
• 48″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 34 LBS. Part Number: NDGRR048A0432800000Y
• 60″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 41.7 LBS. Part Number: NDGRR060A0552800000Y
• 72″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 49 LBS. Part Number: NDGRR072A0672800000Y
• 84″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 57 LBS. Part Number: NDGRR084A0792800000Y
• 96″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 65 LBS. Part Number: NDGRR096A0912800000Y
• 108″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 72 LBS. Part Number: NDGRR108A1032800000Y
• 120″ long x 12″ high Formed 10 Gauge Steel Rail. New. Color: Safety Yellow. Weight: 80 LBS. Part Number: NDGRR120A1152800000Y
ACCESSORIES:
• Anchor (add 4 per post). .75″ x 4.25″. PN. FSRH75425WA
• Guard Rail Pocket (FOR LIFT OFF FOR EASY ACCESS PASS THROUGH). New. Color: Safety Yellow. Weight: 7.5 LBS. Part Number: NDGRP10000Y (Fits all rails)

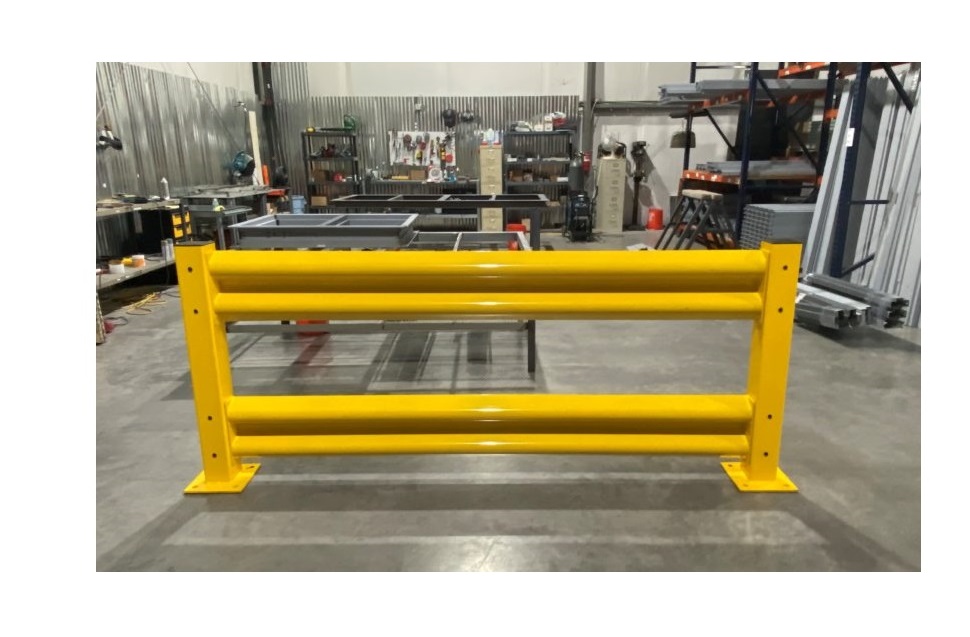

Our double-tier guard rail provides the strength and reliability needed to improve your workplace safety, whether you’re securing a single area or outfitting an entire facility. Double-tier industrial guard rail is a common safety feature in manufacturing facilities, warehouses, and distribution centers. Standing 42 inches high with two rail levels, it forms a strong barrier against forklift and pallet truck impacts. Its taller design provides added security in high-traffic zones where the risk of collisions is greater.
This guard rail system is used throughout industrial spaces to protect equipment, pedestrian walkways, in-plant offices, and inventory. It helps prevent damage to pallet racking and shelving by absorbing forklift impacts before they reach storage structures. Each system consists of vertical posts that are 42 inches high and horizontal rails available in lengths from 4 to 10 feet. Rail measurements are taken from the center of one post to the center of the next to ensure accurate spacing. Made from heavy-gauge steel, the guard rail is designed for long-term durability and impact resistance.
A high-visibility yellow powder coat finish increases safety awareness while protecting the steel from wear and corrosion. This finish serves as a visual cue for forklift operators and employees to be cautious in protected areas.
