Cantilever Rack Uprights and Stackable Base

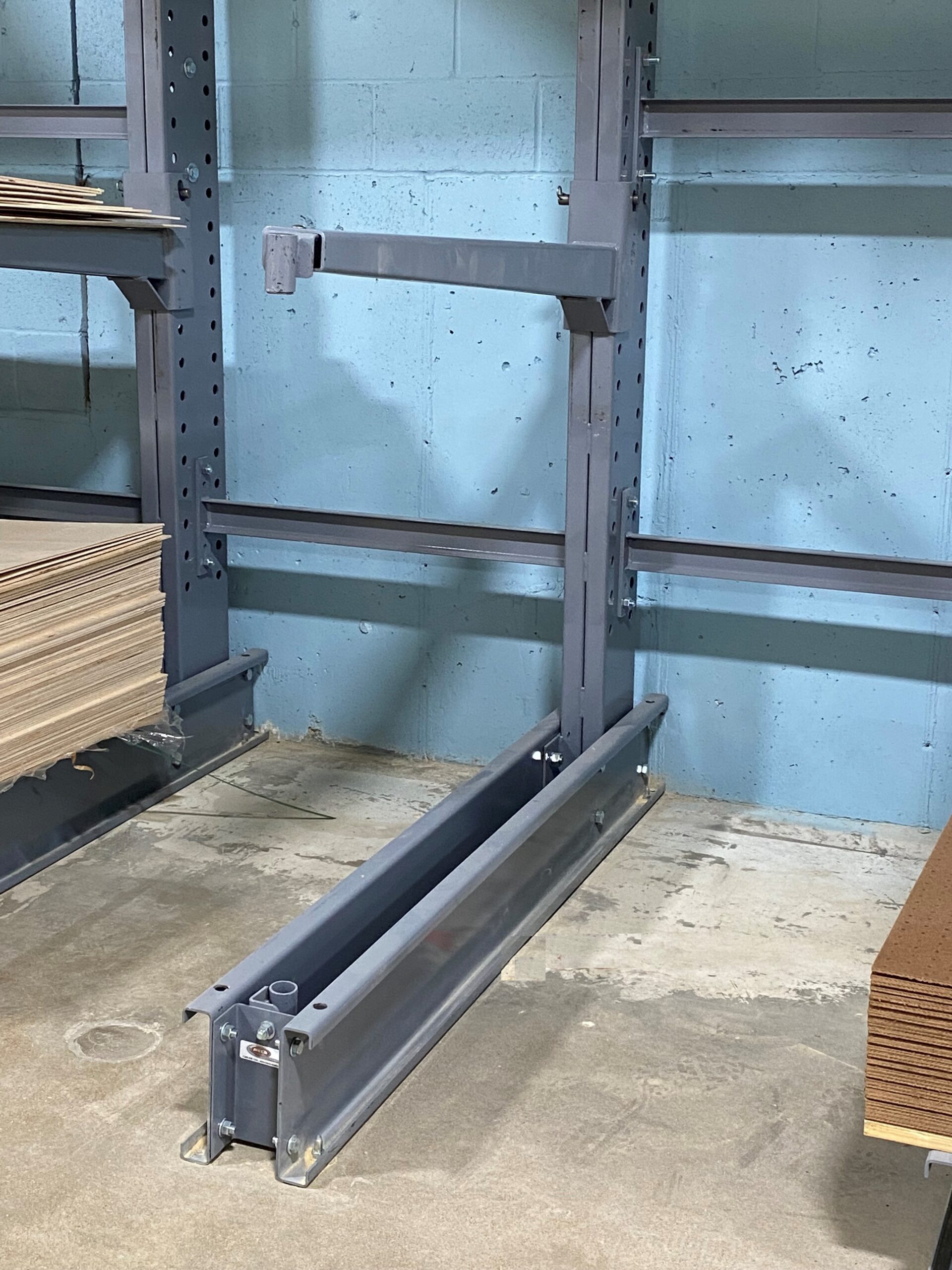

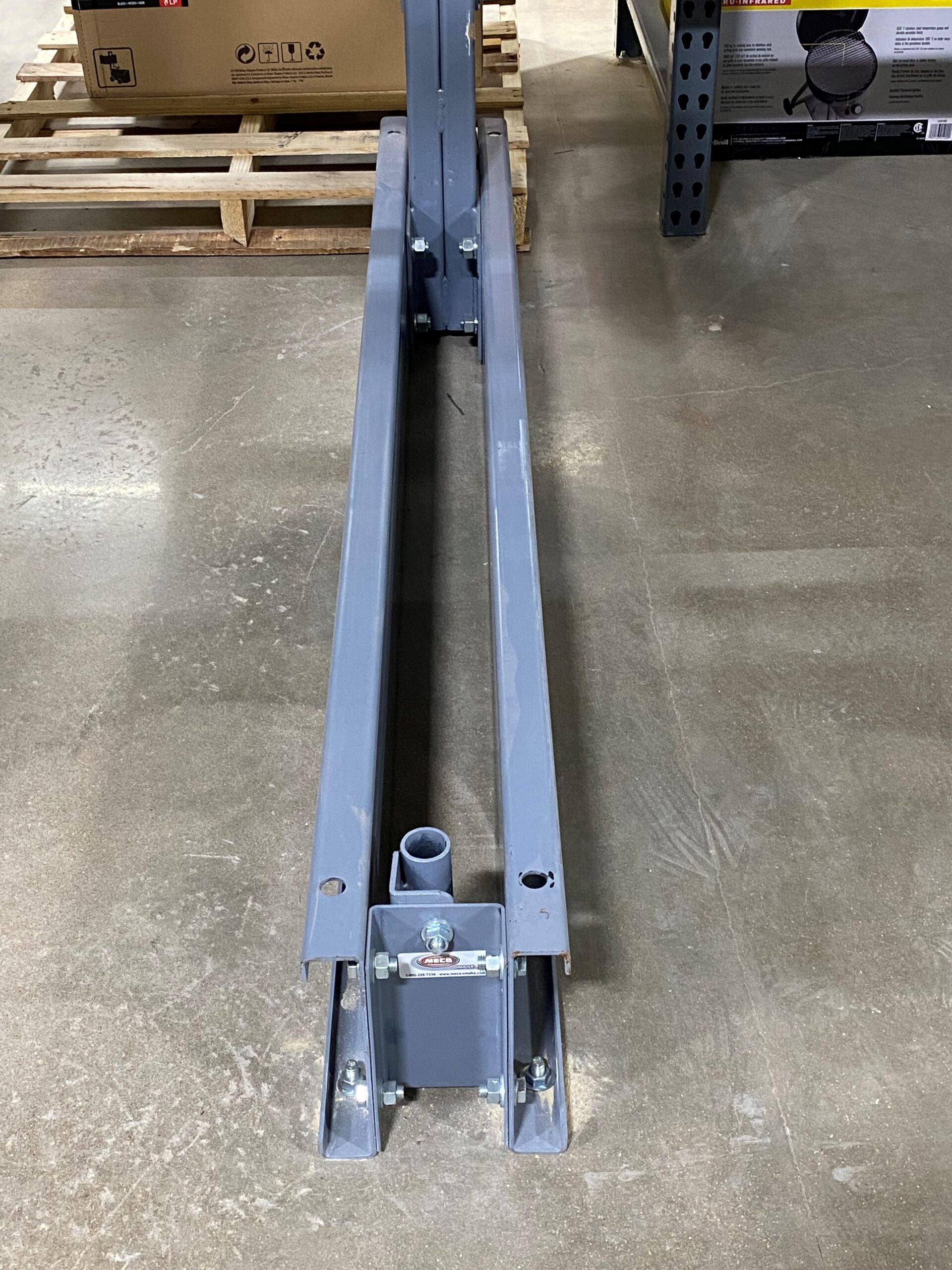

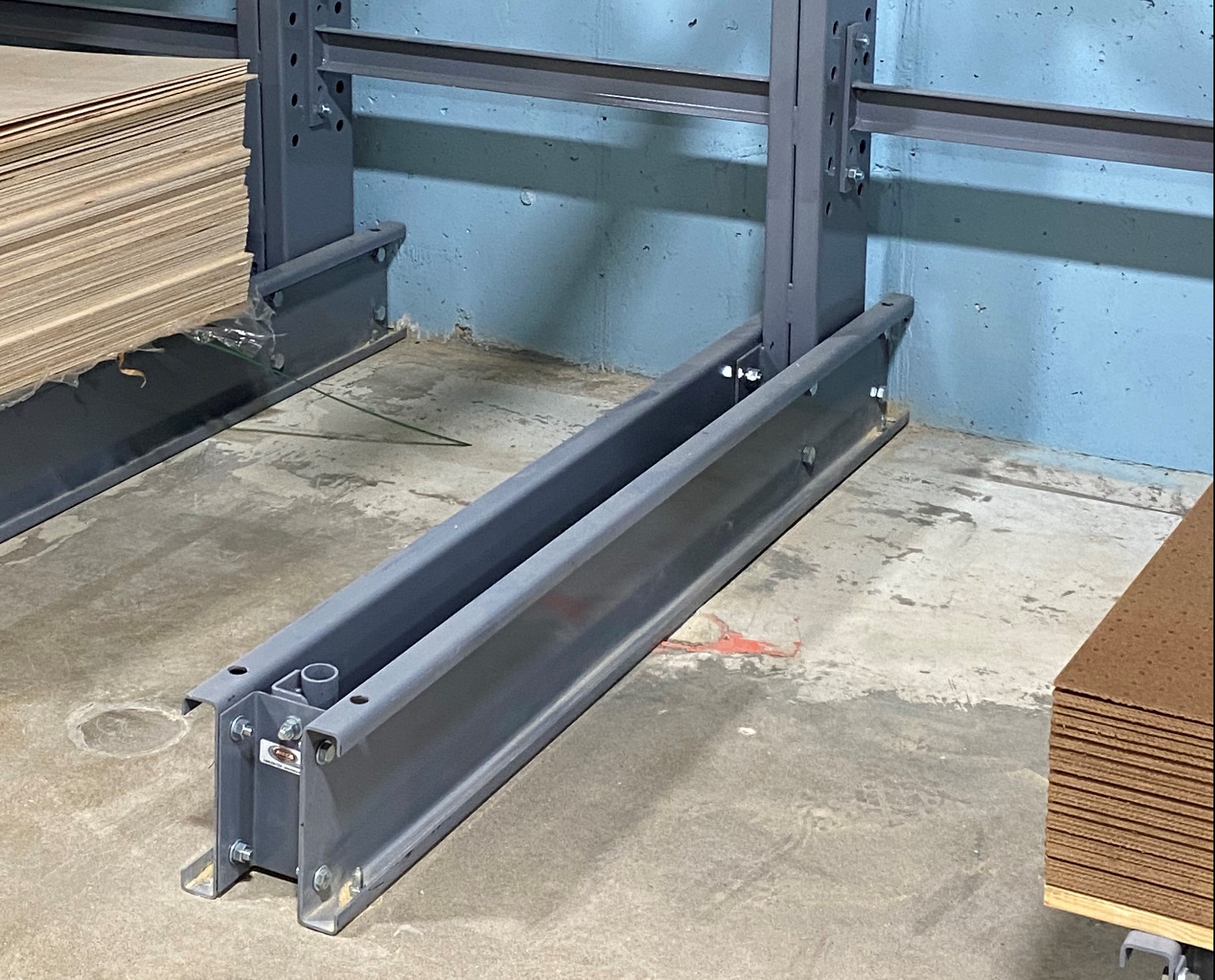

Cantilever rack uprights are the vertical columns that form the structural backbone of a cantilever rack system. Arms, braces, and bases attach directly to the upright, making it the central component that determines the system’s height, load capacity, and overall configuration. Uprights are manufactured from formed steel with punched holes or slots at regular intervals along their length, allowing arms to be positioned at varying heights to accommodate materials of different sizes. The stackable base is the floor-level foundation that the upright connects to, providing stability and distributing the load of stored materials across the floor surface. Together, the upright and base form the primary structural unit of the cantilever rack system.

The stackable design of these bases provides a key advantage in facilities that need to expand storage capacity over time. Rather than purchasing entirely new rack sections, uprights and bases can be stacked to increase the height of existing columns, effectively multiplying storage capacity within the same floor footprint. This modularity reduces the cost of expansion and allows facilities to scale storage incrementally as inventory grows or operational requirements change. The bases bolt together securely to maintain structural integrity at increased heights, ensuring the system remains stable and load-rated even after modification.

Selecting the right upright height and base configuration is important for safe cantilever rack operation. Upright height determines how many arm levels can be installed and what clearance is available for handling equipment such as forklifts and cranes. Base depth and width affect stability under load, particularly for single-sided configurations where loads apply force in one direction. Proper upright and base selection based on load weight, arm length, and material dimensions ensures the system performs within its rated capacity while providing the access and flexibility your operation requires.
