Cantilever Rack Arm & Base Removable Pipe Sockets

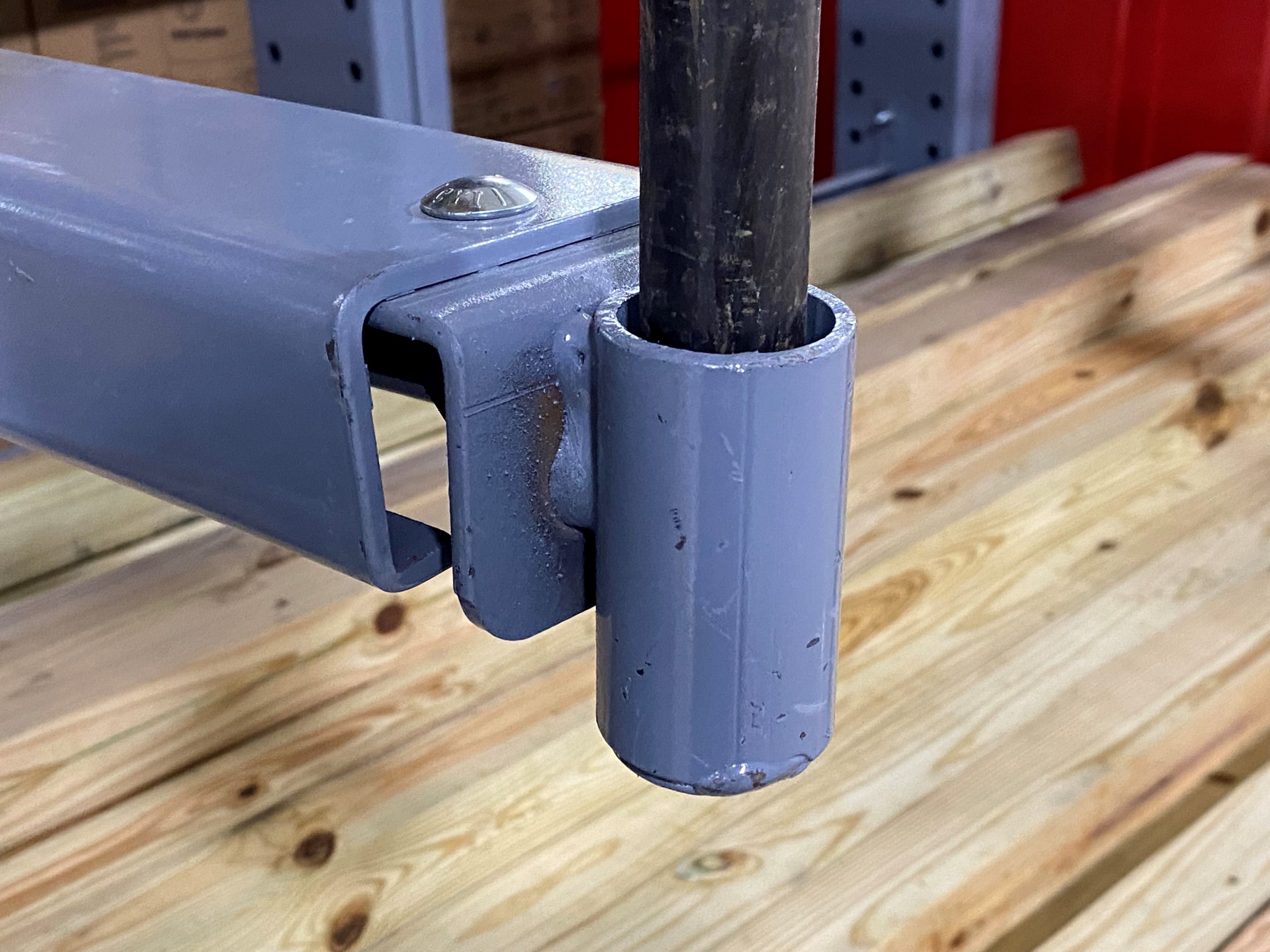

Cantilever rack arm and base removable pipe sockets are specialized accessories designed to hold vertical retaining pipes at the outer edges of a cantilever storage system. A pipe socket is made up of a steel sleeve or collar that is welded directly onto the tip of the horizontal cantilever arm or the extended base of the rack. Users insert a standard piece of pipe into these sockets to act as a removable stopper, creating an instant barrier that prevents cylindrical, round, or unstable materials from rolling off the rack.

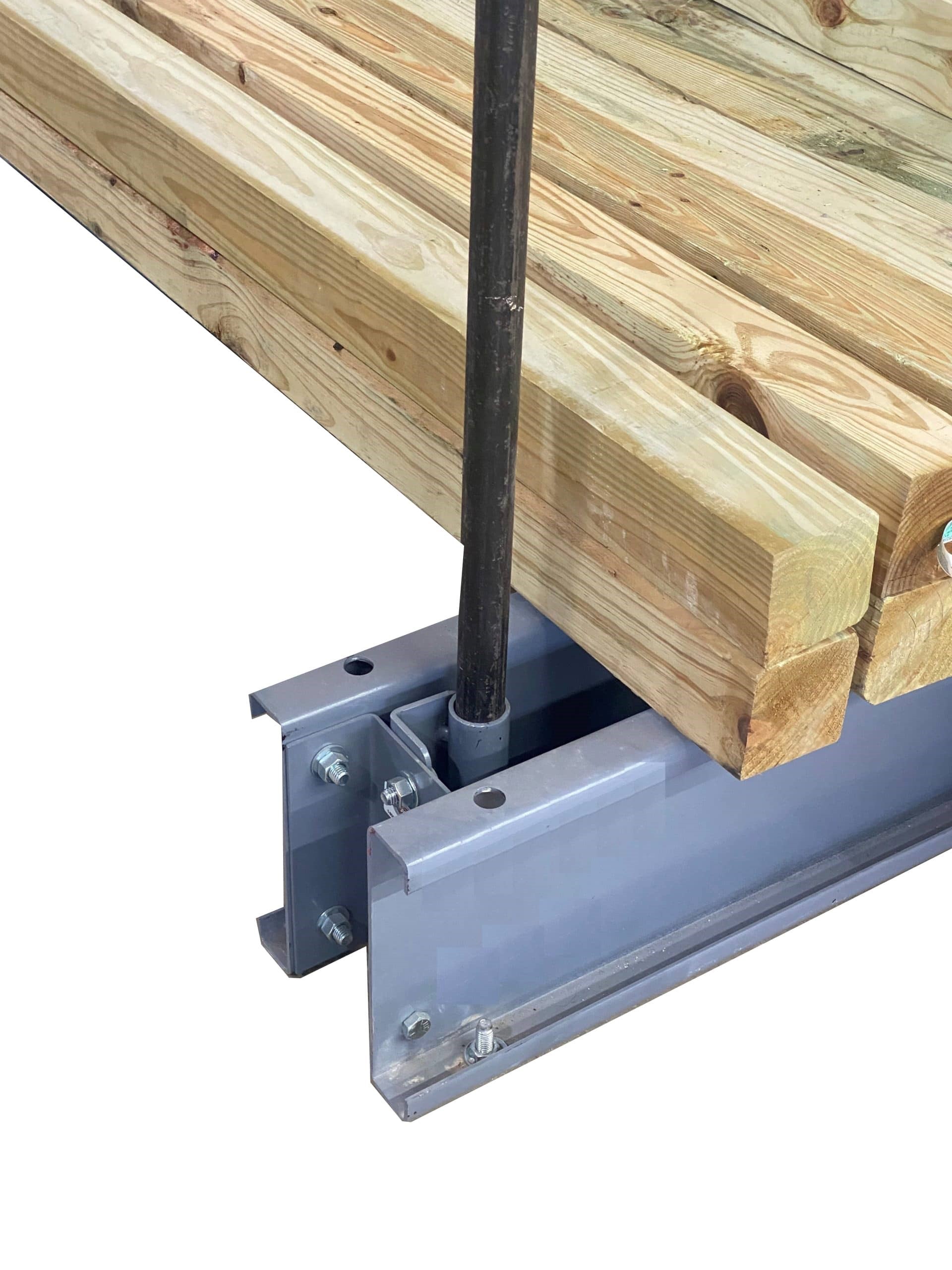

The main advantage of using removable pipe sockets is the flexible security they bring to material handling operations. When a facility needs to store round items like steel pipes, PVC conduits, logs, or industrial coils, the vertical pipe inserts ensure that inventory cannot shift or roll off the ends. This reduces the risk of product damage and workplace injuries. When the rack is needed for flat, square inventory such as lumber packs or sheet metal bundles, the pipes can be pulled out of the sockets instantly. This allows forklifts unobstructed, flush access to the arms without permanent obstructions in the way.

Removable pipe sockets also offer an adaptable and cost-effective alternative to permanent, welded lip stoppers. Because the sockets are built right into the components, facilities can quickly reconfigure individual storage levels as inventory needs change throughout the year. The open design of the sleeve allows operators to choose the height of the pipe they insert, providing a customizable safety profile that can accommodate both small-diameter tubing bundles and large, oversized industrial rollers within the same racking system.
