Parallel Reel Payout Trailers | PRP Cable Reel Trailers
14′ L x 98″ W x 24″ Deck Height Parallel Cable Reel Payout Trailer. New. Parallel Reel Payout Trailer with 360-degree rotating turntables. Capacity: 11,900 LBS payload / 14,500 LBS GVWR. Weight: 2,600 LBS. Part Number: PRP-TRL-14
22′ L x 98″ W x 24″ Deck Height Parallel Cable Reel Payout Trailer. New. Parallel Reel Payout Trailer with 3 turntables for 3 PRP units. Capacity: 11,900 LBS payload / 14,500 LBS GVWR. Weight: 3,400 LBS. Part Number: PRP-TRL-22
NOTES: FOB: St. Louis, MO. EST. Lead Time: 16-18 weeks.
Our Parallel Reel Payout Trailers (PRP-TRL) give you a tough, mobile way to carry and release multiple wire and cable reels right where you need them. As the heart of a full Parallel Reel Payout setup, these trailers let your crew load up project cable, tow it to the site, and start pulls from one handy spot. That means less lifting and a smoother workflow for big commercial, industrial, and utility jobs.

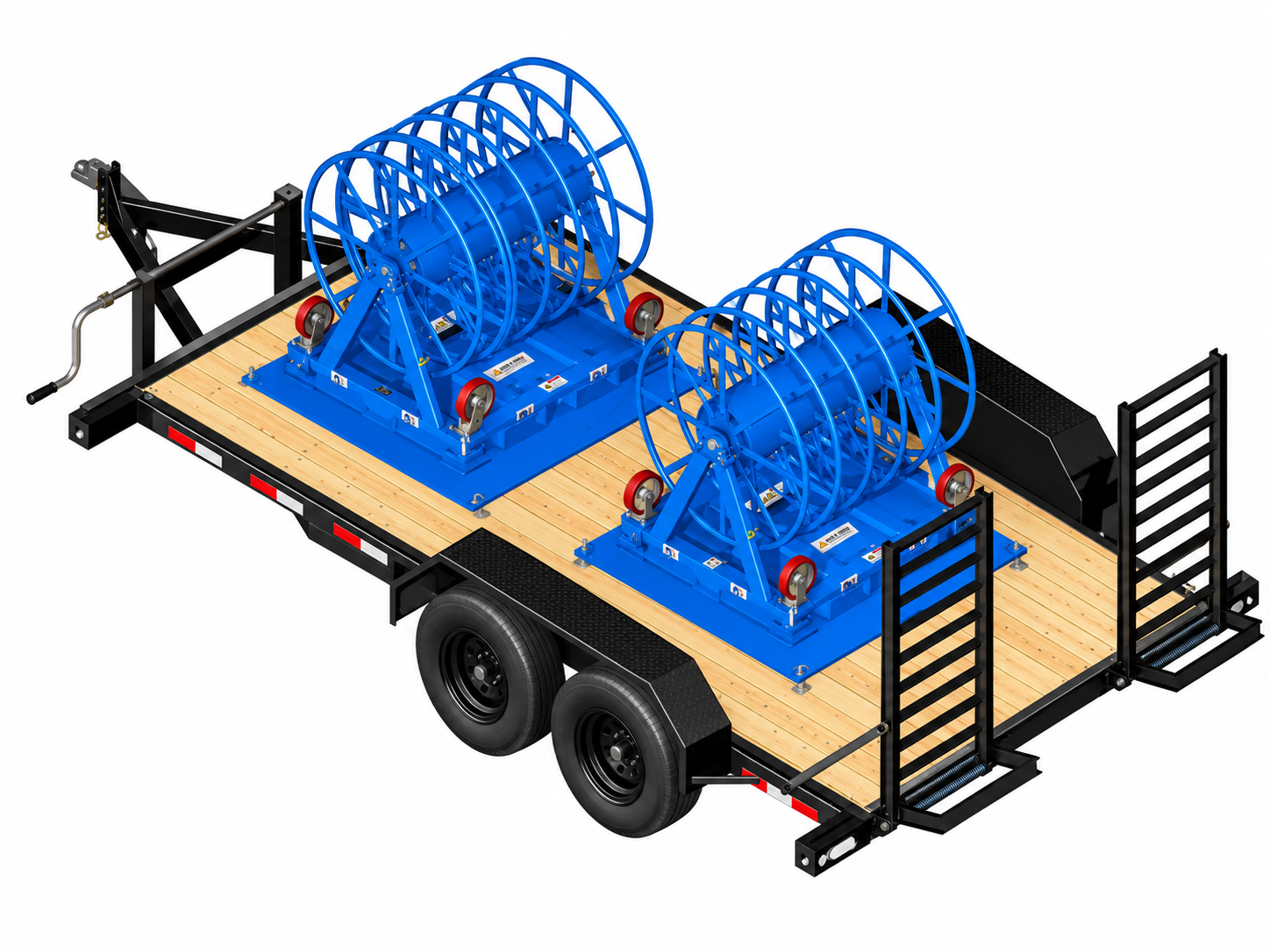

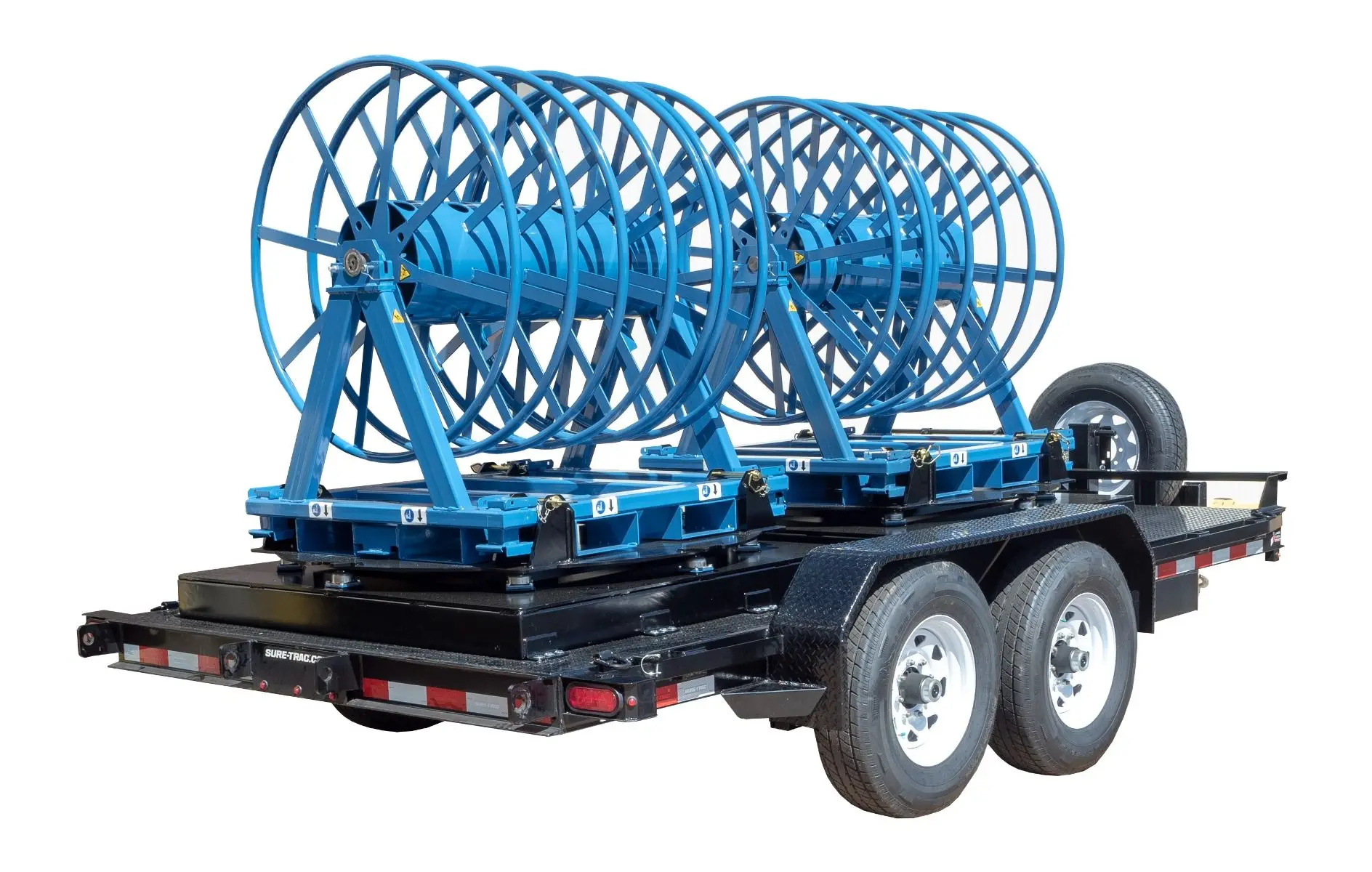

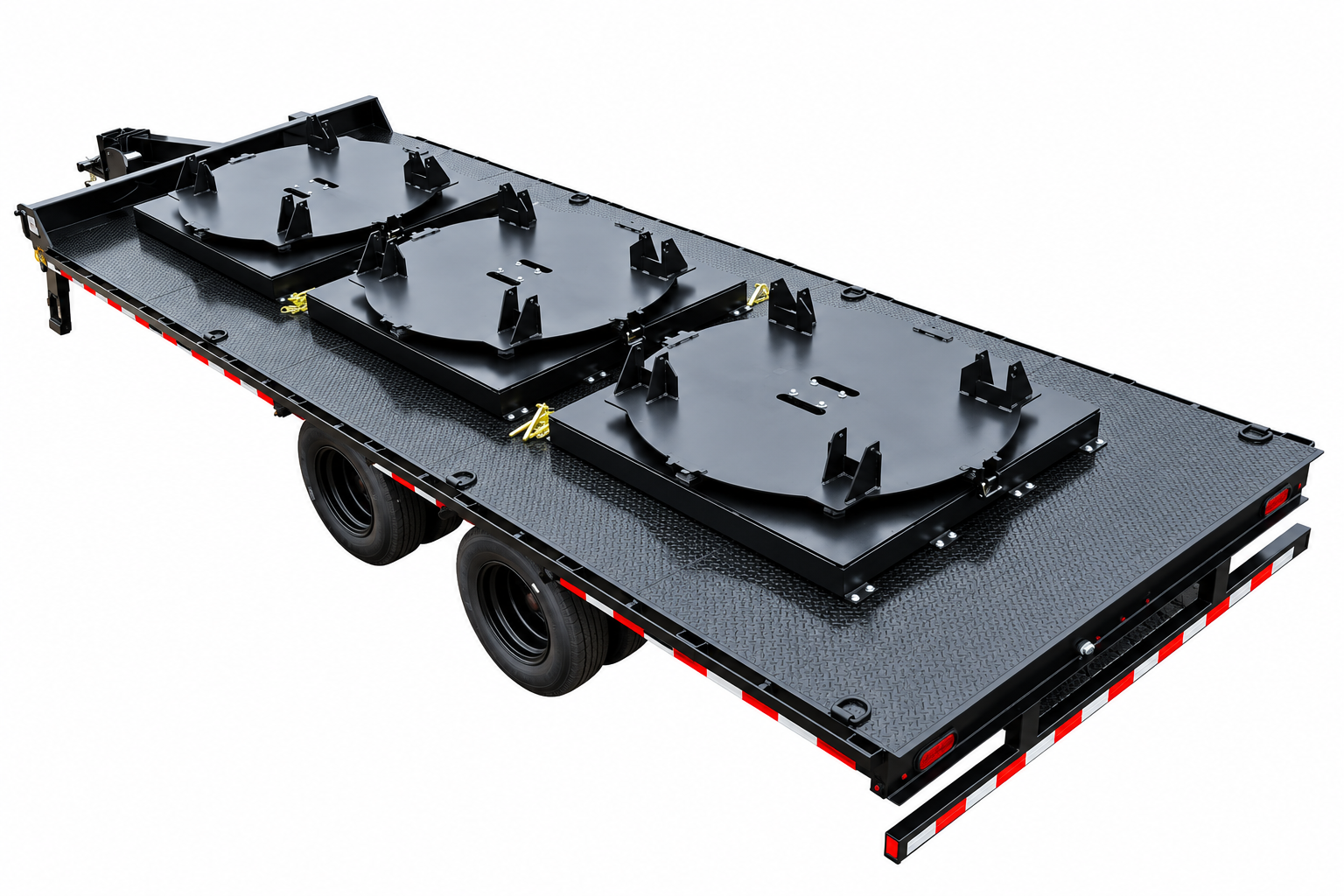

Each PRP Trailer comes with two or three turntables, depending on the model. You can attach Parallel Reel Payout units to these rotating bases and set them up however your project needs. The turntables spin a full 360 degrees, so you can point the gear toward different conduit runs or pull spots without moving the whole trailer.

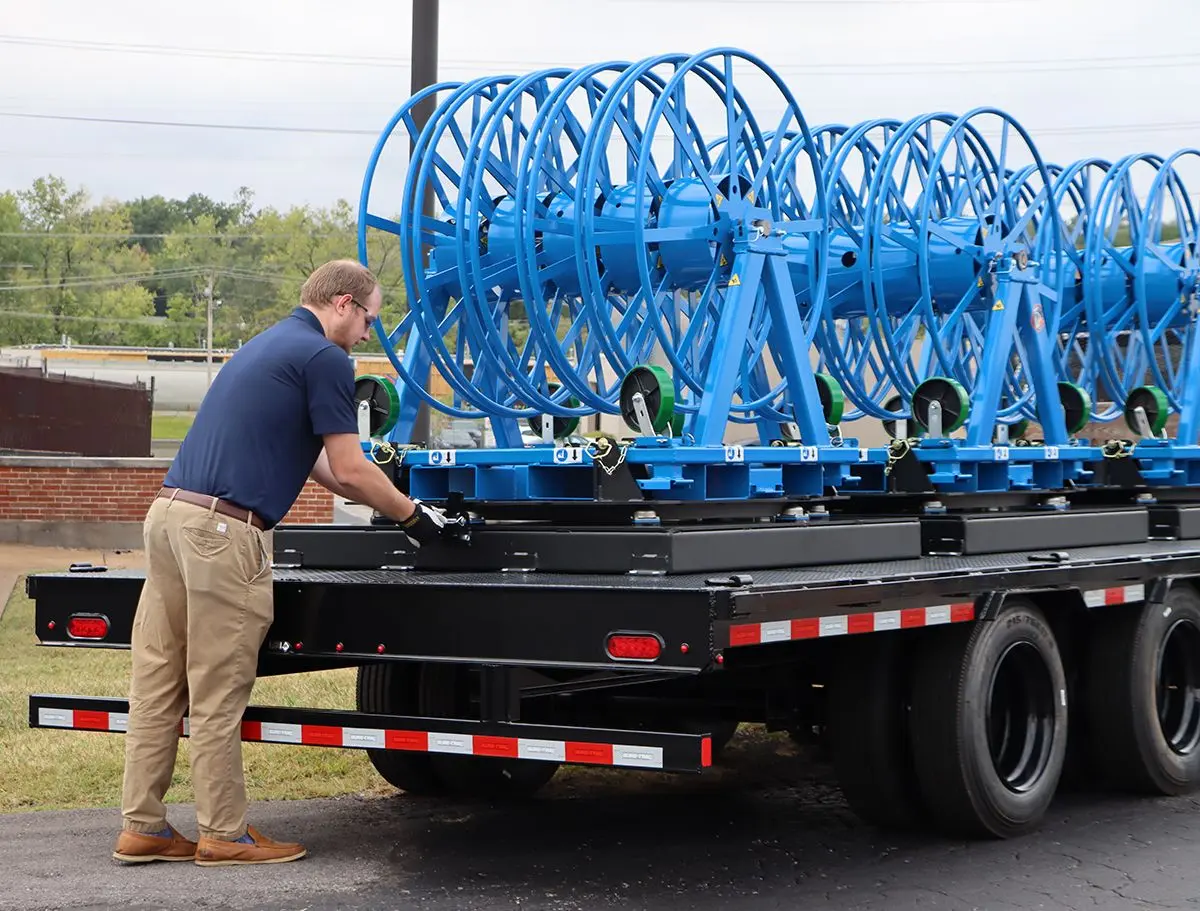

These trailers really shine during parallel pulls or jobs with different cable sizes. You can lock or release each reel area separately, letting your team pull just what’s needed while keeping the rest secure. You can also release multiple cables at once when necessary. This flexibility makes the system a great fit for electrical contractors, data centers, industrial sites, utilities, infrastructure projects, and other large electrical builds.
We’ve got three trailer setups to match your jobsite needs and capacity preferences. The PRP-TRL-14 is a handy 14-foot trailer with two turntables and an 11,900 lb payload. Step up to the PRP-TRL-22 for a 22-foot platform, three turntables, and an 11,100 lb payload. If you’re tackling the toughest jobs, the PRP-TRL-24 is a sturdy 24-foot deckover trailer with three turntables, a 32,000 lb GVWR, and a generous 26,000 lb payload.
Built tough and ready for action, our Parallel Reel Payout Trailers give you a flexible cable-handling system you can tailor to each project. The 14-foot and 22-foot models sit low at 24 inches with adjustable 2-5/16-inch ball couplers, while the heavy-duty 24-foot version stands at 32 inches with an adjustable pintle hitch. Since the reel units and setups are chosen separately, you can easily customize everything for your cable sizes, quantities, and pulling needs.
PRP Trailer Models & Specifications
| Model | Mounted Turntables | GVWR | Payload | Curb Weight – Trailer Only | Deckover | Deck Height | Width | Length | Coupler Type |
|---|---|---|---|---|---|---|---|---|---|
| PRP-TRL-14 | 2 | 14,500 lb / 6,577 kg | 11,900 lb / 5,398 kg | 2,600 lb / 1,179 kg | No | 24″ / 610 mm | 98″ / 2,489 mm | 14′ / 4,267 mm | Adjustable 2-5/16″ Ball |
| PRP-TRL-22 | 3 | 14,500 lb / 6,577 kg | 11,100 lb / 5,035 kg | 3,400 lb / 1,542 kg | No | 24″ / 610 mm | 98″ / 2,489 mm | 22′ / 6,705 mm | Adjustable 2-5/16″ Ball |
| PRP-TRL-24 | 3 | 32,000 lb / 14,515 kg | 26,000 lb / 11,793 kg | 6,000 lb / 2,722 kg |
