Parallel Reel Payout (PRP) | Wire & Cable Reel Handling
44″ L x 50″ W x 55.31″ H Parallel Reel Payout. New. Wire & Cable Reel Cart. Simplifies cable pulling with free-spinning, multi-compartment reels, providing an even payout. Capacity: 5,000 LBS. Weight: 766 LBS. Part Number: PRP-1
44″ L x 50″ W x 55.31″ H Parallel Reel Payout. New. Wire & Cable Reel Cart. Simplifies cable pulling with free-spinning, multi-compartment reels, providing an even payout. Capacity: 5,000 LBS. Weight: 830 LBS. Part Number: PRP-2
44″ L x 50″ W x 55.31″ H Parallel Reel Payout. New. Wire & Cable Reel Cart. Simplifies cable pulling with free-spinning, multi-compartment reels, providing an even payout. Capacity: 5,000 LBS. Weight: 875 LBS. Part Number: PRP-3
NOTES: FOB: St. Louis, MO. Est Lead Time: 6-8 weeks
NOTE: Doesn’t Include Reels. Just the Payout (Base with Casters).

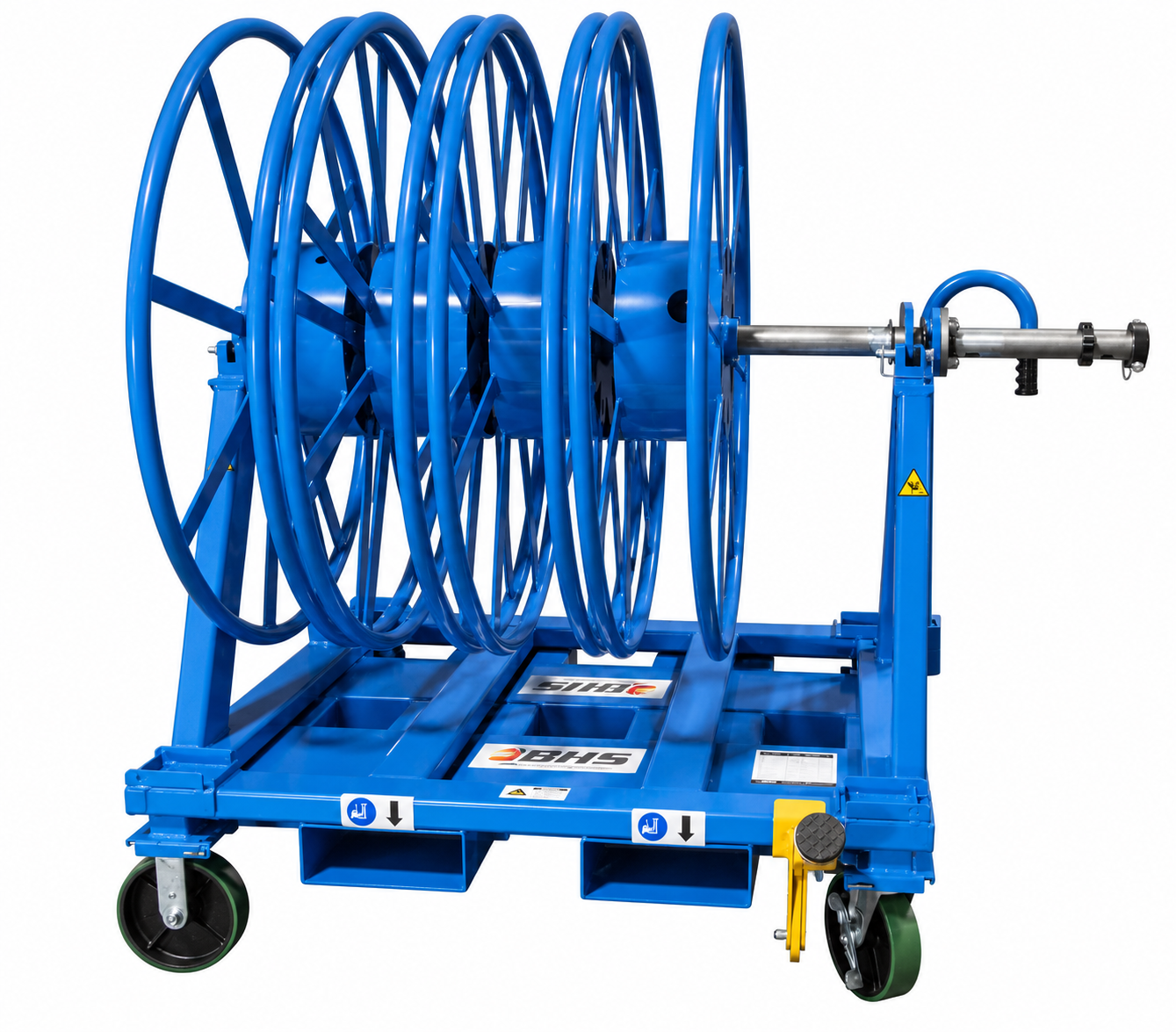

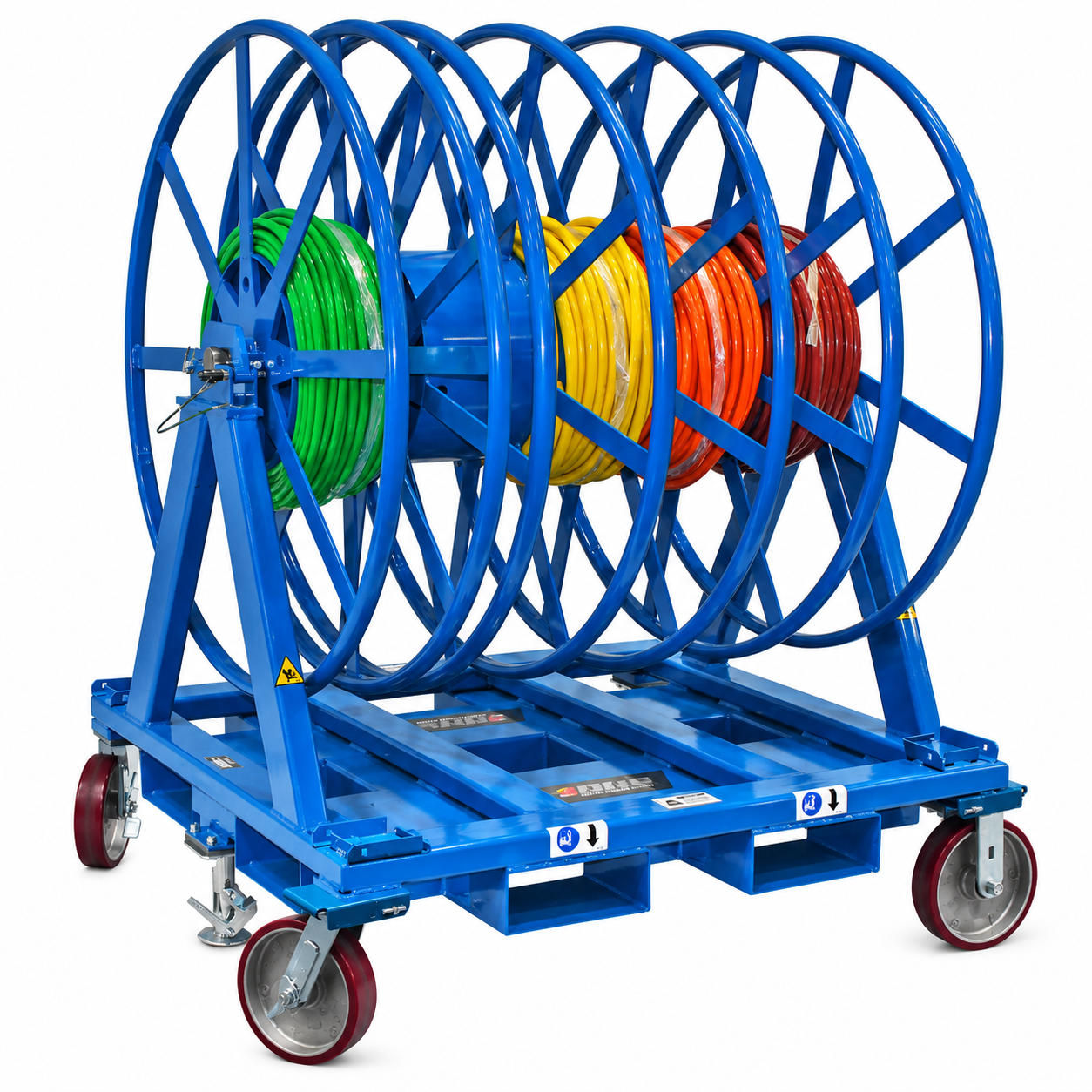

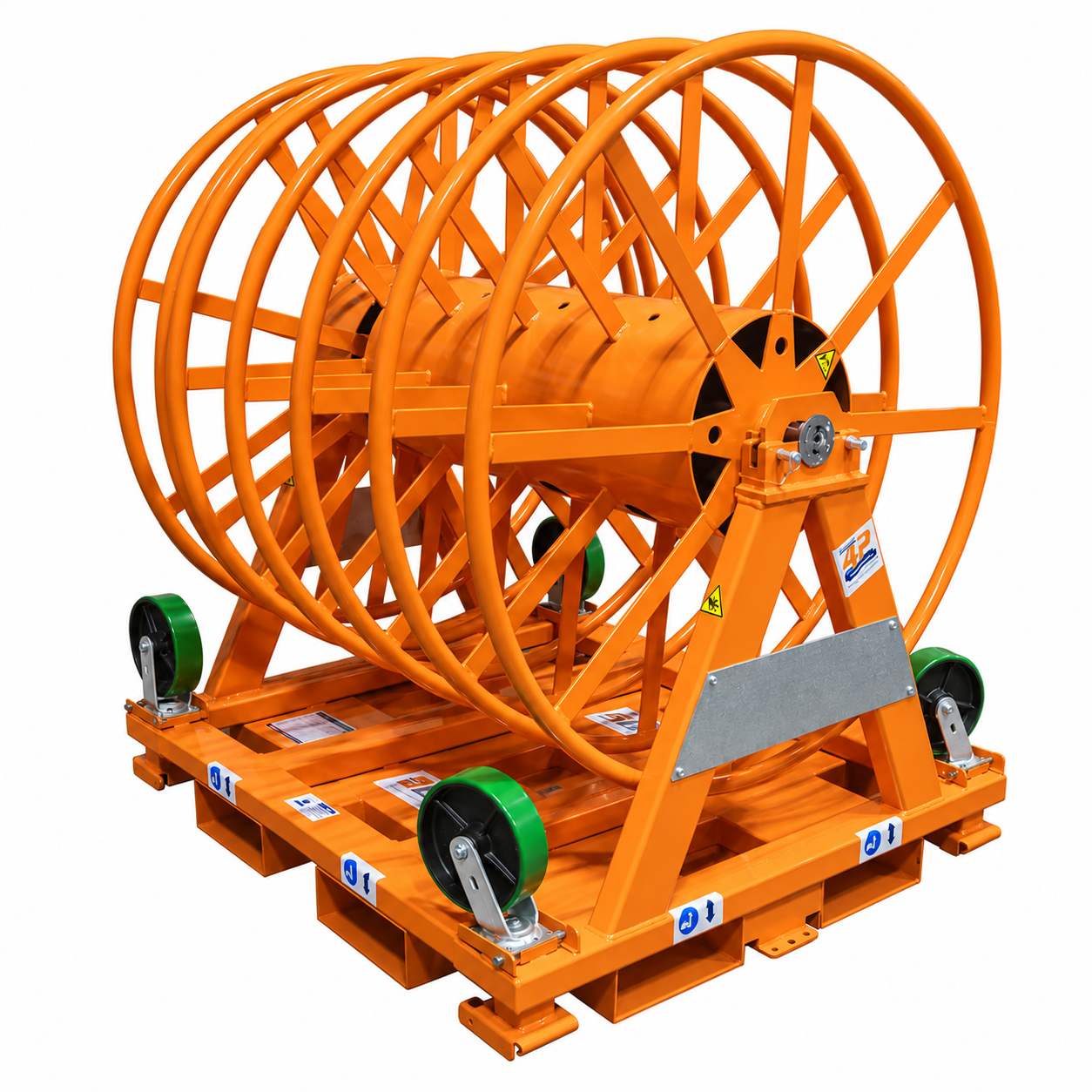

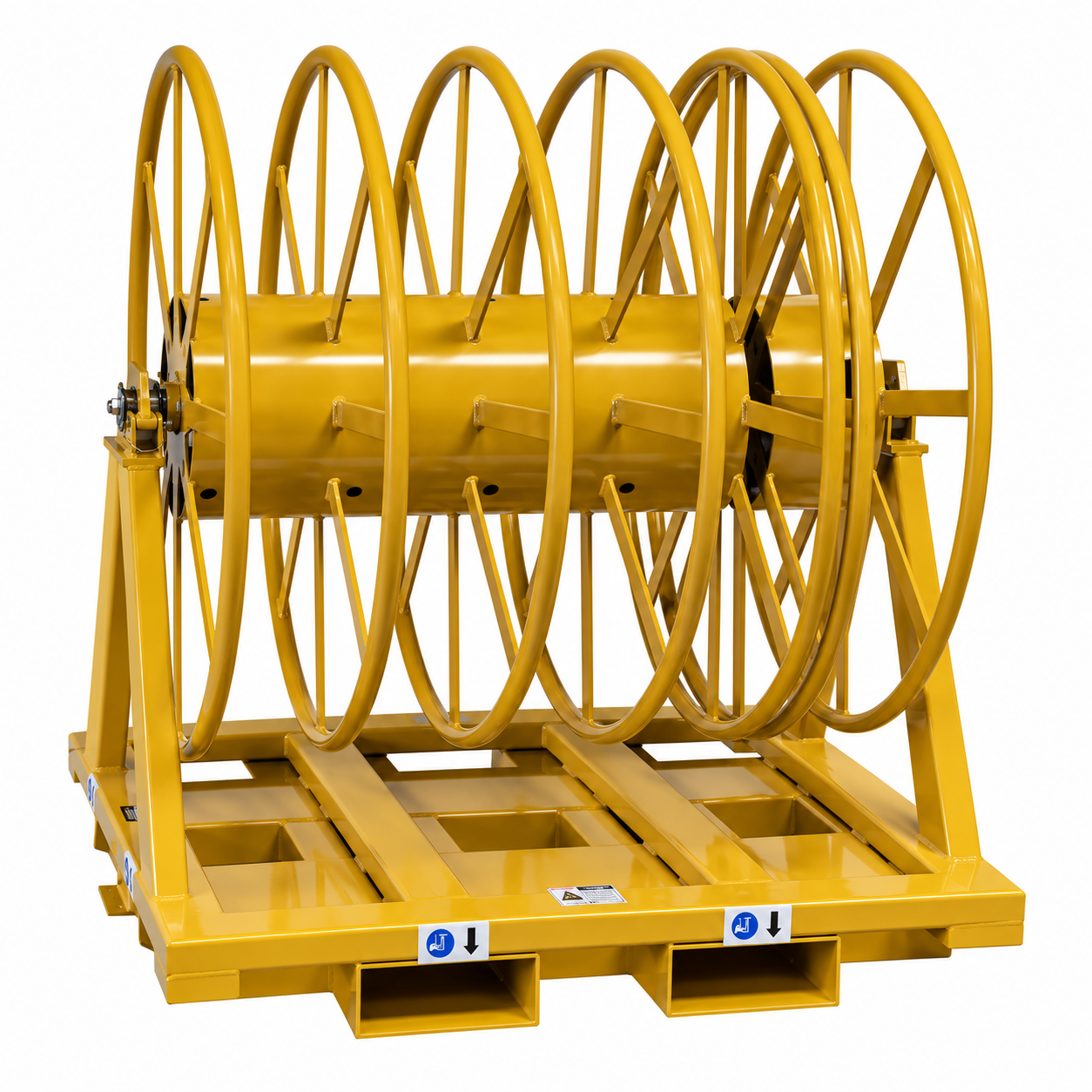

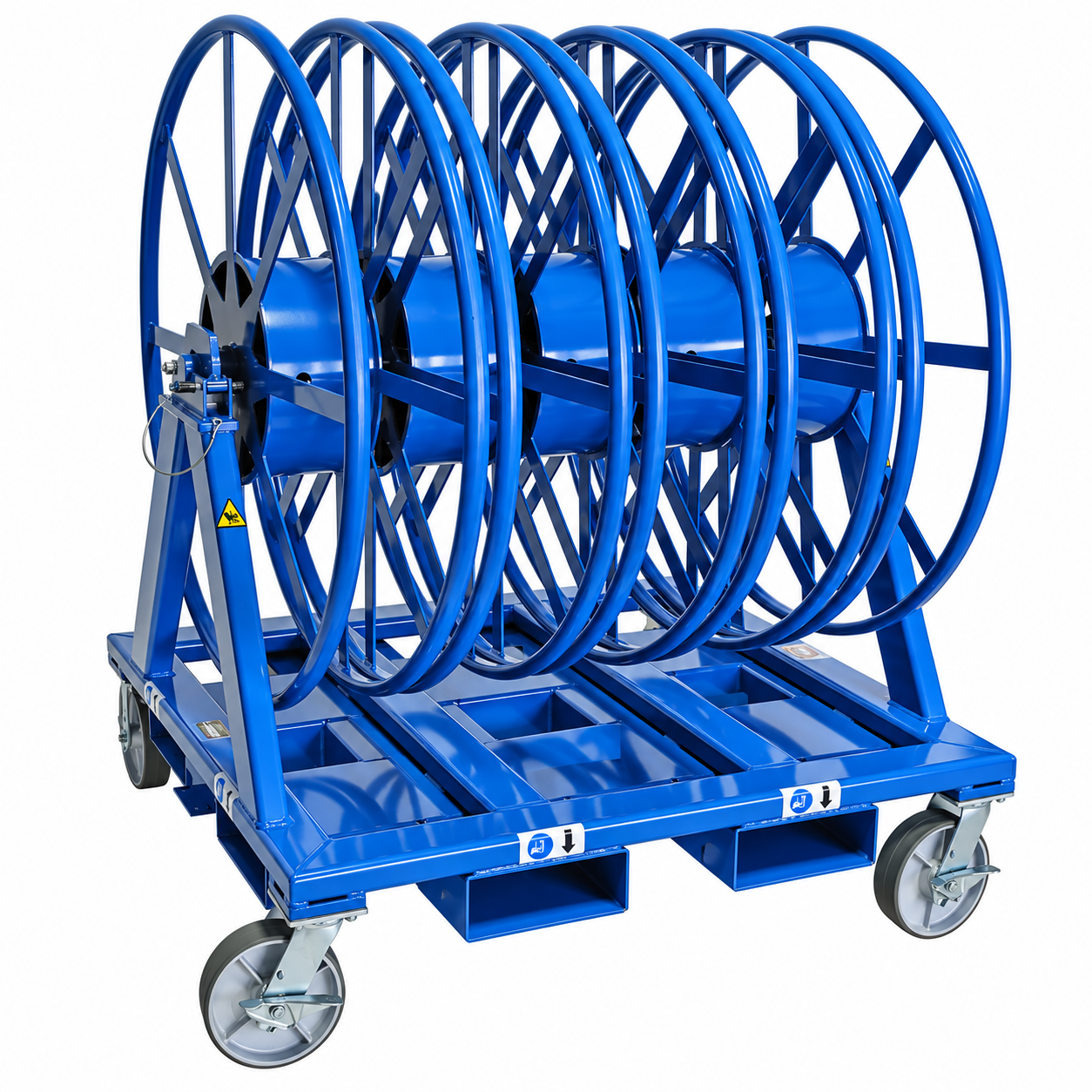

Our Parallel Reel Payout (PRP) systems make it easy to store, organize, and pull multiple cables from one sturdy stand. Built for electrical contractors, utilities, distributors, construction crews, and industrial teams, the PRP uses free-spinning compartments so cables come out smoothly and evenly. You can load different sizes and types onto one unit, which helps keep your materials tidy while cutting down on extra gear.
Each PRP is crafted with a heavy-duty steel frame ready for tough jobsites. A solid 2-inch steel center shaft holds everything together, while UHMW strips keep parts from wearing down. You can lock individual hubs so unused reels stay still, and shaft safety locks with pins keep the setup secure. With a 5,000-pound capacity, it handles big loads with ease.
One of the best parts is how flexible the PRP is. You can choose models with single or multi-compartment reels to match your needs. Depending on the setup, the stand works with R-1 reels or larger R-2, R-3, and R-4 assemblies. This versatility makes it a great choice when you want to manage several cable types, gauges, or circuits from one convenient spot.
Moving and positioning your Parallel Reel Payout (PRP) system is a breeze thanks to four-way fork pockets—just use your usual equipment from any side or end. This lets you place the payout setup exactly where you need it, so you won’t have to keep moving individual reels. If you need extra flexibility, optional 8” quick-disconnect urethane casters make manual moves easy. You can also add a floor lock, pull brake clamps, maneuvering handles, or an auxiliary ground reel attachment to match your workspace.
PRP systems are a great way to stay organized and handle bulk wire and cable more efficiently. By grouping multiple reels on one sturdy frame, you can cut down on separate stands and pull several cables from one spot. Whether you’re working in electrical distribution, utilities, construction, manufacturing, or other industrial settings, the PRP offers a tough, adaptable solution for high-capacity storage and payout.

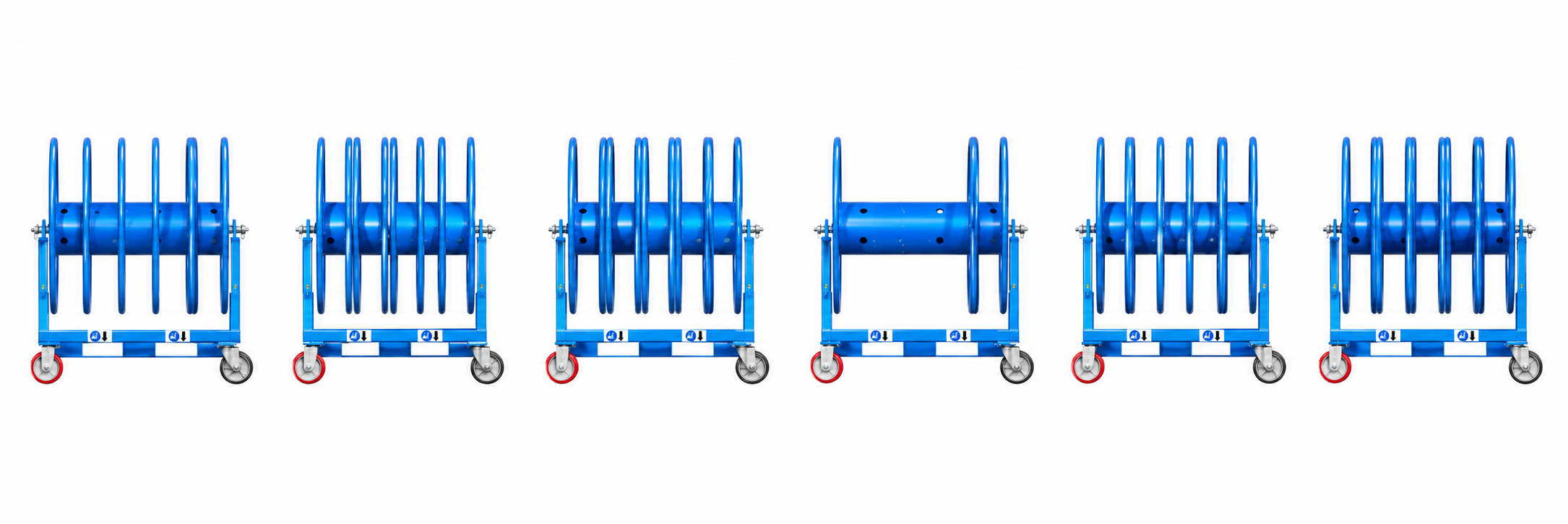

Parallel Reel Payout (PRP) Models & Specifications
| Model | Configuration | Overall Height | Overall Width | Overall Length | Shipping Weight | Rated Load Capacity | Height with Casters |
|---|---|---|---|---|---|---|---|
| PRP-1 | R-STAND + R-1 + R-4 | 55.31″ / 1405 mm | 50″ / 1270 mm | 44″ / 1118 mm | 854 lb / 387 kg | 5,000 lb / 2268 kg | 61.31″ / 1557 mm |
| PRP-2 | R-STAND + (2) R-1 + R-3 | 55.31″ / 1405 mm | 50″ / 1270 mm | 44″ / 1118 mm | 873 lb / 396 kg | 5,000 lb / 2268 kg | 61.31″ / 1557 mm |
| PRP-3 | R-STAND + (3) R-1 + R-2 | 55.31″ / 1405 mm | 50″ / 1270 mm | 44″ / 1118 mm | 915 lb / 415 kg | 5,000 lb / 2268 kg | 61.31″ / 1557 mm |
| PRP-4 | R-STAND + (4) R-1 | 55.31″ / 1405 mm | 50″ / 1270 mm | 44″ / 1118 mm | 868 lb / 394 kg | 5,000 lb / 2268 kg | 61.31″ / 1557 mm |
| PRP-4-1 | R-STAND + R-1 + R-4-1 | 55.31″ / 1405 mm | 50″ / 1270 mm | 44″ / 1118 mm | 786 lb / 357 kg | 5,000 lb / 2268 kg | 61.31″ / 1557 mm |
| PRP-5 | R-STAND + (5) R-1 | 55.31″ / 1405 mm | 50″ / 1270 mm | 44″ / 1118 mm | 958 lb / 435 kg | 5,000 lb / 2268 kg | 61.31″ / 1557 mm |
Specifications based on the supplied model chart and current reference product information.
Optional Equipment
Available options include 8″ urethane casters (PRP-C) for mobility, a floor lock (PRP-FL) to help prevent unwanted movement, pull brake clamps (PRP-PB-C) for additional stability during payout, bolt-on maneuvering handles (PRP-HDL-C) and an auxiliary ground reel attachment (PRP-AUX) for adding an additional spinning reel to the outside of the stand.
