Top Hat Style Pallet Supports

38.25″ L. x 2″ W. x ga. Top Hat Pallet Support. New. 1,450 lbs. capacity based on evenly distributed load. Non-Flanged. Designed for 1-5/8″ step. Gray powder coat paint finish. Designed for 42″ deep uprights with standard 1-5/8″ step beams. *Requires tek screw into place. Weight: 4.5 LBS. Part Number: CBH-38.25-1.4

NOTES: MINIMUM ORDER QUANITITY 10 PIECES. (Two under each pallet = 5 Pallet Positions). In stock, allow 5-7 days to ship. Ships class 65. FOB: Chicago, IL 60160.


Quantity discounts
24-100 101-250 251+
$16.00 $12.00 $10.00
Lower Prices for Larger Quantities
SKU: CBH-38.25-1.4. Category: .

Top hat style pallet supports are called “Top Hat” because they are shaped like the brim of Lincolns top hat! The advantage to these crossbars is that they sit down flush with the top of the beam!

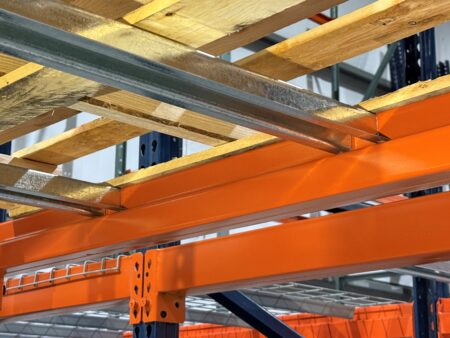

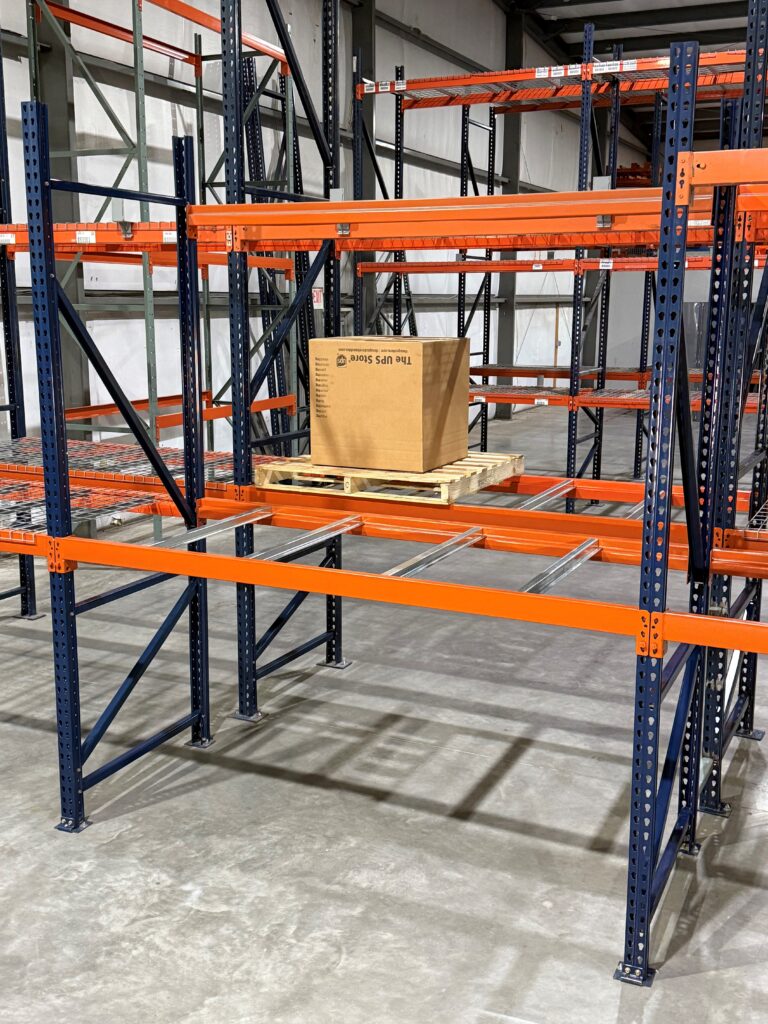

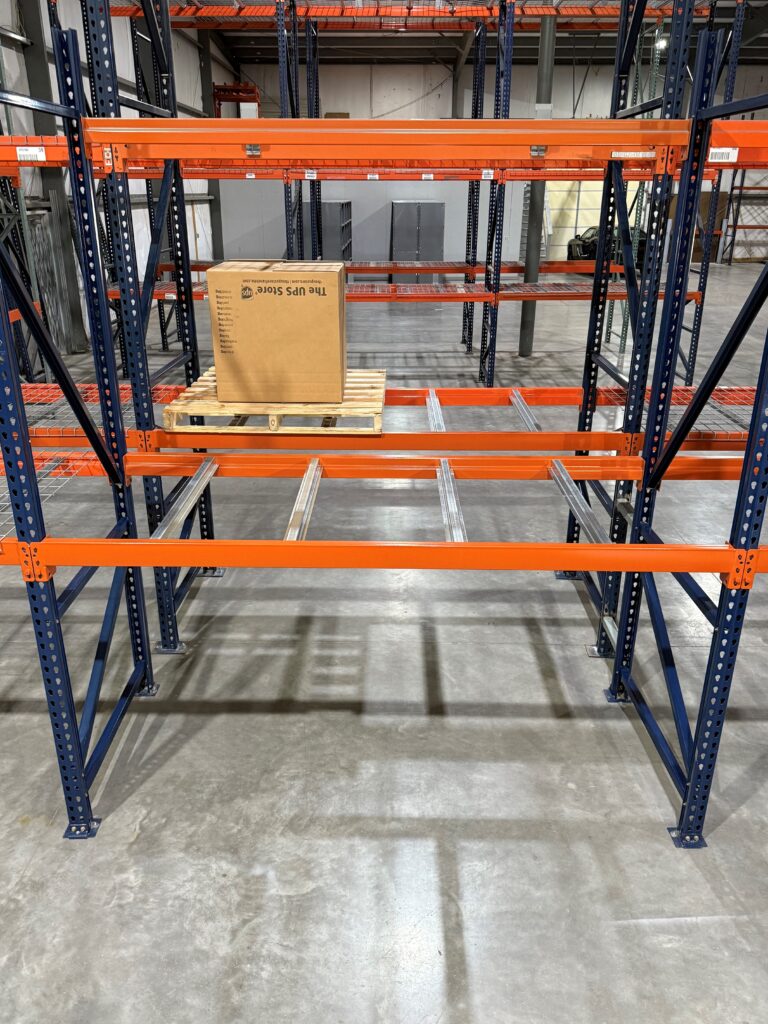

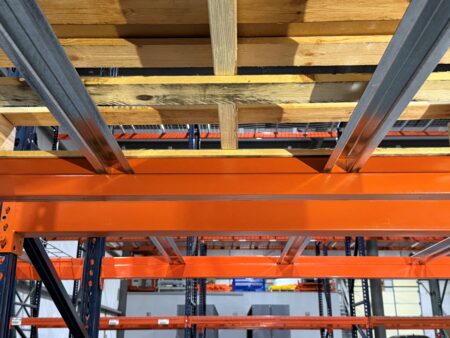

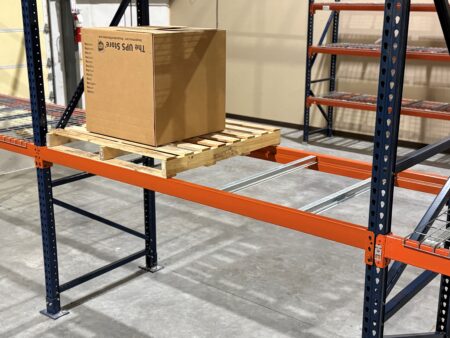

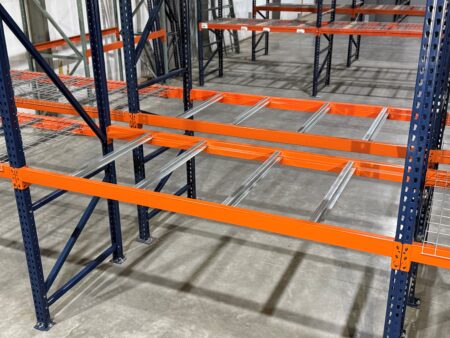

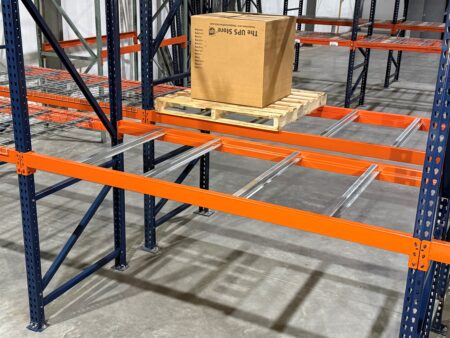

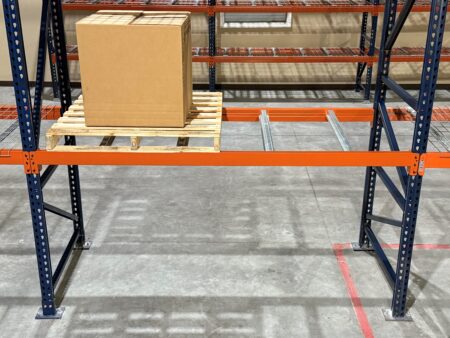

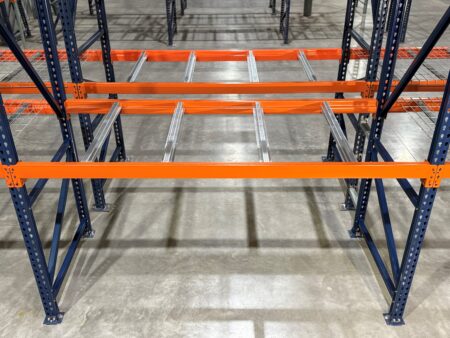

Top hat pallet supports are ideal for supporting the bottom of pallets stored in a selective pallet rack system. Pallet rack supports are the most economical method for supporting full pallet loads stored in industrial selective pallet rack shelving.

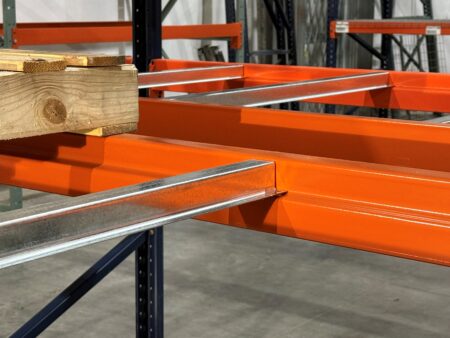

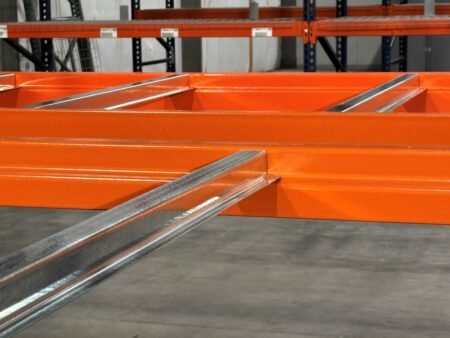

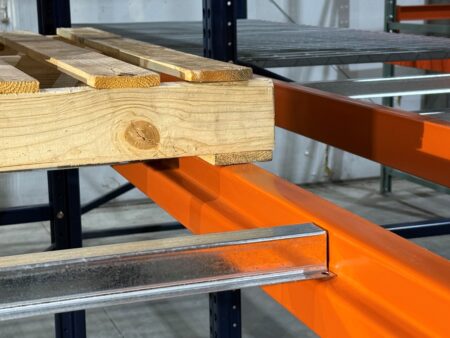

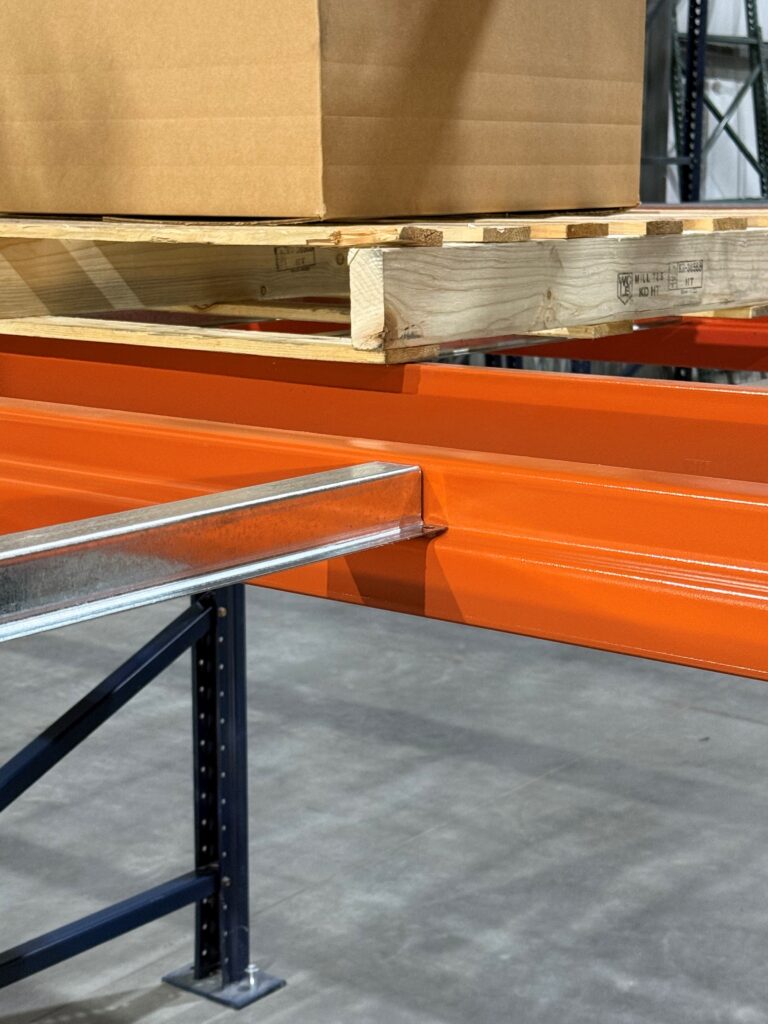

Top hat pallet rack supports set down flush into the step of standard 1-5/8” pallet rack step beams and DO NOT flange over the face of the beam. This leaves the beam face completely unobstructed which can be used for labeling pallet locations.

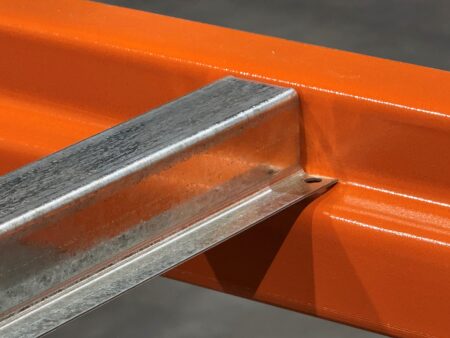

We recommend that top hat style pallet rack supports are tek screwed into the beam for added support otherwise they can fall out. The top hat pallet support has a predrilled hole at the brim of the support that allows you to easily run a tek screw into the step of the beam.

Advantages of top hat pallet supports:

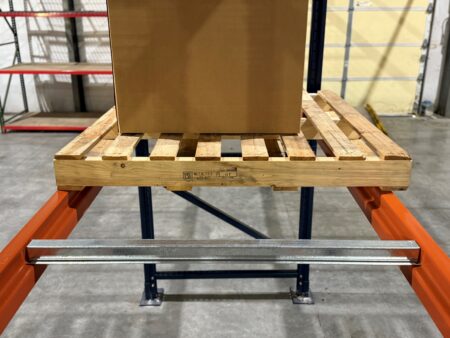

• Gives support to bottom of pallets while stored in pallet rack
• Reduce load times by giving lift truck driver confidence when loading pallets on high beam levels
• This increased confidence decreases loading times of forklift drivers
• Help prevent pallets that are not loaded 100% centered on beams from falling to the floor

Additional Information

Weight4 lbs
Dimensions42 × 2 × 2 in
