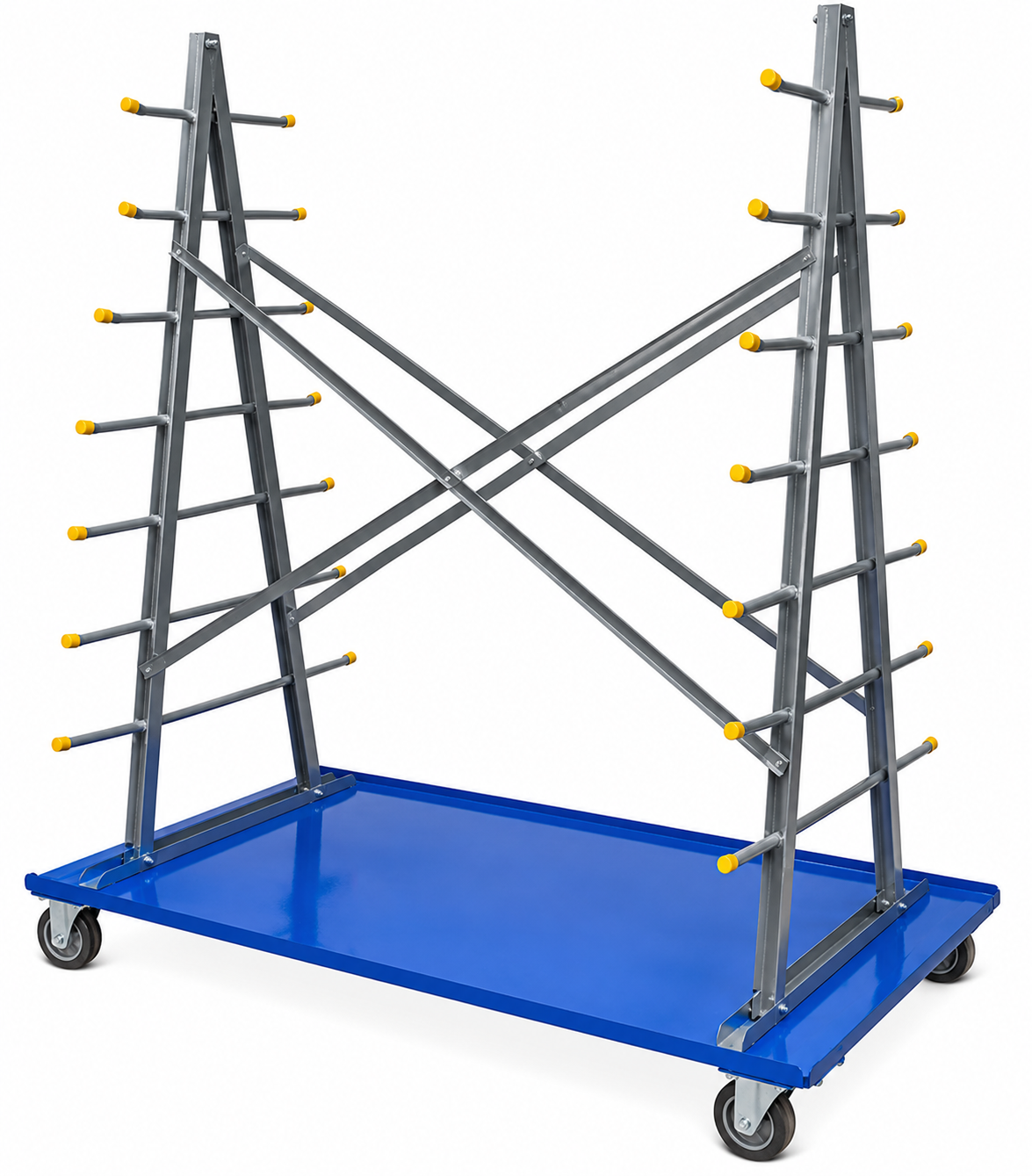

A-Frame Cantilever Carts

73″ L x 36″ W. x 72.5″ H. A-Frame Cantilever Cart. (8) Storage Levels with 7.25″ vertical spacing. Arms extend 12″ beyond frame. 2000 lbs. Max Capacity per Cart. Portable A-frame cart with storage rack, ideal for storing and transporting pipe, conduit and other types of bar rack. Color: Blue base and zinc arms. Weight: 207 LBS. Part Number: AFSR-3672

NOTES: Est. Lead Time: 1-2 weeks. Ships best way pre-paid & add to invoice or customer to provide carrier for transit. Shipping Weight: 245 LBS. (Ships Class 100) (Freight estimate assumes Dock-to-Dock transit). FOB: IN 46703


Lower Prices for Larger Quantities
SKU: AFSR-3672. Categories: , , .

If a cantilever rack and industrial cart had a baby you’d have to name it A-Frame Cantilever Cart!

This cart gives you the advantages of a cantilevered rack system by offering you the ability to store long and varied lengths of material. The fact that it’s a rack cart allows you to transport this material to the work area or jobsite.

An A-frame with wheels is great for transporting and storing bar, pipe, lumber, tubing and other long items. They have casters that allow them to easily roll around on a concrete floor. A-Frame Rack Carts are made of heavy steel construction.

Cantilever carts with A-frame construction are durable multi-purpose carts that offer you increased storage density and handling efficiency. They are double sided so that you can access them from both sides. These carts will definitely increase efficiency in your operation by having long items close at hand.

A-Frame Cantilever Carts Standard Features:
• Cart has two rigid and two swivel 5” poly-on steel casters
• 36” W x 73” L overall deck size
• Overall height of 72.5″ high with 8 levels
• Arms extend 12″ beyond base frame
• 7-1/4” vertical spacing between arms
• 2000 LBS Maximum capacity
• Blue powder coated finish on base with zinc plated arms

A-Frame Rack Cart
Model Deck Size (WxL) Uniform Static Capacity (lbs) Net Weight (lbs)
AFSR-3672 36″x73″ 2,000 207

Additional Information

Weight 245 lbs
Dimensions 36 × 73 × 73 in
