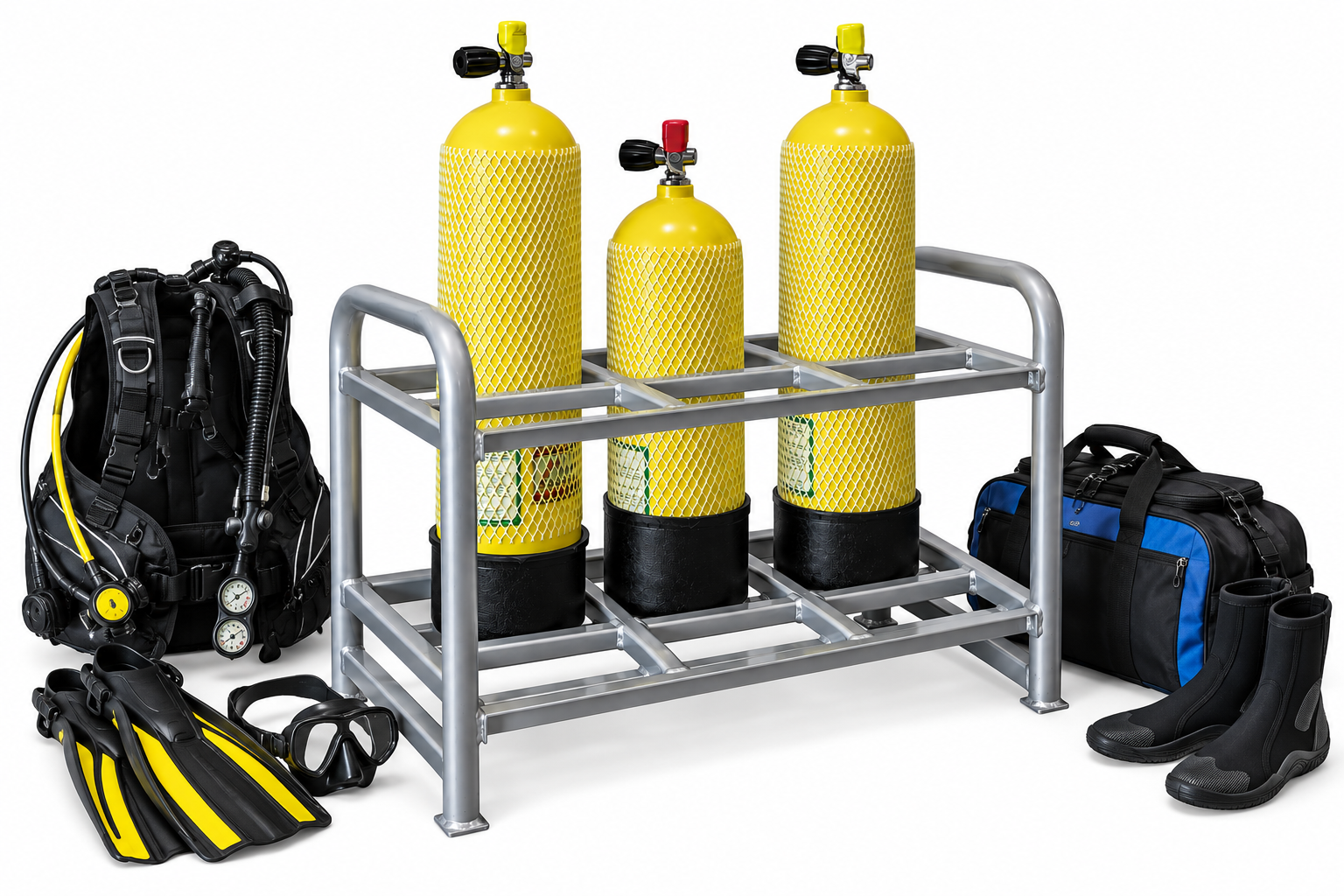

Scuba Tank Storage Rack

Scuba Tank Rack 26301274 The Scuba Tank Rack 26301274 provides a durable, organized storage solution for scuba cylinders in dive shops, equipment rooms, training facilities, fire and rescue departments, commercial diving operations and other locations where multiple scuba tanks must be stored. Designed to accommodate up to six cylinders, the rack keeps tanks upright, separated … Continue reading

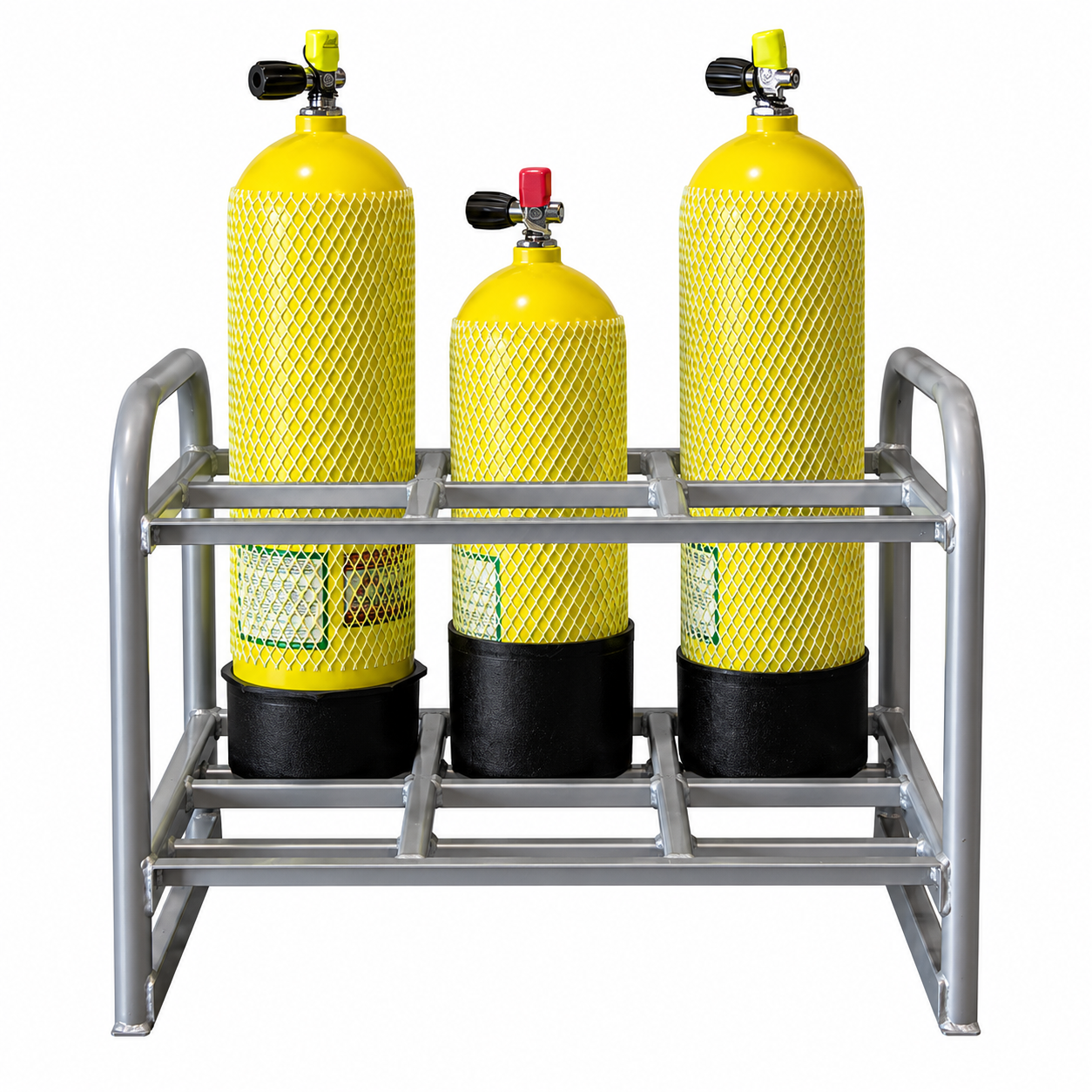

Scuba Tank Rack 26301274

The Scuba Tank Rack 26301274 provides a durable, organized storage solution for scuba cylinders in dive shops, equipment rooms, training facilities, fire and rescue departments, commercial diving operations and other locations where multiple scuba tanks must be stored. Designed to accommodate up to six cylinders, the rack keeps tanks upright, separated and elevated off the floor while providing convenient access when cylinders are needed.

Constructed from heavy-duty steel, the Scuba Tank Rack is built for demanding commercial and industrial environments. Individual storage compartments help separate cylinders and reduce unnecessary contact between tanks during storage. The rack accommodates cylinders measuring approximately 6″ to 8″ in diameter with a minimum cylinder height of 17″, making it compatible with many commonly used aluminum scuba cylinders.

The open-frame configuration makes loading and removing scuba tanks fast and convenient. Each cylinder has its own 8.625″ x 8.625″ storage compartment, allowing operators to quickly identify and access the cylinder they need. Elevating the cylinders above the floor can also help protect tanks from incidental contact and keep cylinder storage areas cleaner and better organized.

With overall dimensions of approximately 30.6″ wide x 20.7″ deep x 22.75″ high, the Scuba Tank Rack provides six-cylinder storage without requiring excessive floor space. The rack has a 500 lb. load capacity and is compatible with popular cylinder sizes including AL19, AL30, AL40, AL50, AL63, AL72, AL80 and AL100 tanks. A protective powder-coat finish provides additional durability for long-term use.

The Scuba Tank Rack 26301274 is an excellent choice for facilities looking to establish a dedicated location for scuba cylinder storage while maintaining quick access to their equipment. Its rugged steel construction, compact footprint and individual cylinder compartments make it well suited for both small equipment rooms and larger commercial operations. Custom designs are also available for applications requiring different dimensions, capacities or specialized storage configurations.

Scuba Tank Rack 26301274 Specifications

Feature	Specification
Model / SKU	26301274
Cylinder Capacity	Up to 6 scuba cylinders
Cylinder Diameter	6″–8″ (152–203 mm)
Minimum Cylinder Height	17″ (432 mm)
Individual Compartment Size	8.625″ x 8.625″ (219 x 219 mm)
Overall Width	30.6″ (777 mm)
Overall Depth	20.7″ (526 mm)
Overall Height	22.75″ (578 mm)
Load Capacity	500 lbs. (227 kg)
Construction	Heavy-duty steel
Finish	White Aluminum powder coat
Compatible Cylinders	AL19, AL30, AL40, AL50, AL63, AL72, AL80 & AL100
Storage Configuration	Six individual upright cylinder compartments
Floor Clearance	Cylinders are elevated off the ground
Access	Open-frame loading and unloading
Custom Sizes	Custom designs available upon request
Manufacturing	Designed and manufactured in the USA

Key Features & Benefits

Stores up to six scuba tanks
Accommodates 6″–8″ diameter cylinders
500 lb. capacity
Heavy-duty steel construction
Individual compartments help separate and organize cylinders
Keeps scuba cylinders elevated off the floor
Open design provides quick loading and unloading
Compact footprint for efficient equipment-room storage
Protective powder-coat finish
Compatible with numerous popular aluminum scuba cylinder sizes
Custom configurations available for specialized applications

FAQs about Specialty Storage Racks

What are the key benefits of using portable, stackable window/door/millwork racks over fixed shelving or floor stacking?

Maximized space utilization — because racks stack vertically and can be nested when empty, they allow efficient use of both floor space and vertical clear height.
Flexibility and reconfigurability — unlike fixed pallet racks, these portable rackscan be moved, reassembled, or re-stacked as needed depending on inventory, seasonal demand, or layout changes.
Reduced product damage and waste — structured storage protects fragile materials such as glass windows, doors, and millwork from impacts, shifting, and crushing.
Lower handling time and labor costs — by enabling forklift or pallet-jack transport and easier loading/unloading, they simplify material flow and reduce manual handling.
Reusable and long-lasting — constructed from steel and built for durability, these racks can serve for many seasons or years, offering a cost-effective alternative to disposable crates or wooden pallets.

Are these racks suitable for warehouse storage, shipping, and job-site deliveries?

Yes, these racks are designed for both warehouse storage and shipping or transport to job sites. Their stackable design helps you “cube out” trailers or flatbeds, maximizing the number of windows/doors per load and lowering transport costs.

When equipped with optional casters, racks can be rolled on or off trucks or around job sites. They are also forklift-compatible (with four-way entry), so warehouses can handle them with usual material-handling equipment rather than manual labor.

How do these racks improve handling and reduce damage compared to traditional storage?

Because these stack racks are designed specifically for windows, doors, and millwork, they provide structured, stable support — items are kept upright or organized so they don’t shift, slide, or collide during storage or transport.

This significantly reduces the risk of damage (e.g., glass breakage, dents, warping, or scratches) compared to bulk-stacking or floor-laying, which often leads to product loss or costly rework.

Also, using a purpose-built rack simplifies loading, unloading, and staging, improving warehouse safety and reducing handling labor.

What configurations and options are available for casters, stacking, or portability?

Our window/door/millwork stack racks are offered with or without heavy-duty 6″ casters (typically a set of two rigid casters and two swivel casters with locks). This provides flexibility depending on whether you need to roll the rack or move it with a forklift.

They are fully stackable, allowing multiple racks to be stacked one on top of another when loaded or nested together when empty, which helps save floor space.

The racks are built with sturdy steel side rails, welded frames or bolt-on beams (depending on model), and optional decking or tie-off points, which let you tailor each rack to your load size and handling needs.

What are window, door & millwork stack racks used for?

These racks are specially engineered to store, transport, and protect long, fragile, or bulky items such as windows, doors, millwork, and similar building components. Popular with window and door manufacturers, stocking distributors, dealers and retailers. They help prevent damage such as cracking, bending, or warping, which can happen when windows and doors are laid flat or stacked loosely.

Because they are portable and stackable, these racks allow you to transport materials from the warehouse to the jobsite, or move them around within a facility, with much less risk and handling.
