Sheet Stacker Flat Pallet Sheet Metal Storage Rack

18′ HIGH SHEET STACKER FLAT PALLET STACKER RACK SYSTEM. New. Includes (22) FLAT STEEL PALLETS WITH BUILT IN FORK POCKETS. – 60″ DEEP X 120″ WIDE. – 5,000# CAPACITY. – 5″ CLEARANCE BETWEEN PALLETS. – BRACE KIT INCLUDED. ALL UNITS TO BE POWDER COATED ONE OF SIX STANDARD COLORS. Weight: 21,086 LBS. Part Number: SS216-60120-22

60″ x 120″ ADDITIONAL FLAT PALLETS. NEW. 5,000 LBS capacity. ALL UNITS TO BE POWDER COATED ONE OF SIX STANDARD COLORS. Part Number: 60120-FP

DE-PALLETIZER. Allows you to remove pallet underneath the sheet steel and allows you to replace the wood pallet with a flat steel pallet.

OPTIONAL DOUBLE SWING OUT DOOR SET.

NOTES: THESE SHEET STACKERS CAN COST OVER $30,000.00 EACH. WE CAN PROVIDE A DISCOUNT IF YOU ORDER 2 OR MORE UNITS. PLEASE TELL US HOW MANY  YOU WOULD LIKE US TO QUOTE. IT WOULD BE VERY HELPFUL IF YOU COULD ANSWER QUESTIONS FOUND AT BOTTOM OF PAGE TEXT BELOW. IT WILL HELP US GIVE YOU A MORE ACCURATE QUOTE. THESE RACKS ARE ALL CUSTOM MADE TO YOUR SPECIFICATION. Available in a variety of sizes. We also offer a heavier 7,000 LBS capacity pallet. Est. Lead Time: 8-10 weeks. FOB: Michigan.

Lower Prices for Larger Quantities
SKU: SS216-60120-22. Categories: , .

Our Sheet Stacker Flat Pallet Sheet Metal Storage Rack combines the ergonomic access to sheet at the machine site without losing available vertical space. The Flat Steel Pallets can replace the need for wooden pallets in your operation, based on the configuration chosen. These flat steel pallets are durable and efficient. They stack together densely in steel pallet racks when not in use. Returnable, reusable, recyclable flat steel pallets will give you years of service.

Our Sheet Stacker Flat Pallet Stacker Rack and the Flat Steel Pallets replace the need for wood pallets in your operation. These big flat steel pallets are durable and efficient. They stack together densely in steel pallet racks when not in use. Returnable, reusable, recyclable flat steel pallets will give you years of service.

The Sheet Tower flat pallet stacker system is a horizontal sheet rack and steel pallet combination. The flat metal pallets stack densely in the horizontal rack system and are supported by tabs on the ends of the rack. They allow for 5″ clearance between each level. Keep in mind that the flat steel pallet are 2″ thick which allows for 3″ of clearance to lift and pull.

We can’t sell the steel pallet rack without the pallets. We can sell the pallets without the racks. These flat steel pallets are ideal for transporting and storing all kinds of materials.  These racks make incredible sheet stackers. They increase storage density and handling efficiency.

The flat steel pallets have fork tunnels that allow you to easily fork it with the forks of your forklift and know that the load is safely secure. That gives the forklift driver confidence which increases efficiency and safety.

CORE QUESTIONS FOR SHEET STACKER WITH INTEGRAL REMOVEABLE STEEL PALLETS:

Size of Sheets?

Clearance Needed Between Shelves (including any dunnage such  as wooden pallets-this should  be unlikely)?

Height Needed?

Maximum Shelf Capacity (5000, 7000  or custom)?

How are you moving the sheets now? (Should be by forklift)

Will you be able to remove the need for wooden pallets? (this is what the product should accomplish)



The SHEET STACKER is also available with integrated SHEETMASTER with roll out shelves

The Sheet Stacker is available in multiple sizes and various heights and shelf clearances. Also available are removable material stops and a portable pin table (de-palletizer).

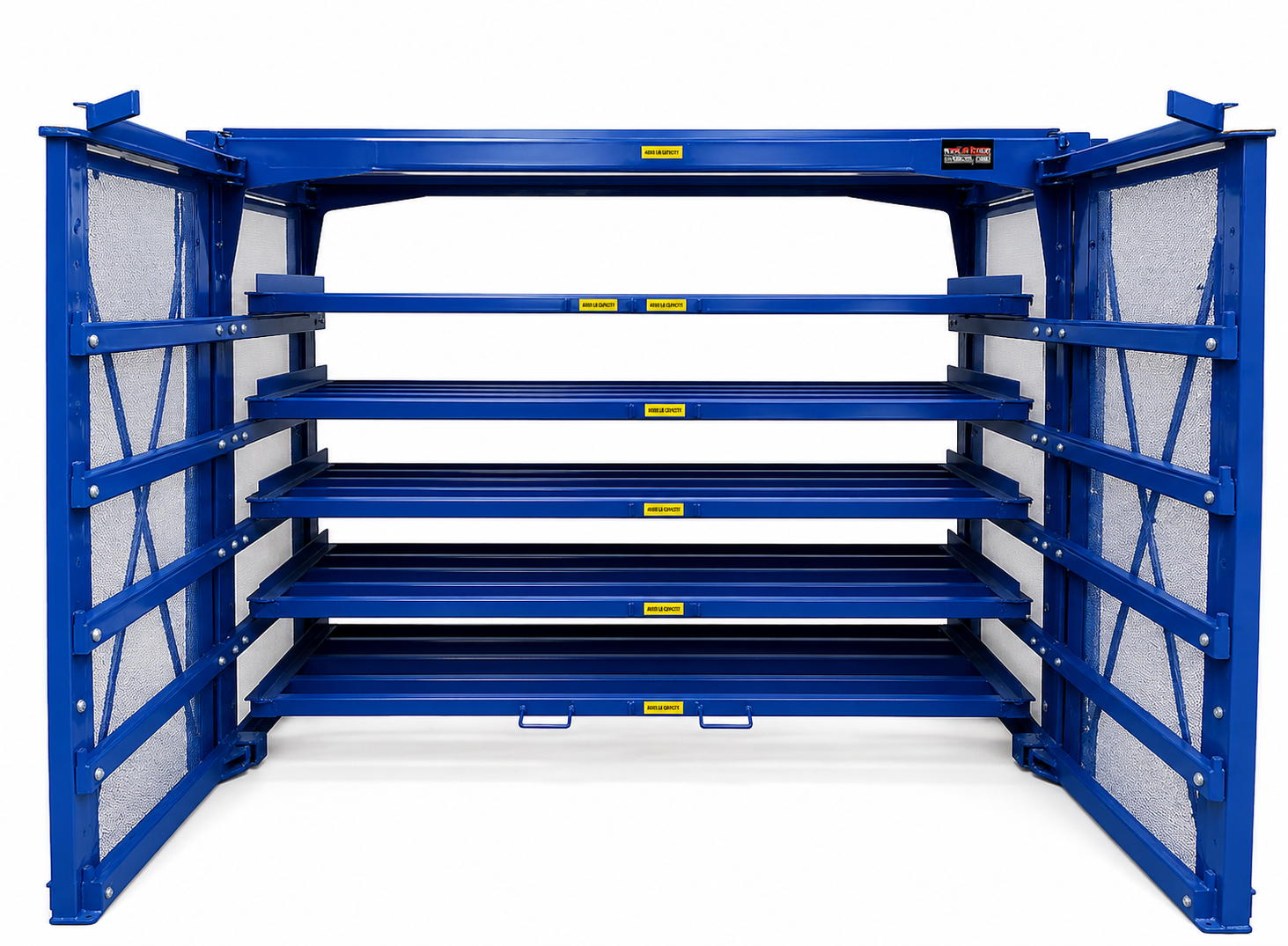

The SheetMaster is flat pallet stacker rack that integrated roll out shelves. The roll out shelves support the flat pallets. The shelves roll out of the Sheet stacker allowing for easy ergonomic access.

The Sheetmaster is available as rear-loading, bi-directional, with and without folding doors, multiple sizes and various heights and shelf clearances. Also available are optional shelf forklift risers.

Our Sheetmaster Sheet Stacker Combo Flat Pallet Sheet Metal Storage Rack combines the ergonomic access to sheet at the machine site without losing available vertical space. The Flat Steel Pallets can replace the need for wooden pallets in your operation, based on the configuration chosen. These flat steel pallets are durable and efficient. They stack together densely in steel pallet racks when not in use. Returnable, reusable, recyclable flat steel pallets will give you years of service.

Contact us to discuss your material flow, loading processes, floor space and material counts to find the best configuration for you!
