Cantilever Reel Storage Racks

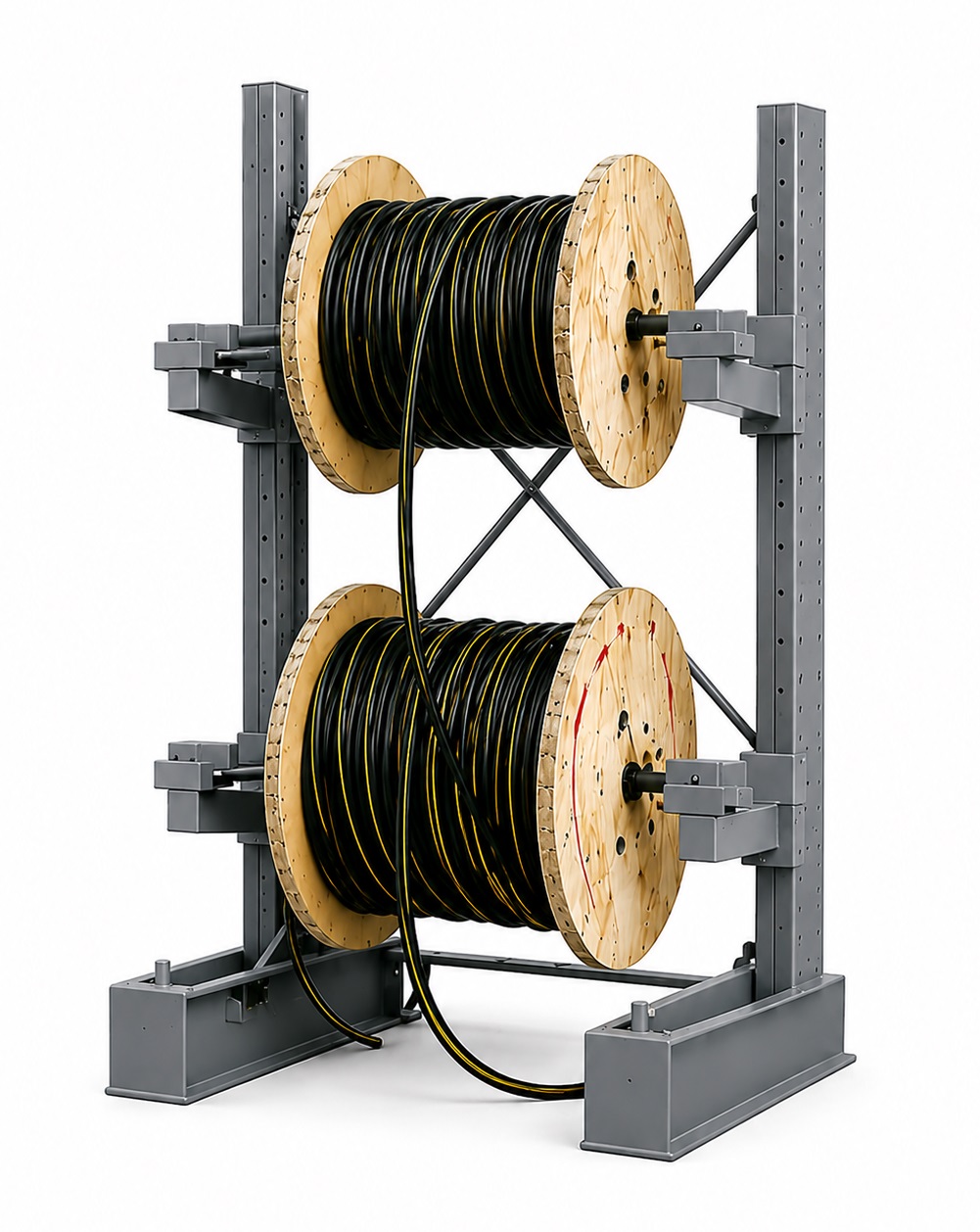

SINGLE-SIDED CANTILEVER REEL RACK DESCRIPTION: 1 run of 2 – 14′ SINGLE sided uprights with stackable base and 2 arms each for a total of 2 reels high. Arm length is 60″. Utilizing 48″ wide brace set. This rack will store reels that are 60″ diameter x 42″ wide x 2,400 LBS max each.
SINGLE-SIDED BILL OF MATERIALS:
(2) – 4′ h. Single-Sided Cantilever Upright. New. Includes 74″ stackable base assembly. Constructed of cold roll formed steel. 8,300 lbs. capacity per side. Color: Gray. Weight: 390 LBS. Part Number: 2U1474-NS
(4) – 60″ long x 1,200 lbs. capacity. Special Straight Cantilever Arm with Cradle welded in middle of arm. New. No stop on end. Color: Gray. Weight: 63 LBS. Part Number: SPEC-XHDSA602M-C
(1) – 48″ C/C Brace Set. Set of 3 Horizontal Beams. New. Weight: 52 LSB. Part Number: 3B48
DOUBLE-SIDED CANTILEVER REEL RACK DESCRIPTION: 1 run of 2 – 14′ DOUBLE sided uprights with stackable base and 2 arms each for a total of 2 reels high. Arm length is 60″. Utilizing 48″ wide brace set. This rack will store reels that are 60″ diameter x 42″ wide x 2,400 LBS max each.
DOUBLE SIDED BILL OF MATERIALS:
(2) – 4′ h. Double-Sided Cantilever Upright. New. Includes 148″ stackable base assembly. Constructed of cold roll formed steel. 8,300 lbs. capacity per side. Color: Gray. Weight: 450 LBS. Part Number: 2DU1474-NS
(8) – 60″ long x 1,200 lbs. capacity. Special Straight Cantilever Arm with Cradle welded in middle of arm. New. No stop on end. Color: Gray. Weight: 63 LBS. Part Number: SPEC-XHDSA602M-C
(1) – 48″ C/C Brace Set. Set of 3 Horizontal Beams. New. Weight: 52 LSB. Part Number: 3B48
NOTES: PLEASE NOTIFY US OF THE SIZE AND WEIGHT OF YOUR REELS (WE NEED TO KNOW OUTIDE DIAMETER X WIDTH X WEIGHT). WE CAN QUOTE 3 REELS HIGH BY INCREASING UPRIGHT HEIGHT OR REDUCING DIAMETER OF REELS – JUST ASK. FOB: Omaha, NE. EST. LEAD TIME: 4-6 weeks.
Cantilever reel racks offer an effective and durable solution for storing large, heavy reels in warehouses and industrial facilities. Designed with single-sided or double-sided uprights, bases, arms, and reel holders, these racks provide a secure and organized way to store reels of various sizes.
By taking advantage of vertical storage, cantilever reel racks help maximize storage capacity while freeing up valuable floor space. Their open design ensures quick and easy access to reels, reducing handling time and minimizing the likelihood of damage. Whether in a busy distribution center or a manufacturing facility, these racks streamline operations and enhance overall productivity.
Choosing cantilever reel racks is a practical investment for facilities seeking to improve their storage efficiency. Built to withstand demanding environments, these racks deliver the durability and reliability needed for long-term use. With cantilever reel racks, you can create a safer, more efficient, and better-organized warehouse while making the most of your available space.
