Fabric Roll Storage Rack

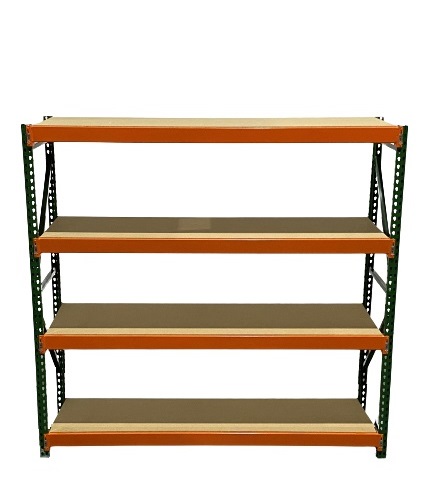

8′ tall x 48″ deep x 72″ wide Fabric Roll Storage Rack (Starter unit). New. Includes 5 adjustable shelf levels with particle board decking. Colors: Green Uprights. Orange Beams. Part Number: 964872-5-FRSR-SU
8′ tall x 48″ deep x 72″ wide Fabric Roll Storage Rack (Add On unit). New. Includes 5 adjustable shelf levels with particle board decking. Colors: Green Uprights. Orange Beams. Part Number: 964872-5-FRSR-AU
NOTES: We offer Fabric Racks in a variety of different of lengths, widths and heights. Lead Time: 1-2 weeks. FOB: Chicago, IL or Los Angeles, CA. Ships best way pre-paid & add or customer to provide carrier for transit.
If you go to the garment district in any major city or the fabric store in your local town you are likely to find yourself walking the rows of our Fabric Roll Storage Rack System that densely, efficiently and safely store rolls of colorful fabric. These are horizontal storage racks and are designed to store fabric rolls horizontally on the shelf with 3″-6″ overhang on front and back of the shelf.
Fabric roll shelving units come in starter units and add on units. Starter units are free standing and have 2 uprights. Add on units for the fabric racking system have only 1 upright and must be attached to a starter unit. This allows you to create rows of rack. Fabric roll storage racks attach to one another. A typical starter unit will include 2 upright frames, 8 beams that are used to construct 4 shelf levels, front to back support brackets and 4 pieces of particle board decking. Together this is used to construct a fabric roll storage rack starter unit. An add on unit has all the same material except one less upright.
Our fabric storage racks have a smooth particle board deck that allows you to easily slide rolls of fabric on and off the shelf without hooks or snags. We can also offer smooth or corrugated decking. Beam levels, also known as shelf levels, are fully adjustable on 2″ increments. Units come standard in attractive vista green and orange uprights and beams. We can also supply uprights in royal blue color.
Standard fabric rolls are 45″-54″ in Length which is perfect for our 48″ deep shelf. Some special fabrics come on rolls of up to 60″ in length. For 60″ rolls we can provide roll storage with up to 60″ deep shelving. As far as the width of your fabric roll rack, we offer roll storage with shelf widths of 48″, 72″ and 96″ step beams. Our fabric roll storage racking is popular with clothing manufacturers, fabric wholesalers and fabric retailers and that sell it by the roll.
TIP FROM THE PRO’S: FABRIC RACK CAN BE MADE ONE OF TWO DIFFERENT KINDS OF RACK: 1. TEARDROP WIDE SPAN RACK 2. TEARDROP PALLET RACK. In most cases we use the Teardrop Wide Span Rack because it is sufficiently strong and more affordable. The only time we will use the heavier duty teardrop pallet rack is when the heights are tall and weights are heavy.
A Typical Bill of Material for a Fabric Racking System Includes:
8′ x 48″ Wide Span Upright. New. 7000 lbs. Capacity per Upright. Color: Vista Green / Royal Blue. Weight: 40 LBS. Part Number: CU48096
96″ x 2″ Wide Span Step Beam. New. 1000 lbs. Capacity per pair. Color: Orange. Weight: 13 LBS. Part Number: 215-CB20096
48″ Cross Bar Support. New. Weight: 4 LBS. Part Number: 215-CSS24
48″ D. x 96″ L. x 3/4″ Particle Board Decking. New. weight 92 LBS. Part Number: 240-049648
