Single Folding Gate
4′ to 5′ Wide x 6.5′ Collapsed Ht. (6′ In Use Ht.) Single Steel Folding Gate. New. Single folding gate pulls from one side to other. Gate is 3″ off ground. Made of heavy duty steel U-channels riveted back to back using aluminum aircraft quality rivits. Heavy Duty vertical 1-1/2″ x 1-1/2″ steel angles, with 5/8″ drop pin and 2″ casters. Gates lock using padlock hasp. Galvanized Finish. Weight: 61 LBS. Part Number: SSG565
*SPECIAL NOTES: MINIMUM ORDER QUANTITY 2 GATES. DOCK TO DOCK DELIVERY ONLY. WE DO NOT SELL TO RETAIL STORES OR RESIDENTIAL CUSTOMERS. Est. Lead Time: In stock, allow est. 5-7 days to ship. Ships best way pre-paid & add. Freight Class 100. FOB: Chicago, IL 60608

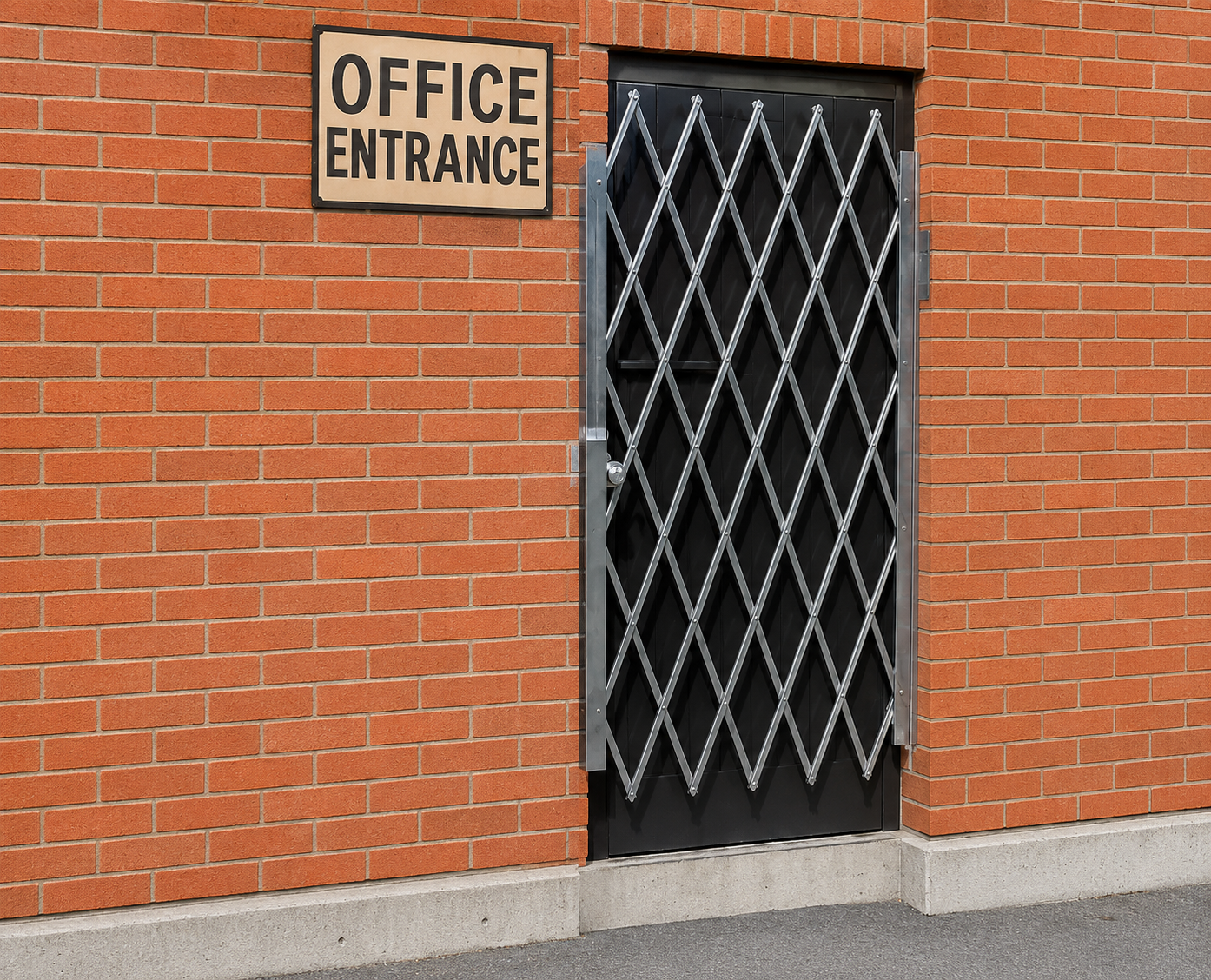

Warehouse folding gates are used to secure doorways and entrances.
If you are in the market for a folding gate you will either want a single folding gate or double folding gate. What will make the determination is the size of the opening that you are trying to secure. I suggest you measure the width of the opening and compare it to the list below.
Single folding gate is used to cover an area of 3’- 12’ in width. A single folding security gate will pull from one side to the other and will not meet in the middle. If you want a folding gate that meets in the middle than you are on the wrong page. You will want to see page for double folding gates.
Single folding gates are typically used for smaller openings. It mounts to only one side of the opening and can be collapsed down and folded out of the way for storage. It is a great collapsible steel gate for securing doors, aisle ways and hallways.
We have the best prices and quickest delivery on single folding gates!
The following is a complete list of single folding gates that we offer:
| FOLDING GATE SINGLES | ||||
|---|---|---|---|---|
| Part # | Width Ft. | Collapsed Ht. | In-Use Ht. | Wt./Pc. |
| SSG465 | 3′ – 4′ | 6’6″ | 6′ | 58 |
| SSG470 | 7′ | 6’6″ | 61 | |
| SSG475 | 7’6″ | 7′ | 64 | |
| SSG480 | 8′ | 7’6″ | 67 | |
| SSG485 | 8’6″ | 8′ | 70 | |
| SSG565 | 4′ – 5′ | 6’6″ | 6′ | 61 |
| SSG570 | 7′ | 6’6″ | 62 | |
| SSG575 | 7’6″ | 7′ | 65 | |
| SSG580 | 8′ | 7’6″ | 67 | |
| SSG585 | 8’6″ | 8′ | 69 | |
| SSG665 | 5′ – 6′ | 6’6″ | 6′ | 64 |
| SSG670 | 7′ | 6’6″ | 66 | |
| SSG675 | 7’6″ | 7′ | 68 | |
| SSG680 | 8′ | 7’6″ | 70 | |
| SSG685 | 8’6″ | 8′ | 72 | |
| SSG765 | 6′ – 7′ | 6’6″ | 6′ | 69 |
| SSG770 | 7′ | 6’6″ | 71 | |
| SSG775 | 7’6″ | 7′ | 73 | |
| SSG780 | 8′ | 7’6″ | 75 | |
| SSG785 | 8’6″ | 8′ | 77 | |
| SSG865 | 7′ – 8′ | 6’6″ | 6′ | 74 |
| SSG870 | 7′ | 6’6″ | 77 | |
| SSG875 | 7’6″ | 7′ | 80 | |
| SSG880 | 8′ | 7’6″ | 83 | |
| SSG885 | 8’6″ | 8′ | 87 | |
| SSG965 | 8′ – 9′ | 6’6″ | 6′ | 80 |
| SSG970 | 7′ | 6’6″ | 85 | |
| SSG975 | 7’6″ | 7′ | 87 | |
| SSG980 | 8′ | 7’6″ | 89 | |
| SSG985 | 8’6″ | 8′ | 94 | |
| SSG1065 | 9′-10′ | 6’6″ | 6′ | 88 |
| SSG1070 | 7′ | 6’6″ | 91 | |
| SSG1075 | 7’6″ | 7′ | 92 | |
| SSG1080 | 8′ | 7’6″ | 94 | |
| SSG1085 | 8’6″ | 8′ | 97 | |
| SSG1165 | 10′ – 11 | 6’6″ | 6′ | 95 |
| SSG1170 | 7′ | 6’6″ | 100 | |
| SSG1175 | 7’6″ | 7′ | 105 | |
| SSG1180 | 8′ | 7’6″ | 110 | |
| SSG1185 | 8’6″ | 8′ | 115 | |
| SSG1265 | 11′ – 12′ | 6’6″ | 6′ | 110 |
| SSG1270 | 7′ | 6’6″ | 120 | |
| SSG1275 | 7’6″ | 7′ | 125 | |
| SSG1280 | 8′ | 7’6″ | 130 | |
| SSG1285 | 8’6″ | 8′ | 140 | |
