Lift Table Ladder LTL-2034-108 | Powered Warehouse Stocking Ladders
98.94″ L x 34.63″ W x 118.13″ H Lift Table Ladder. New. Lift Table Ladder combining rolling ladder, platform, and lift table. Capacity: 450 LBS (carriage) / 250 LBS (ladder). Weight: 876 LBS. Part Number: LTL-2034-108
NOTES: FOB: St. Louis, MO. Est Lead Time: 10-12 weeks

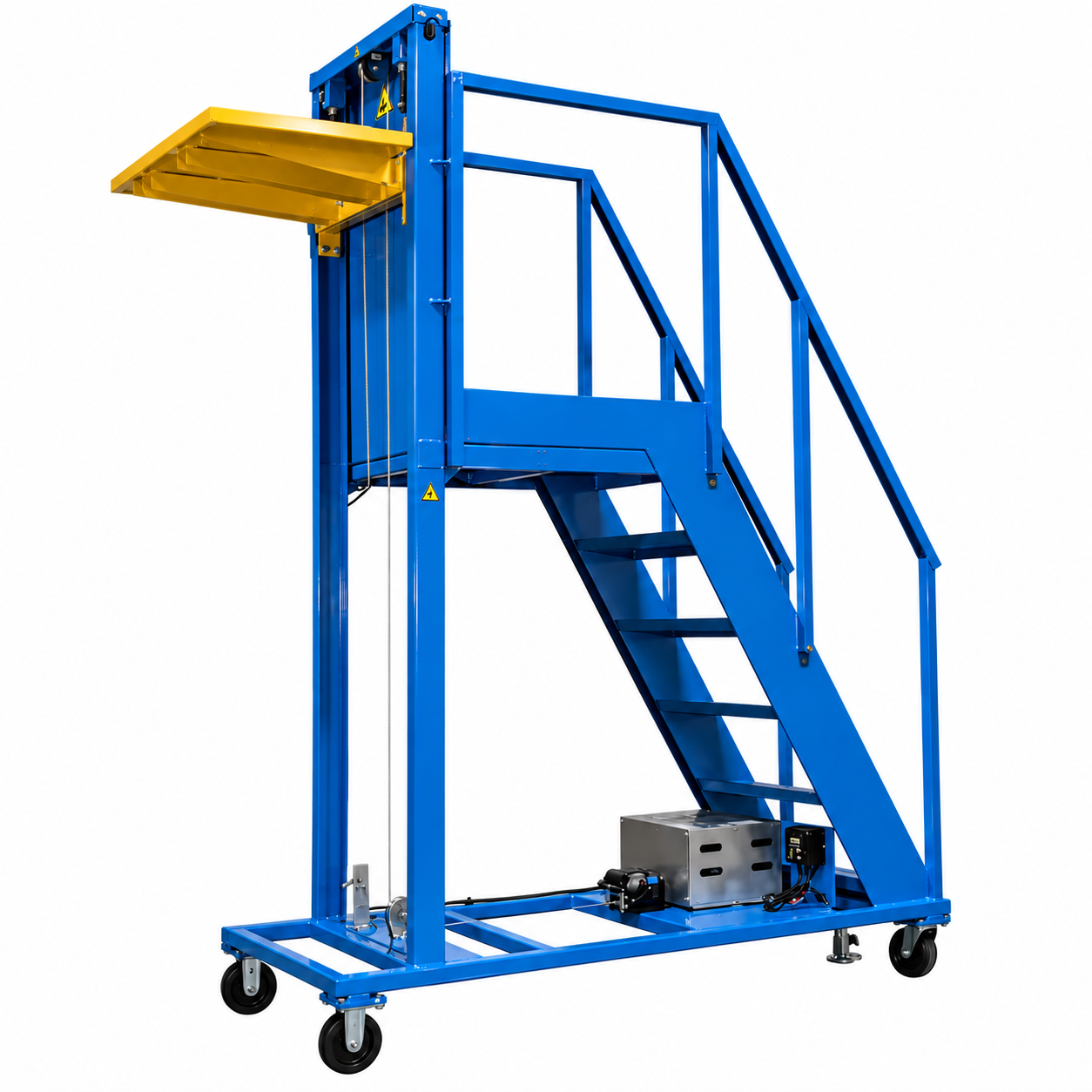

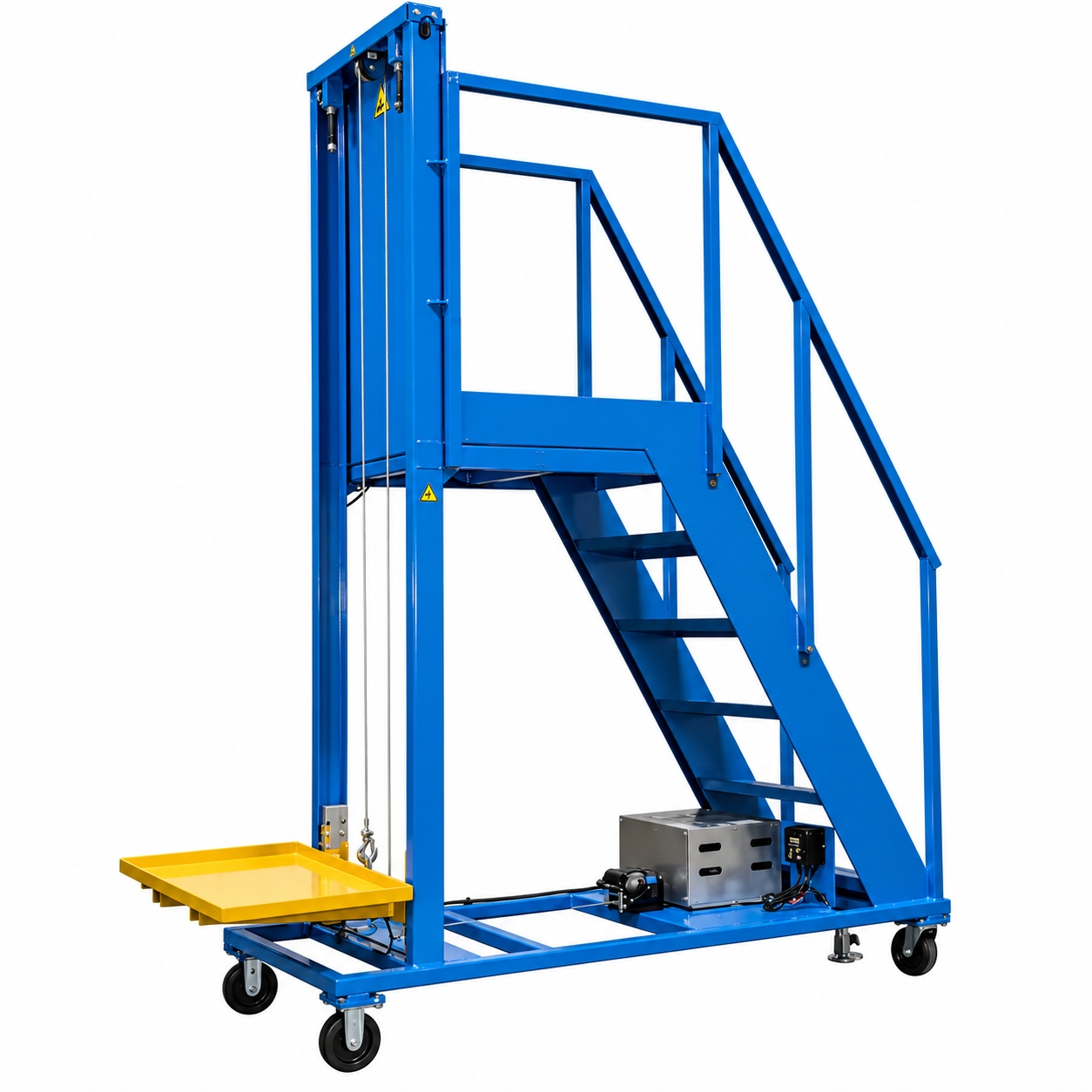

The LTL-2034-108 Lift Table Ladder combines a rolling warehouse ladder, operator platform, and powered material lift into one mobile unit. It allows employees to access elevated shelving while raising and lowering boxes, parts, supplies, and other materials without carrying them up a ladder. The unit features a 450 lb. material lift capacity, a 250 lb. operator capacity, steel construction, safety railings, and a locking floor brake. It’s designed for warehouses, distribution centers, stockrooms, and industrial facilities that need access to elevated storage.

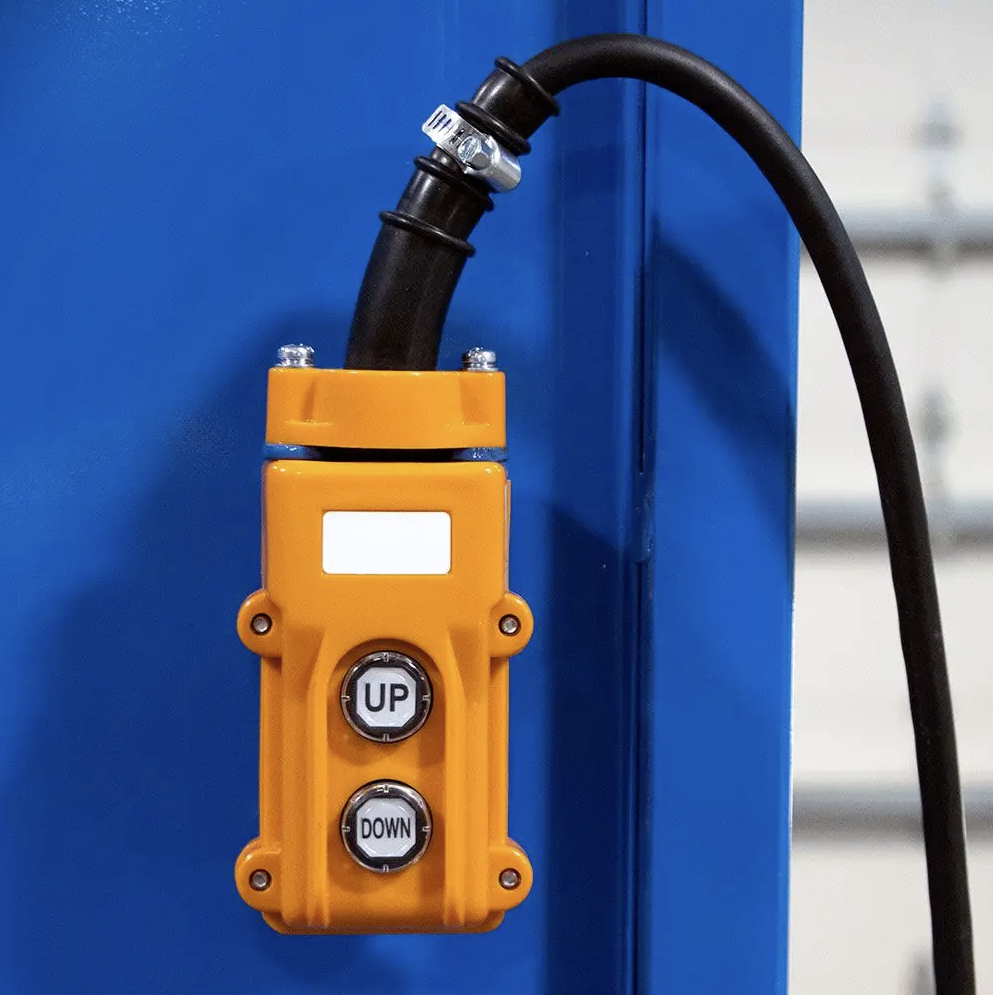

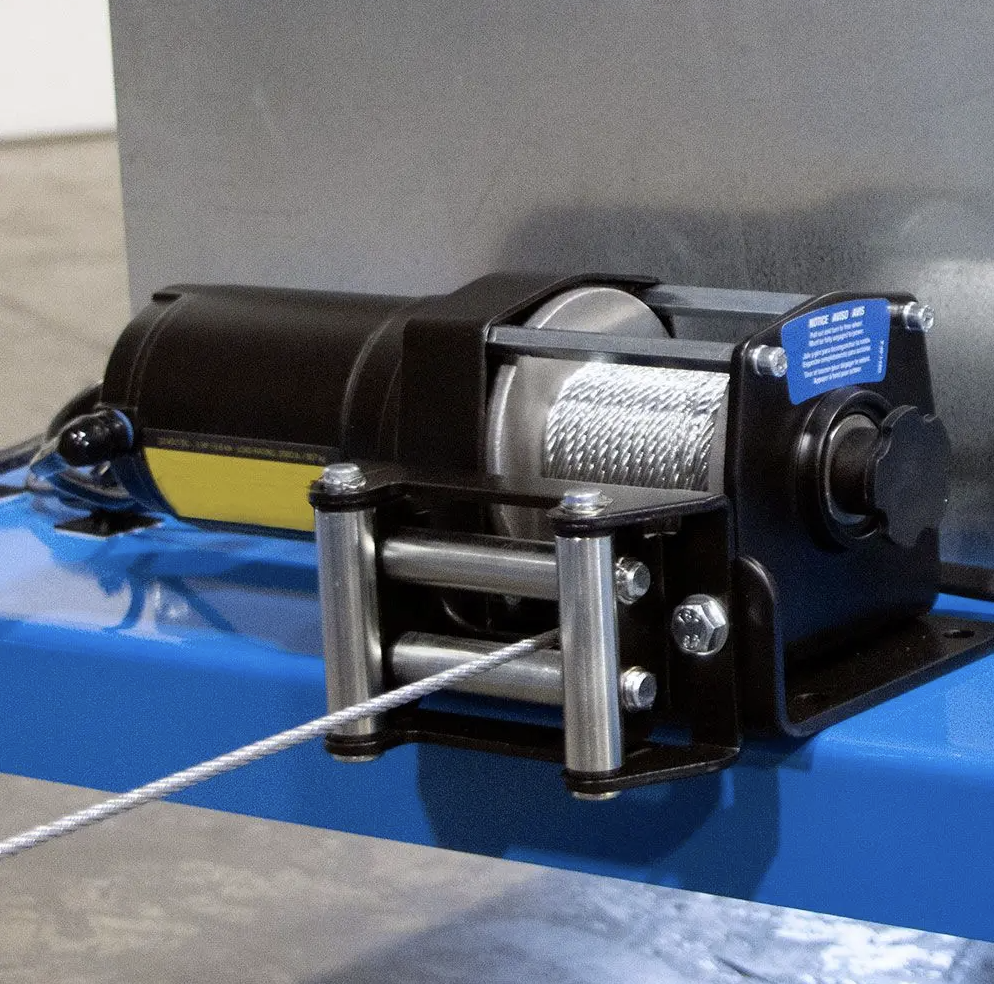

The powered carriage raises materials from 17.5″ to 108″ high, making it useful for stocking shelves, order picking, inventory retrieval, and maintenance. The 34.375″ x 20.25″ carriage platform accommodates cartons, components, and supplies. A battery-operated push-button pendant controls the lift, and its magnetic backing allows it to attach to the ladder frame when not in use.

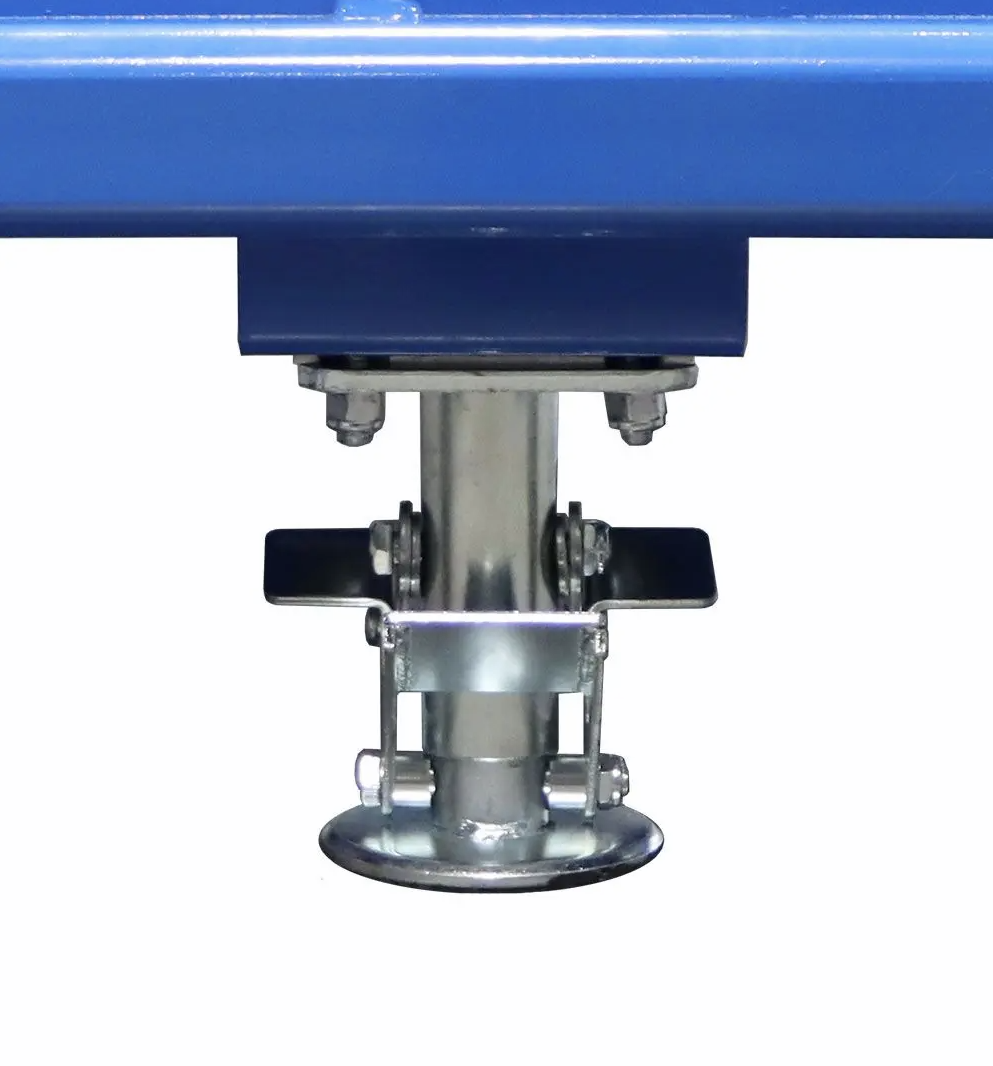

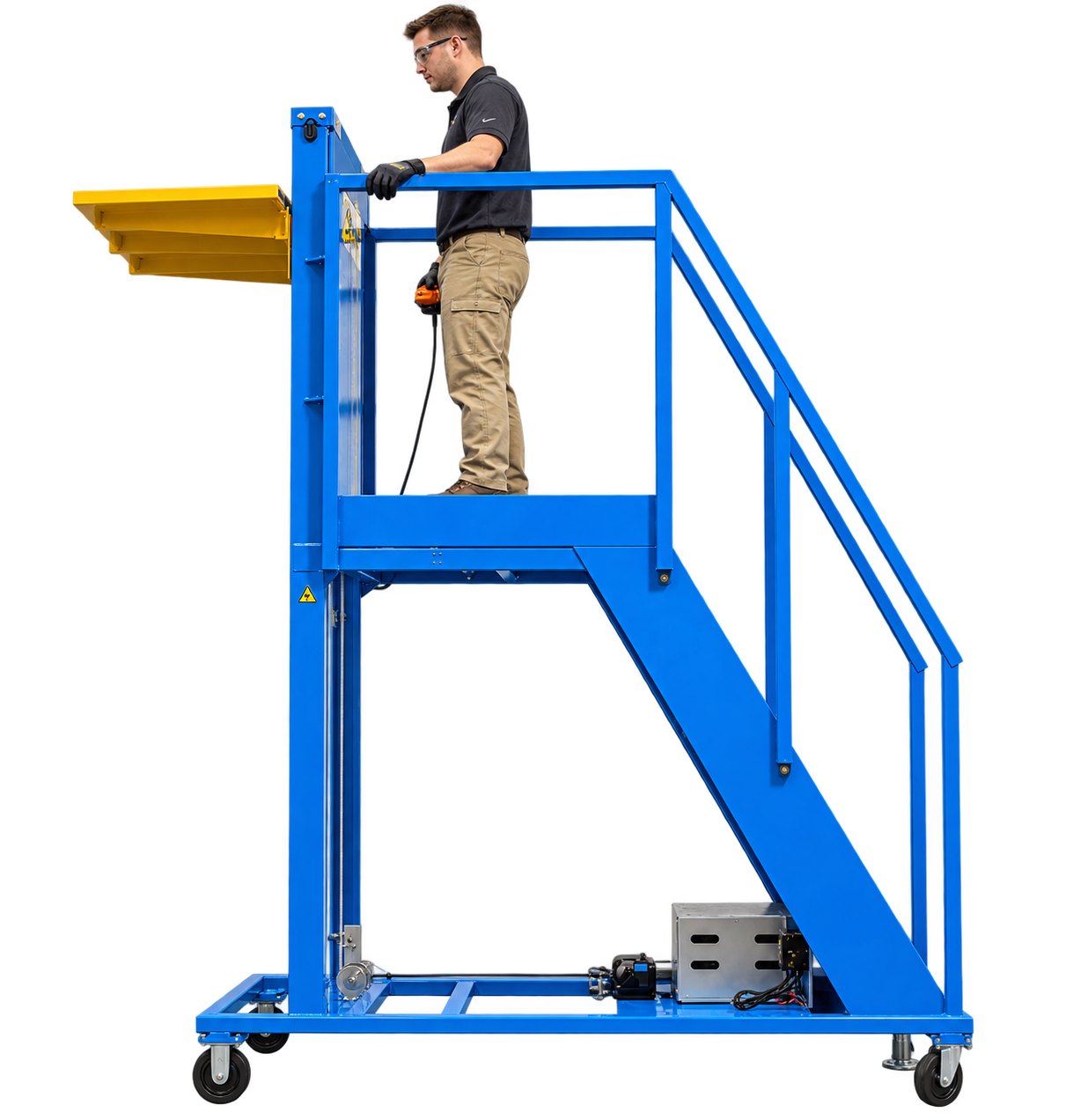

The operator stands on a steel platform surrounded by welded safety railings. Anti-skid surfaces provide traction, while a steel guard separates the operator from the lift track. A locking floor brake secures the ladder in position during use.
The LTL-2034-108 moves on two rigid and two swivel phenolic casters for positioning throughout the facility. Its overall dimensions are 98.94″ long x 34.63″ wide x 118.13″ high, allowing it to fit into warehouse and stockroom layouts where both ladder access and material lifting are required.
The LTL-2034-108 Lift Table Ladder helps reduce manual lifting when stocking and retrieving products from elevated shelves. Custom heights, capacities, and features may be available to meet specific material handling requirements. Contact us for help selecting the right configuration for your application.
LTL-2034-108 Specifications
| Model | Overall Length | Overall Width | Overall Height | Operator Platform (W x D x H) | Ladder Capacity | Carriage Dimensions (W x D x H) | Carriage Capacity |
|---|---|---|---|---|---|---|---|
| LTL-2034-108 | 98.9375″ (2513 mm) | 34.625″ (879 mm) | 118.125″ (3000 mm) | 30.375″ x 37.375″ x 68.125″ (722 x 949 x 1730 mm) | 250 lb. (113 kg) | 34.375″ x 20.25″ x 1.5″ (873 x 514 x 38 mm) | 450 lb. (204 kg) |
Specifications above correspond to the LTL-2034-108 model shown in your supplied chart and the manufacturer’s refererence.
- Powered 450 lb. capacity material carriage
- Material lift range from approximately 17.5″ to 108″
- 250 lb. ladder/operator capacity
- Combines a rolling ladder, work platform and powered lift table
- Helps reduce the need to carry heavy materials while climbing
- Solid steel steps and operator platform
- Anti-skid walking and working surfaces
- Welded safety railings
- Steel guard separates operator from lift track
- Battery-powered push-button control pendant
- Magnetic pendant storage
- Two rigid and two swivel phenolic casters
- Locking floor brake for stationary use
- Suitable for stocking, retrieval and order-picking applications
- Custom heights, capacities and features available
