GLV Gaylord Dumpers | Hydraulic Gaylord Box Dumpers
GLV Gaylord Dumpers GLV Gaylord Dumpers lift, position, and empty bulk materials stored in Gaylord boxes and other large containers. The dumpers reduce manual handling and provide a controlled way to transfer parts, scrap, components, recyclables, and other materials into processing equipment, hoppers, or collection areas. GLV Gaylord Dumpers are available with 2,000 lb. and … Continue reading GLV Gaylord Dumpers | Hydraulic Gaylord Box Dumpers
GLV Gaylord Dumpers

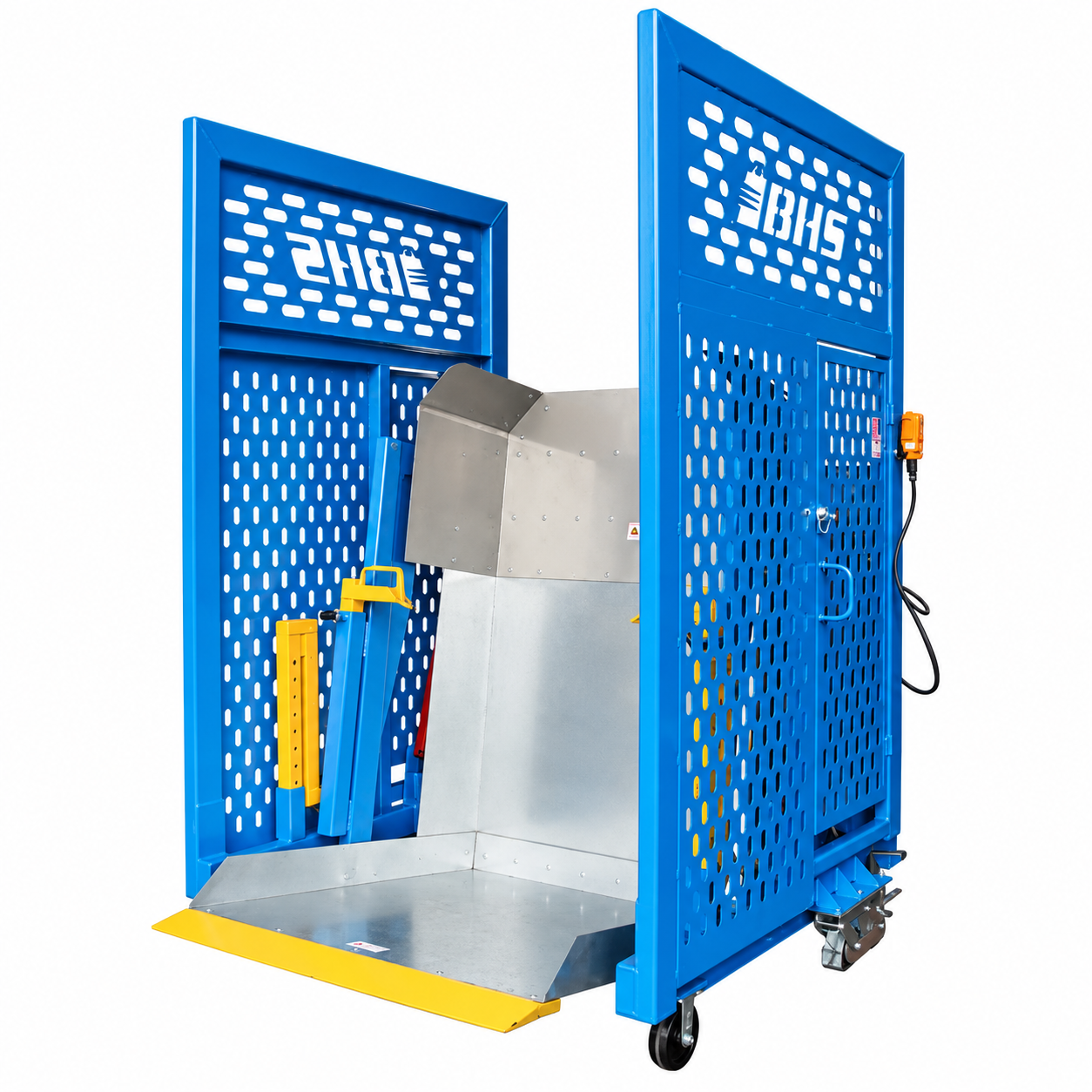

GLV Gaylord Dumpers lift, position, and empty bulk materials stored in Gaylord boxes and other large containers. The dumpers reduce manual handling and provide a controlled way to transfer parts, scrap, components, recyclables, and other materials into processing equipment, hoppers, or collection areas.
GLV Gaylord Dumpers are available with 2,000 lb. and 4,000 lb. load capacities. The two capacities allow users to match the dumper to the weight of the container and its contents. Manufacturing plants, warehouses, recycling operations, and distribution facilities can use these dumpers for applications that require frequent container emptying.
Two compartment widths accommodate different container sizes. Choose a 43.5-inch or 51.5-inch compartment width, with overall machine widths of 65.25 inches and 73.25 inches, respectively. Selecting the correct width helps match the dumper to the Gaylord box while accounting for available floor space.
All GLV models have an overall depth of approximately 66-1/16 inches and measure 56-13/16 inches high in the lowered position. During the dumping cycle, overall height reaches approximately 129-3/16 inches, with a 54-5/8-inch tip height. Check these dimensions against the installation area to confirm floor space and overhead clearance.
GLV Gaylord Dumpers can handle production parts, components, scrap, waste materials, recyclables, and other bulk products. Select from 2,000 lb. or 4,000 lb. capacities and two compartment widths based on your container size and load.
Contact us for help selecting a Gaylord box dumper based on container dimensions, material weight, dumping height, and available space.
GLV Gaylord Dumper Models & Specifications
| Model | Capacity | Compartment Width | Overall Width | Overall Depth | Overall Height | Height When Dumping | Tip Height | Weight |
|---|---|---|---|---|---|---|---|---|

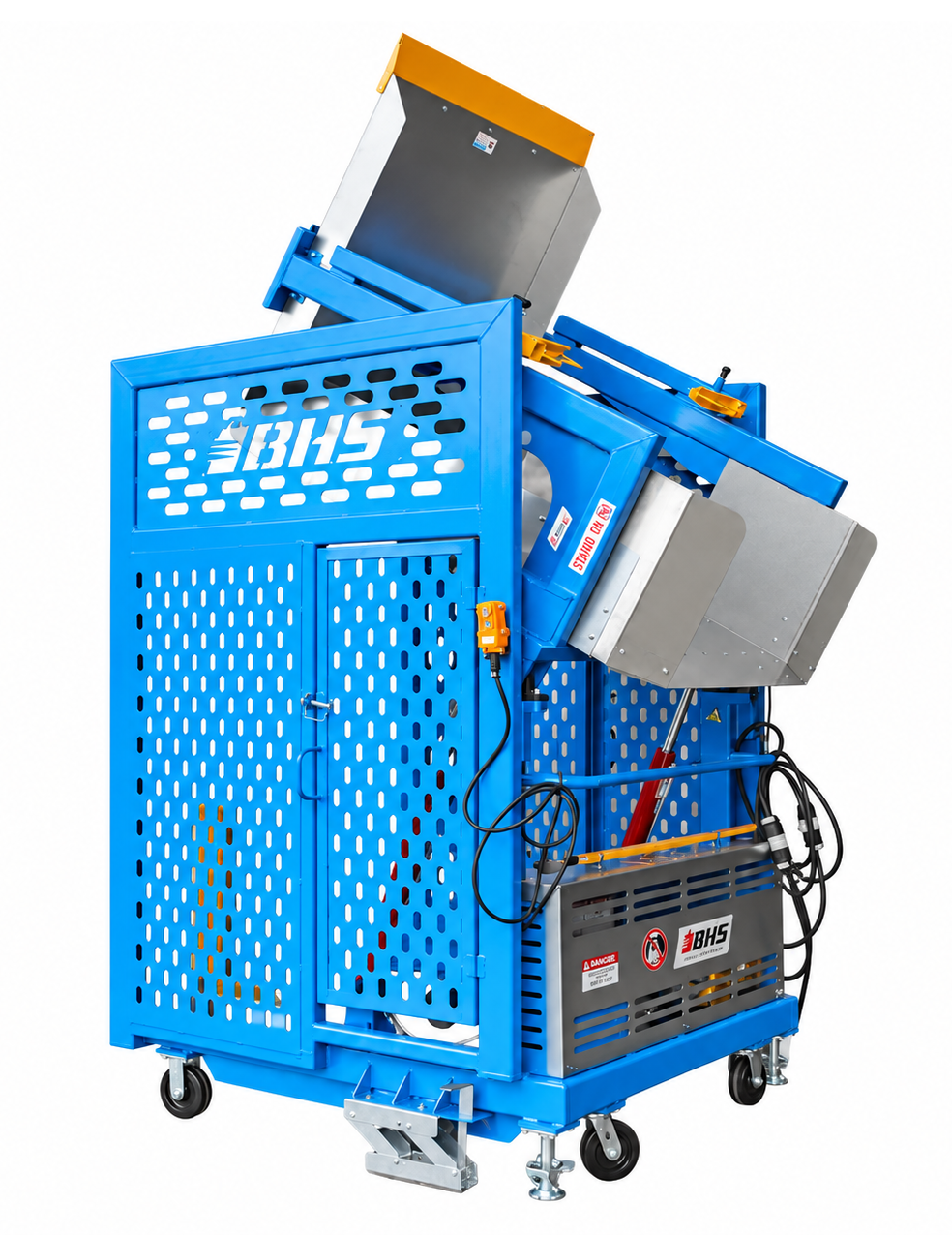

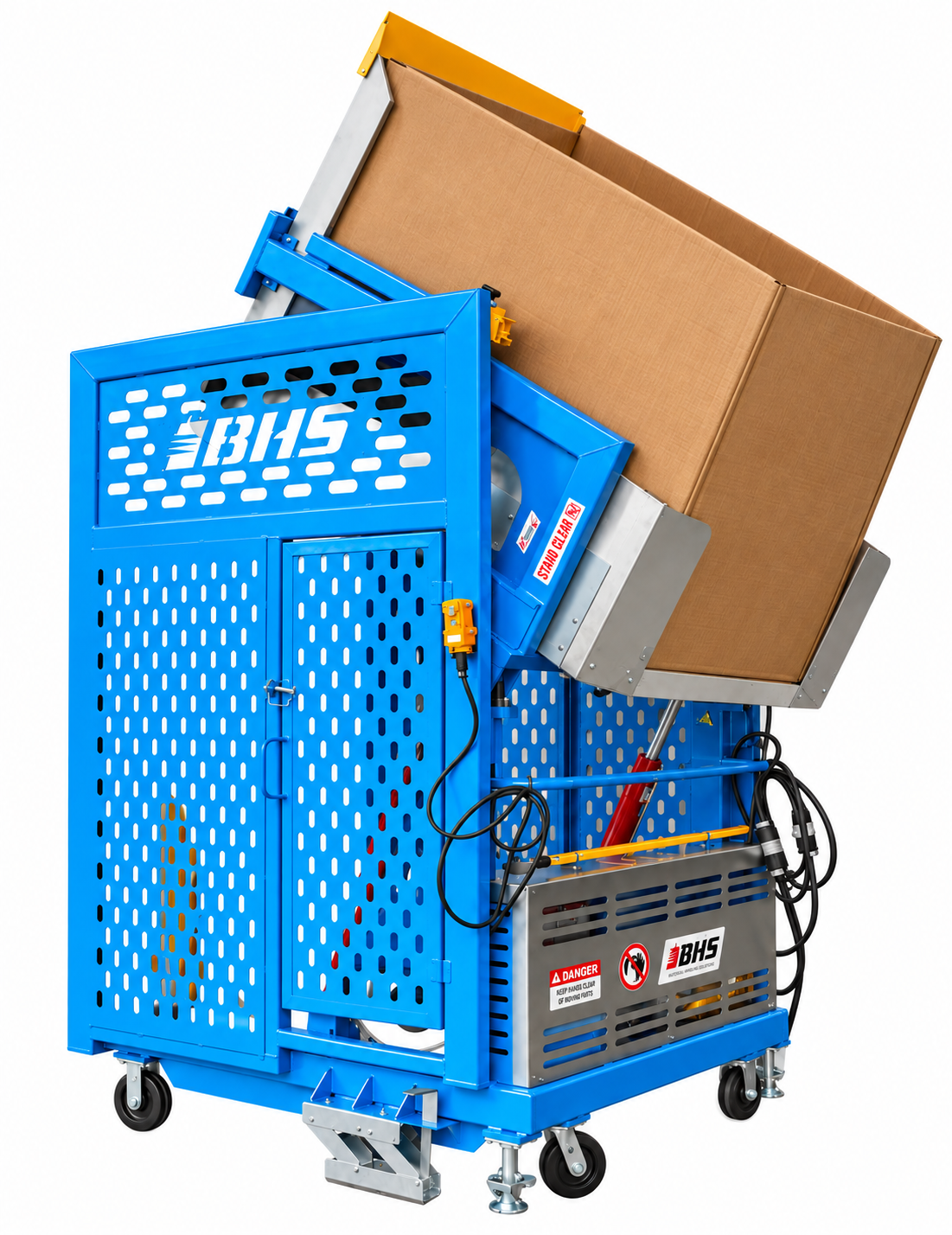

| GLDM-2K-42 | 2,000 lb. (907 kg) | 43.5″ (1105 mm) | 65.25″ (1657 mm) | 66-1/16″ (1678 mm) | 56-13/16″ (1443 mm) | 129-3/16″ (3281 mm) | 54-5/8″ (1387 mm) | 1,698 lb. (770 kg) |
| GLDM-2K-50 | 2,000 lb. (907 kg) | 51.5″ (1308 mm) | 73.25″ (1861 mm) | 66-1/16″ (1678 mm) | 56-13/16″ (1443 mm) | 129-3/16″ (3281 mm) | 54-5/8″ (1387 mm) | 1,698 lb. (770 kg) |
| GLDM-4K-42 | 4,000 lb. (1814 kg) | 43.5″ (1105 mm) | 65.25″ (1657 mm) | 66-1/16″ (1678 mm) | 56-13/16″ (1443 mm) | 129-3/16″ (3281 mm) | 54-5/8″ (1387 mm) | 1,698 lb. (770 kg) |
| GLDM-4K-50 | 4,000 lb. (1814 kg) | 51.5″ (1308 mm) | 73.25″ (1861 mm) | 66-1/16″ (1678 mm) | 56-13/16″ (1443 mm) |
