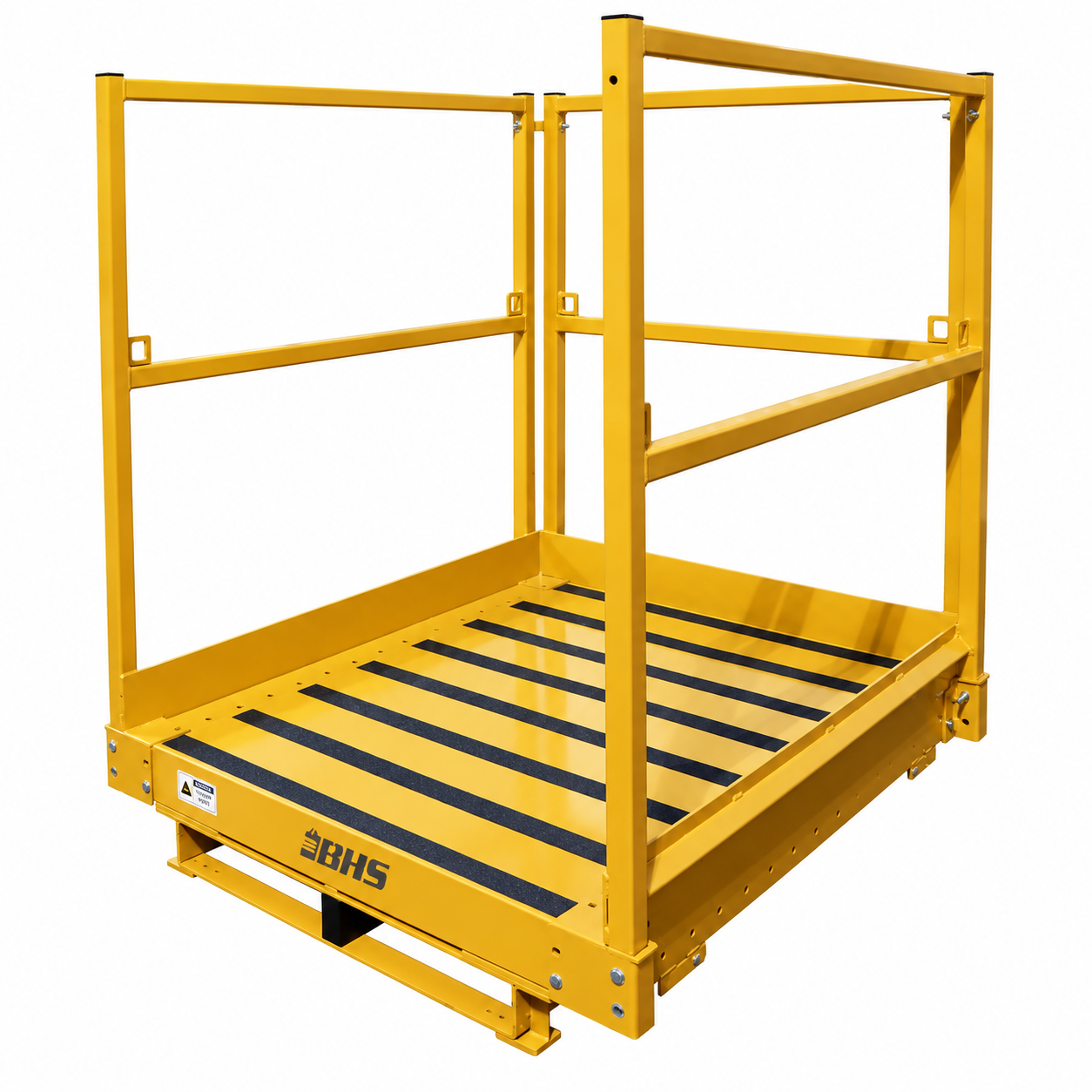

Modular Order Picker Platform | OPPM Order Picking Platforms
42″ W x 48″ D x 72.1875″ H Modular Order Picker Platform. New. Modular Order Picker Platform attachment for order picker trucks. 2,000 LBS capacity. Weight: 400 LBS. Part Number: OPPM-4248
48″ W x 48″ D x 72.1875″ H Modular Order Picker Platform. New. Modular Order Picker Platform attachment for order picker trucks. 2,000 LBS capacity. Weight: 440 LBS. Part Number: OPPM-4848
60″ W x 60″ D x 72.1875″ H Modular Order Picker Platform. New. Modular Order Picker Platform attachment for order picker trucks. 2,000 LBS capacity. Weight: 535 LBS. Part Number: OPPM-6060
NOTES: FOB: St. Louis, MO. Est Lead Time: 6-8 weeks
Our Modular Order Picker Platforms make it easy to expand your order picker truck’s workspace and storage. Built with heavy-duty steel, they’re perfect for warehouse picking, fulfillment, distribution, and material handling—giving operators extra room for cartons, parts, and more at higher levels. The platform can match your truck’s operator height, creating a smoother surface and helping prevent trips.
The OPPM Series comes in many sizes to fit different trucks and needs. You can choose widths of 40”, 42”, 48”, or 60”, and depths of 42”, 48”, or 60”. All standard models hold up to 2,000 lb. and sit about 4.7” high. Open fork pockets work with most trucks, and optional adjustable guides help ensure a snug fit.
One great perk is how easily the platform adapts as your warehouse changes. You can add bolt-on shelving with one, two, or three tiers in depths of 24”, 30”, 36”, or 42”. Each shelf supports 300 lb. and adjusts in 3” steps, so you can set it up for cartons, small items, containers, or whatever you’re picking. This flexible design lets you tweak the setup as your needs grow.
We’ve got plenty of fun and useful add-ons to help you tailor your platform just the way you need it. You can choose steel handrails with kick plates and harness points, operator and shelf guards, adjustable fork guides, anti-skid tape, adjustable shelving, custom colors, and even laser-cut logos. These bolt-on parts make it easy to set up your order picking platform for any warehouse setup.
Our OPPM Modular Order Picker Platforms are a great fit for warehouses, distribution centers, manufacturing sites, parts departments, e-commerce centers, and anywhere else using order picker trucks for elevated picking. With strong steel construction, a 2,000 lb. capacity, several deck sizes, and modular extras, you can match the platform to your truck, load, and needs. If the standard models don’t quite fit, we can also create custom sizes, capacities, and setups just for you.
OPPM Modular Order Picker Platform Specifications
| Model | Platform Width | Platform Depth | Platform Height | Platform Capacity | Weight |
|---|---|---|---|---|---|
| OPPM-4042 | 40″ (1016 mm) | 42″ (1067 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 85 lb. (39 kg) |
| OPPM-4048 | 40″ (1016 mm) | 48″ (1219 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 100 lb. (45 kg) |
| OPPM-4060 | 40″ (1016 mm) | 60″ (1524 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 130 lb. (59 kg) |
| OPPM-4242 | 42″ (1067 mm) | 42″ (1067 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 90 lb. (41 kg) |
| OPPM-4248 | 42″ (1067 mm) | 48″ (1219 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 105 lb. (48 kg) |
| OPPM-4260 | 42″ (1067 mm) | 60″ (1524 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 135 lb. (61 kg) |
| OPPM-4842 | 48″ (1219 mm) | 42″ (1067 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 105 lb. (48 kg) |
| OPPM-4848 | 48″ (1219 mm) | 48″ (1219 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 120 lb. (54 kg) |
| OPPM-4860 | 48″ (1219 mm) | 60″ (1524 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 140 lb. (64 kg) |
| OPPM-6042 | 60″ (1524 mm) | 42″ (1067 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 120 lb. (54 kg) |
| OPPM-6048 | 60″ (1524 mm) | 48″ (1219 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 135 lb. (61 kg) |
| OPPM-6060 | 60″ (1524 mm) | 60″ (1524 mm) | 4.7″ (119 mm) | 2,000 lb. (907 kg) | 155 lb. (70 kg) |
Available Options: Adjustable fork guides • 1-, 2- or 3-tier shelving • Shelf guarding • Platform guarding • Handrails with kick plate • Anti-skid tape • Custom laser-cut logo • Custom colors • Custom dimensions and capacities.
