Heavy Duty Wire Decking with Extra Channel Supports
Heavy Duty Wire Decking Feature PicsHeavy Duty Wire Deck with Extra Channel SupportsHeavy Duty Wire Deck with Many Channel SupportsHeavy Duty Wire Decking with 6 Channel SupportsWire Decks with Extra Channel SupportsHeavy Duty Wire Deck with 6 Channel SupportsHEAVY DUTY WIRE DECKING DRAWING ND4252S6SA204052S00P

Heavy Duty Wire Decking with 6-8 Channel Supports 4,000 LBS CAP. (UDL)

42″ d. x 46″ w. Wire decking. New. 4,000 lbs. capacity per piece based on evenly distributed load. 2″ x 4″ x 4 ga. wire  grid. (6)- 14 ga. steel “Step style” channel supports. 1-1/2″ waterfall on front & back. Gray powder coat finish. Part Number: HDWD-4246

42″ d. x 52″ w. Wire decking. New. 4,000 lbs. capacity per piece based on evenly distributed load. 2″ x 4″ x 4 ga. wire  grid. (6)- 14 ga. steel “Step style” channel supports.  1-1/2″ waterfall on front & back. Gray powder coat finish.  Weight: 33 LBS. Part Number: HDWD-4252

48″ d. x 46″ w. Wire decking. New. 4,000 lbs. capacity per piece based on evenly distributed load. 2″ x 4″ x 4 ga. wire  grid. (8)- 14 ga. steel “Step Style” channel supports. Fits standard 1-5/8″ step beams. 1-1/2″ waterfall on front & back. Gray powder coat finish. HDWD-4846

48″ d. x 58″ w. Wire decking. New. 4,000 lbs. capacity per piece based on evenly distributed load. 2″ x 4″ x 6 ga. wire  grid. (8)- 14 ga. steel “Step Style” channel supports. Fits standard 1-5/8″ step beams.  1-1/2″ waterfall on front & back. Gray powder coat finish.  Part Number: HDWD-4858

NOTES: MUST BE TEK SCREWED (WITH SHEET METAL SCREWS) INTO BEAM FOR ADDED SECURITY. MINIMUM ORDER QUANTITY 20 PCS. Lead time: 9-10 weeks. FOB: Chicago, IL, Philadelphia, PA, Charlotte, NC, Dallas, TX, Los Angeles, CA and Seattle, WA. Ships best way pre-paid and add or customer to provide name of carrier for transit.

Lower Prices for Larger Quantities

Over the years as the wire decking industry raced to provide you the lowest priced wire decking (at your request – we get it, price sells) we are here to offer you something different. We warn you – this is not the lowest priced heavy duty wire decking – but with 6-8 – 14 GA steel channel supports and a tight 2″ x 4″ mesh with heavy 4 GA wire – it is arguably the best wire decking on the market, shall we say “in the world”.

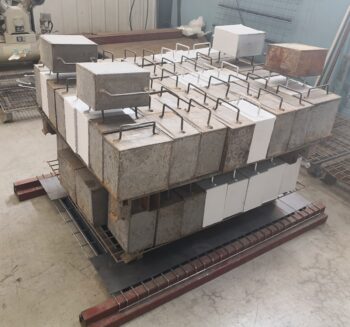

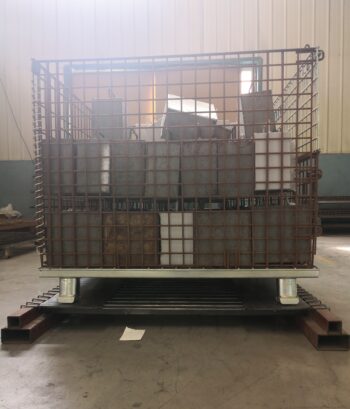

While this decking is still not designed for point load applications (like feet on the bottom of a basket) it is designed for up to 4,000 LBS (UDL). What does UDL stand for you ask? Uniformly Distributed Load which means that it is spread evenly across the entire surface of the wire deck. You can see by the pictures of our heavy duty wire decking test that it withheld 4,500 LBS of weight which is probably more than you will store.

We believe that there are customers who appreciate quality, strength, durability and safety. Our heavy duty wire decking is built to last. No more replacing damaged wire decking in your warehouse. These extra heavy duty decks are a less expensive alternative to heavy duty bar grate decking (which we provide as well).

NOTES: 42″ DEEP WIRE DECKING HAS 6 CHANNEL SUPPORTS. 48″ DEEP WIRE DECKING HAS 8 CHANNEL SUPPORTS. WE RECOMMEND CUSTOMER USE SHEET METAL SCREWS & TEK SCREW WIRE DECKING THROUGH CHANNEL SUPPORTS INTO STEP BEAM TO SECURE THEM IN PLACE.
