Split Cart Combo | Pipe Cart | Combination Rotate Platform Cart and Rear Platform Carts

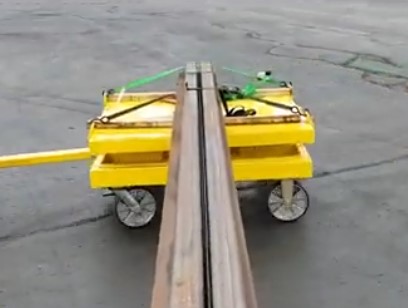

48″ x 48″ Split Cart / Rotate Platform Cart / Pipe Cart. New. Specifications: – Tubular steel construction. – 48″ x 48″ Rotation deck. – Free spinning 360 degrees. – Heavy duty rotation bearing. – Top of deck approx. 24″. – Three (3) D-rings on two sides. – Four (4) polyurethane casters two (2) 8″ rigid and two (2) 8″ swivel with precision bearings (RS). – Tip-down pintle ring tow bar and recessed auto coupler. – Floor brake foot activated. – 2,500 lbs. Capacity. – Powder coat finish. – Color TBD. Part Number: ROTATE-PLATFORM-CART
8″ x 48″ Flat Platform Cart / Rear Cart. New. Specifications: – Tubular steel construction. – 48″ x 48″ Sheet metal deck. – Top of deck approx. 24″. – Three (3) D-rings on two sides. – Custom retractable pintle ring tow bar. – No rear coupler. – Floor brake foot activated. – Six (6) polyurethane casters two (2) 8″ rigid and four (4) 8″ swivel with precision bearings. – 2,500 lbs. Capacity. – Powder coat finish. – Color TBD. Part Number: FLAT-PLATFORM-CART
NOTES: ONLY SOLD IN PAIRS. HESE TWO CARTS ARE DESIGNED TO BE USED TOGETHER TO TRANSPORT LONG PIPE. ONE ON EACH END OF PIPE. THESE TWO CARTS CAM BE ATTACHED TOGETHER TO CREATE ONE CART.

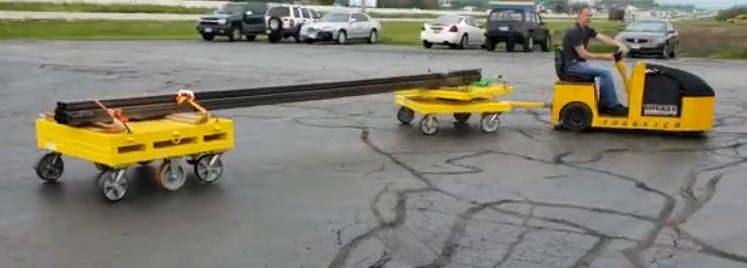

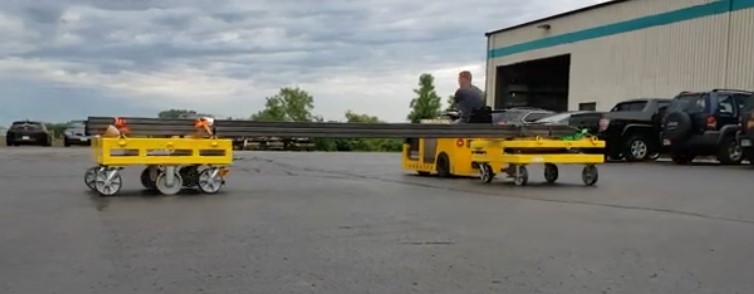

The Split Cart Combo, sold exclusively in pairs, is designed for transporting long pipe and tubing in manufacturing or warehouse settings. It includes a 48″ x 48″ rotate cart and a 48″ x 48″ rear platform cart, which attach to opposite ends of materials for stable transport. This design improves maneuverability and workplace safety.
The rotate cart features a swivel top for easy positioning, while the rear platform cart provides support. The two carts attach to form a 48″ x 96″ tow cart. This system streamlines the movement of materials, especially long materials, across warehouses or to production lines.
When not in use, the carts combine to form a single towable unit. This dual-purpose design saves space and reduces equipment costs. The carts are built with heavy-duty casters and a steel frame for industrial use.
The Split Cart Combo is an essential tool for handling long and heavy materials. It functions as both a split transport system and a single tow cart, enhancing productivity and creating a safer, more organized workspace.
