Single Pallet Stops for Flue Space Protection in Back-to-Back Rows of Pallet Rack
3″ D. x 5″ H. Single Pallet Stopper. New. Offset 3″ beyond pallet rack beam. Heavy duty double wall construction. Notched waterfall to fit over wire deck. Rear rib to fit over wire deck waterfall. Welded gusset for impact resistance. 4 counter sunk holes for tek screws. (4)
tek screws included. Powder Coat Gray. *Designed to fit on standard 1-5/8″ step beam. ** Patent Pending. NOTE: 850 PCS PER BOX/ PALLET. PART NUMBER: NDWSS0003305005000P
3″ D. x 5″ H. Heavy-Duty Single Pallet Stopper. New. Offset 3″ beyond pallet rack beam. Heavy duty double wall construction. Notched waterfall to fit over wire deck. Rear rib to fit over wire deck waterfall. Extra-Large Welded gusset for greater impact resistance. 4 counter sunk holes for tek screws. (4) tek screws included. Powder Coat Gray. *Designed to fit on standard 1-5/8″ step beam. ** Patent Pending. NOTE: 850 PCS PER BOX/ PALLET. PART NUMBER: NDWSSHD033050050PV6P

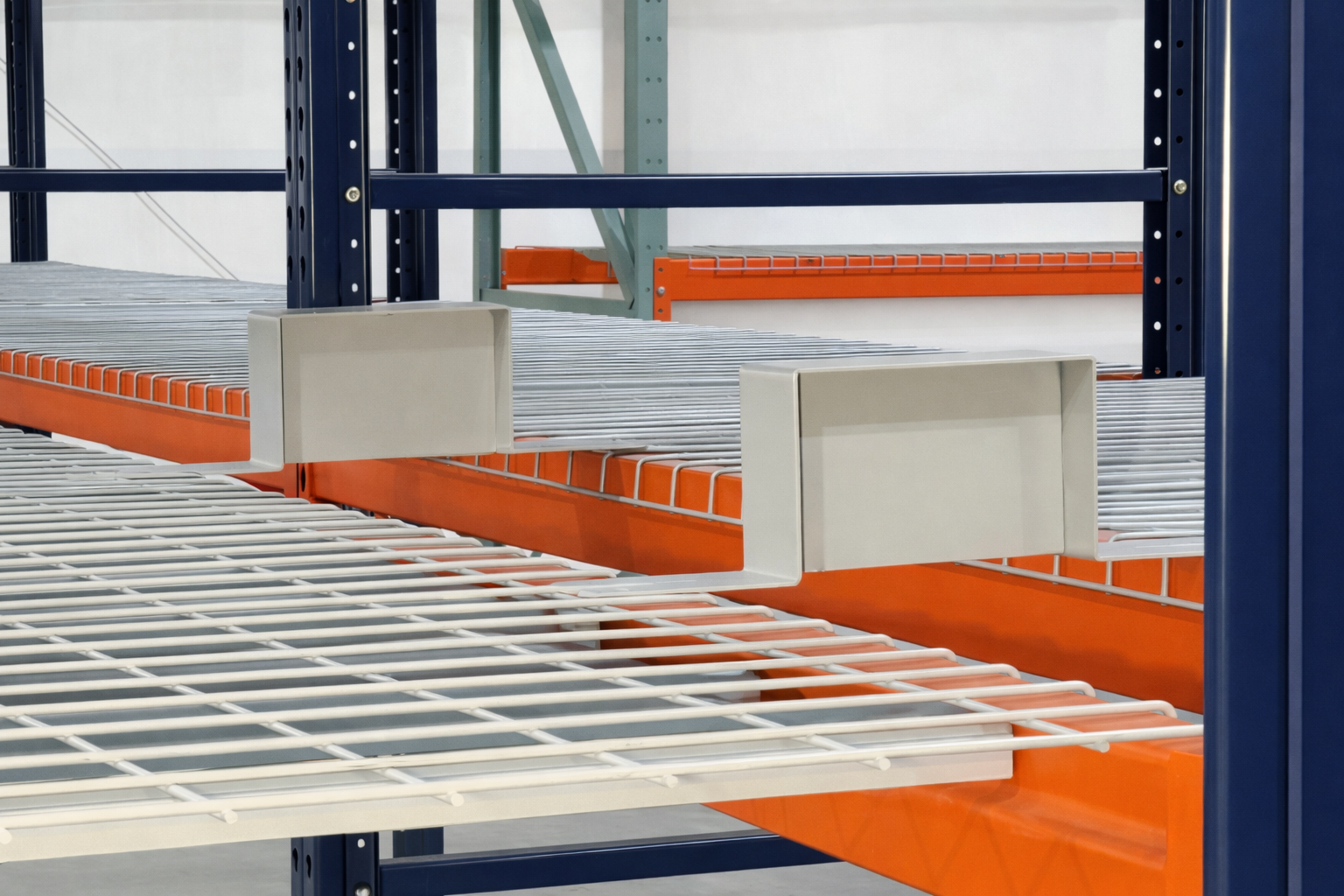

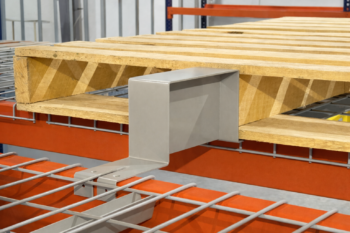

12″ Double Flue Spacer / Pallet Stopper. New. Provides a 6″ flue for back to back rack. Fits within a 12″ flue opening.
Inside Clear = 15.625″. Notched to fit over wire mesh decking. 3.0″ wide x 5.0″ tall, includes 4 tek screw holes. 2 tek screws per side for optimal performance. 4 flat head tek screws included. Powder Coat Gray. Patent # US9604783, US9604784. NOTE: 350 PCS PER BOX/ PALLET. PART NUMBER: NDWSD12063050156200P
NOTES: IN STOCK. FOB: Chicago, IL, Williamsport, PA, Charlotte, NC, Orlando, FL, Dallas, TX, Houston, TX, San Bernardino, CA.

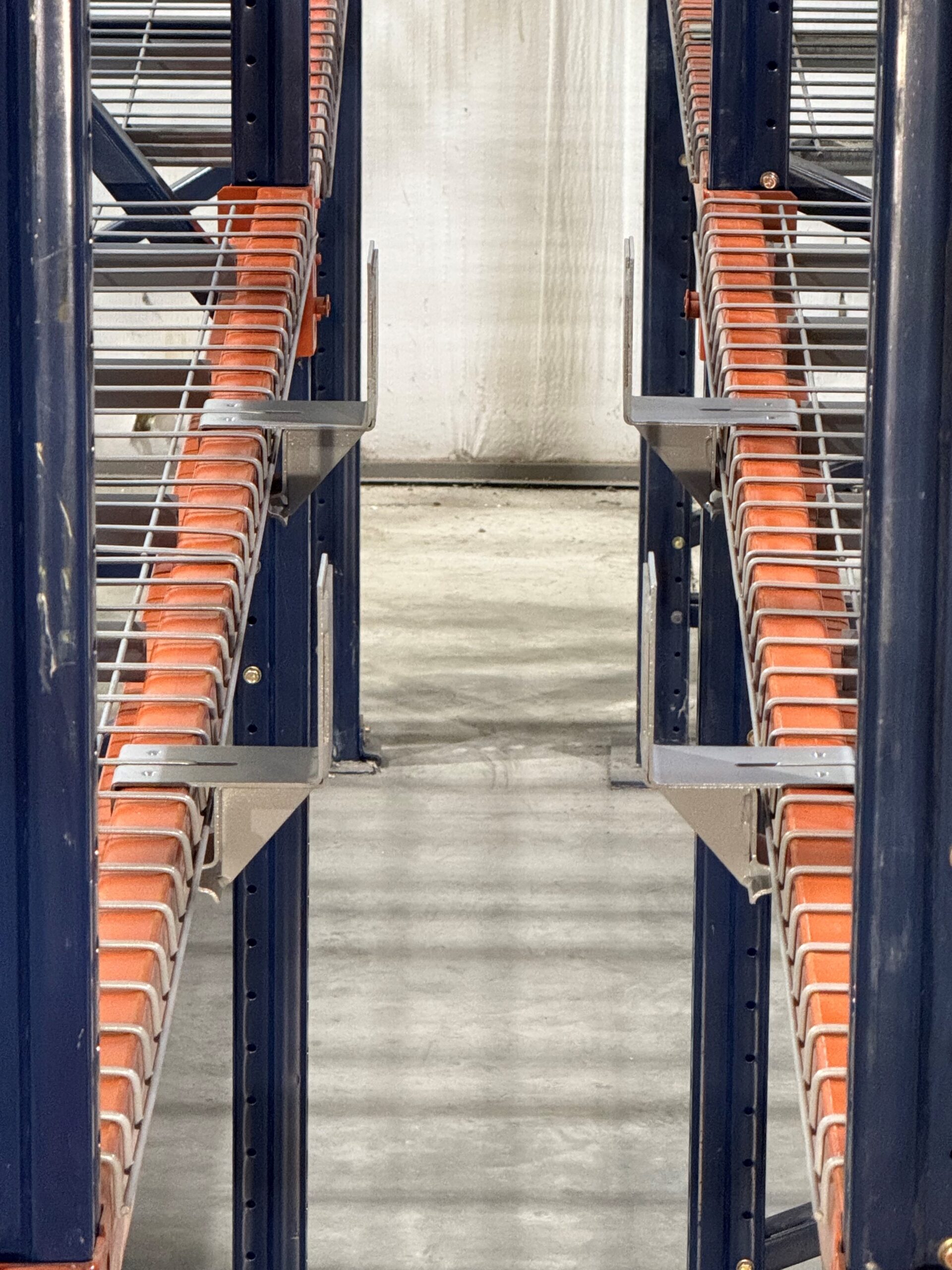

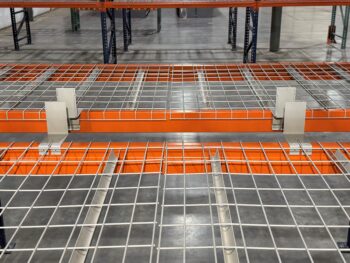

Single pallet stops, or flue space protectors, help maintain consistent spacing in back-to-back pallet racking. Unlike double pallet stops, which require uniform spacing, single pallet stops offer flexibility for racks with varying flue spaces. This makes them a practical solution for warehouses with misaligned racks or inconsistent spacing. By preventing pallets from encroaching into flue spaces, they help maintain compliance with fire safety regulations.
Many municipalities, Fire Marshals, and insurance companies require a 6-inch flue space in warehouse storage to improve fire protection. This ensures sprinkler systems can operate effectively, reducing fire spread. Single pallet stops create a physical barrier that keeps pallets from being pushed too far back, ensuring clear flue spaces and helping warehouses meet fire codes while minimizing liability risks.
Beyond fire safety, single pallet stops prevent pallet push-through, a common issue in high-density storage. Forklifts can accidentally push pallets too far, causing them to obstruct flue spaces or fall into adjacent racks. This upsets storage efficiency and poses safety risks for workers. By keeping pallets in place, single pallet stops reduce product damage and improve warehouse organization.
As an affordable alternative to double pallet stops, single pallet stops are easy to install and adapt to racking systems. They help warehouse operators boost safety and compliance without major modifications.
