Woven Wire Partitions
13′-4″ long x 10′-4″ deep x 10′-4″ or 10′-5″ high WireCrafters Two Sided Woven Wire Partition. Going into a corner. New. 2″ x 1″ x 10 GA woven wire. Includes ceiling. Finish: Gray. Cylinder locks keyed alike. Includes 6′ w. x 10′ h. sliding gate with key lock. Gate is located on the left side of the 13′-4″ side. (This size uses standard size panels 10’4″ x 13′-4″ (5′-10″ door opening) and NON-self closing door. *See diagram. Weight: 1000 LBS. Part Number: 123432-00
All wire enclosure posts are 2″ x 2″ square. Standard Panel increments available from 1′ – 10′ in width. All standard sliding gates are not self closing. Self closing sliding gates can be quoted as an option. All quotes are based on a level floor. If floor is not level, it is the customer’s responsibility to let Warehouse Rack and Shelf know this when quoting and ordering. The factory requires customer to sign off on drawings stating your approval. We will provide drawings for your approval before manufacturing.
NOTES: Est. Lead Time: 4-5 weeks. Ships best way pre-paid & add. Freight Class 125. FOB: Louisville, KY 40214
Wire Partitions offer Secured Storage – Simply stated, our wire partitions set the industry standard. All other manufacturers can only try to imitate us!
When you’re entrusted to store delicate information and valuable items you need a system that works. For over 30 years, our woven wire partitions and enclosures have been proven to safely secure tools, firearms, evidence, property, servers and record storage boxes (some containing credit card information).
Wire partitions make it easy to transform a space without a major construction project. We know you don’t have the time to shut down your operation for renovations. These are a quick and affordable solution for updating your space quickly and painlessly.
Wire partitions can increase safety. They can be used to keep equipment and tools in and keep unauthorized users out. In addition to preventing theft, these security cages also help to prevent accidents. It can be dangerous when heavy-duty tools fall into the wrong hands. It’s also dangerous when these tools aren’t stored correctly.
You can also increase organization with woven wire enclosures. Wire partitions provide visibility, so it’s easy to see exactly what you’re working with. This is especially helpful when you have lots of personnel working with the same equipment. By having a central place to store everything, you reduce the chance of lost tools and equipment.
Wire partitions have a modular design that can be added on to in the future. They can be easily installed by two people using common hand tools. Simply stack and secure wire panels and steel posts to build partitions, enclosures and storage areas of any size and configuration.
Woven wire partition will arrive on your dock professionally packaged, with layout drawings and install instructions. Please give us the opportunity to supply you with excellent customer service, low prices and high quality wire partitions. Call us at 800-763-9020 and let our expert’s help you determine what you need.
Lock in the Savings on Wire Partitions! They’re a lot less expensive than you imagined. Plus for a limited time we’ll throw in free shipping!
Wire Partition Features & Benefits:
• The Wirecrafters wire partitions are used to build partitions, enclosures, or storage areas
• Modular design can be added on to in the future
• Our patented design allows for fast and easy installation – panels stack and bolt together
• Wire partitions use 20 standard sized panels and steel support posts
• Our unique design conceals all hardware from the exterior of the secured area
• We offer a full line of hinged and sliding gates
Wire Partitions are used to create:
• Wire cages
• Wire mesh panels
• DEA Approved cages

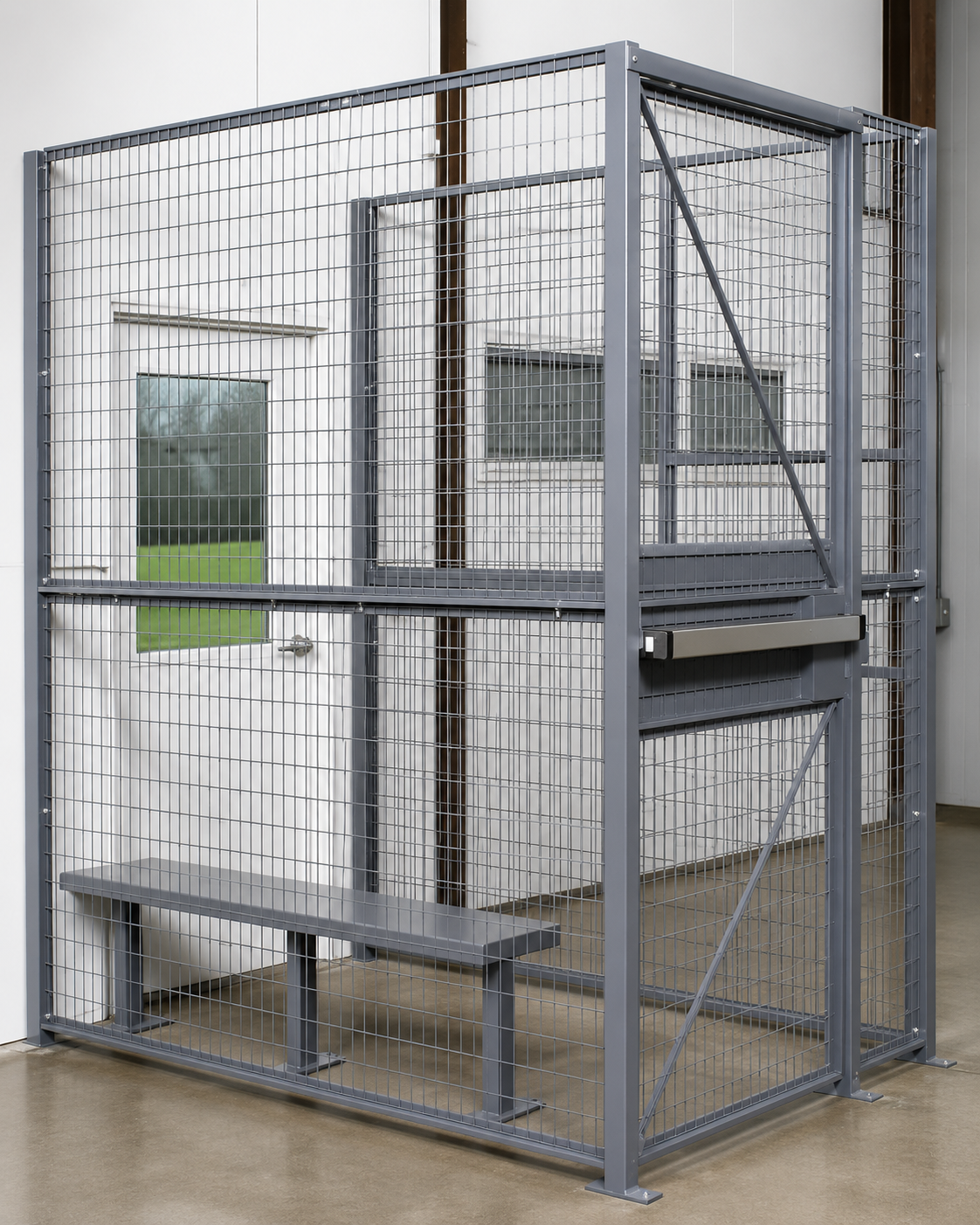

• Driver Access Cages
• Maintenance cages
• Machinery guards
• Security enclosures
• Security fencing

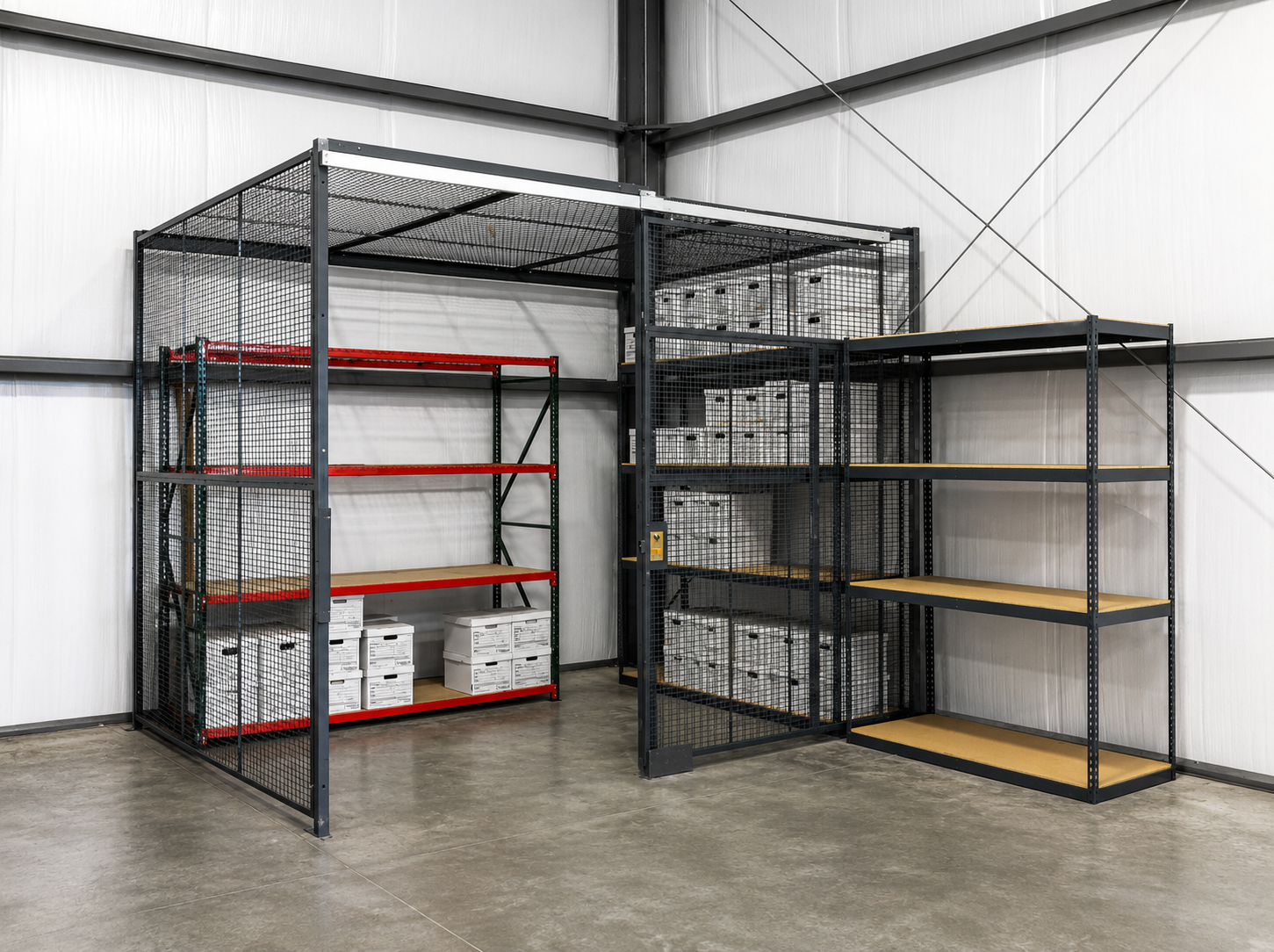

• Storage cages
• Wire Storage lockers

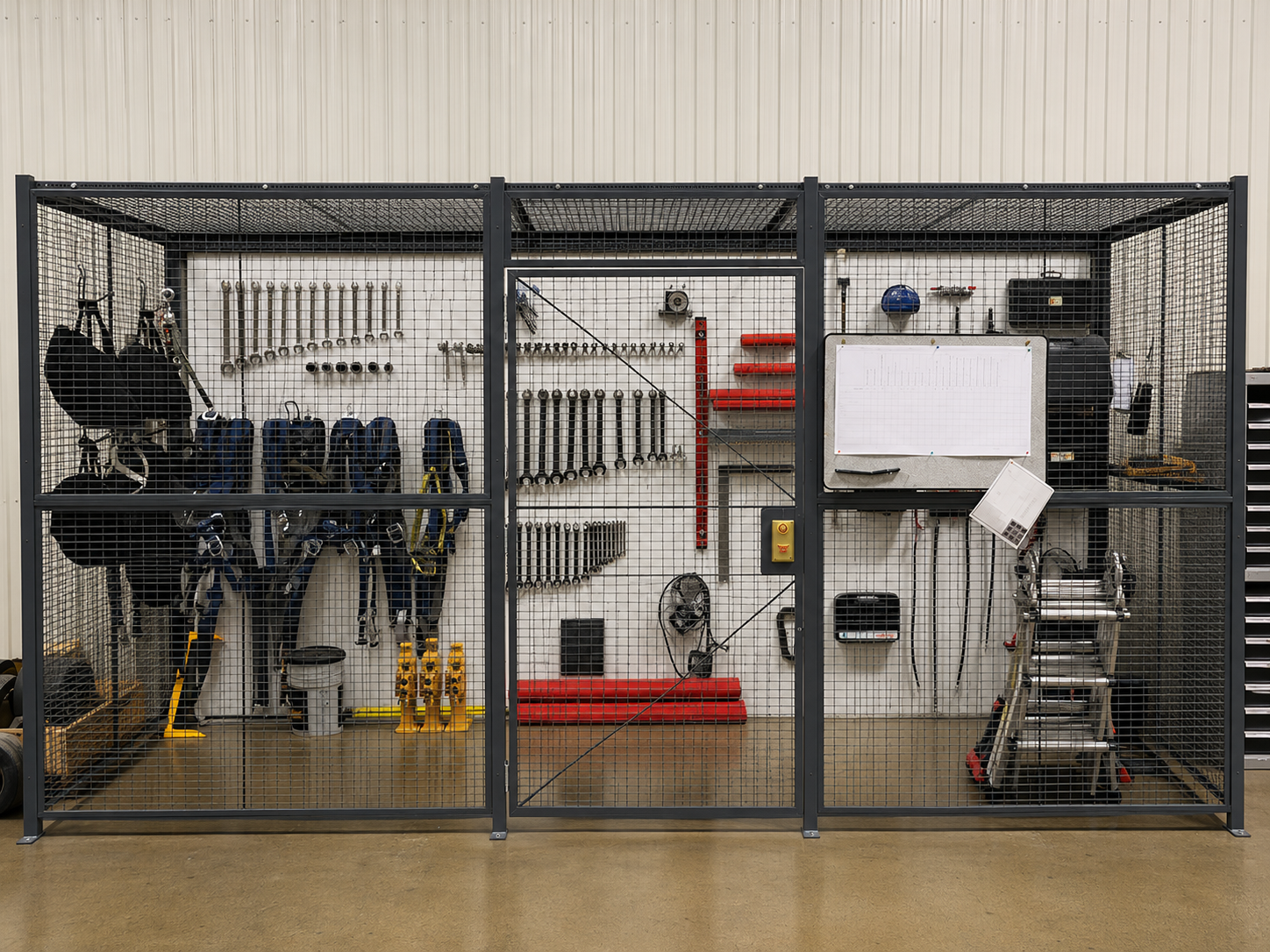

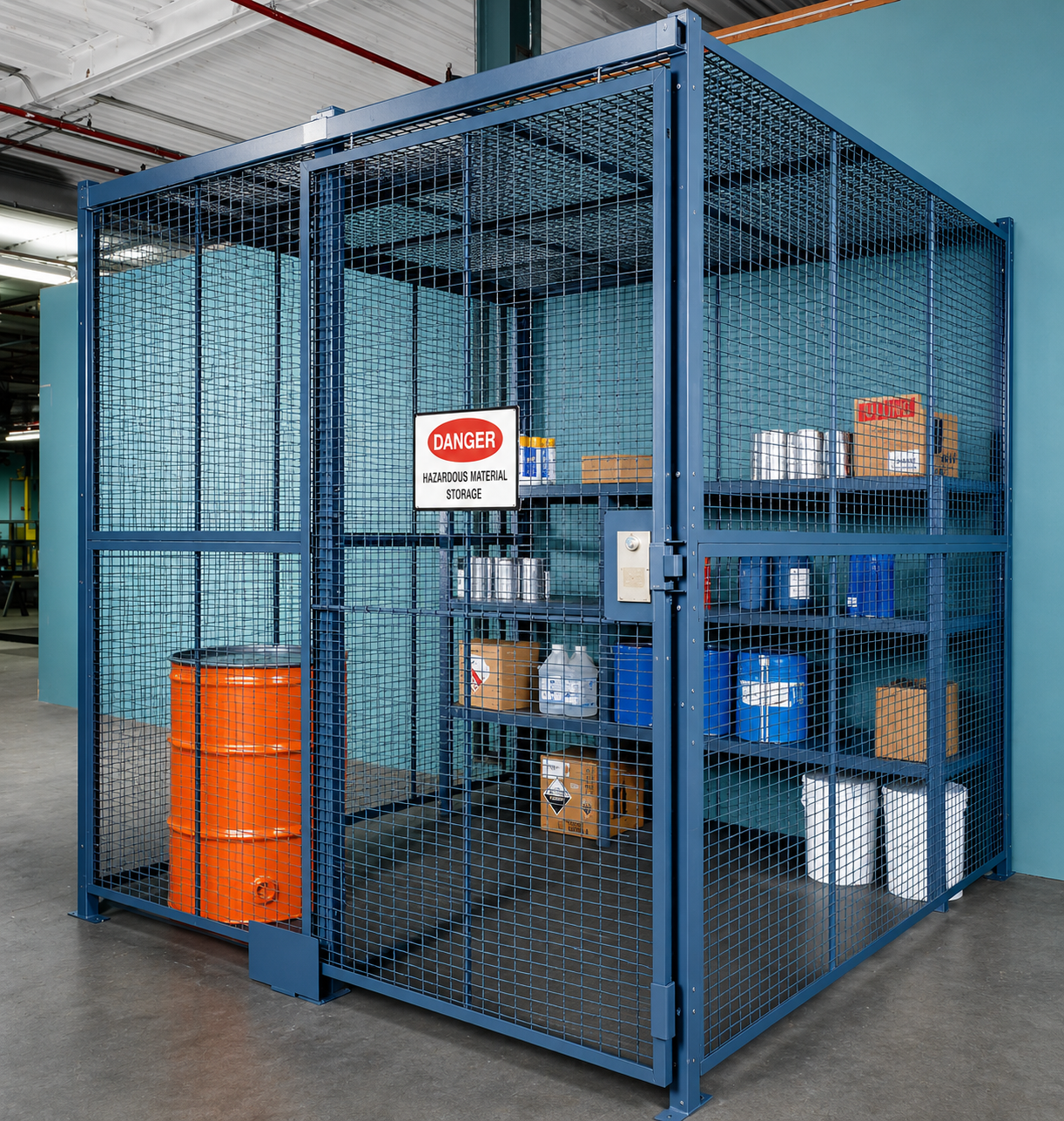

• Tool cribs
• Evidence storage enclosures
• Property rooms
• Tenant storage lockers
• Holding cells
• DEA drug storage
• Pharmaceutical storage
• Server and network security cages
Wire Partition Specifications:

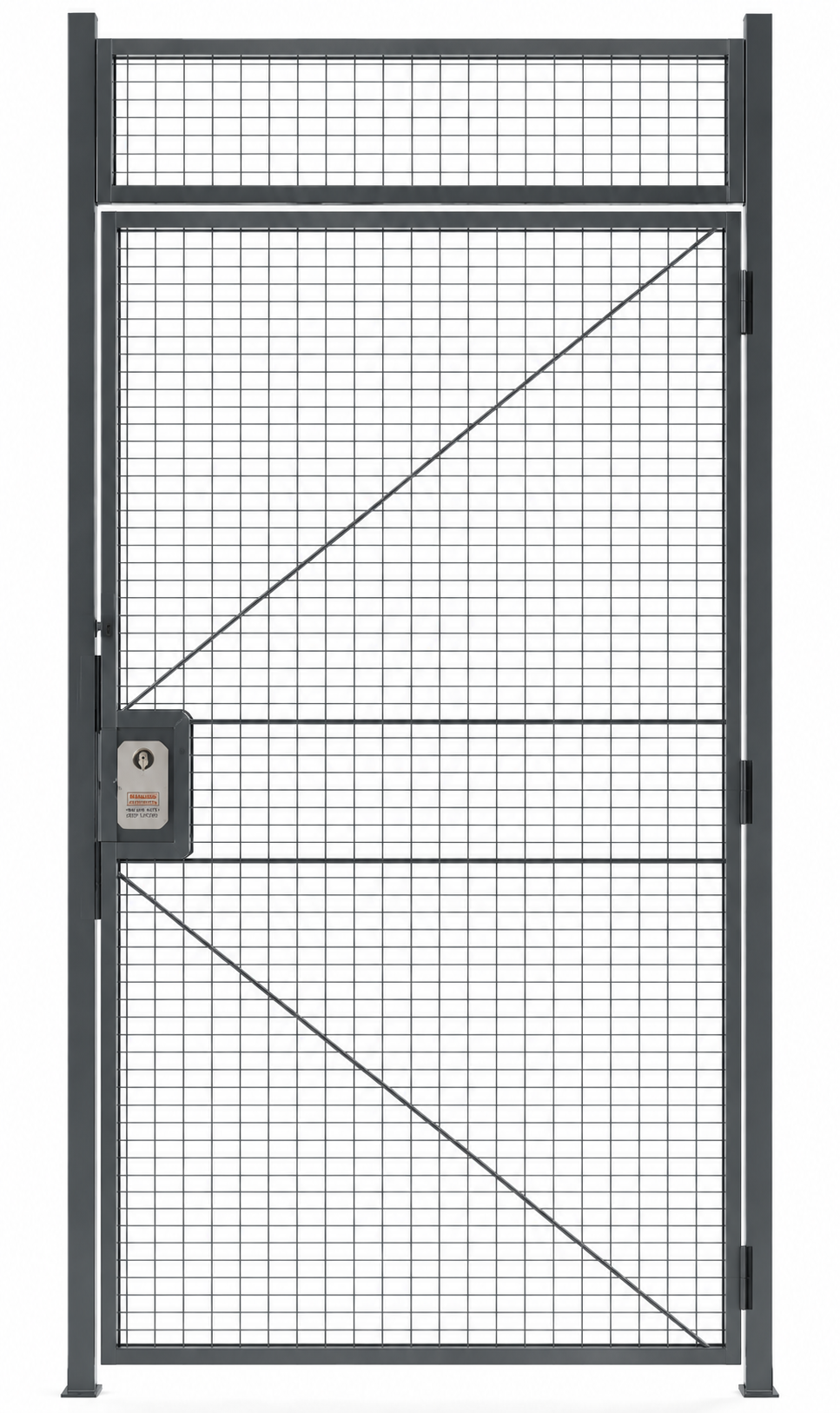

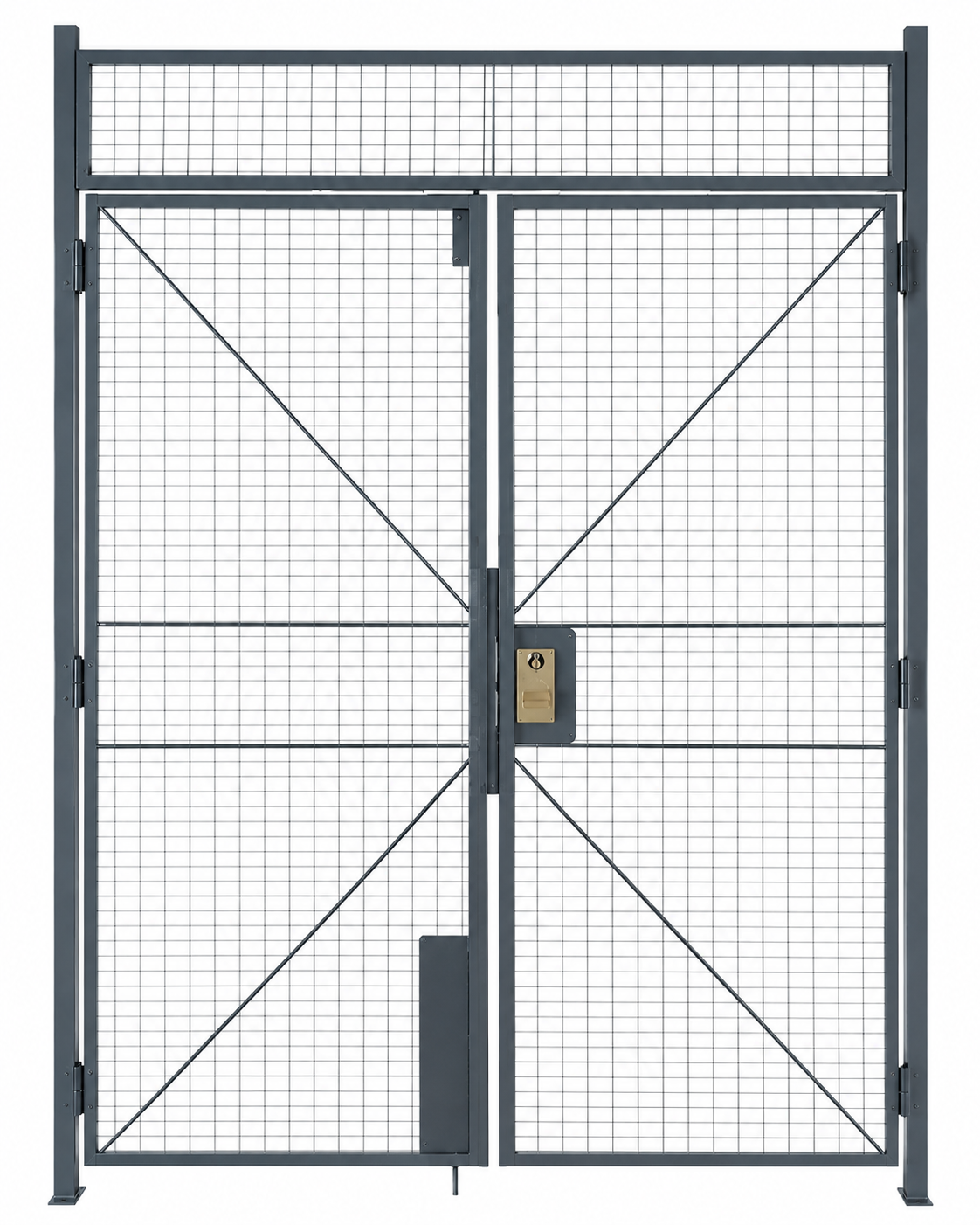

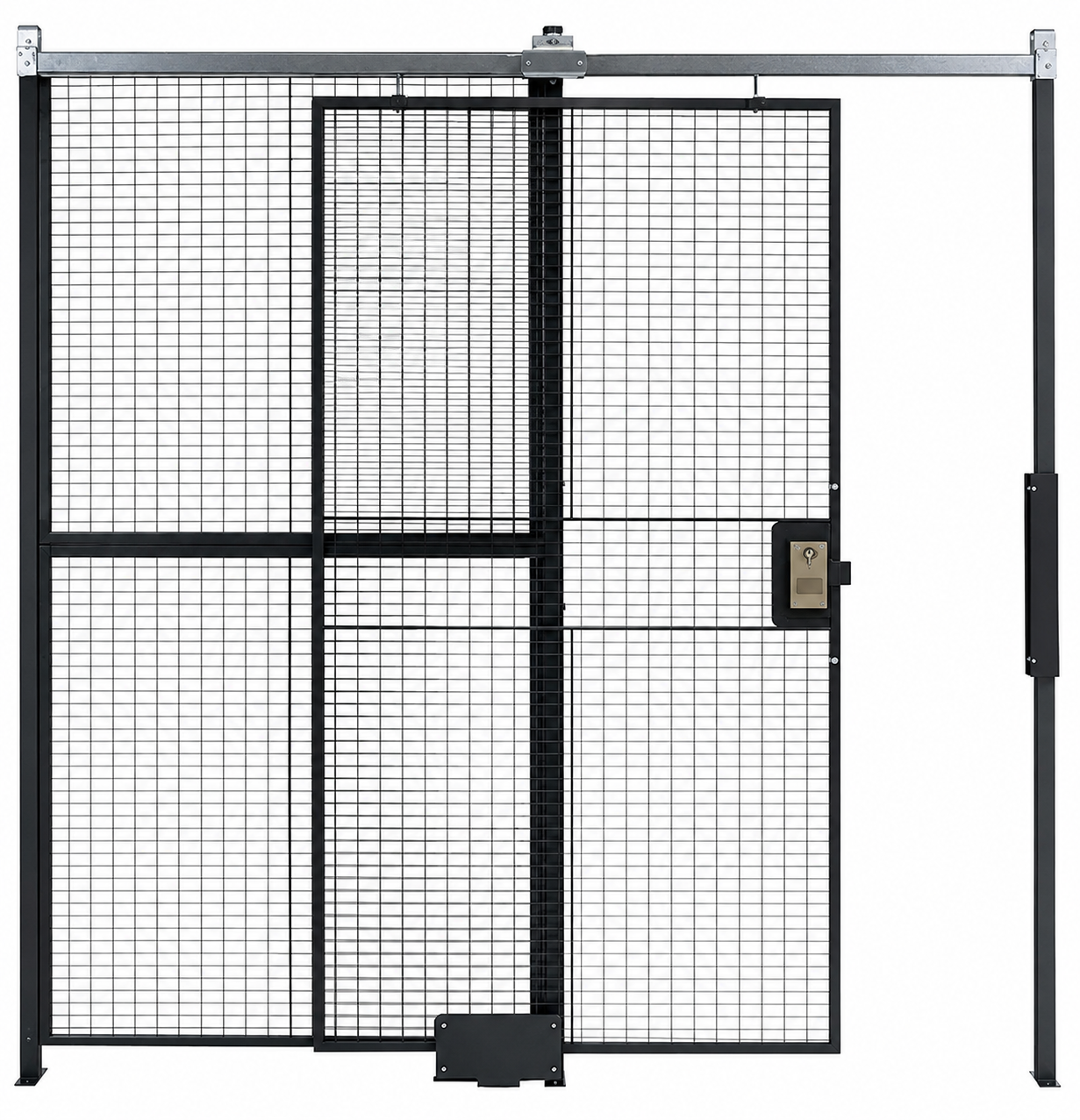

| Doors | Lockable single hinged swing doors, double hinged swing doors, single sliding doors & double sliding doors available in a variety of sizes. Doors are constructed of similar materials to match panels. Door frames are covered with rolled steel channels where necessary. Each sliding door has (two) four-wheel adjustable trolleys traveling in an enclosed overhead track. The door bottom is guided by a U-shaped floor guide. Each hinged door has three fixed butt hinges and a jamb bar. |
| Service Windows | Slide-up or drop-down service windows have padlock hasps to provide for additional security. Service windows are installed at the factory. |

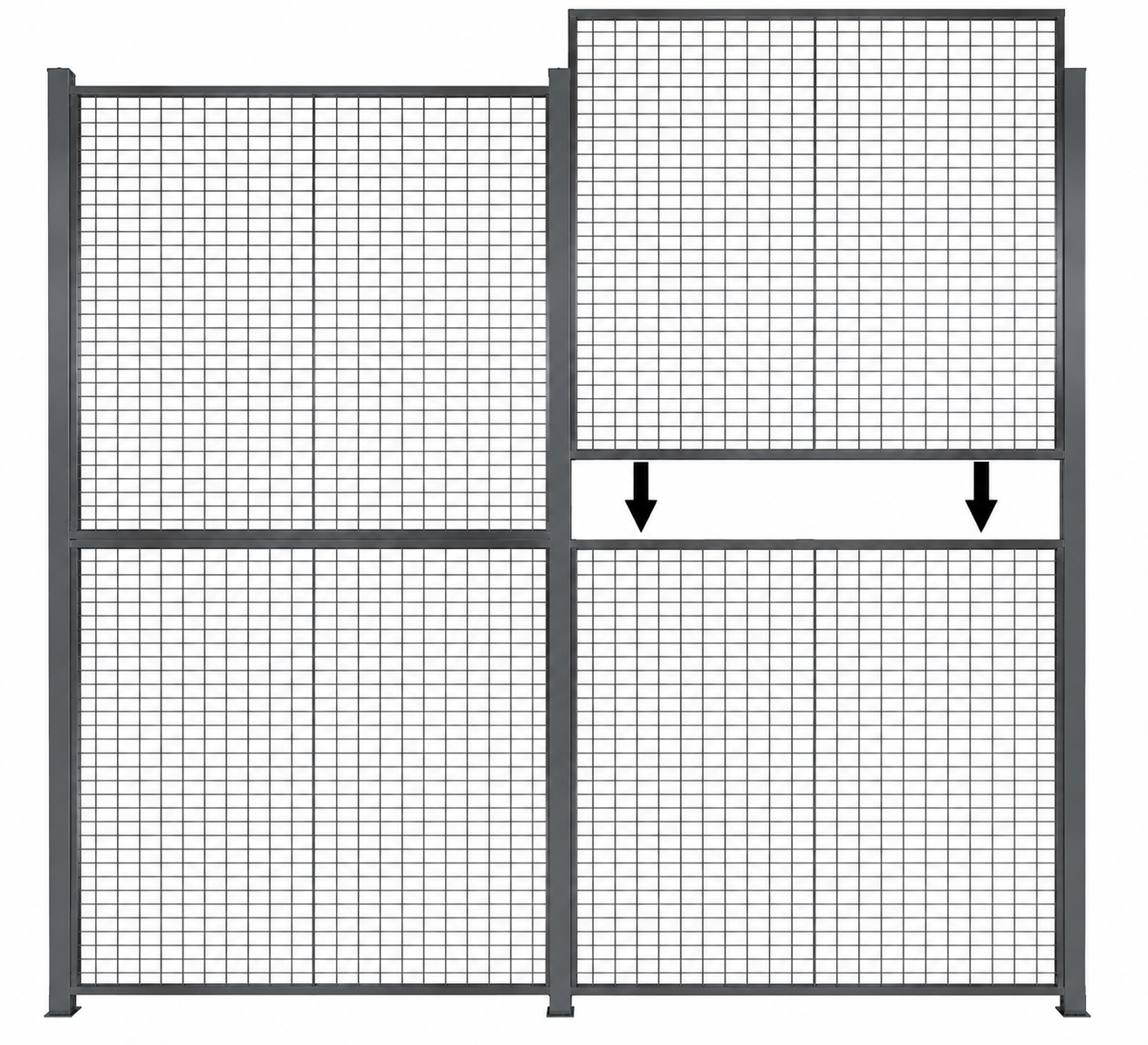

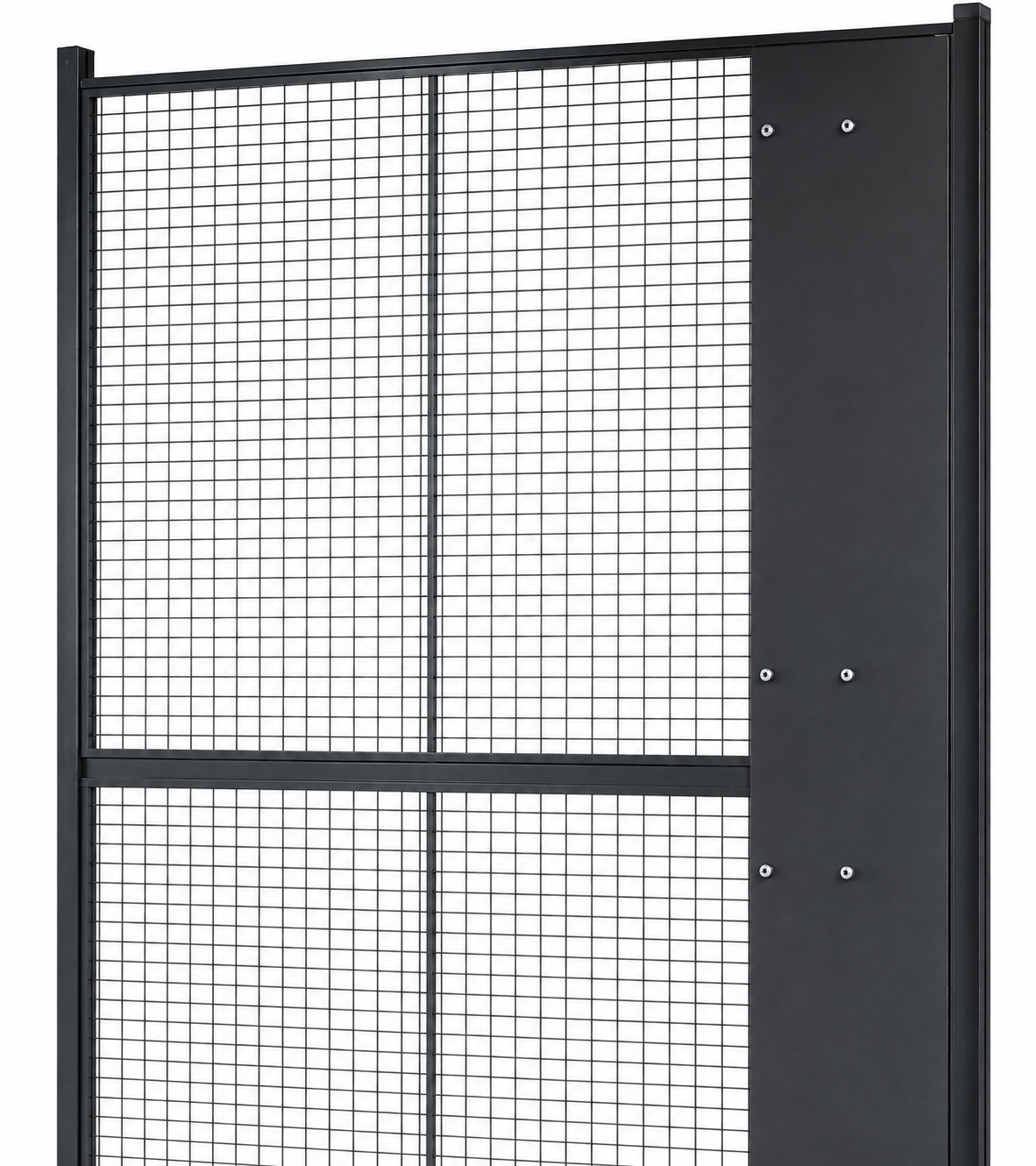

| Panels | Stock panels are manufactured in even widths of 1 ft. – 10 ft. and in heights of 1 ft. – 5 ft. The panels are installed by stacking one panel over another using special welded connectors on each panel. Expandable panels are also available for spanning any gap for onsite adjustments by installer. |
| Frame | Vertical and horizontal members are 1-1/4″ x 5/8″ x 14-gauge “c” channels with uniformly spaced holes. |
| Wire Mesh | Wire mesh is made of 10-gauge triple crimped wire and is securely clinched into the vertical and horizontal frames. Wire is woven into a 1-1/2″ pattern with the wires intersecting the channel frames at a 45-degree angle. |
| Sweep Space | There is a 3-5/8″ sweep space between the bottom horizontal bar and the floor level. |
| Finish | Panels, doors and line posts are painted with one coat of high-gloss machinery enamel. Some hardware items may be zinc plated. |
| Hardware | Necessary hardware, including masonry lag bolts required for installation, are included. |
| Corner Posts | Special tubular corner posts are fabricated from 2-1/2″ square x 14-gauge tubular steel. The length of the posts will equal the overall height of the assembled partitions. Posts have pads welded to one end for attachment to the floor. |
| Line Posts | 2-1/2″ square x 14-gauge tubular steel posts are universally punched with slots and holes for mounting all types of panels and doors. |
| Locks | Each door is shipped with a bronze cylinder lock. The lock contains a five-pin cylinder (1″ standard) that may be master-keyed and keyed alike. A padlock attachment is also available. |
