Close-up of pallet rack with orange beams and green pallet supports spanning between beams for added decking support.
Pallet Support CrossbarsDouble-flanged-pallet-supportsWorld XBar Pallet SupportsDouble Flanged Pallet Supports with PalletDouble Flanged Pallet Supports Feature PicDouble Flanged Pallet Supports UndersideDouble Flanged Pallet Rack SupportsFlanged-crossbars-close-up-scaledFlanged-pallet-support-crossbars-scaledCrossbars-pallet-support-barsPallet Support BarsPallet Supports for RackingPallet-Rack-Cross-Bars-scaledFlanged Pallet Support CrossbarsDouble-flanged-pallet-supports-2-scaled

Pallet Supports

36″ L. x 2″ W. x 16 GA. Double Flanged Pallet Support Crossbars. New. 1,450 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. **Doesn’t include tek screws. Weight: 3.8 LBS. Part Number: NDCBF362140H

42″ L. x 2″ W. x 16 Ga. Double Flanged Pallet Support Crossbars. New. 1,450 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. **Doesn’t include tek screws. Weight: 4.5 LBS. Part Number: NDCBF422140H

44″ L. x 2″ W. x 16 GA. Double Flanged Pallet Support Crossbars. New. 1350 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. *Doesn’t include tek screws. Weight: 4.2 LBS. Part Number: NDCBF442140H

48″ L. x 2″ W. x 16 GA. Double Flanged Pallet Support Crossbars. New. 1250 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. *Doesn’t include tek screws. Weight: 4.6 LBS. Part Number: NDCBF482140H

**The 42″ Double Flanged Pallet Support is the Most Popular Pallet Support. It is also the one we stock the most.**

NOTES: In stock, allow est. 4-5 days to ship. Ships best way pre-paid & add. Freight Class 65.  FOB: Chicago, IL 60446, Williamsport, PA 17701, Charlotte, NC 28092, Orlando, FL 32824, Dallas, TX 77503, San Bernardino, CA 92408

Lower Prices for Larger Quantities

Pallet Supports support you in your efforts to increase efficiency and safety in your warehouse!

Pallet support bars are a great way to increase the safety of your pallet racks. The pallet rack cross beams help to take the load off the beams of the pallet rack and distribute the weight more evenly. Supports increase your rack security. This extra support protects against rack failure, which in turn protects your products and personnel.

Double flanged pallet rack cross bars are helpful for heavy duty inventory that could use some extra support. Your pallet rack takes constant abuse from the forklifts and heavy inventory. The supports are made up of heavy-duty steel, so you can rest assured they will protect racks and last for a long time.

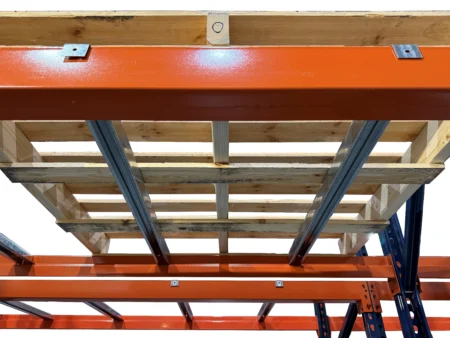

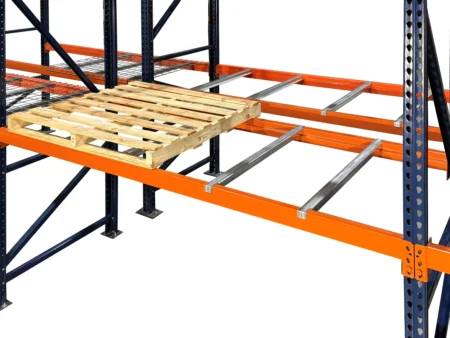

Double flanged pallet support bars are designed to drop over the orange horizontal load beams of a selective pallet rack system, to support the bottom of the pallet load. Pallet supports are available in our quick-ship stocking program, in a variety of styles, one of which will surely fit on your pallet rack.

Pallet rack cross beams are a worthwhile investment in your operation. They provide extra support across your horizontal beams so you can feel comfortable that your racks are supported while storing materials and during loading and unloading. Pallet rack cross beams are made of steel, so you can trust they’re durable and can stand up to the daily grind.

We think pallet support bars are an excellent preventative measure you can take to protect your pallet racks. Supports for pallet rack cross beams are a much cheaper alternative to replacing your entire rack system in the case of rack failure! The time it would take to unload your rack, replace it and reload could really set you behind.

Flanged pallet supports are also important for keeping your personnel safe. You can trust that your forklift operator will feel at ease knowing the system is reinforced with pallet supports. We’re here to support you in your warehouse safety standards.

New and used pallet support bars are available in standard stock sizes of 36″, 42″ and 48″ lengths. Custom pallet support sizes are also available. Please measure the depth of your rack and determine the front-to-back measurement from outside to outside (O.D) to insure a proper fit for pallet rack cross beams.

The pallet rack cross beam installation is easy. Just drop the pallet rack cross bars in place and add a tek screw. Supports are an affordable option that can save you time and money in the long run. Save yourself a headache down the line!

Warehouse Rack & Shelf offers the world’s largest inventory of new and used pallet rack cross bars. With over 100,000 new and used pallet supports in stock nationwide, we can ship in 24-48 hours from five stocking locations. To save you money on freight, we offer strategically located stocking facilities in St. Louis, MO., Chicago, IL, Atlanta, GA, Dallas, Texas and Los Angeles, Calif.

Call us today at 800-763-9020 to discuss your requirement. Our friendly and knowledgeable sales staff will help you determine what new or used pallet support bars will work best for your needs. You may also email us at sales@rackandshelf.com. It is our goal to get you the highest quality pallet support at the lowest price while offering you excellent customer service. We look forward to speaking with you!

Advantages of Pallet Rack Cross Bars Include:
• Durable steel construction with attractive gray powder coat finish
• The least expensive alternative for supporting pallets in pallet rack
• Safety Feature: Prevents pallets from accidentally dislodging and falling to floor
• Reduces load times because they give forklift driver confidence in loading pallets at high elevations
• Easy drop in installation
• Pre-drilled holes allow you to Tek screw pallet support to the beam
• A variety of styles in stock to work with whatever pallet rack style you have

Cross Referenced Part Numbers

CBH-32.24-1.4, CBH-38.24-1.4, CHB-44.24-1.4, NDCBH35214OP, NDCBH422140P, NDcBH44214OP, NDCBH48214OP

Additional Information

Weight 4 lbs
Dimensions 42 × 4 × 4 in
Pallet Support Sizes

36” Flanged Pallet Support. 1,810 LBS cap. Weight: 5 LBS., 42” Flanged Pallet Support. 1,520 LBS cap. Weight: 5.5 LBS., 48” Flanged Pallet Support. 1,310 LBS cap. Weight: 6 LBS.

Click on a product title below to view more details.

Double Flanged Pallet Supports

Double-Flanged-Pallet-Supports

36″ L. x 2″ W. x 16 GA. Double Flanged Pallet Support Crossbars. New. 1,450 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. **Doesn’t include tek screws. Weight: 3.8 LBS. Part Number: NDCBF362140H

42″ L. x 2″ W. x 16 Ga. Double Flanged Pallet Support Crossbars. New. 1,450 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. **Doesn’t include tek screws. Weight: 4.5 LBS. Part Number: NDCBF422140H

44″ L. x 2″ W. x 16 GA. Double Flanged Pallet Support Crossbars. New. 1350 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. *Doesn’t include tek screws. Weight: 4.2 LBS. Part Number: NDCBF442140H

48″ L. x 2″ W. x 16 GA. Double Flanged Pallet Support Crossbars. New. 1250 lbs. capacity based on evenly distributed load. Designed for 1-5/8″ step. Flanged style. Pre-galvanized finish. *Doesn’t include tek screws. Weight: 4.6 LBS. Part Number: NDCBF482140H

**The 42″ Double Flanged Pallet Support is the Most Popular Pallet Support. It is also the one we stock the most.**

NOTES: In stock, allow est. 4-5 days to ship. Ships best way pre-paid & add. Freight Class 65.  FOB: Chicago, IL 60446

Read more

get a flanged pallet support quote Lower Prices for Larger Quantities

Interlake Roll-In Pallet Supports

Roll-in-pallet-supports-2

36″ ROLL-IN / SNAP IN STYLE Crossbar pallet support. New. 1,160 lbs. capacity based on evenly distributed load. Weight: 3.5 LBS. Part Number: U0072732

42″ ROLL-IN / SNAP IN STYLE Crossbar pallet support. New. 970 lbs. capacity based on evenly distributed load. Weight: 4 LBS. Part Number: U0072733

48″ ROLL-IN / SNAP IN STYLE Crossbar pallet support. New. 830 lbs. capacity based on evenly distributed load. Weight: 5 LBS. Part Number: U0072733

NOTES: Est. Lead Time: 4-5 weeks. Ships best way pre-paid & add. Freight Class 65. FOB: Chicago, IL 60160 & San Diego, CA 92154

Read more

get a roll-in pallet support quote Lower Prices for Larger Quantities

Structural Pallet Supports

Structural Pallet Supports 2

42″ long x 2″ wide x 13 GA Structural Pallet Support. New. 1,250 lbs cap (UDL). Includes cuffs on ends. Fits structural c-channel beams. Powder Coat Gray. Weight: 5.6 LBS. Part Number: NDCBS422140P

48″ long x 2″ wide x 13 GA Structural Pallet Supports. New. 1,150 lbs. cap. (UDL).  Includes cuffs on each end. Fits structural c-channel beams. Powder Coat Gray. Weight: 6.2 LBS. Part Number: NDCBS482140P

**NOTE: FOR STRUCTURAL C-CHANNEL BEAMS.

NOTES: MINIMUM ORDER QUANITITY 10 PIECES. (Two under each pallet  = 5 Pallet Positions). CUSTOM, NO LONGER AVAILABLE IN STOCK, Please allow est. 9-12 weeks. Ships best way pre-paid & add. Freight Class 70. FOB: Chicago, IL, Williamsport, PA, Charlotte, NC, Dallas, TX and San Bernardino, CA.

Read more

get a structural pallet support quote Lower Prices for Larger Quantities

Top Hat Style Pallet Supports

Top Hat Pallet Support 1

42″ (38.375″ nominal) L. x 2″ W. x ga. Top Hat Pallet Support. New. 1,450 lbs. capacity based on evenly distributed load. Non-Flanged. Designed for 1-5/8″ step. Gray powder coat paint finish. **NOTE: Designed for 42″ deep uprights with standard 1-5/8″ step beams. *Requires tek screw into place. Weight: 4.5 LBS. Part Number: CBH-38.375-1.4

NOTES: MINIMUM ORDER QUANITITY 10 PIECES. (Two under each pallet = 5 Pallet Positions). In stock, allow 5-7 days to ship. Ships class 65. FOB: Chicago, IL 60160.

Read more

get a top hat pallet support quote Lower Prices for Larger Quantities

FAQs about Pallet Supports

Are pallet supports required by code or recommended by insurance companies?

While not always code-mandated, pallet supports are strongly recommended by safety auditors, insurance carriers, and rack engineers whenever:

  • Pallet quality is inconsistent
  • Overhang is excessive
  • Loads are heavy or uneven
  • Workers need added protection from pallet failure
  • Flue-space ventilation is required (supports offer a high open area)

They help prevent pallet collapse, product drops, and rack damage, which are major risk factors in warehouse safety assessments.

What are pallet supports and why are they used in pallet rack?



Pallet supports (also called pallet support cross bars) are steel channels that sit front-to-back between pallet rack beams to safely support pallets, especially when handling wood pallets, CHEP pallets, weak pallets, or undersized loads. They prevent pallets from breaking or falling through the rack and help ensure even weight distribution across the shelf level. Pallet supports add a crucial layer of safety and stability for full-pallet storage.

What sizes and capacities do pallet supports come in?

Pallet supports are built to match standard rack depths of 36″, 42″, 44″, 48″ deep racks.

Typical capacity ranges from 1,500 to 3,500 lbs. per support bar, depending on gauge and profile. Many rack levels use two supports per pallet position, though some heavy applications use three.

Custom lengths and heavier gauges are available for high-density and industrial applications.

What styles of pallet supports are available?

The most common styles include:

  • Double flanged pallet supports – 1.5” flange on both ends of support help hold it in place while pre-drilled hole in flange allows you to Tek screw and secure it to beam.
  • Hat shaped/ Hat style pallet support – pallet support (with profile shaped as a top hat) have no flange on ends allow this pallet support to set down in step of beam, flush with top of beam, leaving beam face unobstructed for labeling and product ID.
  • Roll-in pallet supports – quick-install styles that locks into Interlake slotted step beams
  • Structural pallet supports – heavy-duty pallet supports designed to fit structural c-channel beams for high capacities
  • Custom pallet supports – built for non-standard racks, custom depths or beams with unique profiles.

Most supports include a safety tab or clip to prevent movement during pallet placement.

When should pallet supports be used instead of wire decking or punched deck?

Pallet supports are ideal when:

  • You store heavy pallets (1,500 to 3,000 lbs.)
  • You use non-standard or poor-quality pallets
  • You need to maintain fire-code-required open area without a full deck
  • You want maximum forklift clearance for loading
  • You use deep overhang or pallets smaller than the beam spacing

Unlike wire decking, pallet supports provide direct support under the pallet runners, making them a preferred choice for high-capacity or high-impact environments.
