Aisle-Free Under-Rack Mobile Storage Shelving System

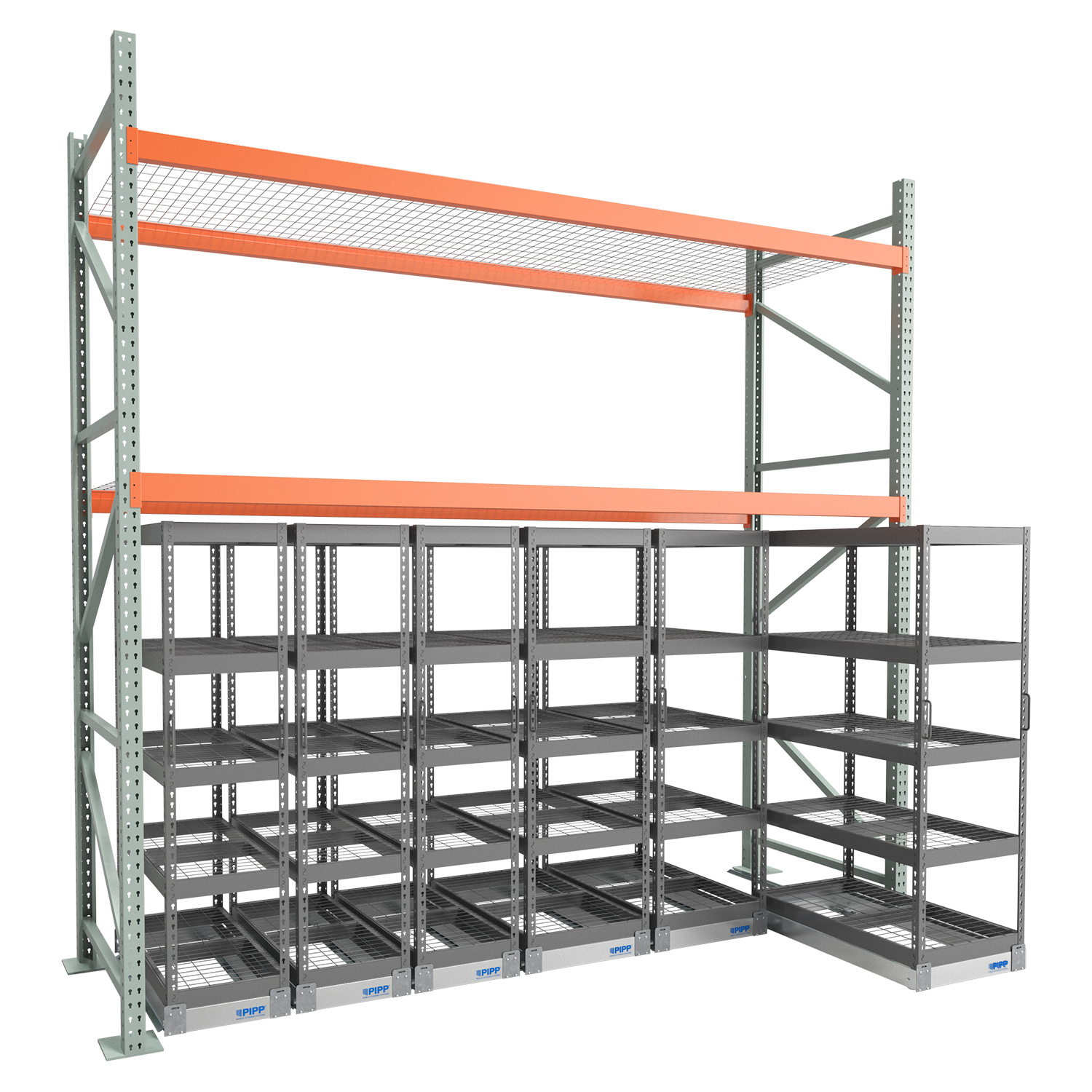

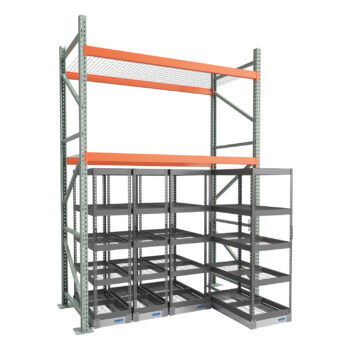

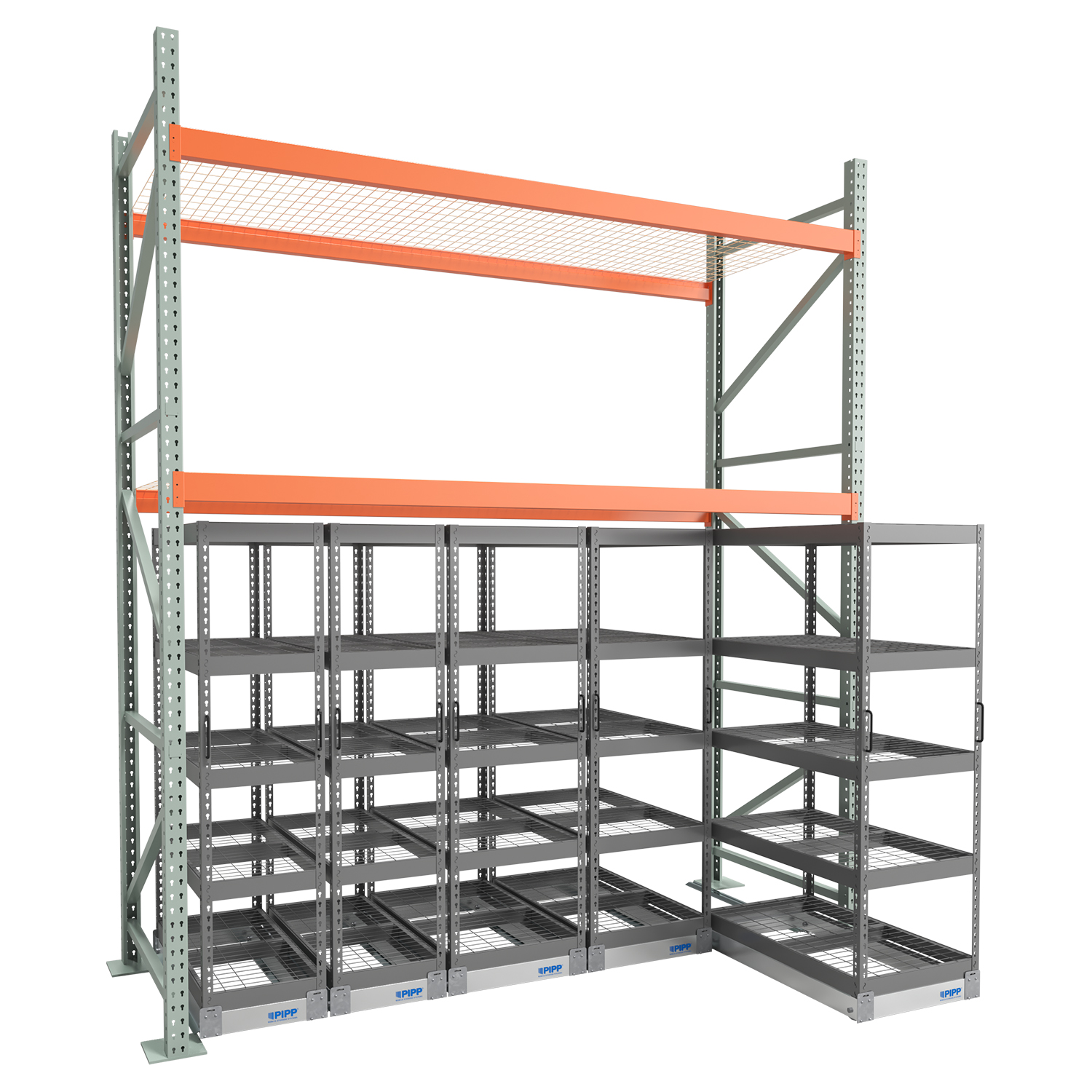

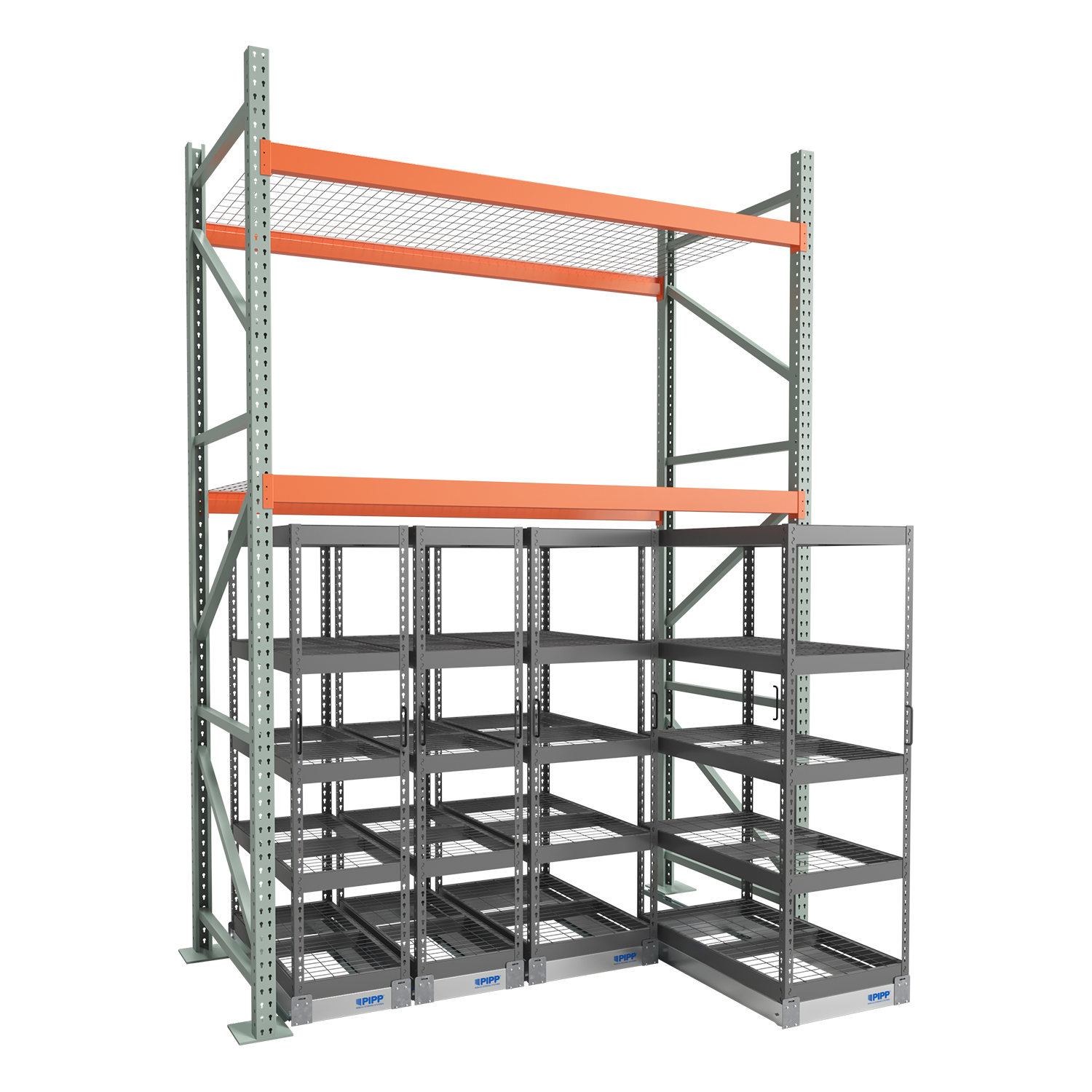

MOBILE SHELVING WITH WIRE DECKING ON SHELVES:
FOR 96″ WIDE X 42″ DEEP UNDER-RACK PLACEMENT: Consists of (2) 42″ w. x 24″ d. and (2) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes flat wire mesh decking. Weight: 654 LBS. Part Number: AIF0842-224-218-W
FOR 96″ WIDE X 48″ DEEP UNDER-RACK PLACEMENT: Consists of (2) 48″ w. x 24″ d. and (2) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes flat wire mesh decking. Weight: 692 LBS. Part Number: AIF0848-224-218-W
FOR 144″ WIDE X 42″ DEEP UNDER-RACK PLACEMENT: Consists of (3) 42″ w. x 24″ d.and (3) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes flat wire mesh decking. Weight: 978 LBS. Part Number: AIF01242-324-318-W
FOR 144″ WIDE X 48″ DEEP UNDER-RACK PLACEMENT: Consists of (3) 48″ w. x 24″ d. and (3) 48″ w. x 18″ d. Boltless Shelving Units all on Mobile Base with (5) Shelf Levels. Includes flat wire mesh decking. Weight: 1033 LBS. Part Number: AIF01248-324-318-W

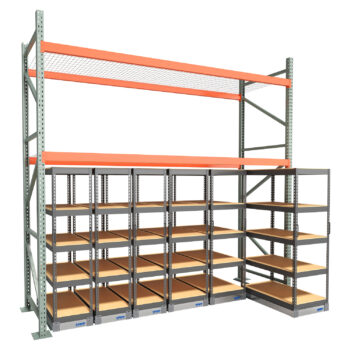

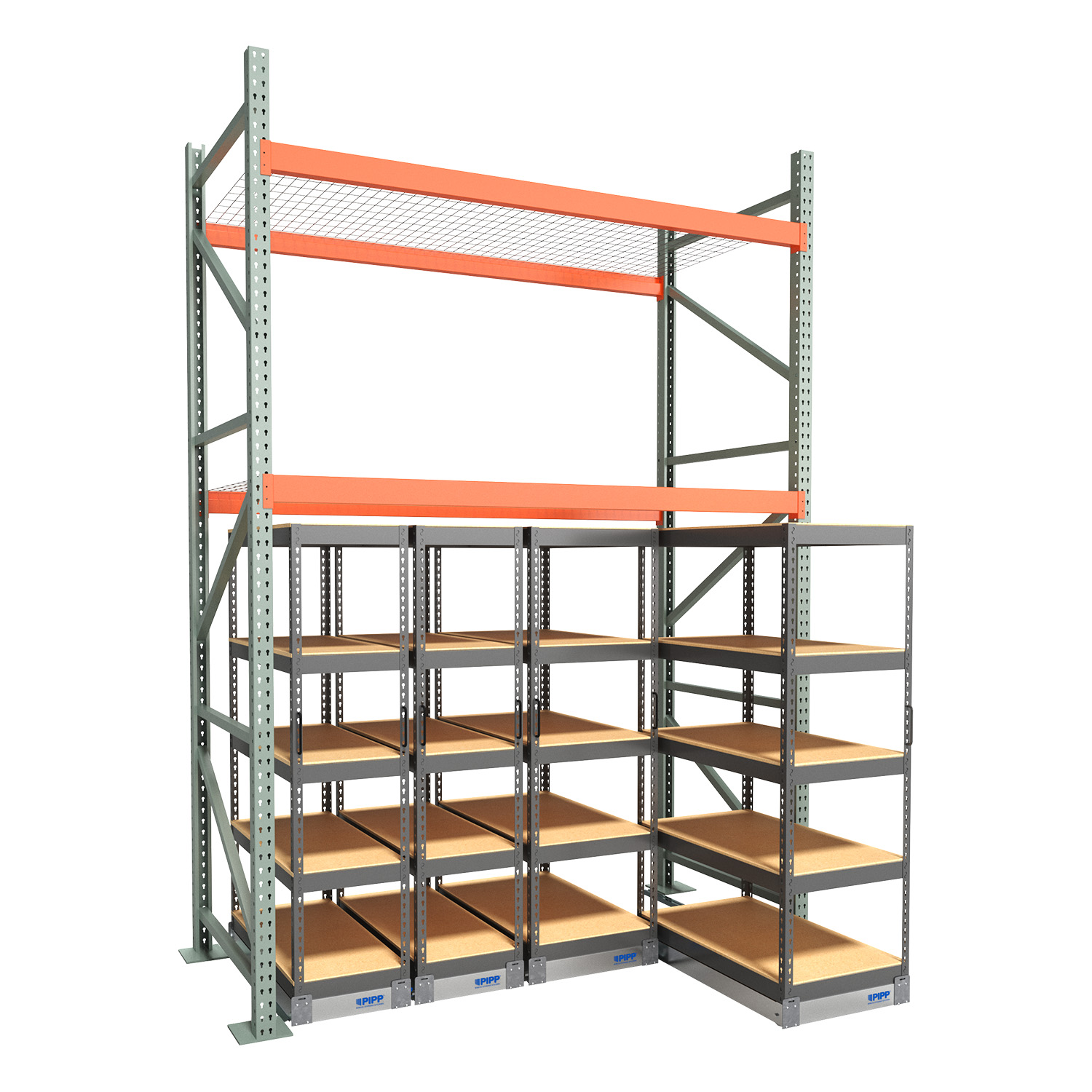

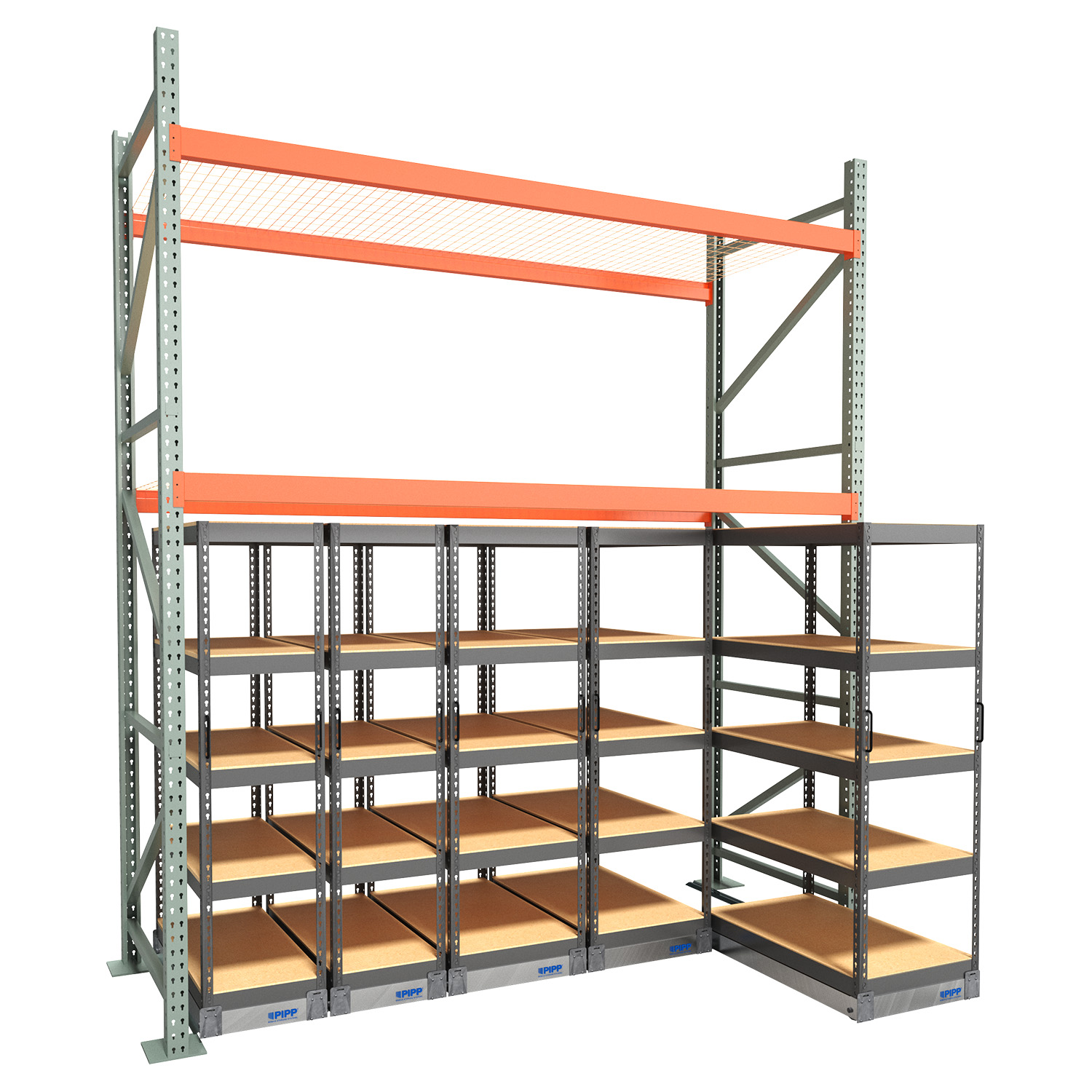

MOBILE SHELVING WITH PARTICLE BOARD DECKING ON SHELVES:
FOR 96″ WIDE x 42″ DEEP UNDER-RACK PLACEMENT: Consists of (2) 42″ w. x 24″ d.and (2) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes Particle Board Decking. Weight: 861 LBS. Part Number: AIF0842-224-218-P
FOR 96″ WIDE x 48″ DEEP UNDER-RACK PLACEMENT: Consists of (2) 42″ w. x 24″ d. and (2) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes Particle Board Decking. Weight: 881 LBS. Part Number: AIF0848-224-218-P
FOR 144″ WIDE x 42″ DEEP UNDER-RACK PLACEMENT: Consists of (3) 42″ w. x 24″ d. and (3) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes Particle Board Decking. Weight: 1287 LBS. Part Number: AIF01242-324-318-P
FOR 144″ WIDE x 48″ DEEP UNDER-RACK PLACEMENT: Consists of (3) 42″ w. x 24″ d. and (3) 48″ w. x 18″ d. Boltless Shelving Units on Mobile Base with (5) Shelf Levels. Includes Particle Board Decking. Weight: 1317 LBS. Part Number: AIF01248-324-318-P
NOTES: Just Mobile Shelving, Pallet Rack Not Included.

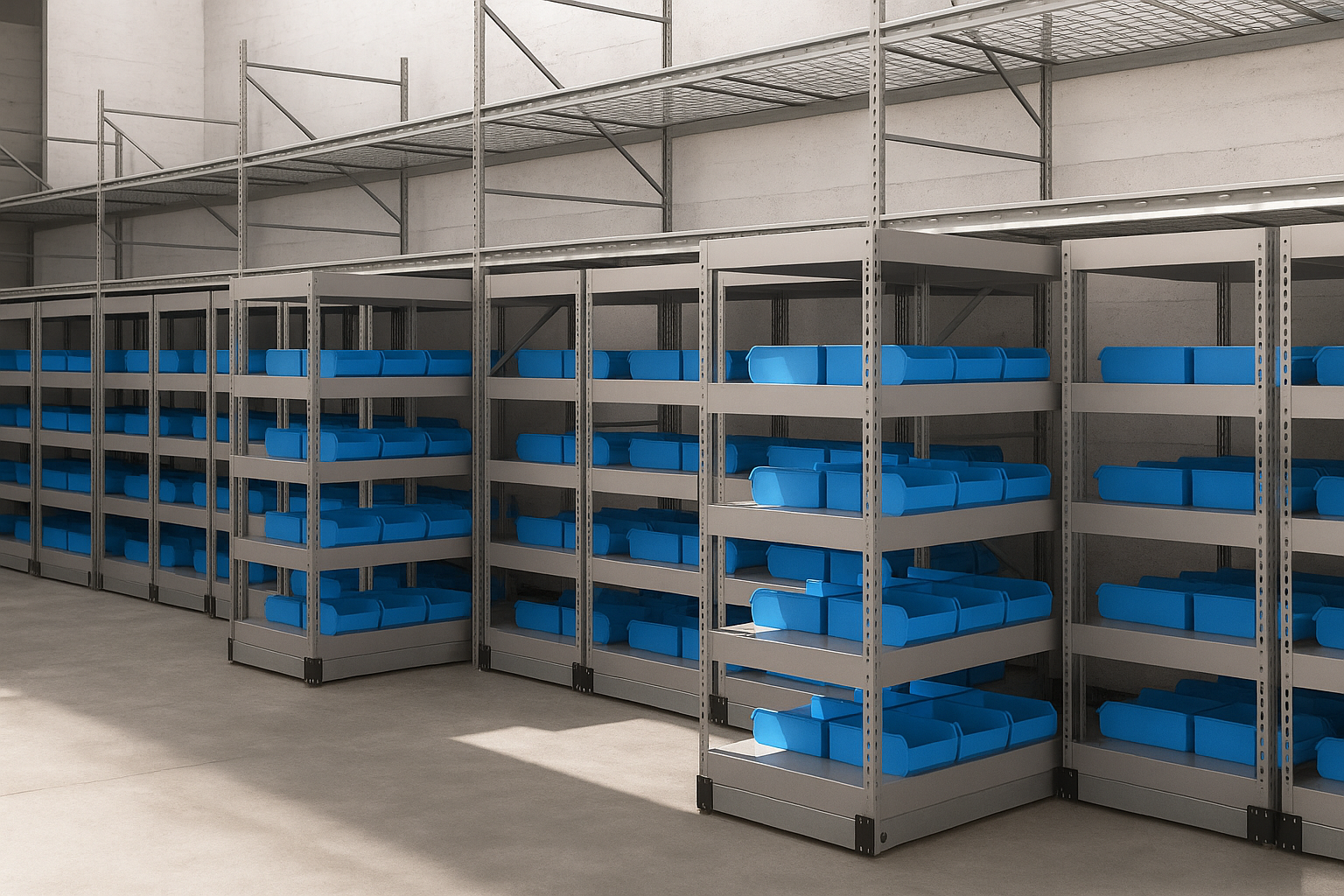

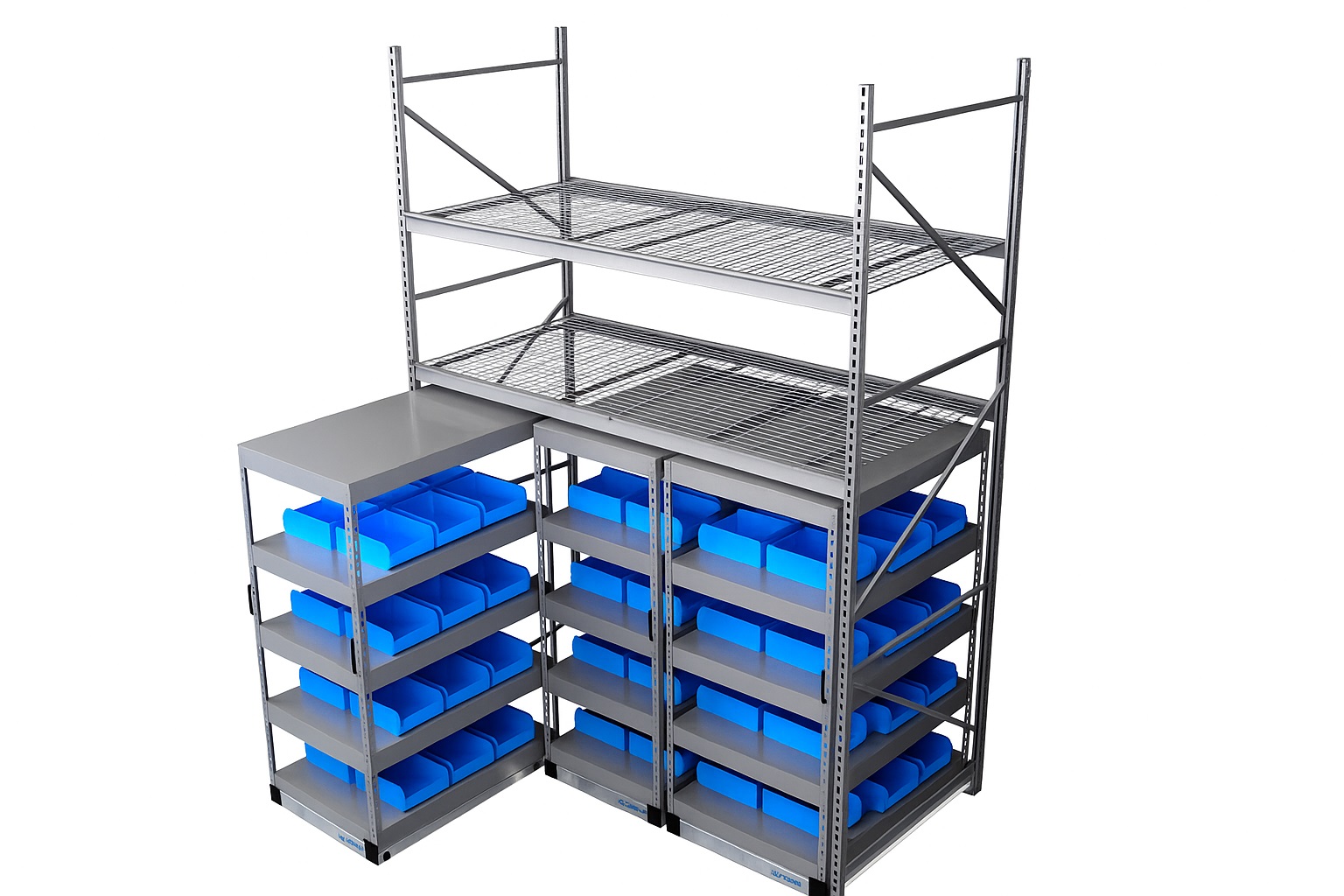

Revolutionary new space saving Under-Rack Mobile Shelving System Glides Under Pallet Rack When Not In Use Leaving your Aisles Free!
Warehouse Rack & Shelf LLC, a leading authority in mobile storage and space-saving systems, proudly presents the Under-Rack Aisle-Free Mobile Shelving System—a breakthrough in warehouse organization and efficiency. Designed to integrate effortlessly beneath your existing pallet racking or back-of-house shelving, this system allows storage shelves to glide forward on a precision-engineered track and wheel assembly.
The innovative design of our Aisle Free Mobile Storage System minimizes the amount of track needed while using the main aisle as a temporary access point for easy product retrieval. By utilizing the unused space beneath stationary racks, it significantly increases your storage capacity and helps streamline the organization of small or hard-to-handle items.
The system incorporates low-profile floor tracks that install discreetly under the racking structure, staying out of sight and never interfering with aisle traffic. A rugged urethane front wheel ensures smooth movement across the floor, while the hidden guide track keeps the shelving perfectly aligned and stable.
Each under-rack shelving unit can be effortlessly pulled out for picking or restocking and then pushed back into position—providing a simple, efficient, and ergonomic storage solution that maximizes both space and productivity.
Aisle Free Mobile Shelving System is constructed of Boltless Rivet Shelving on a mobile base. The shelving offers easy installation with structural integrity making it a reliable warehouse shelving solution. Each shelf has a capacity of 400-600 LBS (based on size) and can be adjusted on 1-1/2″ incremenets for flexibility. Our Mobile Shelving comes with various shelf decking options including Particle Board, Solid Metal, Perforated Metala and Wire Mesh. You also have an option of having open or closed end panels.
