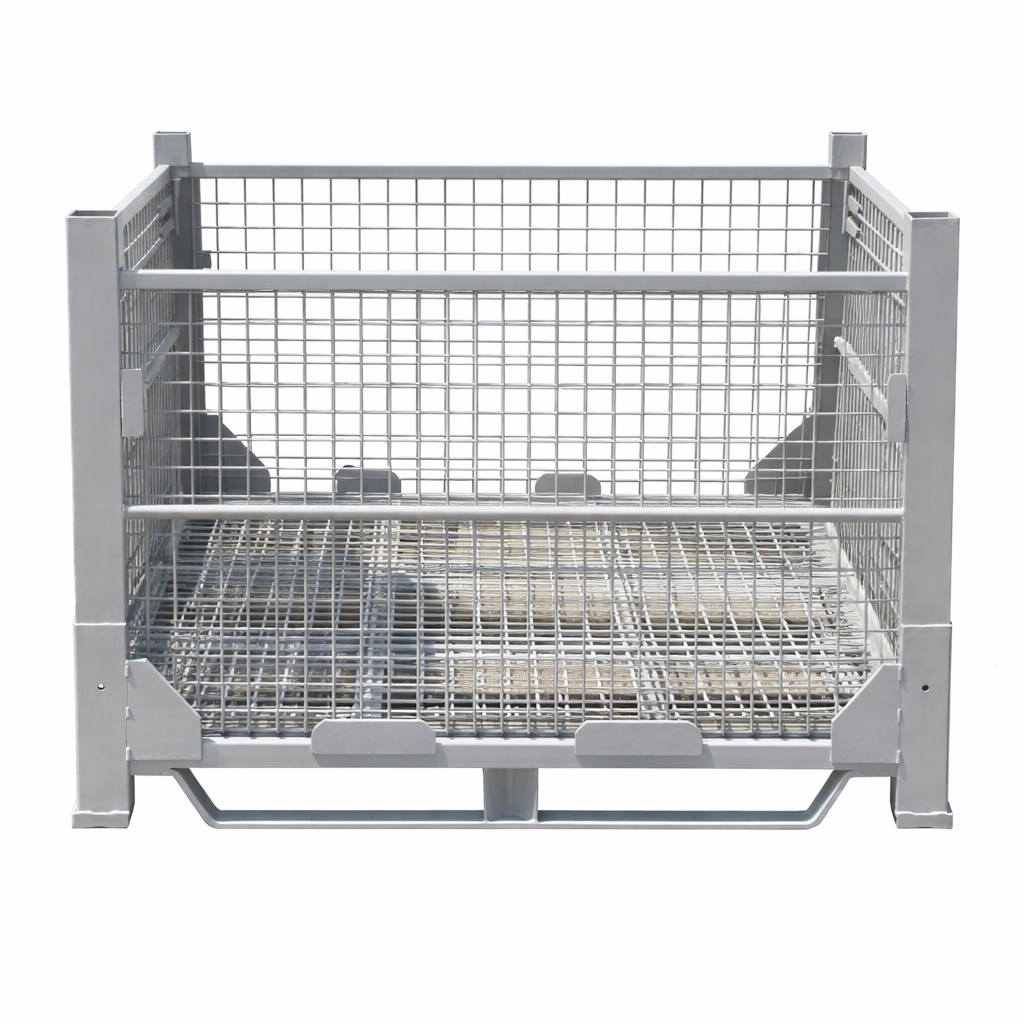

Collapsible “Knock Down” GM 5131 Compatible Wire Bins offer Freight Savings

44″ deep x 54″ wide x 40″ tall (30.5″ usable) Rigid Wire Basket. Collapsible. New. 2″ x 2″ mesh, 2 ga wire 1/2 drop gate on each 54″ sides Heavy duty sliding locks 3″x3″ Angle Iron post construction Angle Iron support and tube base surround design 4-way runners Stackable & Collapsible Pentle Post at bottom of basket Powder Coat Blue (confirm RAL code) NOTE: Includes through hole for optional bolts to make rigid. Weight: 367 LBS. Part Number: NDBR44544064SP4A00CB *Collapsible style bins can be made permanently rigid by adding a nut and bolt in pre-drilled hole located in corner pocket socket. That gives you flexibility.

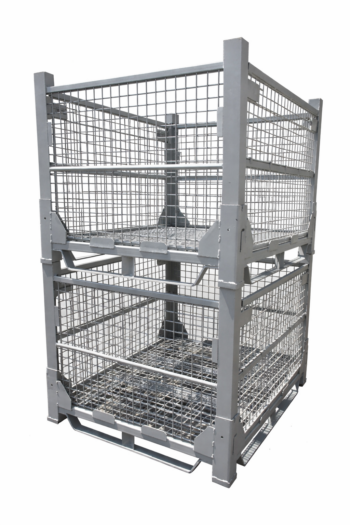

NOTES: PLEASE WATCH THE VIDEOS OF COLLAPSIBLE GM-5131 BASKETS. THEY ARE FOUND UNDER THE “VIDEOS” TAB ON THIS PAGE. THEY SHOW TWO COLLAPSIBLE GM-5131 BASKETS STACKED ON TOP OF ONE ANOTHER. THE VIDEO SHOWS THEM BEING SET UP AND DEMONSTRATES FEATURES AND DROP GATE. Est. Lead time is 10-11 weeks from ARO from production approval to first truckload. We are able to provide a sample of this collapsible wire bin fairly quickly as we do have a couple in stock at this time.

Lower Prices for Larger Quantities

Yes, we do have a collapsible version of the GM-5131 style wire bins! Our KD2GW-05 is the collapsible version that I believe you are looking for. It is the same 54″ x 44″ x 40″ H size and can stack (either collapsed or upright) with the rigid 5131 style wire baskets.

Our collapsible freight baskets are simply designed to be compatible and stackable with famous wire bins in the automotive industry. These are popular with Tier 1 and Tier 2 automotive suppliers (along with other industries looking for a HD bin) that need collapsible bins for shipping.

Finally… A low cost collapsible version of the traditional rigid 5131 STYLE wire bin. Is it as strong and durable as the rigid 5131 style wire bins? – NO, WE WON’T SAY THAT. BUT – it offers advantages not found in the rigid 5131 style bin. It offers you greater flexibility because it the KD (Knock Down) design allows you to collapse it down when not in use and store away in less space freeing up valuable floor space. This galvanized utility bin can also collapse down for shipping allowing you to fit more on a trailer for tremendous freight savings.

We will be the first to admit that the collapsible GM-5131 style wire container is not for everyone. In fact, most of our customers prefer the tried and true rigid style wire container and that’s ok. But what we’ve tried to do is bring a heavy duty collapsible 54″ x 44″ x 40″ wire mesh container to market that is guaranteed to stack on a traditional rigid wire container and offer you never before seen savings on the basket and freight cost to receive them.

We are able to fit 75 standard rigid wire bins in a truckload versus 132 collapsible style bins in a truckload -allowing you to almost double your freight savings on every trip!

Collapsible 5131 Style Wire Basket Descriptions:

44.25 deep x 54″ wide x 38″ tall (30.4″ usable) Medium Duty COLLAPSIBLE 5131 Style Wire Baskets. New. 2″ x 2″ mesh, 2 ga wire 1/2 drop gate on both 54″ sides New style locking mechanism (refer to drawing) Collapsible & Stackable 4 way runners 6.0 mm thick posts, 2.5 mm thick base 4,000 lbs. capacity (UDL) Galvanized After Weld. Weight: 310 LBS. Part Number: NDFMC44543860TBG. Lead time: 10-12 weeks. We can fit 132 PCS per shipping container for delivered pricing. NOTE: Can be 100% delivered to you dock when ordered in full container load quantity.

44 deep x 54″ wide x 38″ tall (30″ useable) Medium  duty COLLAPSIBLE 5131 Style Steel Wire Mesh Container. Size: 54″ x 44″ x 40″ H. New. 4,000 Lbs. Cap. Stackable 4 high. (1) 1/2 Drop Gate. 2″ x 2″ x .252″/.306″ wire mesh. 1/2 x 2″ Flat Bar Runners on all 4 sides. Pin Stacking Feet . Powder Coated Blue or Gray. Weight:410 LBS. Part Number: KD2GW-05. Lead time: 10-12 weeks. FOB: Quebec, Canada. NOTE: We can fit 96 PCS of collapsible wire bins on truckload (*If you have a swing door trailer).
