Bag Racks with Vinyl Dividers for Injection Molded Parts

MINIMUM ORDER QUANTITY: 20 PIECES. DUE TO CUSTOM NATURE OF THESE RACKS AND THE COMPLEXITY IN MANUFACTURING THEM WE HAVE A MINIMUM ORDER QUANTITY OF 20+ RETURNABLE SHIPPING RACKS.

45″ wide O.D. x 48″ deep O.D. x 52″ overall height Automotive Bag Rack. New. Stackable. Includes Fork Pockets of Fork Stirrups. Four-way entry. Bag openings are 2 wide x 5 high = 10 openings on the 45″ side. Pouch size: 22.5″ wide x 6″ high. Blue powder coat finish (Other colors available). Blue powder coat finish (Other colors available). Quote is for a full rack including posts and bag for part separation. **NOTES: Racks ship assembled with bags. Price includes powder coating. The bottom of bag is paint friendly white vinyl and side of bag is gray vinyl. White vinyl is only on bottom of bags. Since we don’t know what the part is we are assuming the part slides in and out of our bag easily.

45″ x 48″ x 52″ Automotive Bag Rack. New. Stackable. Cell Size: 10″ wide x 3-1/4″ high x 20-1/2″ deep. Rack has 4 cells wide x 12 cells high per side = 48 cells per side x 2 sides = 96 total cells. Includes vinyl bags. Includes ID Plate and placard. Powder coat finish. The price includes all fabrication and material. NOTE: INCLUDES Tyvek bag with the nylon on the top of the cells

NOTE: All Bag Racks Are Custom Manufactured – Minimum Order Quantity Applies.

Lower Prices for Larger Quantities

Automotive shipping racks have pouches that store and protect valuable auto part assemblies from being damaged in shipping and storage!

Tier 2 & Tier 1 Automotive suppliers rely on warehouse bag racks to safely transport and store light weight plastic automotive parts and components without parts getting scratched. Bag racks are ideal for storing door panels, dash boards, etc.

Bag racks often begin their cycle at the production line where the parts are formed. The component parts are individually loaded into bag rack. It’s moved by fork lift to be stacked and stored until shipment. Automotive shipping racks make ideal door panel rack, dashboard rack and shipping rack.

We offers design and manufacturing of custom automotive shipping racks and bag racks for safely storing automotive component parts while shipping. Bag Racks help you maximize parts per trailer and can help reduce shipping rates.

You can count on the warehouse bag rack to get your most delicate parts safely from point A-Z!

IMPORTANT QUESTIONS THAT HELP US GIVE YOU A BETTER QUOTE:

Do you have existing bag racks? If so, can you provide manufacturing drawings and/or photos of your existing automotive shipping racks that are currently in use? If so, please send them to sales@rackandshelf.com.

If you don’t have existing racks, can you provide us with drawings (preferably CAD or STEP FILE Drawings) of the parts being stored in the racks and our Engineers can design a rack to best fit the parts.

What is size of part you will store in bag racks? Length x width x height

What is weight of parts you will store in bag rack?

What is a description of the parts you are storing in bag rack?

How many vinyl pouches do you want on the rack?

What size pouches do you want? Length x width x height?

How do you want pouches configured? How many pouches wide? How many pouches high?

Do you want the Rack to have Casters?   If so, do you have a preference in caster style?

Do you want the bag rack to be stackable?

Do you want bag rack to have Fork Pockets?

Is there anything on the part that could tear/ wear through the Fabric?   If there is we can deck the shelves with HDPE for protection.

Do you want the back of the bag Closed – Most bag racks have close backd but some In-process racks have bags that are open both ends.

OTHER ITEMS:

Shelf Slope – Typically we will put 1-2” Slope in the shelves so that parts stay in the cell in transit. Is this your preference?

Rack Cover – Do you want a Cover for the rack?

Automotive Bag Rack Features and Benefits:
• Bag Racks prevent automotive component parts from touching while being parts are loaded, transported, stacked, stored and shipped.
• They offer high density, high efficiency, safe storage of automotive parts.
• Automotive Bag Racks have pouches that store and protect valuable auto part assemblies from being damaged in shipping and storage.
• The portable stack rack is made of steel – the bags are vinyl with a clear plastic curtain

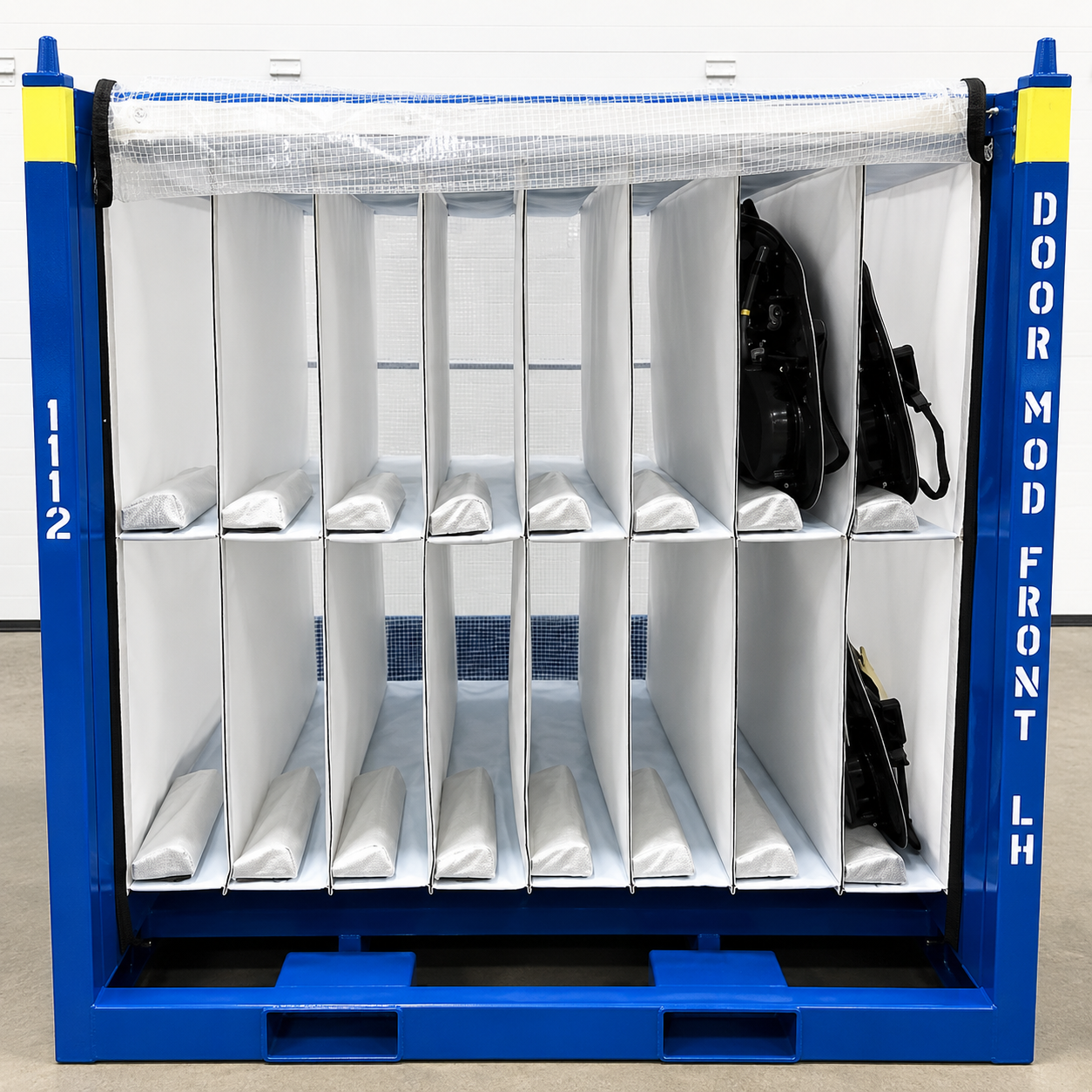

Bag rack has four non-removable corners posts and horizontal interior steel side bars that support vertical bags.
• Vinyl curtains hang inside and create individual pouches.
• You store one component part per opening assuring no two parts ever touch.
• Warehouse Bag racks are returnable, reusable, recyclable, stackable and shippable.
• Warehouse Bag racks are durable and made to last may cycles.
