Quad Steer Cart/Trailer

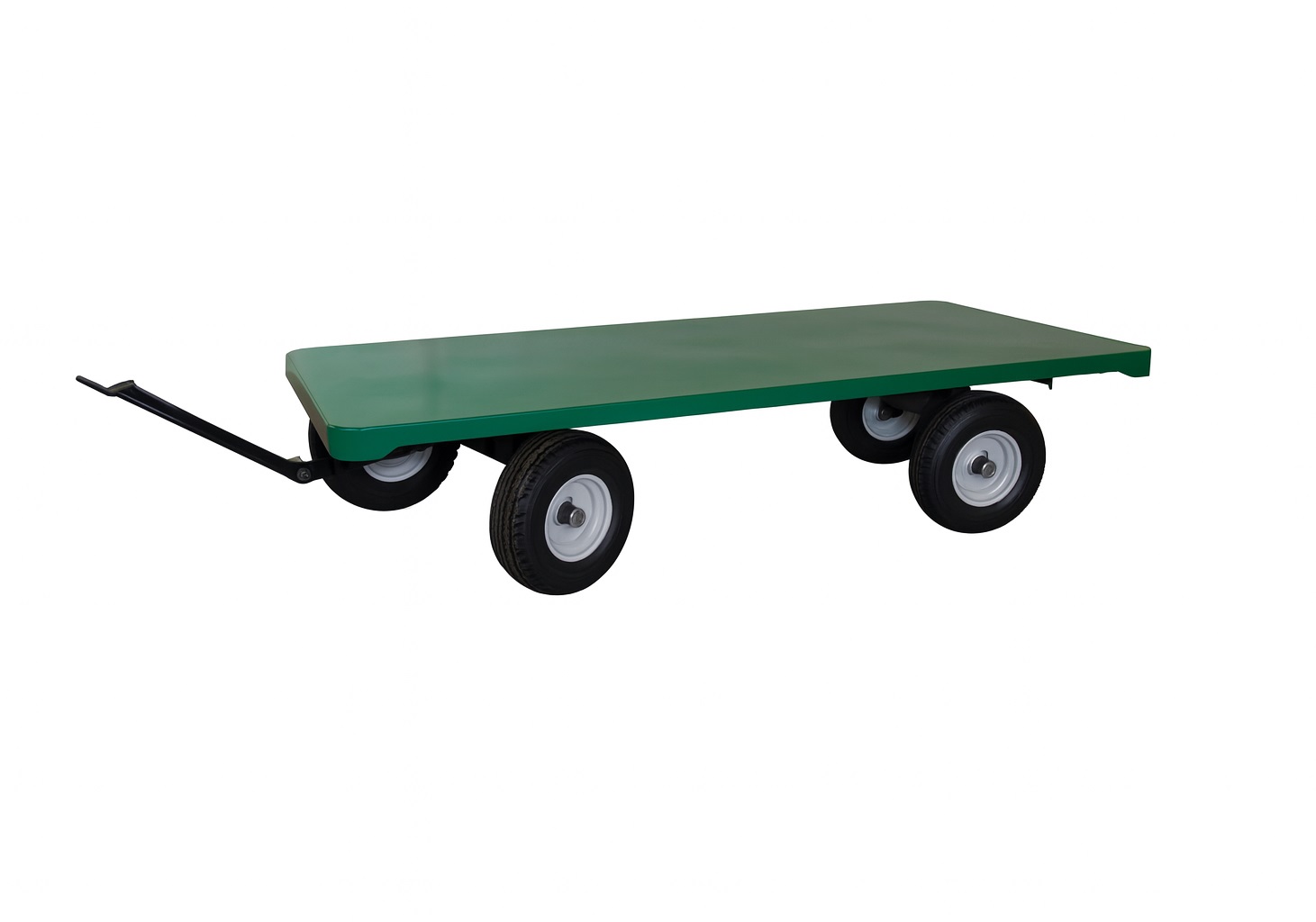

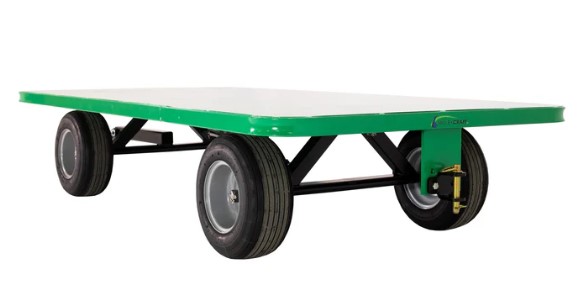

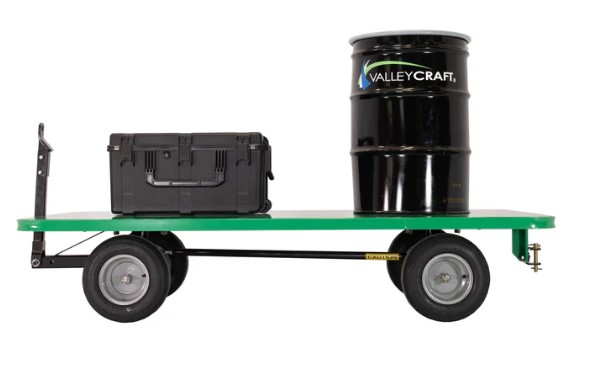

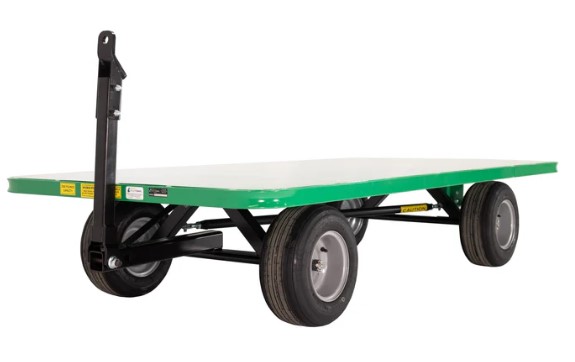

48″ W x 96″ L Quad Steer Trailer with Poly Wheels (FOR CONCRETE). New. 6000 LBS. capacity. 13.5″ Height (top of deck to middle spindle). Steel Deck. 12″ Poly Wheels, Ball Hitch & Coupler Tongue. Color: OSHA Safety Green. Weight: 675 LBS. Part Number: 4896QST-PW
48″ W x 96″ L Quad Steer Trailer with Pneumatic Tires (ALL TERRAIN). New. 6000 LBS. capacity. 13.5″ Height (top of deck to middle spindle). Steel Deck. 20″ Pneumatic Tires, Ball Hitch & Coupler Tongue. Color: OSHA Safety Green. Weight: 675 LBS. Part Number: 4896QST-PT
NOTES: IT WOULD BE VERY HELPFUL TO US AND SAVE US FROM HAVING TO CALL YOU AND ASK IF YOU ANSWER THESE QUESTIONS: 1. HOW MANY CARTS DO YOU WANT US TO QUOTE? 2. WHAT SIZE CART DO YOU PREFER. 3. HOW MUCH WEIGHT DO YOU STORE ON A CART? 4. DO CARTS ROLL STRICTLY ON CONCRETE FLOOR OR DO YOU ROLL THEM ON CONCRETE AND GRAVEL LOTS (THIS WILL DETERMINE IF WE NEED HARD POLLY WHEELS OR PNUEMATIC TIRES) AVAILABLE IN DIFFERENT SIZES – JUST ASK.
EST. LEAD TIME: 4-5 weeks.
FOB: MN 55041
Quad steer tow carts are used in lean manufacturing and help promote a forklift free work area!
These rugged 4-wheel wagon trailers transport products throughout your facility. They’re hitched and towed like a train pulling multiple carts around your manufacturing facility or warehouse. Quad steer carts are all custom made. They can be designed with different features. They can also be built to handle many different capacities.
The advantage of transporting items on quad steer trailers is you reduce the need for forklifts, thus reducing the number of forklifts needed to service an area. Fewer forklifts mean less forklift traffic and increased worker safety. Fewer forklifts also mean greater savings in energy and equipment costs.

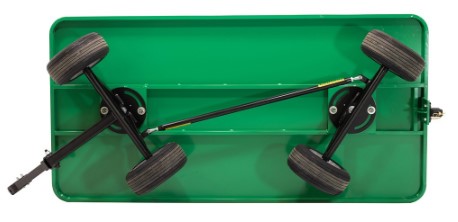

Quad steer carts are ideal for towing because they track so well. What makes these quad carts unique are their four independent steering wheels. They can turn in a much tighter path than standard trailers, saving time and space. You will find that our quad steer carts will serve you faithfully and efficiently for many, many years.
Quad Steer Cart Features Include:
• Wheels that range in size from 10″ x 2.5″, 12″ x 3″ and 16″ x 8″.
• Wheels constructed of molded-on, pneumatic, pneumatic foam, and poly.
• 4-wheel steer wagons can be provided with hitches that are pin and clevis tongue and hitch, ball hitch and coupler tongue, ring tongue and pin hitch, and auto-latch hitch and tongue.
• Other quad steer trailer options include corner bumpers, corner pockets, end pipe (used with corner pockets), wood deck, steel deck, drop-tongue brake, 1-1/2 lip, and enclosure.
