Pallet Rack Flue Stops Flue Guards

Pallet Rack Flue Stops | Flue Spacers for Fire Safety

3″ D. x 5″ H. Universal Fit Single Pallet Stopper. New. Offset 3″ beyond pallet rack beam. Heavy duty double wall construction. Notched waterfall to fit over wire deck. Rear rib to fit over wire deck waterfall. Welded gusset for impact resistance. 4 counter sunk holes for tek screws. (4) tek screws included. Powder Coat Gray. *Designed to fit on standard 1-5/8″ step beam. ** Patent Pending. NOTE: 850 PCS PER BOX/ PALLET.

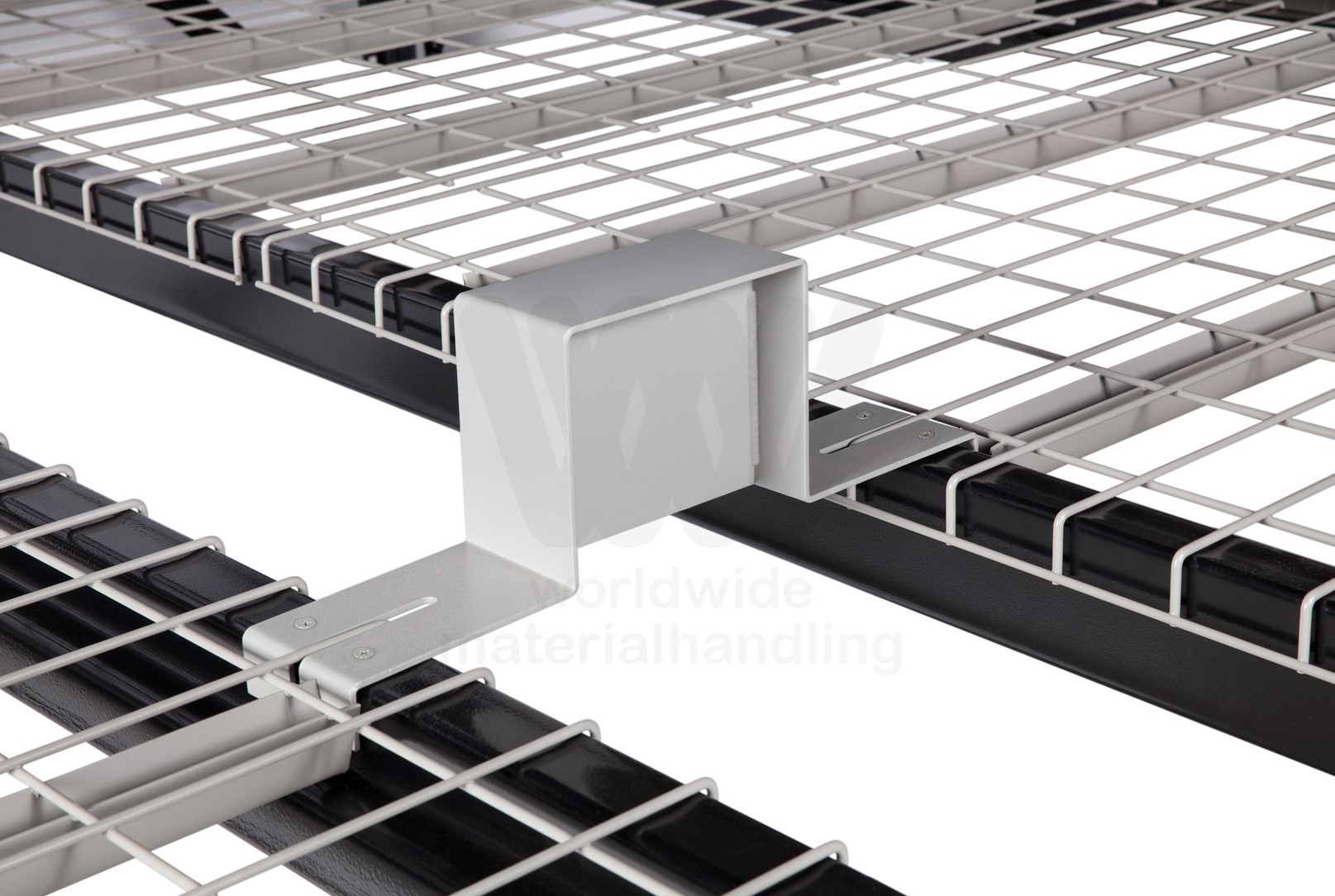

12″ Double Flue Spacer / Pallet Stopper. New. Provides a 6″ flue for back-to-back rack. Fits within a 12″ flue opening. Inside Clear = 15.625″. Notched to fit over wire mesh decking. 3.0″ wide x 5.0″ tall, includes 4 tek screw holes. 2 tek screws per side for optimal performance. 4 flat head tek screws included. Powder Coat Gray. Patent # US9604783, US9604784. NOTE: 350 PCS PER BOX/ PALLET.

18″ Double Flue Spacer / Pallet Stopper. New. Provides a 6″ flue for back-to-back rack Fits within a 18″ flue opening. Inside clear = 17.75″ / Outside Clear = 21.75″. Notched to fit over wire mesh decking. 3.0″ wide x 5.0″ tall, includes 4 tek screw holes. 2 tek screws per side for optimal performance.
Includes Tek Screws. Powder Coat Gray. NOTE: 180 PCS PER BOX/ PALLET.

24″ Double Flue Spacer / Pallet Stopper. New. Provides a 6″ flue for back-to-back rack. Fits within a 24″ flue opening. Inside clear = 23.75″ / Outside Clear = 27.75″. Notched to fit over wire mesh decking. 3.0″ wide x 5.0″ tall, includes 4 tek screw holes. 2 tek screws per side for optimal performance.
Includes Tek Screws. Powder Coat Gray. NOTE: 144 PCS PER BOX/ PALLET.

NOTES: WE MANUFACTURE CUSTOM SIZES. Est. Lead Time: 5-7 days (In Stock). FOB: Chicago, IL, Dallas, TX, Los Angeles.

Lower Prices for Larger Quantities

Pallet rack flu stops and spacers are an important part of your warehouse design. They can improve fire safety, increase visibility, reduce the risk of accidents, increase efficiency, and reduce maintenance costs. Flue spacers allow for proper air flow in case of a fire. Many municipalities, fire marshalls and insurance companies require the installation of shelf spacers in pallet rack systems. In some cases they can help reduce your insurance premiums. Here are some of the benefits of using pallet rack flue stops/flue spacers:

  • Improved fire safety: Flue spacers are dividers that define the areas between pallets stored on pallet racks. They are important for fire safety because they allow for the free flow of air and water in the event of a fire. Pallet rack flu stops and spacers help to ensure that the flue spaces are maintained, which can help to prevent the spread of fire and reduce property damage.
  • Increased visibility: Flue spaces also improve visibility in the warehouse. This is important for safety, as it allows workers to see clearly when they are moving around the warehouse. It also makes it easier to find and access the items that you need.
  • Reduced risk of accidents: Flue stops and spacers can help to reduce the risk of accidents in the warehouse. For example, they can prevent pallets from being pushed off the back of the rack, which can cause injuries to workers. They can also help to prevent forklifts from hitting the beams of the rack, which can damage the rack and the forklift.
  • Increased efficiency: Flue stops and spacers can help to increase the efficiency of the warehouse. For example, they can help to prevent pallets from shifting, which can make it easier to load and unload the racks. They can also help to keep the aisles clear, which makes it easier for workers to move around the warehouse.
  • Reduced maintenance costs: Flue stops and spacers can help to reduce the maintenance costs of the warehouse. For example, they can prevent pallets from rubbing against the beams of the rack, which can cause the beams to wear out prematurely. They can also help to prevent the accumulation of dust and dirt in the flue spaces, which can reduce the lifespan of the rack.

If you are considering installing pallet racks in your warehouse, we suggest that you also consider using flu stops and spacers. Here are some additional things to consider when choosing pallet rack flu stops and spacers:

  • The type of pallet rack you have: The flu stops and spacers you need will vary depending on the type of rack you have.
  • The size of the flue spaces: Flue spaces should be at least 6 inches wide, but the exact width may vary depending on the type of rack and the items you are storing.
  • The material of the flu stops and spacers: Flu stops and spacers can be made from metal, plastic and wood. The material you choose will depend on the weight and type of pallets you are storing.
  • The cost of the flu stops and spacers: Flu stops and spacers can range in price from a few dollars to several hundred dollars. The cost will depend on the type of flu stops and spacers you choose, the size of the flue spaces and the material they are made from.

Call us at 800-763-9020 to talk to one of our friendly and knowledgeable salespeople. We would love to discuss your flue stop/flue spacer needs.
