Drive-Thru Pallet Racking
(1) Row @ (5) Bays/ Pallets wide x (5) pallets deep x (3) pallets high = (75) pallet positions Teardrop Drive Thru Rack System. New. Total Pallet Positions Stored: 75. Please see drawing for details. Pallet Specifications: 40″ w. x 48″ d. x 48″ h. Pallet Weight: 2,000 lbs. Breakdown of Main Components per One Set: 12 – 20′ h. x 56″ d. Teardrop upright frames, 20 – 54″ beam, 12 – single arm left, 12 – single arm right, 64 – double arm, 30 – 14′ Rails. Includes necessary row spacers, shims and anchors. Colors: Royal blue upright frames, Orange beams, arms & rails.
We can design drive through racking systems in almost any configuration you want. Please call us at 800-763-9020 or email sales@rackandshelf.com. We would be happy to discuss your requirements.
NOTES: Est. Lead Time: 5-7 weeks. Ships best way pre-paid & add. Freight Class 65. FOB: Chicago, IL 60160, Sumter, SC 29154, Dallas, TX 75006 and San Diego, CA 92154
What makes a drive through racking system unique? It can be accessed from both sides. There is no back braces preventing you from driving all the way through the system!

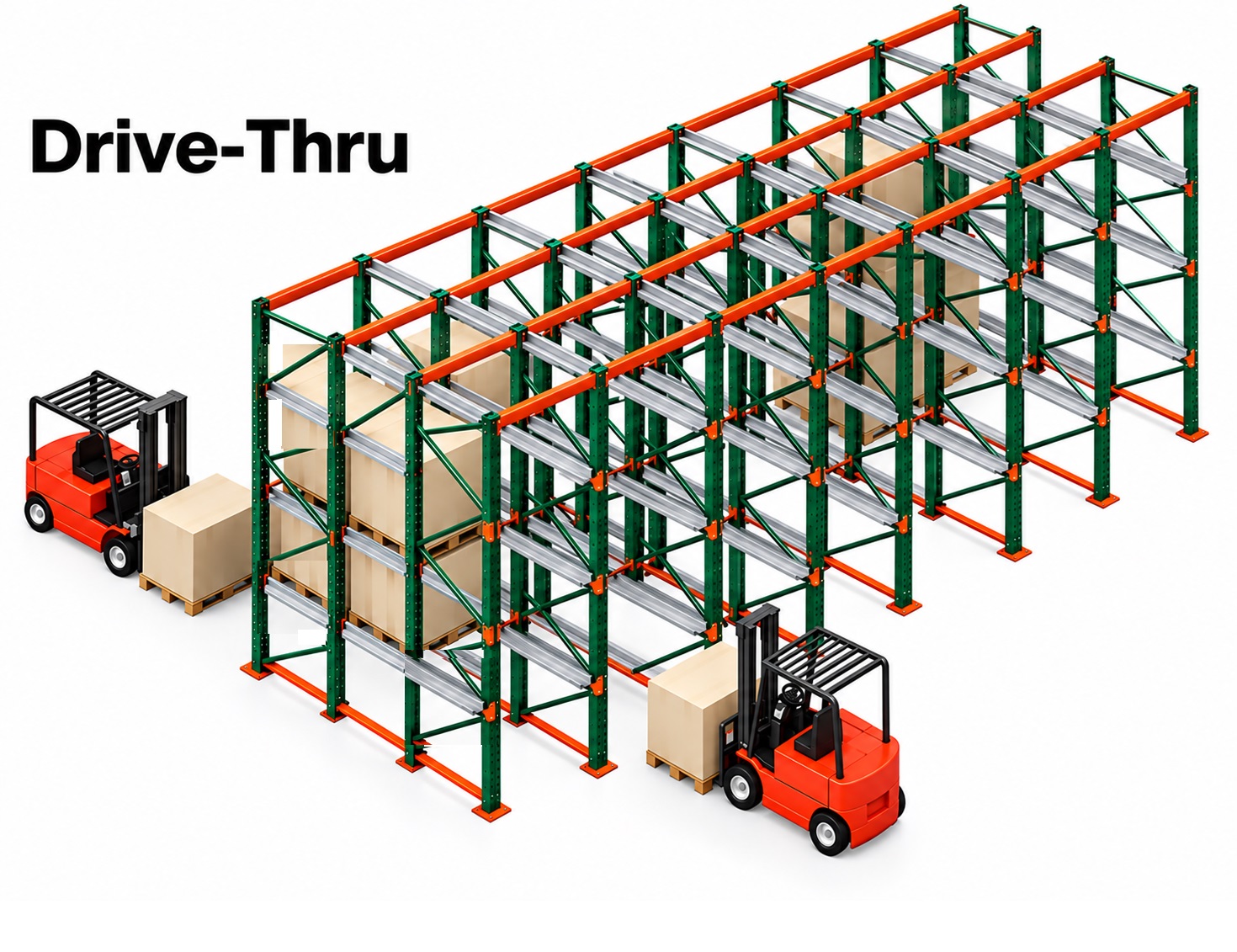

Drive-Thru Racking requires aisles on both sides of the rack system, drive thru rack creates what we call an island of rack. Drive through racking systems are accessible from two sides. Drive-thru racks allow the lift truck operator to drive into the rack system unencumbered by back bracing and exit from the other side of the rack system. To achieve this the uprights must extend over the top loads throughout and the entire system must be top tied which adds to the cost this high-density storage system.
Drive-through racking isn’t as popular as drive-in rack systems. We suggest putting drive-in rack back-to-back with drive in rack to allow accessibility from both sides of the system. Unless you need complete access from front to back of both sides of system you can get by with drive in rack. Drive thru rack requires additional top ties and bracing.
Drive through racking systems offer you highest density (low efficiency) pallet storage. It is also the most affordable high density pallet rack system available. Drive-thru rack is ideal for storage of multiple pallet positions of the same SKU. You must dedicate every pallet in the bay to the same SKU. Drive in rack systems help you prevent product damage associated with bulk stacking.
FAQs about Drive-Thru Pallet Racking
How do drive-in racks differ from drive-through racks?
Drive-in rack has one entry/exit point, following a LIFO (Last-In, First-Out) storage pattern. It’s perfect for storing products that are not time sensitive. Drive-through rack, on the other hand, has two entry points on opposite sides of the rack system, allowing forklifts to pass through and enabling a FIFO (First-In, First-Out) workflow. Both systems share the same structural concept but differ in how pallets flow through the rack.
What is a drive-in pallet rack system?
Drive-in pallet rack is a high-density storage system that allows forklifts to drive directly into the rack structure to place and retrieve pallets. Instead of using beams and open aisles, drive-in racks use structural lanes with rails that support pallets in multiple deep positions. This design maximizes cubic storage capacity and is ideal for operations with large quantities of the same SKU.
What types of products or industries benefit most from drive-in pallet racks?
Drive-in rack is ideal for high-volume, low-SKU applications where maximizing storage density is more important than selectivity. Industries that commonly use drive-in racking include food and beverage, cold storage, frozen goods, building materials, chemicals, and seasonal inventory. It’s especially popular in freezers and coolers, where every cubic foot of space is valuable and cost per square foot is high.
What type of pallets and forklifts are required for drive-in racks?
Drive-in rack requires high-quality, consistently sized pallets that can safely rest on the side rails. GMA-style pallets are commonly used. Because forklifts must enter the rack lanes, a stand-up counterbalance or reach truck with excellent driver visibility is recommended. It’s also important that operators are trained specifically on driving into storage lanes and reversing out safely to prevent rail and post damage.
Are drive-in pallet racks safe, and what features help prevent damage?
Yes. A drive-in rack is safe when properly designed and operated. To increase durability and impact resistance, most systems use heavy-duty structural steel, cantilevered arm supports, reinforced footplates, and guide rails. Adding column protectors, guard rails, and guide angles further reduces forklift impact damage. Proper maintenance, pallet quality, and driver training are essential for preventing rack failure in high-density environments.
