Heavy Duty Roll Formed Cantilever Racking

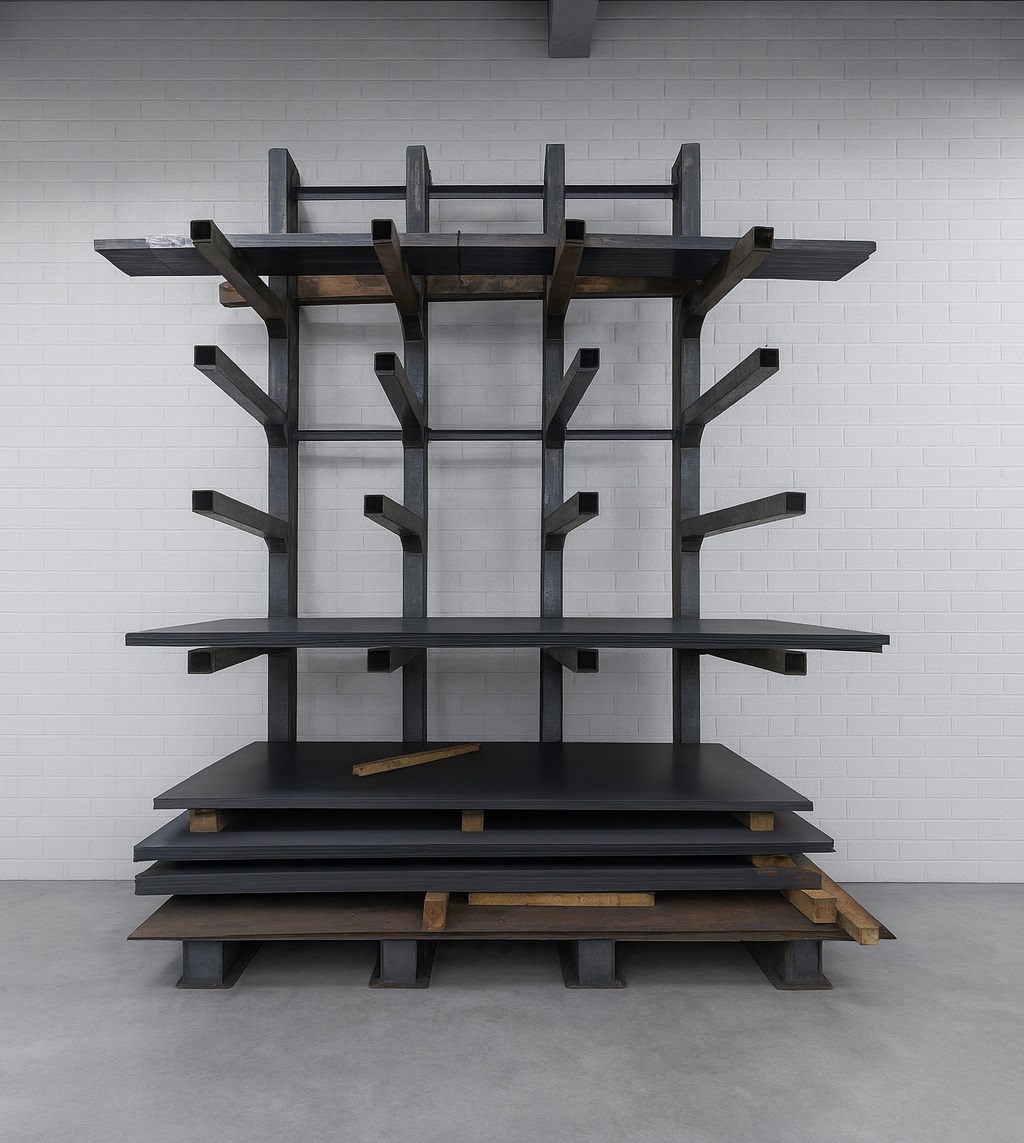

Heavy Duty Cantilever Rack Feature PictureMECO Heavy Duty Cantilever RacksMECO Heavy Duty Cantilever RackingHeavy Duty Cantilever Hose Storage Racks PicMeco of Omaha Heavy Duty Cantilever RackingHeavy Duty Cantilever RackCantilever Uprights In StockCantilever Rack Uprights In StockCantilever Upright InventoryCantilever Rack BracingHeavy Duty Cantilever Rack ArmsCantilever Rack Packaged for Shipping

MECO Omaha Heavy Duty Cantilever Racking

A Typical Bill of Material for Heavy-Duty Cantilever Rack:

12′ h. Heavy Duty Single Sided Cantilever Upright Tower. New. Includes 64″ stackable base assembly. Constructed of cold roll formed steel. 16,500 lbs. capacity per side. Color: Gray. Weight: 279 LBS. Part Number: 2U1464

12′ h. Heavy Duty Double Sided Cantilever Tower. New. Includes 130″ stackable base assembly. Constructed of cold roll formed steel. 21,400 lbs. capacity per side. Color: Gray. Weight: 364 LBS. Part Number: 2DU14130

48″ long x 3,000 lbs. capacity. Extra Heavy-Duty Straight Cantilever Arm. New. No stop on end. Weight: 45LBS. Color: Gray. XHDSA48-3M

48″ long x 4,000 lbs. capacity. Extra Heavy-Duty Straight Cantilever Arm. New. No stop on end. Color: Gray. Weight: 52 LBS. XHDSA48-4M

60″ long x 2,000 lbs. capacity. Heavy Duty Straight Cantilever Arm. New. No stop on end. Color: Gray. Weight: 61 LBS. Part Number: XHDSA60-L-2M

60″ C/C Brace Set. Set of 3 Horizontal Beams. New. Weight: 42 LBS. Part Number: 2B60

NOTES: WE STRONGLY RECOMMEND THAT CANTILEVER RACK NOT BE USED ON GRAVEL. IT IS IMPORTANT TO POUR CONCRETE FOOTINGS AND ANCHOR CANTILEVER BASE TO CONCRETE PAD. Est. Lead Time: 4-6 weeks. FOB: Omaha, NE.

Get a quote on Meco Heavy Duty Roll Form Cantilever Rack
Lower Prices for Larger Quantities
Category: .

Don’t let someone convince you that roll form cantilever rack isn’t strong enough or can’t support your loads. Our MECO heavy duty roll form cantilever rack has arm capacities up to 3,000 LBS capacity (UDL).

If you use a short 24” or 36” brace set and get more arms under your bundled load’s you can reach exceptionally high capacities. For example, if you get 4 or 5 arms under your bundle and each arm has 3,000 lbs. capacity you can store 12,000 or 15,000 LBS per level.

Is that enough capacity for you? If not, I would consider purchasing our heaviest duty structural I- Beam cantilever racking.

TIP FROM THE PRO’S: WE STRONGLY RECOMMEND THAT CANTILEVER RACK NOT BE USED ON GRAVEL. IT IS IMPORTANT TO POUR CONCRETE FOOTINGS AND ANCHOR CANTILEVER BASE TO CONCRETE PAD.





Part Number and Manufacturer References

MU633, MU645, MU657, MU733, MU745, MU757, MU833, MU845, MU857, MU1033, MU1045, MU1057, MU1233, MU1245, MU1257, MDU654, MDU678, MDU6102, MDU754, MDU778, MDU7102, MDU854, MDU878, MDU8102, MDU1054, MDU1078, MDU10102, MDU1254, MDU1278, MDU12102, MSA12, MSA12L, MSA18, MSA18L, MSA24, MSA24L, MSA30, MSA30L, MSA36, MSA36L, MSA42, MSA42L, MSA48, MSA48L, MIA12, MIA12L, MIA18, MIA18L, MIA24, MIA24L, MIA30, MIA30L, MIA36, MIA36L, MIA42, MIA42L, MIA48, MIA48L, M2B24, M2B36, M2B42, M2B48, M2B60, M2B72, M2B84, M2B96, M3B24, M3B36, M3B42, M3B48, M3B60, M3B72, M3B84, M3B96, 2U838, 2U850, 2U862, 2U1038, 2U1050, 2U1062, 2U1238, 2U1250, 2U1262, 2U1438, 2U1450, 2U1462, 2U1638, 2U1650, 2U1662, 2U1838, 2U1850, 2U1862, 2U2038, 2U2050, 2U2062, 2DU859, 2DU883, 2DU8107, 2DU1059, 2DU1083, 2DU10107, 2DU1259, 2DU1283, 2DU12107, 2DU1459, 2DU1483, 2DU14107, 2DU1659, 2DU1683, 2DU16107, 2DU1859, 2DU1883, 2DU18107, 2DU2059, 2DU2083, 2DU20107, 2SA12, 2SA12L, 2SA18, 2SA18L, 2SA24, 2SA24L, 2SA30, 2SA30L, 2SA36, 2SA36L, 2SA42, 2SA42L, 2SA48, 2SA48L, 2IA12, 2IA12L, 2IA18, 2IA18L, 2IA24, 2IA24L, 2IA30, 2IA30L, 2IA36, 2IA36L, 2IA42, 2IA42L, 2IA48, 2IA48L, 2HDSA24, 2HDSA24L, 2HDSA30, 2HDSA30L, 2HDSA36, 2HDSA36L, 2XHDSA36, 2XHDSA36L, 2HDSA42, 2HDSA42L, 2XHDSA42, 2XHDSA42L, 2HDSA481M, 2HDSA48L1M, 2HDSA48, 2HDSA48L, 2XHDSA48, 2XHDSA48L, 22B24, 22B36, 22B42, 22B48, 22B60, 22B72, 22B84, 22B96, 22B120, 23B24, 23B36, 23B42, 23B48, 23B60, 23B72, 23B84, 23B96, 23B120, 24B24X, 24B36X, 24B42X, 24B48X, 24B60X, 24B72X, 24B84X, 24B96XX, 24B120XX, U631-NS, U637-NS, U649-NS, U661-NS, U674-NS, U831-NS, U837-NS, U849-NS, U861-NS, U874-NS, U1031-NS, U1037-NS, U1049-NS, U1061-NS, U1074-NS, U1231-NS, U1237-NS, U1249-NS, U1261-NS, U1274-NS, U1437-NS, U1449-NS, U1461-NS, U1474-NS, U1537-NS, U1549-NS, U1561-NS, U1574-NS, U1637-NS, U1649-NS, U1661-NS, U1674-NS, U1849-NS, U1861-NS, U1874-NS, U2049-NS, U2061-NS, U2074-NS, DU653-NS, DU665-NS, DU682-NS, DU6106-NS, DU6130-NS, DU853-NS, DU865-NS, DU882-NS, DU8106-NS, DU8130-NS, DU1053-NS, DU1065-NS, DU1082-NS, DU10106-NS, DU10130-NS, DU1253-NS, DU1265-NS, DU1282-NS, DU12106-NS, DU12130-NS, DU1465-NS, DU1482-NS, DU14106-NS, DU14130-NS, DU1565-NS, DU1582-NS, DU15106-NS, DU15130-NS, DU1665-NS, DU1682-NS, DU16106-NS, DU16130-NS, DU1882-NS, DU18106-NS, DU18130-NS, DU2082-NS, DU20106-NS, DU20130-NS, 2B24, 2B36, 2B42, 2B48, 2B60, 2B72, 2B84, 2B96, 2B120, 3B24, 3B36, 3B42, 3B48, 3B60, 3B72, 3B84, 3B96, 3B120, 4B24X, 4B36X, 4B42X, 4B48X, 4B60X, 4B72X, 4B84X, 4B96XX, 4B120XX, U631, U637, U649, U661, U674, U831, U837, U849, U861, U874, U1031, U1037, U1049, U1061, U1074, U1231, U1237, U1249, U1261, U1274, U1437, U1449, U1461, U1474, U1537, U1549, U1561, U1574, U1637, U1649, U1661, U1674, U1849, U1861, U1874, U2049, U2061, U2074, DU653, DU665, DU682, DU6106, DU6130, DU853, DU865, DU882, DU8106, DU8130, DU1053, DU1065, DU1082, DU10106, DU10130, DU1253, DU1265, DU1282, DU12106, DU12130, DU1465, DU1482, DU14106, DU14130, DU1565, DU1582, DU15106, DU15130, DU1665, DU1682, DU16106, DU16130, DU1882, DU18106, DU18130, DU2082, DU20106, DU20130, SA12, SA12L, SA18, SA18L, SA24, SA24L, SA30, SA30L, SA36, SA36L, SA42, SA42L, SA48, SA48L, SA54, SA54L, SA60, SA60L, IA12, IA12L, IA18, IA18L, IA24, IA24L, IA30, IA30L, IA36, IA36L, IA42, IA42L, IA48, IA48L, XU1040, XU1052, XU1064, XU1076, XU1240, XU1252, XU1264, XU1276, XU1440, XU1452, XU1464, XU1476, XU1552, XU1564, XU1576, XU1652, XU1664, XU1676, XU1852, XU1864, XU1876, XU2052, XU2064, XU2076, XDU1066, XDU1084, XDU10108, XDU10132, XDU1266, XDU1284, XDU12108, XDU12132, XDU1466, XDU1484, XDU14108, XDU14132, XDU1584, XDU15108, XDU15132, XDU1684, XDU16108, XDU16132, XDU1884, XDU18108, XDU18132, XDU2084, XDU20108, XDU20132, HDSA36, HDSA36L, XHDSA36, XHDSA36L, HDSA42, HDSA42L, XHDSA42, XHDSA42L, HDSA48, HDSA48L, HDSA482M, HDSA48L2M, XHDSA48, XHDSA48L, XHDSA48L3M, XHDSA483M, XHDSA48L4M, XHDSA484M, HDSA54, HDSA54L, XHDSA54, XHDSA54L, HDSA60, HDSA60L, XHDSA60, XHDSA60L, XHDSA602M, XHDSA60L2M, SM6, SM6L, SM8, SM8L, SM10, SM10L, SMD6, SMD6L, SMD8, SMD8L, SMD10, SMD10L, AM6, AM6L, AM8, AM8L, AM10, AM10L, AMD6, AMD6L, AMD8, AMD8L, AMD10, AMD10L, SU8, SU8L, SU10, SU10L, SU12, SU12L, SDU8, SDU8L, SDU10, SDU10L, SDU12, SDU12L, AU8, AU8L, AU10, AU10L, AU12, AU12L, ADU8, ADU8L, ADU10, ADU10L, ADU12, ADU12L
