Roll Out Cantilever Rack
TWO MOST POPULAR SINGLE-SIDED CRANK OUT CANTILEVER RACK OPTIONS:
Single Sided Manual Crank Out Cantilever Rack.
Designed for Material 12′ Long.
5 roll-out levels 36” deep + fixed top.
Capacity: 7000-lbs per roll-out level.
Fixed top capacity 15,000-lbs.
Distance between support columns: 96”.
Support columns are 120” high. System with 2 support columns.
Color: Blue RAL5005.
NOTES: Material will be supported by 2 roll out arms at 96” distance. Extra support is needed for flexible material or for any material shorter than 96”. PART NUMBER: SMD-120-36-2-96C-48F-5-12-01
Single Sided Manual Crank Out Cantilever Rack.
Designed for Material 20′ Long.
5 roll-out levels 24” deep + fixed top.
Capacity: 10 000-lbs per roll-out level.
Fixed top capacity 15,000-lbs.
Distance between support columns: 150”.
Support columns are 120” high. System with 2 support columns.
Color: Blue RAL5005.
NOTES: Material will be supported by 2 roll out arms at 150” distance. Extra support is needed for flexible material or for any material shorter than 150”. PART NUMBER: SMD-120-24-2-150C-60F-5-20-01
OPTION: Structural support tray. New. Dimension: 225” x 36”. Trays allow storage of shorter material. Price per tray. Max 1 per roll-out level. *NOTE: ADD -SST to the end of part number if you would like structural support tray.
TWO MOST POPULAR DOUBLE-SIDED ROLL OUT CANTILEVER RACK OPTIONS:
Double Sided Manual Crank Out Cantilever Rack.
Designed for Material 12′ Long.
10 roll-out levels 36” deep + fixed top.
Capacity: 7000-lbs per roll-out level.
Fixed top capacity 22,000-lbs.
Distance between support columns: 96”.
Support columns are 120” high. System with 2 support columns.
Color: Blue RAL5005.
NOTES: Material will be supported by 2 roll out arms at 96” distance. Extra support is needed for flexible material or for any material shorter than 96”. PART NUMBER: DMD-120-36-2-96C-48F-5-12-01
Double Sided Manual Crank Out Cantilever Rack.
Designed for Material 20′ Long.
10 roll-out levels 24” deep + fixed top.
Capacity: 10,000-lbs per roll-out level.
Fixed top capacity 22,000-lbs.
Distance between support columns: 150”.
Support columns are 120” high. System with 2 support columns.
Color: Blue RAL5005.
NOTES: Material will be supported by 2 roll out arms at 150” distance. Extra support is needed for flexible material or for any material shorter than 150”. PART NUMBER: DMD-120-24-2-150C-60F-5-20-01
OPTION: Structural support tray. Dimension: 225” x 36”. Trays allow storage of shorter material. Price per tray. Max 1 per roll-out level. *NOTE: ADD -SST to the end of part number if you would like structural support tray.
*Please note that the roll out cantilever rack system is available in a variety of heights, depths and lengths to meet your specific needs. The roll out cantilever rack system comes with just roll out arms, trays sold separately.
**WHEN SUBMITTING QUOTE REQUEST PLEASE SPECIFY PART NUMBER LISTED ABOVE, WHICH HAS A (S) or (D) at the FRONT WHICH TELLS US IF YOU WANT (S) = SINGLE SIDED OR (D) = DOUBLE SIDED UNIT.
NOTES: IT WOULD BE VERY HELPFUL IF YOU COULD ANSWER QUESTIONS FOUND AT BOTTOM OF PAGE TEXT BELOW. IT WILL HELP US GIVE YOU A MORE ACCURATE QUOTE. THESE RACKS ARE ALL CUSTOM MADE TO YOUR SPECIFICATION. Available in a variety of sizes. Est. Lead Time: 8-10 weeks. **Flat bed, lift truck is required to unload from the side. Installation (per Rack) should be made by a team of 3 qualified workers. 2 assembling + 1 manipulating the parts with a bridge crane or a lift truck.
Estimated time to install: 8 hours for a team of 3 workers. Please understand, the roll out levels are two arms rolling in and out simultaneously if the stored products are shorter than 150’’ (distance between the columns).
The Roll Out Cantilever Rack is a storage solution that will transform your space and your day-to-day operations.
This storage solution takes the classic cantilever rack – ideal for storing oddly shapen and non-uniform inventory – and combines it with a roll-out feature to easily access your inventory. The drawers make it easy to secure a variety of products of all different shapes and sizes. You don’t have to worry about getting multiple storage systems. The Roll Out Cantilever Rack is designed to help you maximize your storage density.
This Roll Out Cantilever Rack system is also designed to help you improve your efficiency. The drawers make it easy to find what you’re looking for quickly. Once you’ve found what you’re looking for, you can quickly shut the drawer and move on to something else. You don’t have to take everything out and reorganize it each time. With this crank out cantilever rack, everything is neatly stored in one place.
This Roll Out Cantilever Rack system is ideal for anyone looking to organize a wide variety of inventory without purchasing multiple systems. It combines the flexibility of a cantilever rack system that allows you to store varying length products while proving the efficiency of a roll out rack system. Roll out rack allows you to pick products with use of a forklift or overhead crane. Arm levels roll out easily allowing ergonomic efficiency.
124″ tall x 57″ deep single side / 95″ deep double sided x 240″ wide (length of material stored) Overall Size Roll-Out Cantilever Rack System. New. 6 arm levels per side (5 roll out + Top Stationary). Available in single sided or double sided units. Cantilever rack system utilizes three components: 1. The crank-out cantilever rack system utilizes three components: 1. Cantilever tower including stackable base assembly. 2. Cantilever arms with roll out solid shelves. 3. Brace panels are available in a variety of widths. Brace panels consist of horizontal bracing that is available in a variety of widths designed to support products of varying length.

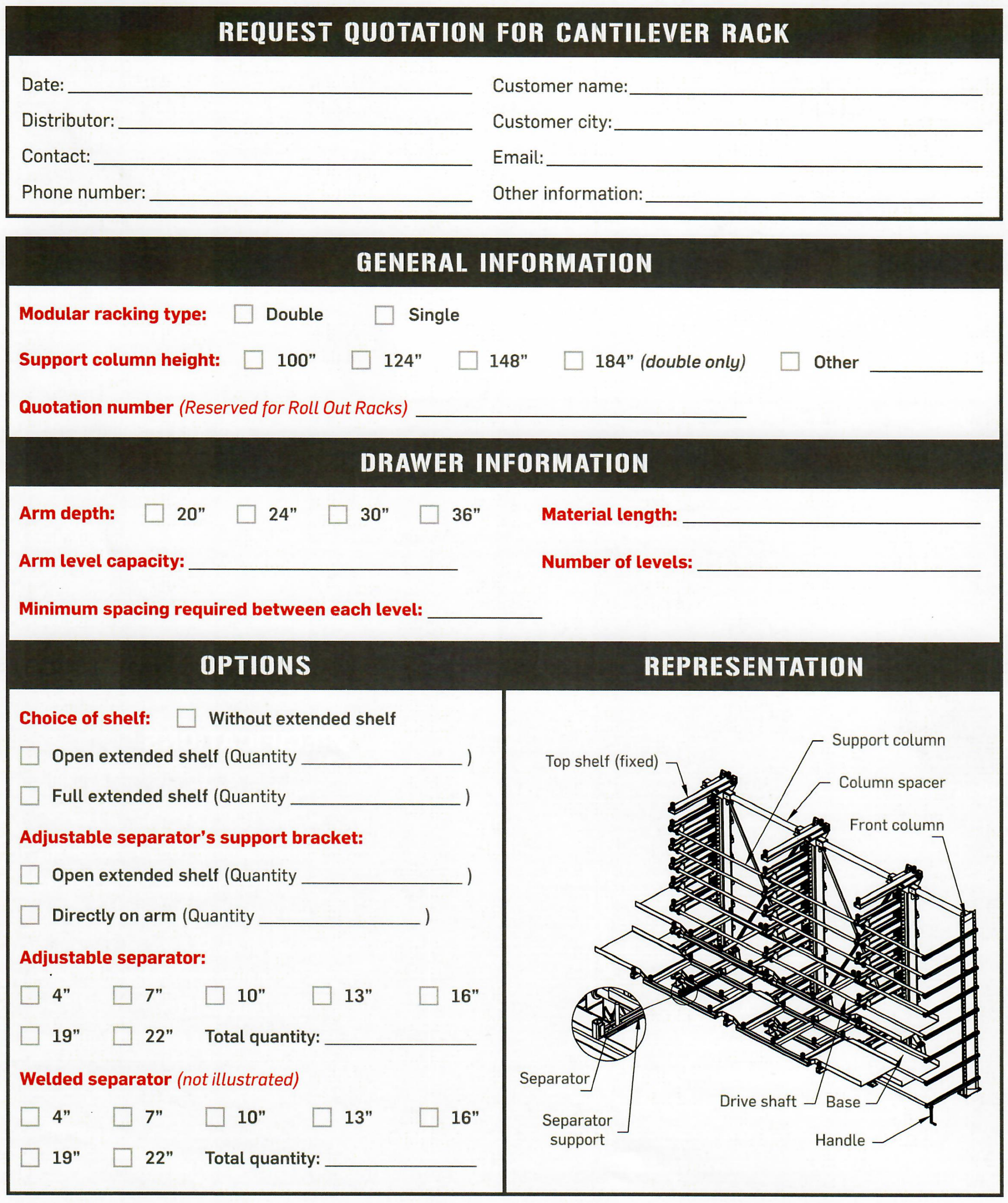

CORE QUESTIONS FOR ROLL OUT CANTILEVER RACK QUOTE:
Length of Stock?
Size of Bundles (diameter or width x height)?
Weight of each bundle?
Height Restriction?
Floor Space Restriction?
Do you have any shorter stock that you need to store also?
What is the material, is it flimsy, do you need an intermediate support?
How many SKU’s do you have?
