Corrugated Steel Containers with Fork Tunnels | Fork Pockets | Fork Tubes

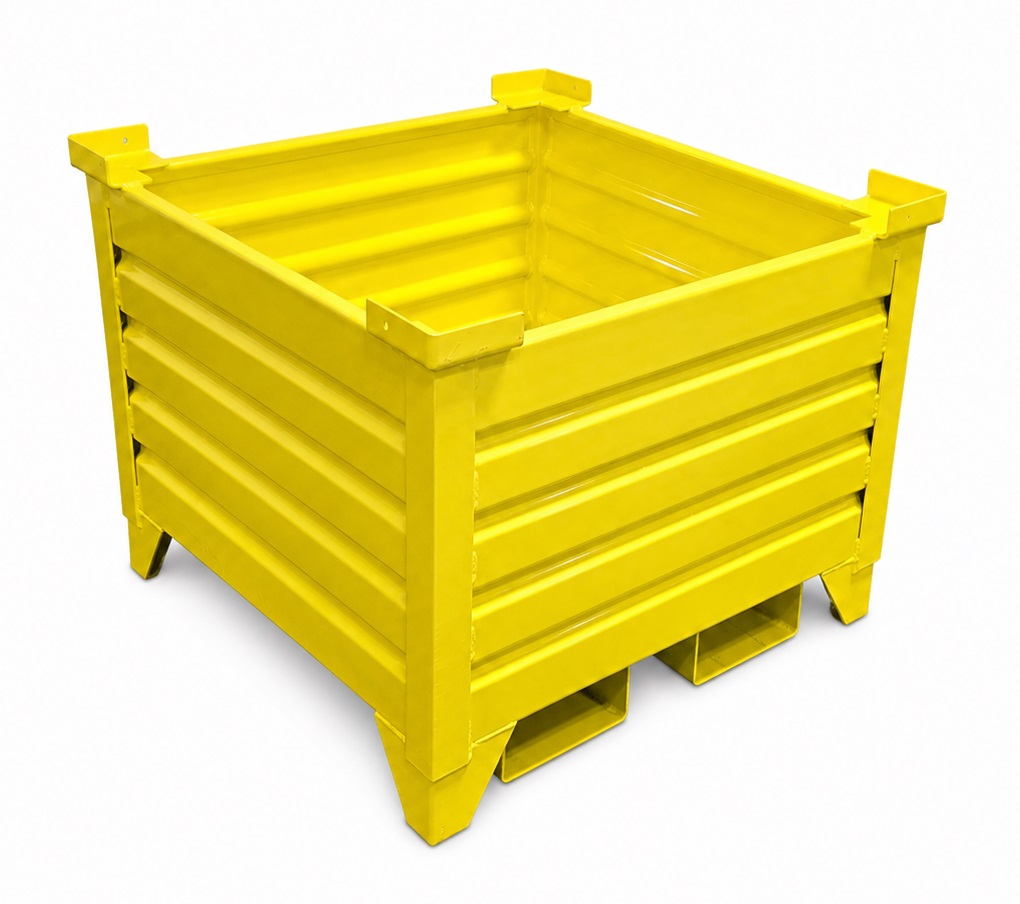

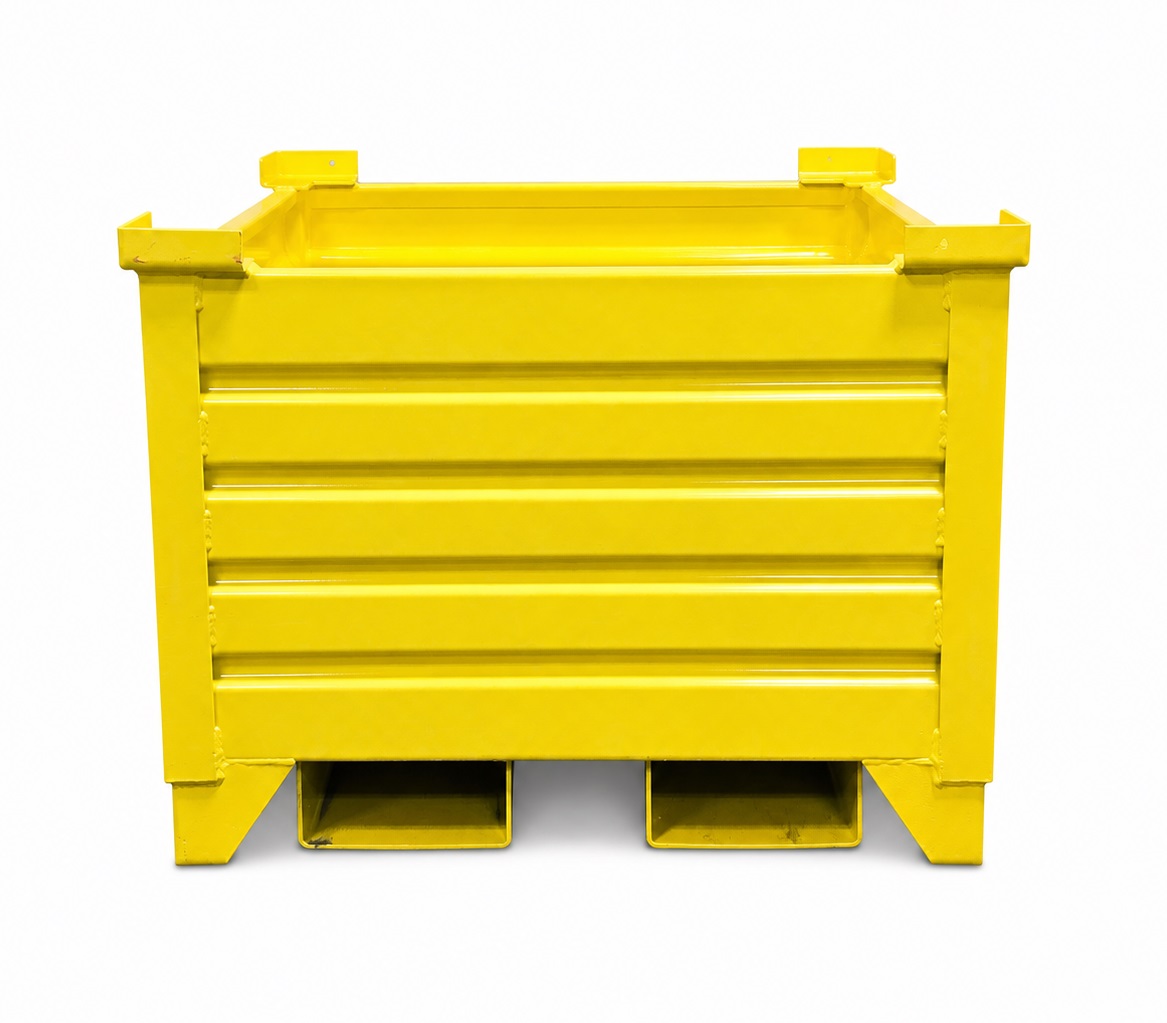

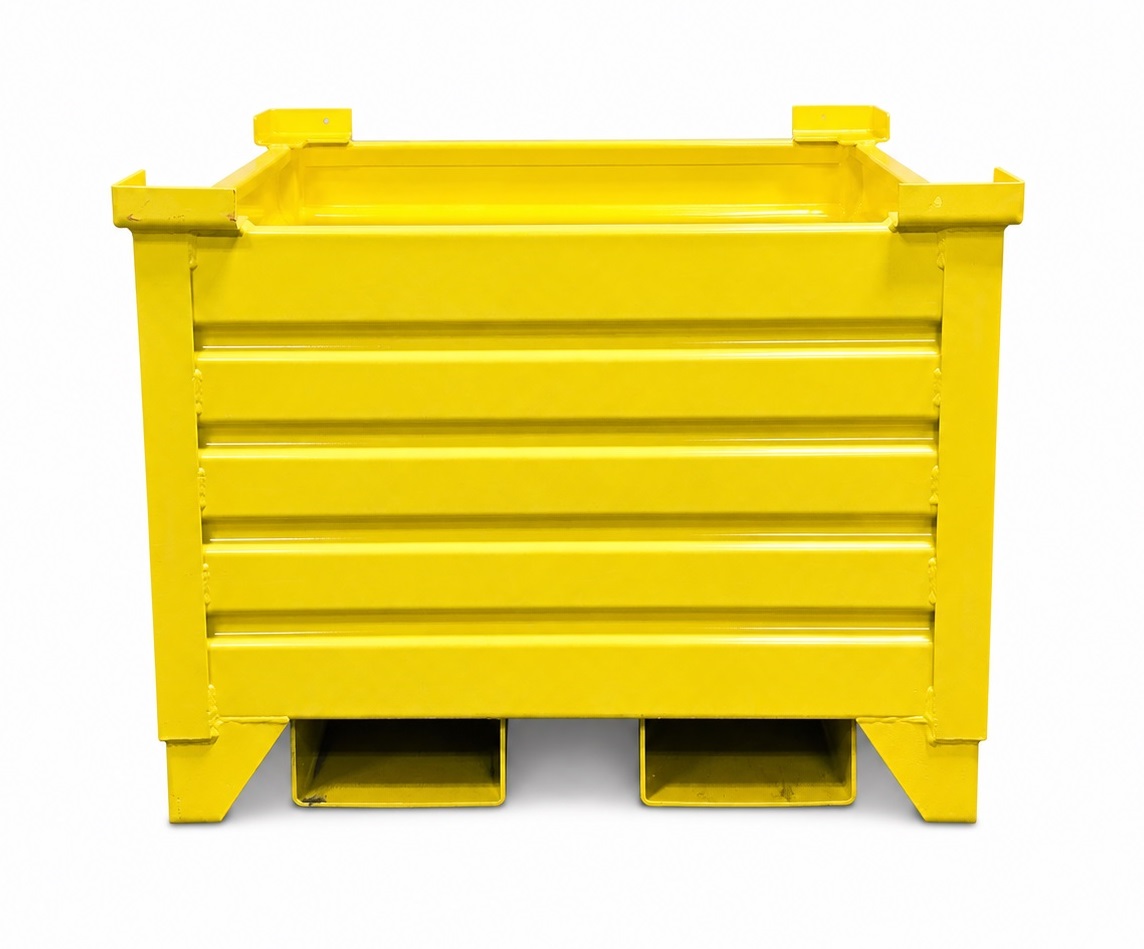

48” wide O.D. x 48” Long O.D. x 29.5” Overall height Rigid Corrugated Steel Container with Fork Pockets / Fork Tunnels. New. (47.6” wide I.D. x 47.6” long I.D. x 24” clear ht.) 4,000 lbs. capacity stackable 5 high. Cap. Cu. Ft.: 31.3. Constructed of 2″ x 2″ x .187 GA. steel angle in corners. 13 GA. corrugated steel panel sides. 12 GA. steel panel bottom. Black enamel finish. (Other colors available). Weight: 243 LBS. Part Number: H600-378-FT-BLK
NOTES: Please note that by default 2 way fork tubes are always added to opposite long sides of the container or the fork entry sides. Let us know if you want them added to the short sides of the container. We can also provide 4 way fork tubes but that costs more money because they require laser cutting. Corrugated steel containers with fork tubes are available in 18 different sizes. Est. Lead time: 3-4 weeks. FOB: WI
Corrugated steel containers and bins with forklift channels are primarily used for dumping contents. The full length fork tunnels secure the container to the forks of the forklift allowing you to safely dump products. Keep in mind that your forklift must have a dumping mechanism to accomplish this task.
Fork tunnels are fully enclosed steel tubes that are welded under the steel container. They are very similar to fork stirrups in that they secure the container to the forks of the forklift which increases safety when transporting and stacking containers. The only advantage that fork tunnels have over fork stirrups is that they allow you to safely rotate the container for dumping.
Corrugated steel bins with fork tunnels are very popular in the scrap industry which relies on storing, transporting, stacking and dumping of scrap material. The fork pockets do not prevent stacking. The steel scrap containers are stackable up to 5 high which allows you increase storage density and handling efficiency in your warehouse.
TIP FROM THE PRO’S: BY DEFAULT WE ADD 2 WAY FORK TUBES TO THE LONG SIDES OF THE CONTAINER. THIS INSURES THAT FORK TRUCK WILL ENTER FROM THE WIDEST SIDES. 2 WAY FORK TUNNELS ALLOW THE CONTAINER TO BE FORKED FROM TWO OPPOSITE SIDES. WE SUGGEST THAT FORK TUNNELS BE ADDED TO THE FORK ENTRY SIDE OR SIDES OF THE CONTAINER.
