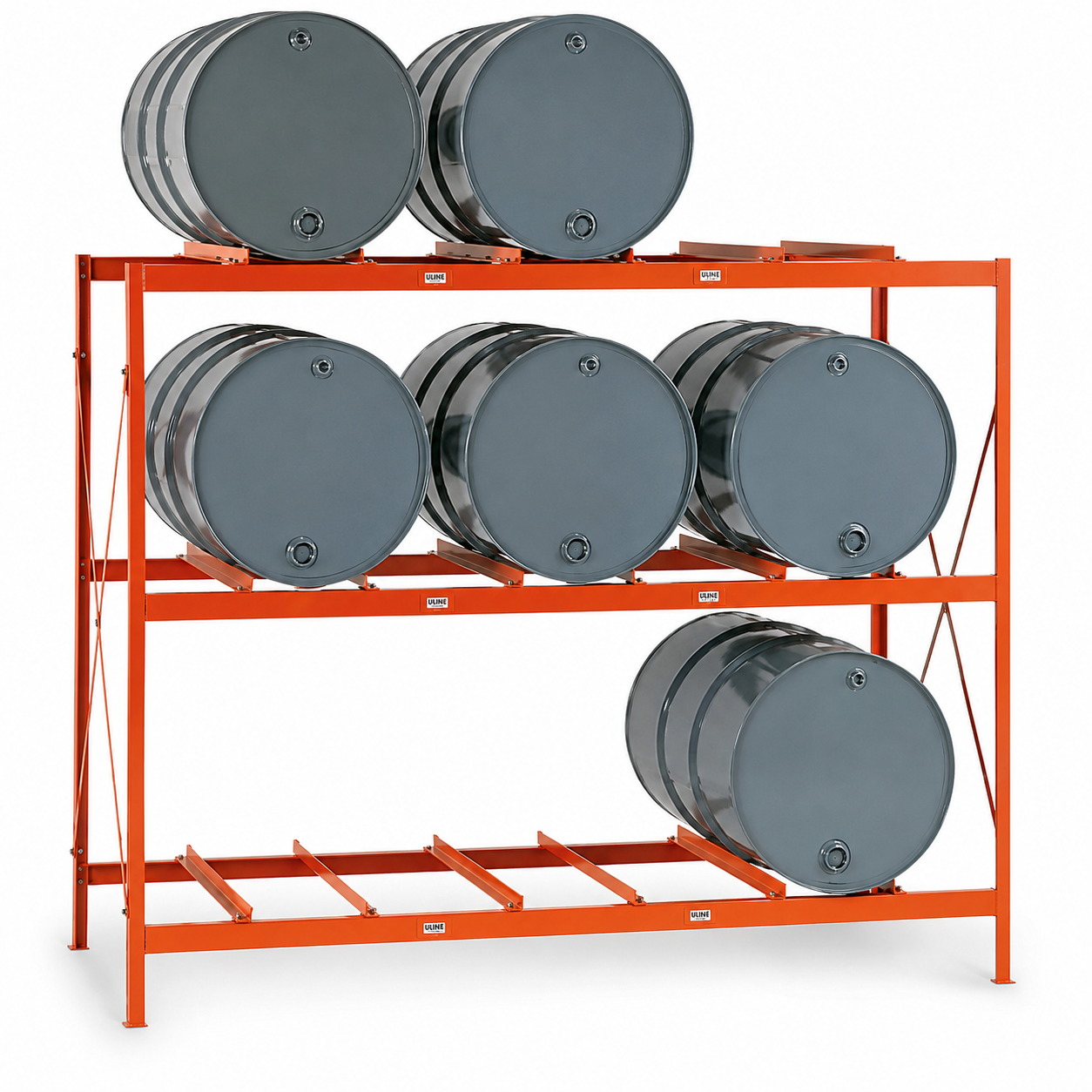

55-Gallon Drum Storage Rack

84″ W. x 36″ D. x 84″ H. Drum Rack Starter Unit. New. 3 levels of 3 drums. 10,860 lbs. Capacity per Unit. Drums Stored. Color: Gray. Weight: 390 LBS. Part Number: WPDR9

Lower Prices for Larger Quantities
SKU: WPDR9. Categories: , , .

It’s a common mistake, but the Drum Racking we sell is for storing steel drums, not the kind you’d find in a rock band!

Drums are extremely heavy and difficult to store. But they can pose a huge safety threat when they aren’t stored properly. Imagine the damage a rolling drum could cause. Meet the drum rack.

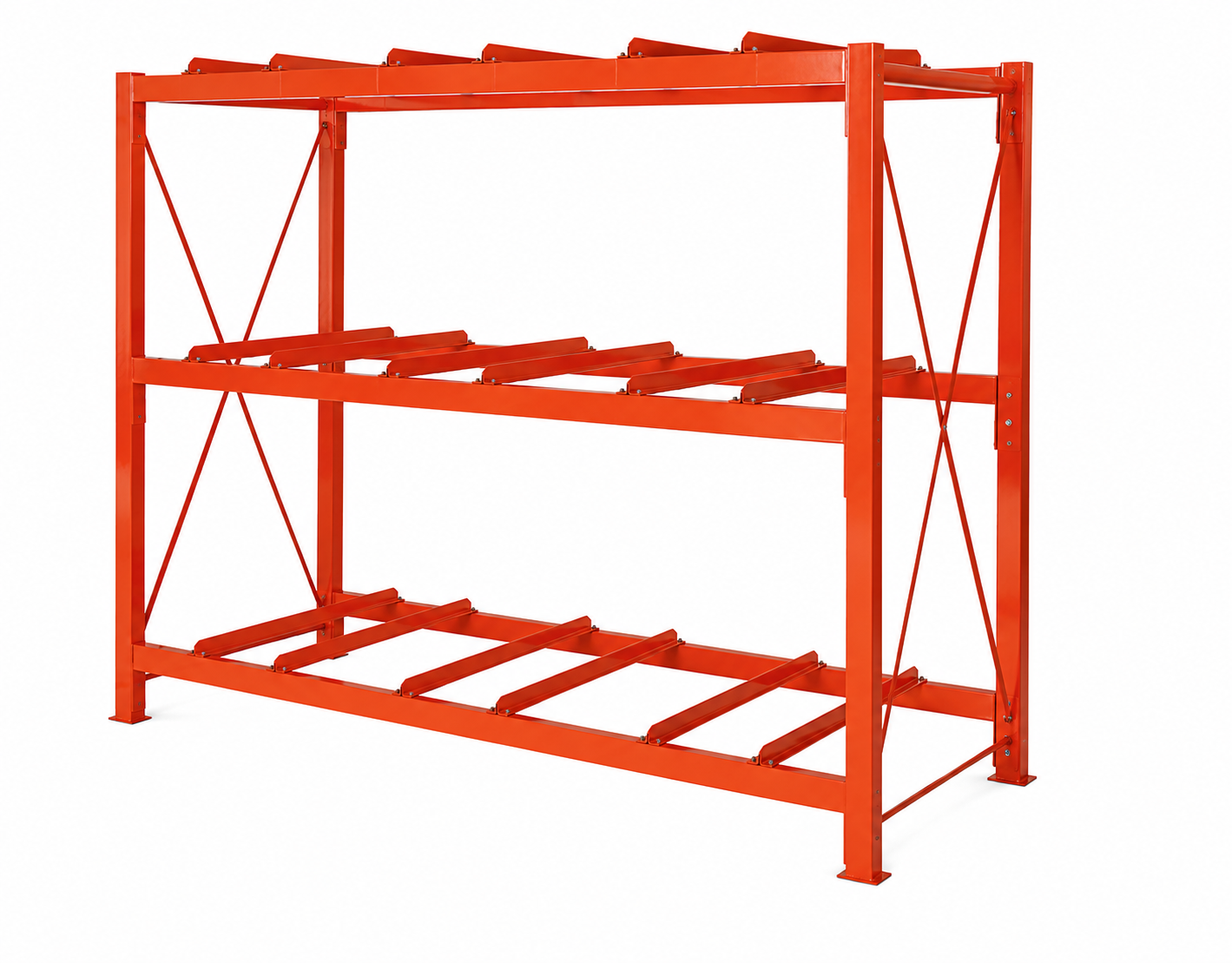

Our drum racking is constructed of heavy-duty structural steel and used for storing 30 and 55 gallon drums three wide by three high in a storage rack. Each drum rack has upright frames, horizontal load beams and cradles. 55 gallon drum racks are a crucial rack system for any company that stores drums.

Because drums are an unusual item to store, they need a unique storage solution. You won’t find a better solution than the drum rack. The cradles secure the drums in place. The cradles also keep the drums from rubbing right against the rack and causing damage the outsides.

55 gallon drum racks are designed to store drums horizontally for safe storage. These drum storage racks can be loaded from either side to allow for efficient loading, unloading and handling of drums. Drum cradles are designed to remain fixed in the rack, but can be removed from any level to allow storage of palletized material.

Storing these on your floor can take up space you can’t afford to lose. By storing up, you’re able to clear up that valuable floor space and make the most of unused air space. You can store up to nine drums on one rack – think of all the space you could save!

We supply drum racking in starter units and add-on units. Add-on units require one upright frame, 6 load beams and 9 cradles. Cradles are included with the rack. Additional cradles can be ordered separately. We also provide portable 55 gallon drum racks. Let Warehouse Rack & Shelf LLC solve your drum storage problems.

Drum Racking Features Include:
• Designed to store (9) – 30-gallon and/or 50-gallon drums
• 3″ structural steel channel frame and beams
• Punched on 4″ centers for 2″ vertical adjustability
• Stores both 30 gallon and 55 gallon drums
• Cradles are removable
• Ships KD (knocked down). Requires some assembly

55 Gallon Drum Rack Advantages Include:
• Satisfy your high-capacity drum storage requirements
• Allow for increased storage density in your warehouse while increasing handling efficiency
• Clear up floor space while utilizing air space in your facility
• They are easy to assemble by bolting the load beams to the all welded 3″ structural steel channel upright frames

Base Unit

Model # # of Drums Ht. Width Capacity Wt.
WPDR9 3 levels of 3 drums / 9 84″ 84″ 10,860 390
WPDR12 3 levels of 4 drums / 12 84″ 105″ 14,475 480
WPDR16 4 levels of 4 drums / 16 120″ 105″ 19,300 655

Add-On

Model # # of Drums Ht. Width Capacity Wt.
WPDR9-A 3 levels of 3 drums / 9 84″ 84″ 10,860 330
WPDR12-A 3 levels of 4 drums / 12 84″ 102″ 14,475 417
WPDR16-A 4 levels of 4 drums / 16 120″ 102″ 19,300 563
